  •   Digital intermediate relay with timer | 5A | 230V
      Digital intermediate relay with timer | 5A | 230V 1

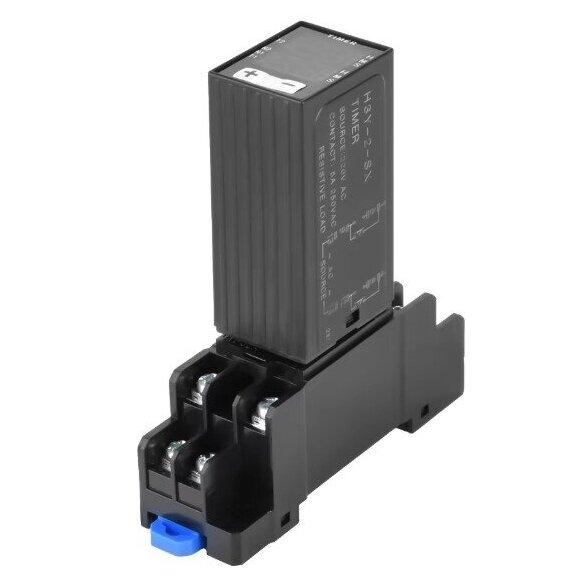

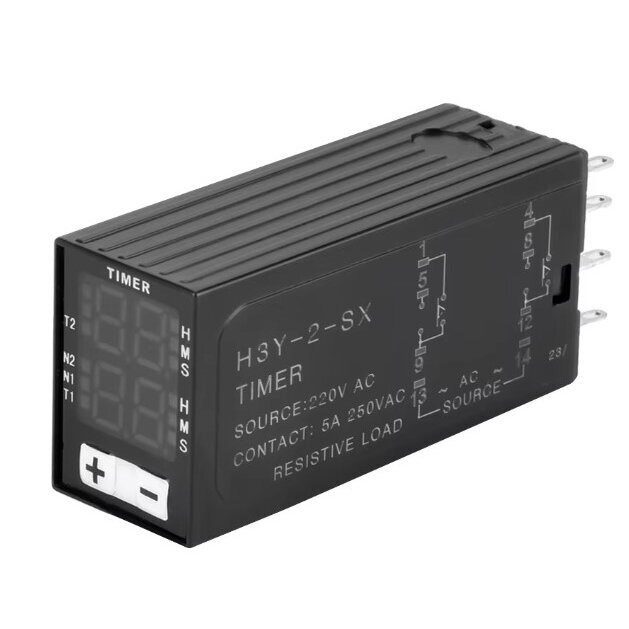

    Digital intermediate relay with timer | 5A | 230V

    Code: ES-H3Y-2-SX
    Inquire about this item
    Price 10.64 € VAT incl.
    ( 8.79 € VAT excl. )
    Want another price? Suggest yours!

    The digital intermediate relay with a timer is a reliable and durable device designed for use in industrial and other challenging environments. This device allows precise time control from 0.1 seconds to 99 hours, using a digital display with high-definition LED indication. The relay is highly resistant to high temperatures and fire, making it ideal for various industrial applications. Its PC housing ensures reliability and longevity, while the silver contacts provide stable performance and resistance to oxidation.

  • Product description

    Technical Data:

    Voltage: AC 230V
    Contacts: 8 contacts
    Time range: 0.1 seconds – 99 hours
    Power: Max. 1.5 VA
    Time accuracy: 1%
    Operating temperature: -25°C ~ 75°C
    Permissible voltage range: 90-110% of nominal voltage
    Housing: PC plastic (fire and high-temperature resistant)
    Display: Digital LED display

    Usage:

    This digital intermediate relay with a timer is perfect for use in various industries where precise time control is required. It can be used in automation systems, industrial equipment that require accurately set time delays or cycles. With its wide temperature range and fire resistance, the relay is suitable for both indoor and outdoor use. It can also be used in equipment start/stop control to protect devices from damage caused by improper timing.

    Advantages:

    Large time range: The ability to set time from 0.1 seconds to 99 hours provides great flexibility.
    Digital display: The LED display ensures clear and easy monitoring and control of settings.
    Wide voltage range: The ability to operate within 90-110% of the nominal voltage enhances reliability and adaptability to different conditions.
    Disadvantages:

    Time accuracy: Although the error is only 1%, in some high-precision systems, this might be insufficient.
    Only AC 230V voltage: The relay is designed only for AC 230V voltage, so it is not suitable for use with other voltages, such as 24V or 12V systems.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
