  • Emergency STOP button | 16mm | 220V | 1NO+1NC | LED (red) | IP65 | latching | anodized aluminum

    Code: ES-LB-M4-16

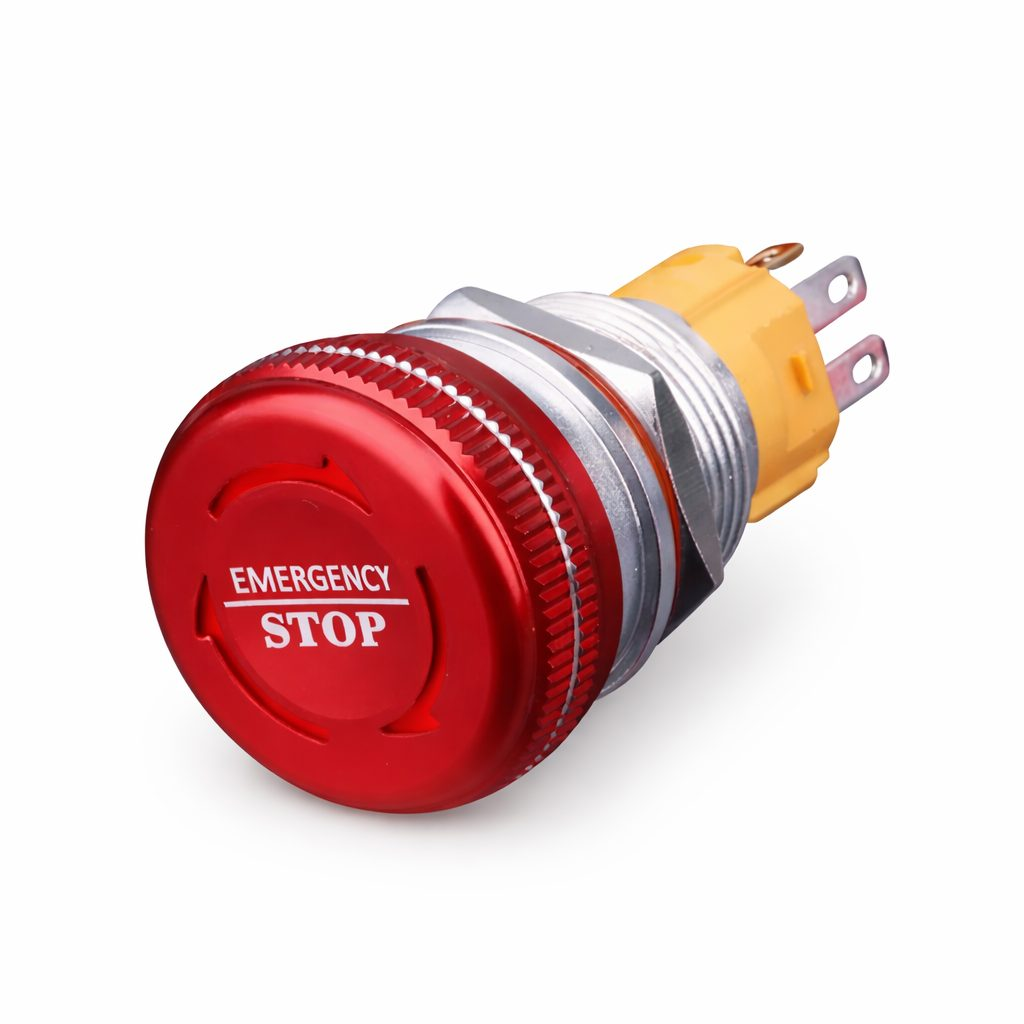

    Emergency STOP button with LED indication, designed for immediate shutdown of equipment in emergency situations. The bright red mushroom-shaped head with integrated LED illumination ensures maximum visibility even in low-light conditions. Due to the IP65 protection class, the button is resistant to water and dust, making it suitable for both industrial and outdoor environments. The robust anodized aluminum housing guarantees durability and reliable operation even under intensive use.

  • Emergency STOP button | 16mm | 220V | 1NO+1NC | LED (red) | IP65 | latching | anodized aluminum

    Metal mushroom-head STOP push button for a Ø 16 mm hole, made of anodised aluminium, with a red LED ring, 1NO + 1NC contacts and latching. The IP65 front suits machines, control stations and workshops.

    Key idea:

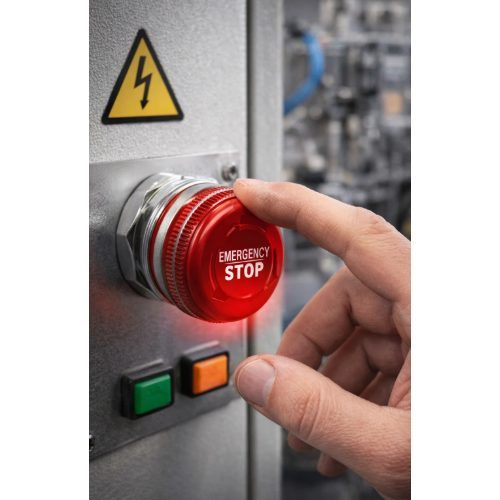

    When pressed, the button latches: the NC contact opens the circuit and the machine stops until the button is reset. The red LED ring highlights the STOP button and is clearly visible in the dark.
    Mounting hole
    Ø 16 mm
    Contacts
    1NO + 1NC
    Operation
    latching
    LED ring
    red, 220 V
    Degree of protection
    IP65
    Housing
    anodised aluminium

    How it works

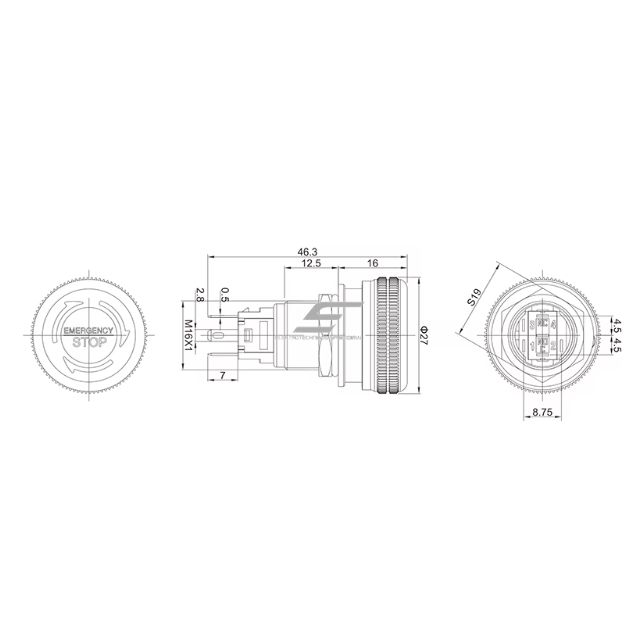

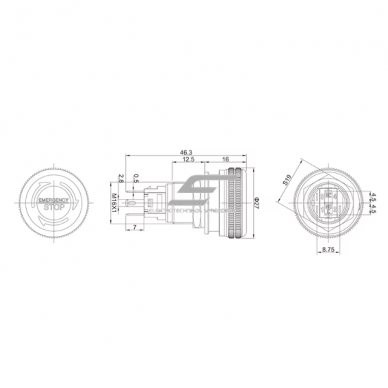

    The button is fitted into a Ø 16 mm hole and tightened with a nut from the rear.

    When the mushroom head is pressed, the NC contact opens and the NO contact closes, and the button stays pressed until reset.

    The LED ring is supplied separately via its own terminals (220 V), so it can be wired independently of the contacts.

    What are the benefits? Compact metal housing, IP65 and an LED ring – a robust and clearly visible STOP button where a 22 mm plastic button is too large or not robust enough.

    Technical specifications

    Product type Mushroom-head STOP button with LED ring
    Mounting hole Ø 16 mm
    Head mushroom, red
    Operation latching
    Contacts 1NO + 1NC
    Max. voltage up to 220 V
    Max. current 5 A
    LED ring red
    LED voltage 220 V
    Degree of protection IP65
    Housing material anodised aluminium

    Main functions

    • NC contact stops the machine, NO contact can signal a PLC or a lamp
    • Latching – the machine does not restart until the button is reset
    • LED ring clearly visible in the dark
    • Metal IP65 housing resists impacts, dust and water jets

    Where is it used?

    • Machine tools, compressors and tools in workshops
    • Machine and vehicle control stations
    • Compact control stations where a 22 mm button does not fit
    • Control boxes outdoors or in damper environments

    Use by need

    For the installer. 1NO + 1NC lets one head both stop the circuit and send a signal to the controller.
    For machine builders. The Ø 16 mm metal housing looks neat and suits small control stations.
    For workshops and DIY. A convenient STOP button for a machine tool or compressor with a 220 V control circuit.

    Practical use

    In a compressor control circuit the NC contact is connected in series with the contactor coil: pressing the button de-energises the coil and the motor stops. The red LED ring marks the STOP button and is clearly visible.
    Pros
    • Anodised aluminium metal housing
    • IP65
    • 1NO + 1NC with latching
    • LED ring
    Cons
    • Compliance with EN ISO 13850 is not stated in the data – for machine emergency stop choose a certified emergency stop button
    • LED 220 V only – not suitable for 12/24 V circuits

    Safety and installation notes

    • Installation and connection must be carried out by a qualified electrician.
    • Before installation, disconnect the supply and verify that there is no voltage.
    • For machine emergency stop circuits use buttons certified to EN ISO 13850 and IEC 60947-5-5.
    • Do not exceed 5 A – switch larger loads via a contactor.
    Quick selection guide
    Ø 16 mm1NO + 1NClatchingLED redIP65aluminium

    FAQ

    ⚡ Is this a certified emergency stop button for machines?
    Compliance with EN ISO 13850 is not stated in the manufacturer data. For safety circuits choose a certified emergency STOP button.
    ⚡ How is the button reset?
    The button stays pressed until reset – the reset method is shown in the marking on the button.
    ⚡ Can the LED be connected to 24 V?
    No, the LED ring is designed for 220 V.
    ⚡ What current can be switched?
    Up to 5 A at up to 220 V. Switch motors via a contactor.
    ⚡ What hole size is needed?
    A Ø 16 mm hole.

    Emergency STOP button | 16mm | 220V | 1NO+1NC | LED (red) | IP65 | latching | anodized aluminum

    Mushroom-head STOP button Ø 16 mm, 1NO + 1NC, latching, red LED ring 220 V, IP65, anodised aluminium – a robust solution for control stations and machines. Need push buttons selected for a whole control station? Send us the diagram – we will select the products and send a quote.

    Published: 2026-11-06 · Data according to the manufacturer’s marking: 2026-11-06

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
