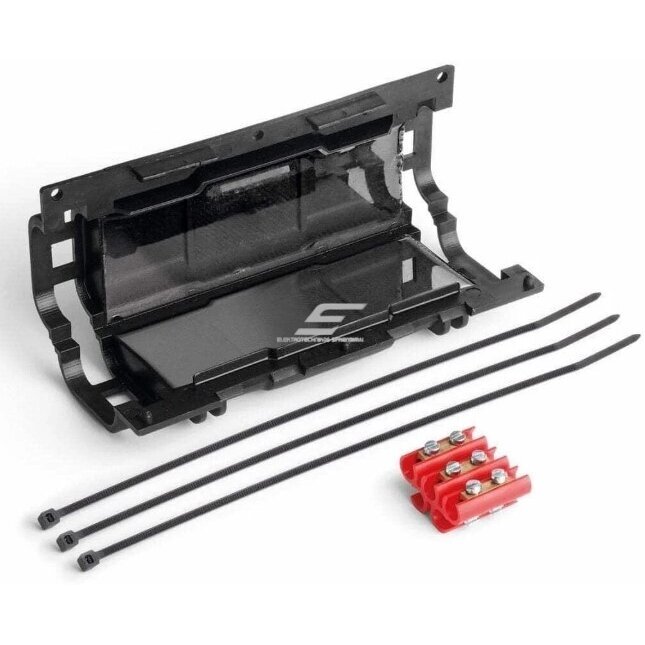

  • Gel cable joint | 2–5 × 1.5–6 mm² | 150 × 56 × 30 mm | IPX8 | Raytech Super Clik 1 | SUPERCLIK1

    Code: SUPERCLIK1

    Raytech Super Clik 1 is a cable joint pre-filled with polymer gel for 0.6/1 kV cables: straight joint 2–5 × 1.5–6 mm², branch T: 2–5 × 4 mm² · B: 2–5 × 2.5 mm². Housing 150 × 56 × 30 mm, protection IPX8 – suitable underground and submerged.

  • Gel cable joint | 2–5 × 1.5–6 mm² | 150 × 56 × 30 mm | IPX8 | Raytech Super Clik 1 | SUPERCLIK1

    Raytech Super Clik 1 is a cable joint pre-filled with polymer gel for 0.6/1 kV cables: straight joint 2–5 × 1.5–6 mm², branch T: 2–5 × 4 mm² · B: 2–5 × 2.5 mm². Housing 150 × 56 × 30 mm, protection IPX8 – suitable underground and submerged.

    Key idea:
    Raytech joints are designed so the joint is made quickly and cleanly: no resin, heating or curing time. The gel insulates the connection and seals the cable entries, and the joint is suitable for both permanent and temporary connections.
    Sealing
    IPX8
    Straight joint
    2–5 × 1.5–6 mm²
    Dimensions
    150 × 56 × 30 mm
    Cable Ø
    Ø max. 20.5 mm

    How it works

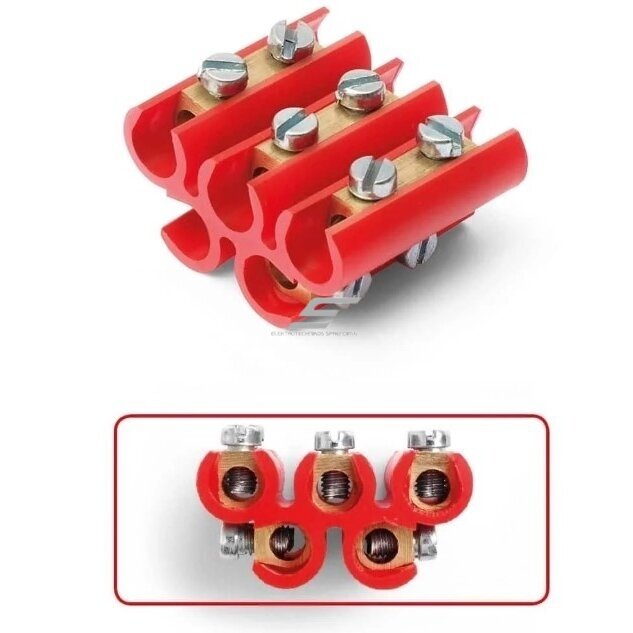

    The cable cores are joined with suitable connectors chosen according to the cross-section.

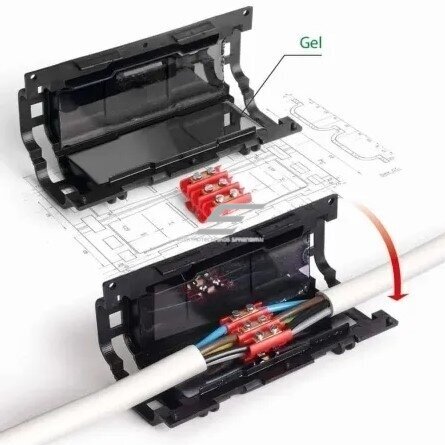

    The connection is placed in the gel-filled housing and the housing is snapped shut ("clik"). The gel surrounds the connectors and cable sheaths, displacing air and moisture.

    The resulting joint meets insulation Class 2 to CEI 64-8, can be operated underground and submerged, and can be reopened if needed.

    Why choose Super Clik 1?
    The joint is done in minutes and the gel has no shelf life, so it is worth keeping in stock for emergency repairs.

    Technical specifications

    Product typePre-filled gel cable joint
    Manufacturer / seriesRaytech (Italy)
    ModelSuper Clik 1
    CodeSUPERCLIK1
    Main cable (cores × cross-section)2–5 × 1.5–6 mm²
    BranchT: 2–5 × 4 mm² · B: 2–5 × 2.5 mm²
    Cable outer diameterØ max. 20.5 mm
    Rated voltage0.6/1 kV
    Dimensions (L × W × H)150 × 56 × 30 mm
    Degree of protectionIPX8
    Operating temperature+90 °C (max.)
    Installation temperature−40…+50 °C
    FillingHalogen-free polymer gel (UL 94-HB), not classified as hazardous (CLP)
    InstallationIndoor, outdoor, underground, submerged
    StandardsCEI EN 50393 (with connectors to EN 61238-1); Class 2 to CEI 64-8
    Re-enterableYes
    Shelf lifeUnlimited

    Main features

    • Pre-filled with gel – installation without resin or heating.
    • IPX8 sealing – for underground and submerged use.
    • Snap-shut housing – closed by hand, no tools.
    • Re-enterable – the joint can be reworked.
    • Halogen-free gel – not classified as hazardous.
    • Insulation Class 2 to CEI 64-8.

    Where is it used?

    • Outdoor and garden lighting
    • Underground cable lines
    • Pumps, wells, irrigation systems
    • Emergency cable repairs
    • Temporary connections on construction sites
    • Industrial and infrastructure sites

    Use by need

    For the electrician.
    A compact joint to keep in the van for emergency repairs.
    For the lighting installer.
    Quick, sealed joints and branches for outdoor luminaires.
    For the homeowner.
    A safe cable joint to yard equipment without special tools.

    Practical example

    If a cable in the yard has to be extended to a new luminaire or pump, the cores are joined with connectors, the connection is placed in the Super Clik 1 gel and the housing is snapped shut. The joint can be buried or left in a damp place immediately.

    Pros

    • Installation in a few minutes
    • IPX8 – suitable for submersion
    • Gel with no shelf life
    • Re-enterable
    • Compact dimensions

    Cons / limitations

    • Only for the stated cross-sections and cable diameter
    • Up to 0.6/1 kV
    • Check the connector type and quantity against the kit contents

    Safety and installation notes

    • Work with the supply switched off.
    • Use connectors (terminals) that match the cross-section.
    • Do not strip more insulation than the connector needs.
    • Before closing, make sure the cables sit correctly in the entries.
    • Do not exceed the stated cable diameter – sealing will suffer.

    Quick selection guide

    2–5 × 1.5–6 mm²
    150 × 56 × 30 mm
    IPX8
    Raytech Super Clik 1
    SUPERCLIK1
    Suitable when you need:
    • A sealed joint outdoors or underground
    • A quick repair without resin
    • Branches to luminaires or equipment
    Check before use:
    • Number of cores and cross-section
    • Cable outer diameter
    • Straight or branch joint
    Important reminder: The joint does not replace line protection – the circuit must be protected by a circuit breaker, and outdoor circuits by an RCD.

    FAQ

    Is the joint suitable underground?
    Yes, it is suitable for underground and submerged use.
    Is extra gel needed?
    No, the joint is already filled with gel.
    Can it be opened later?
    Yes, the joint is re-enterable.
    For what cable diameter?
    According to the manufacturer: Ø max. 20.5 mm.
    For what voltage?
    For cables up to 0.6/1 kV.
    Are tools needed to close it?
    No, the housing snaps shut by hand.

    Gel cable joint | 2–5 × 1.5–6 mm² | 150 × 56 × 30 mm | IPX8 | Raytech Super Clik 1 | SUPERCLIK1

    Gel cable joint | 2–5 × 1.5–6 mm² | 150 × 56 × 30 mm | IPX8 | Raytech Super Clik 1 | SUPERCLIK1 – a sealed, quick-to-install solution for electrical connections outdoors, underground and in damp locations. Available at elsprendimai.eu – ELSprendimai has checked the technical data and will help you choose the right size.

    Published: 2026-11-18 · Data checked against manufacturer and supplier data: 2026-11-18

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
