  • Gel T-branch joint | up to 4 × 10–35 mm² | branch up to 4 × 2.5–25 mm² | without connectors | 0.6/1 kV | 250 × 143 × 46 mm | IP68 | SHARK 435 | SH0435

    Code: SH0435

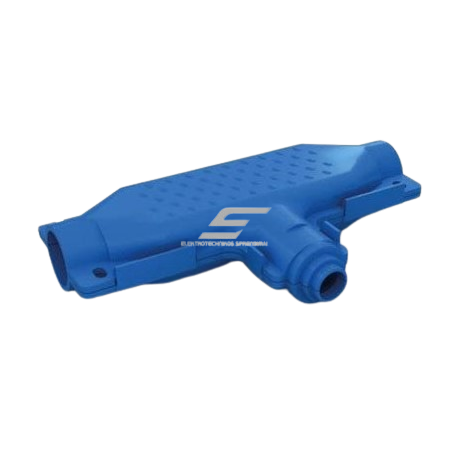

    SHARK 435 (SH0435) is a T-branch joint pre-filled with silicone gel for 0.6/1 kV cables with up to 4 cores: main cable up to 4 × 10–35 mm², branch up to 4 × 2.5–25 mm². Connectors are not included – choose them according to cross-section and conductor material. Housing 250 × 143 × 46 mm, protection IP68 (IPX8).

  • Gel T-branch joint | up to 4 × 10–35 mm² | branch up to 4 × 2.5–25 mm² | without connectors | 0.6/1 kV | 250 × 143 × 46 mm | IP68 | SHARK 435 | SH0435

    SHARK 435 (SH0435) is a T-branch joint pre-filled with silicone gel for 0.6/1 kV cables with up to 4 cores: main cable up to 4 × 10–35 mm², branch up to 4 × 2.5–25 mm². Connectors are not included – choose them according to cross-section and conductor material. Housing 250 × 143 × 46 mm, protection IP68 (IPX8).

    Key idea:
    The T-branch joint is made for branching off a main cable when you need sealed, re-enterable insulation without resin. Since connectors are chosen separately, the same housing can be used with copper or aluminium – the key is choosing suitable branch connectors.
    Sealing
    IP68 (IPX8)
    Cores
    up to 4 × 10–35 mm²
    Dimensions
    250 × 143 × 46 mm
    Voltage
    0.6/1 kV

    How it works

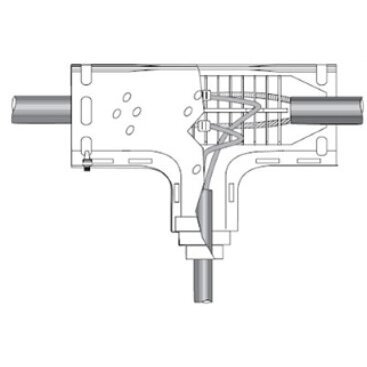

    The cable sheath and core insulation are stripped to the length given in the instructions, the cores are joined in the terminal block or connector and tightened (with the supplied Allen key where specified).

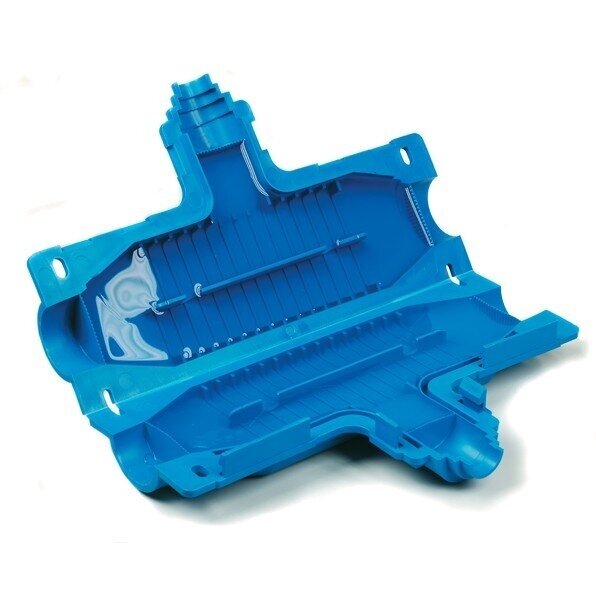

    The joint is pressed into the gel-filled housing between the internal ribs and the housing is snapped shut. As it closes, the gel is displaced and surrounds the cores and the cable sheath at both ends, forming a tight barrier against water and dirt.

    The result is a double-insulated joint that can be laid directly in the ground, in a duct, overhead or under water. Cable ties through the slots in the housing secure the cables and reduce pull on the joint.

    Why choose SHARK 435?
    The joint is ready in a few minutes without mixing resin, waiting for curing or heating. The gel has no shelf life, and the joint can be opened for checks or changes.

    Technical specifications

    Product typePre-filled gel T-branch joint without connectors
    Manufacturer / seriesSHARK (Etelec, Italy)
    ModelSHARK 435
    CodeSH0435
    Main cable (cores × cross-section)up to 4 × 10–35 mm²
    Branchup to 4 × 2.5–25 mm²
    Connectors includedNone – connectors are selected separately; kit contains gel shell, cable ties, instructions
    ConductorsAccording to the chosen connectors
    Rated voltage0.6/1 kV
    Dimensions (L × W × H)250 × 143 × 46 mm
    Degree of protectionIP68 (IPX8)
    Operating temperature−20…+90 °C
    HousingPolypropylene (PP), blue, UV resistant, self-extinguishing (EN 60695-2-11)
    FillingTransparent non-toxic silicone gel
    InstallationDirect burial, underground, overhead, cable ducts, submerged
    StandardsEN 50393, EN 60695-2-11, CEI 20-37/2-1, CEI 20-37/4; RoHS
    Re-enterableYes
    Shelf lifeUnlimited

    Main features

    • Pre-filled with gel – no resin and no curing time.
    • Re-enterable – contacts can be checked and reworked.
    • Transparent silicone gel – you can see that the gel has sealed the cores.
    • Double insulation – gel and housing insulate the joint together.
    • UV-resistant PP housing – suitable outdoors and overhead.
    • Cable tie fixing – less pulling load on the joint.

    Where is it used?

    • Street and area lighting branches to poles or luminaires
    • Underground cable routes between buildings
    • Pumps, wells, fountains, ponds
    • Cable repair after damage during excavation
    • Damp cable ducts and shafts
    • 0.4 kV networks of industrial and infrastructure sites

    Use by need

    For the electrician.
    A quick, sealed joint or branch on site without resin or special tools.
    For the home or country-house owner.
    A reliable buried cable joint to garden lights, gate automation or a pump.
    For the utility engineer / contractor.
    A re-enterable joint that can be inspected without replacing the insulation.

    Practical example

    If a new luminaire has to be fed from an underground lighting line, the main cable is not cut – the branch is connected with a connector, the joint is pressed into the SHARK 435 gel and the housing is closed. The line stays continuous and the branch is sealed.

    Pros

    • Ready to use – no resin, pouring or heating
    • Sealed against water and dust (IP68 / IPX8)
    • Can be opened for inspection and changes
    • Non-toxic gel with no shelf life
    • Suitable for burial, overhead, ducts and submersion

    Cons / limitations

    • Only for 0.6/1 kV and lower-voltage cables
    • Cable cross-section and number of cores must match the joint size
    • Connectors are not included and must be purchased separately
    • Operating temperature up to +90 °C

    Safety and installation notes

    • Carry out all work with the supply switched off and verified dead.
    • Follow the manufacturer's stripping length – no bare conductor should protrude from the connector.
    • Tighten terminals to the specified torque; a loose contact heats up.
    • After closing, check that the gel has been displaced and surrounds the cable at both ends.
    • Do not use the joint for larger cross-sections or more cores than specified.

    Quick selection guide

    up to 4 × 10–35 mm²
    branch up to 4 × 2.5–25 mm²
    without connectors
    0.6/1 kV
    250 × 143 × 46 mm
    IP68
    SHARK 435
    SH0435
    Suitable when you need:
    • To join or branch a cable tightly in the ground, outdoors or in water
    • Fast installation without resin or curing time
    • The option of reopening the joint later
    Check before use:
    • Number of cores and cross-section
    • Conductor material (Cu / Al) and connector suitability
    • Cable diameter and joint size
    Important reminder: The joint does not replace overload and short-circuit protection – the line must be protected by a circuit breaker or fuses, and outdoor circuits by an RCD.

    FAQ

    Do I need to add resin or gel?
    No, the joint is already filled with gel and ready to use.
    Can the joint be buried directly in the ground?
    Yes, the manufacturer specifies direct burial, ducts, overhead and submersion.
    Can it be opened later?
    Yes, the housing can be opened, the joint checked and closed again.
    Are connectors included?
    No, the connector or terminal must be chosen separately.
    What voltage is it for?
    For 0.6/1 kV low-voltage cables.
    Does the gel have a shelf life?
    No, the gel has no expiry date and is non-toxic.

    Gel T-branch joint | up to 4 × 10–35 mm² | branch up to 4 × 2.5–25 mm² | without connectors | 0.6/1 kV | 250 × 143 × 46 mm | IP68 | SHARK 435 | SH0435

    Gel T-branch joint | up to 4 × 10–35 mm² | branch up to 4 × 2.5–25 mm² | without connectors | 0.6/1 kV | 250 × 143 × 46 mm | IP68 | SHARK 435 | SH0435 – a sealed, quick-to-install solution for electrical connections outdoors, underground and in damp locations. Available at elsprendimai.eu – ELSprendimai has checked the technical data and will help you choose the right size.

    Published: 2026-11-18 · Data checked against manufacturer and supplier data: 2026-11-18

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
