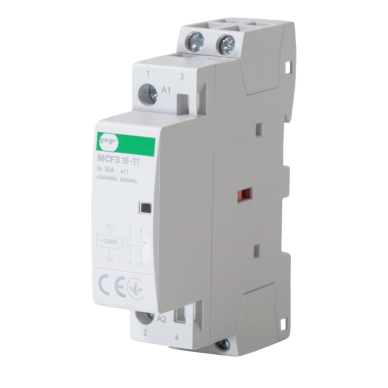

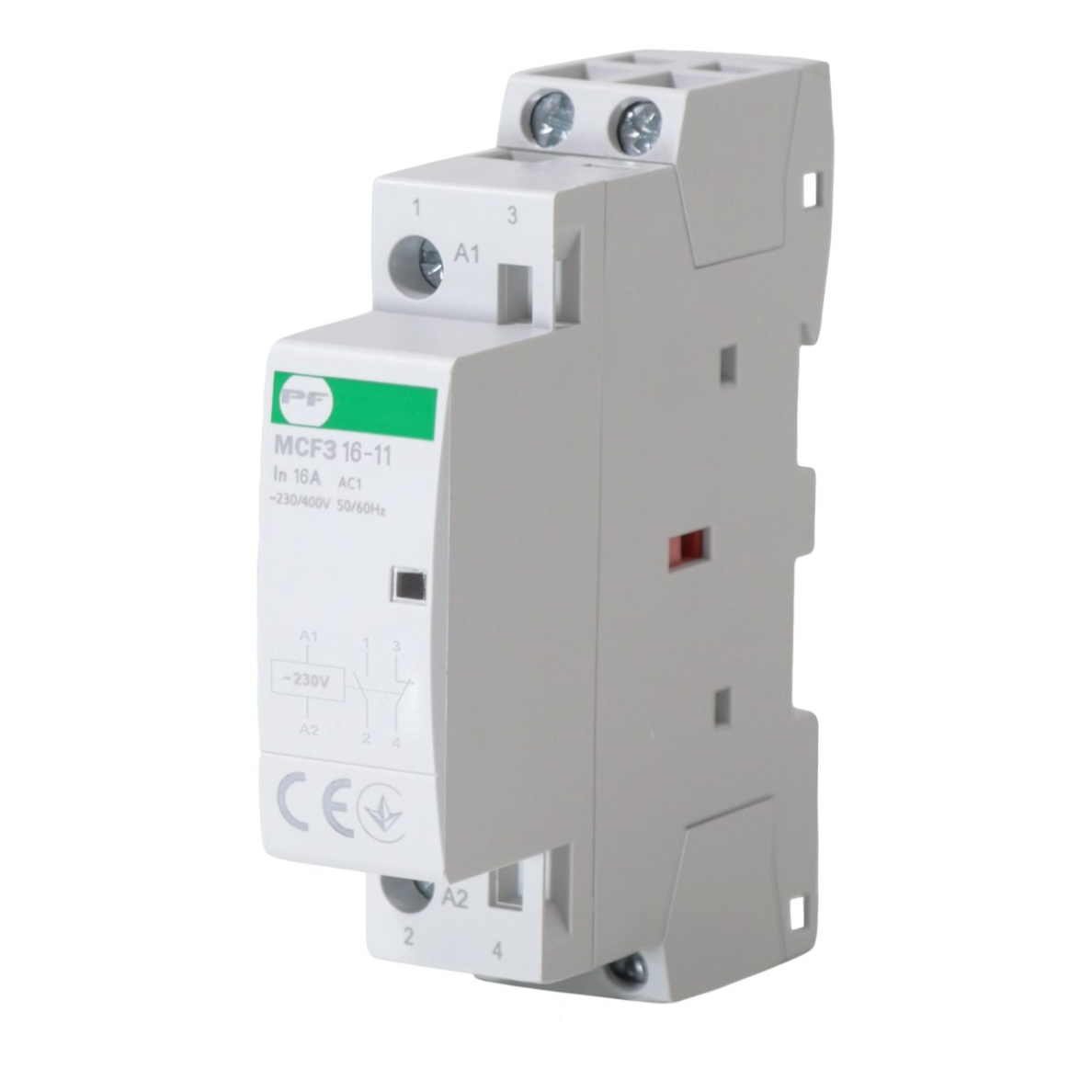

  • Modular Contactor 2P | 1NO+1NC | 16A | 230VAC | DIN | MCF3 Promfactor Baltic MCF31611230

    Code: MCF31611230
    Barcode: 4779040158830

    The modular contactor MCF3 is an electromechanical control device designed to switch electrical circuits on and off under medium load conditions. Due to its compact design, it is easily mounted on a DIN rail (35 mm wide), making it ideal for use in distribution panels and control systems.

    Modular contactors are widely used in residential, commercial, and industrial electrical installations, ensuring efficient and reliable electrical current control. With minimal vibrations and a quiet operating mechanism, this contactor is particularly suitable for environments where noise levels are restricted.

  • Technical Data
    Standards: IEC/EN 61095, IEC/EN 60947-4-1
    Number of poles: 2
    Rated current (Ith): 16A
    Contact group: 1NO+1NC
    Rated operational voltage (Ue): 230/400 V AC
    Rated control voltage (Uc): 220-230 V AC
    Insulation voltage (Ui): 500 V
    Impulse voltage (Uimp): 4000 V
    Frequency: 50/60 Hz
    Tightening torque for load circuit: 0.8 Nm
    Tightening torque for control circuit: 0.8 Nm
    Terminal size: 1-4 mm²
    Endurance: Electrical: 100,000 cycles; Mechanical: 1,000,000 cycles
    Response time: 0.05 s
    Protection rating: IP20
    Utilization categories: AC-1, AC-3, AC-7a, AC-7b
    Additional equipment: Option to connect additional accessories
    Mounting: DIN rail (35 x 7.5 mm)
    Busbar connection: Not available
    Operating temperature: -25°C … +55°C
    Storage temperature: -25°C … +70°C
    Application Areas
    This modular contactor is designed for use in:

    Residential electrical systems – for automating heating systems, lighting, and other equipment.
    Commercial buildings – for ventilation, refrigeration equipment, and lighting control.
    Industrial facilities – for control panels, automated control systems, and power distribution systems.
    Automation systems – where reliable switching of electrical circuits is required.
    Advantages
    Easy installation – mounting on a DIN rail.
    Quiet operation – less vibration and noise.
    Reliability and durability – 100,000 electrical and 1,000,000 mechanical cycles.
    Wide temperature range – operates from -25°C to +55°C.
    High voltage resistance – impulse voltage up to 4000 V.
    Disadvantages
    Low protection rating (IP20) – unsuitable for humid or dusty environments without additional protection.
    No busbar connection option – cannot be connected to other modules.
    The MCF3 modular contactor is an excellent choice for various automated electrical systems. It is a compact, easy-to-install, and cost-effective solution suitable for both residential and industrial applications.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
