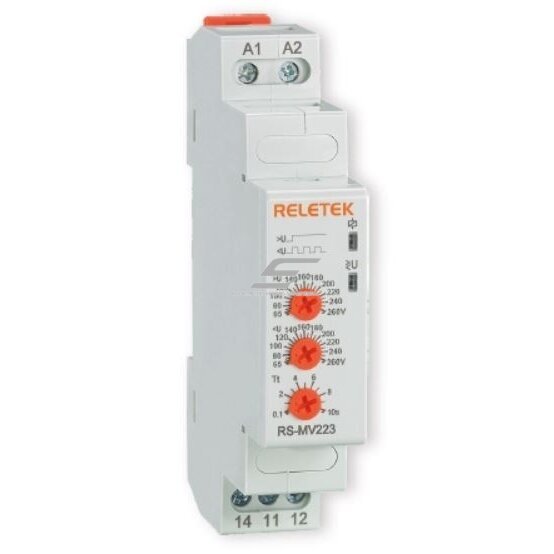

  • AC/DC voltage monitoring relay | 1F | 110–240 V AC/DC | U> / U< 65–260 V | 1 C/O 16 A | DIN | ES-RS-MV223

    Code: ES-RS-MV223

    The ES-RS-MV223 is a voltage monitoring relay with an output contact: it does not carry the load itself but switches a contact that controls a contactor coil, a signal or an automation input.

  • AC/DC voltage monitoring relay | 1F | 110–240 V AC/DC | U> / U< 65–260 V | 1 C/O 16 A | DIN | ES-RS-MV223

    The ES-RS-MV223 is a voltage monitoring relay with an output contact: it does not carry the load itself but switches a contact that controls a contactor coil, a signal or an automation input. When the monitored voltage leaves the set limits, the contact switches over and the controlled circuit is disconnected.

    Key point:
    A control relay is suitable where voltage must be monitored precisely and a contactor or alarm controlled – it disconnects high-power loads via a contactor.
    Contact
    16 A / 250 V
    Voltage limits
    65–260 V
    Network / supply
    110–240 V AC/DC
    Functions
    U> / U<, contact

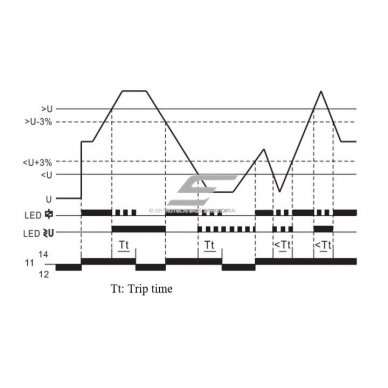

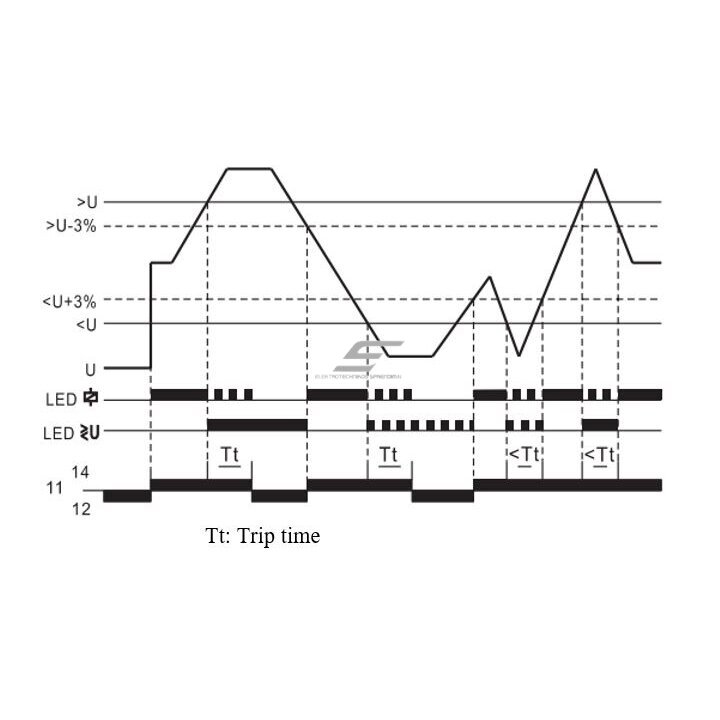

    How it works

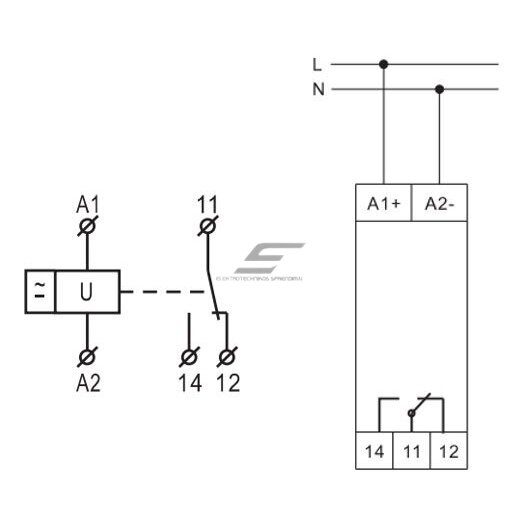

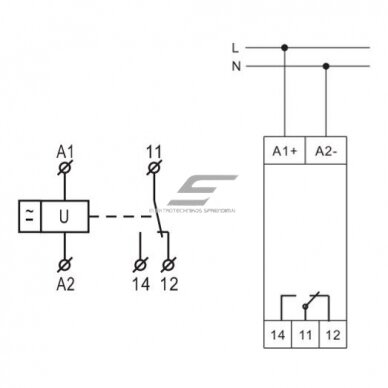

    The relay is supplied from the monitored circuit (depending on the model via terminals A1–A2) and measures the voltage continuously.

    When the voltage leaves the set limits and the delay expires, the output contact switches over – the contactor or alarm is disconnected.

    When the voltage returns to normal, the contact switches back and the circuit is reconnected.

    Why choose the ES-RS-MV223?
    Precise voltage monitoring with a contact – suitable for automation, contactors and alarms when the load exceeds the relay contact.

    Technical specifications

    Product type Voltage monitoring relay for AC/DC circuits (control type – with contact)
    Manufacturer / code ES-RS-MV223
    Supply 110–240 V AC/DC
    Measured voltage 30–270 V AC/DC
    Overvoltage limit U> (factory) 65–260 V
    Undervoltage limit U< (factory) 65–260 V
    Hysteresis 3 %
    Measuring principle / error True RMS, ≤ 1 %
    Voltage trip delay 0.1–10 s
    Output contact 1 C/O
    Contact current AC1 16 A / 250 V
    Insulation voltage Ui 480 V
    Degree of protection IP20
    Operating temperature −20…+55 °C
    Mounting DIN 35 mm

    Main functions

    • Output contact – controls a contactor, alarm or automation input.
    • Overvoltage monitoring U> – reacts to excessive voltage.
    • Undervoltage monitoring U< – reacts to low voltage.

    Where is it used?

    • Pump and fan control panels
    • Contactor control circuits
    • Automation and alarm panels
    • Generator and backup supply panels
    • Battery and DC system monitoring (AC/DC models)

    Use by need

    For the automation installer.
    Precise voltage monitoring with a contact for the control circuit.
    For the electrician.
    A compact relay to upgrade an existing board.
    For the equipment manufacturer.
    A simple solution for machine and equipment protection.

    Practical use

    In a pump panel the ES-RS-MV223 monitors the mains voltage and controls the contactor coil: at too low voltage the contactor disconnects the pump before the motor overheats.

    Pros

    • Precise voltage monitoring
    • Output contact for control
    • Compact
    • DIN mounting

    Cons / limitations

    • High-power loads must be connected via a contactor
    • Does not protect against lightning surges
    • Does not replace a circuit breaker
    • The manufacturer does not publish a full datasheet – parameters per supplier specification

    Safety and installation notes

    • Install only after disconnecting the supply; work must be done by a qualified electrician.
    • The contact current must not exceed the rated value – connect high-power loads via a contactor.
    • Protect the control circuit with a fuse or circuit breaker.
    • Check the supply voltage – a relay for another voltage will not work or will burn out.

    Quick selection guide

    1F
    110–240 V AC/DC
    U> / U< 65–260 V
    1 C/O 16 A
    Suitable when you need:
    • to control a contactor according to voltage
    • to monitor voltage in an automation panel
    Check before use:
    • the supply voltage matches the relay
    • contactor coil current ≤ contact current
    Important reminder: the relay contact is intended for control, not for a high-power load.

    FAQ

    Can the load be connected directly?
    Only a small one – connect high-power loads via a contactor.
    What is the supply voltage?
    See the technical table – a relay for another voltage will not work.

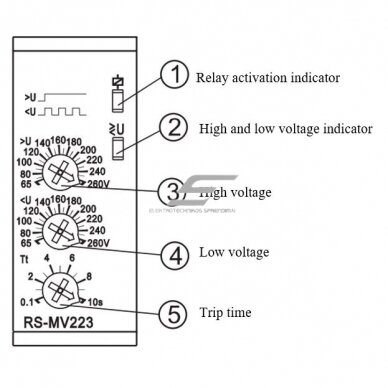

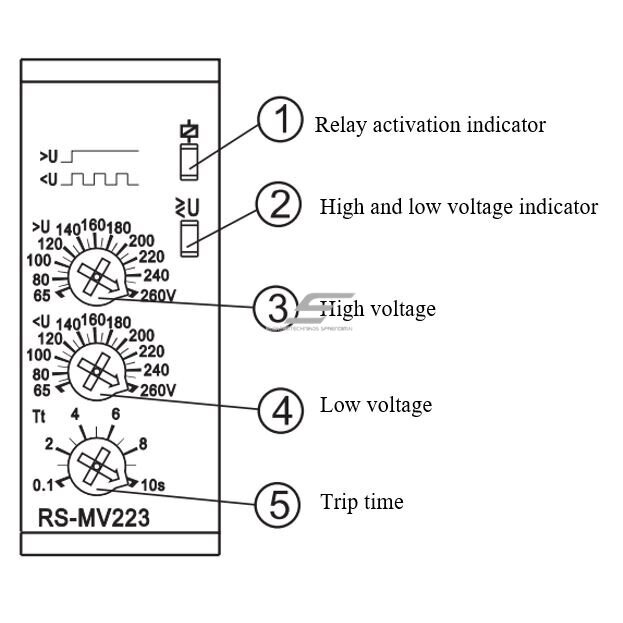

    Are the limits adjustable?
    Yes – with knobs or buttons.
    Does it reset automatically?
    Yes, when the voltage returns to normal.
    Does it protect against lightning?
    No – an SPD is needed for that.
    Is it suitable for DC circuits?
    Only AC/DC or DC models – see the supply voltage.

    AC/DC voltage monitoring relay | 1F | 110–240 V AC/DC | U> / U< 65–260 V | 1 C/O 16 A | DIN | ES-RS-MV223

    ES-RS-MV223 – precise voltage monitoring with an output contact for automation and contactor control.
