Multi-channel three-phase smart energy meter for DIN rail | with Rogowski coil and voltage probe | 6 tariffs | 5 V DC | MODBUS RS485 | MC60-VP-GW30

Technical Specifications

Type: Multi-channel three-phase smart energy meter
Mounting: DIN rail
Communication: MODBUS RS485
Power supply: 5 V DC
Accuracy class: Class 0.5S
Harmonic analysis: up to the 50th harmonic
Tariffs: 6 tariffs
Internal data memory: none
Relay output: 1 electromagnetic relay
Inputs: optocoupler-isolated
Insulation: up to 5 kVrms
Supported sensors: Rogowski coils; CT sensors 333 mV
Rated current (selectable): 10 A / 100 A / 600 A / 1000 A / 3000 A / 6000 A
Current coefficients: 50 mV/kA @50 Hz; 85 mV/kA @50 Hz; 100 mV/kA @50 Hz; 333 mV/kA @50/60 Hz (up to 636 mV RMS AC)
Voltage measurement: Direct / via VT – up to 500 kV

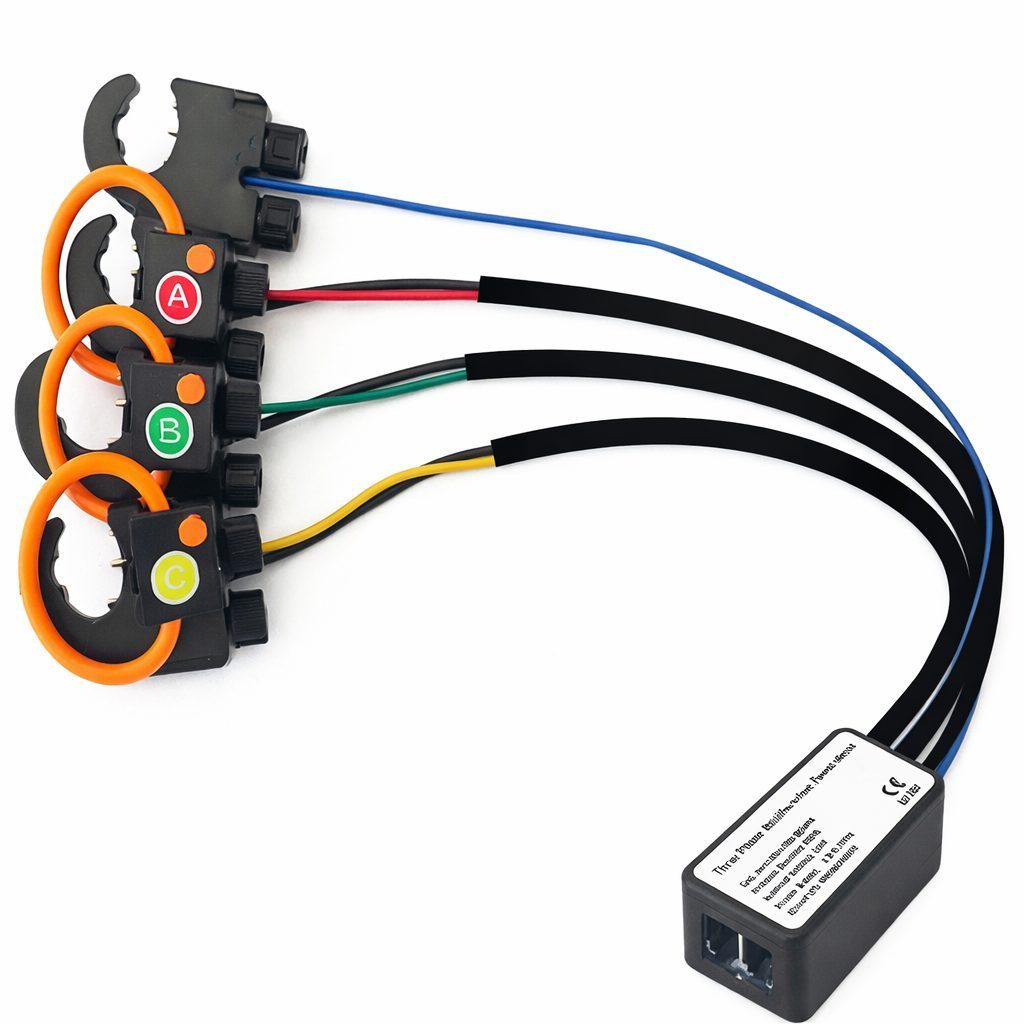

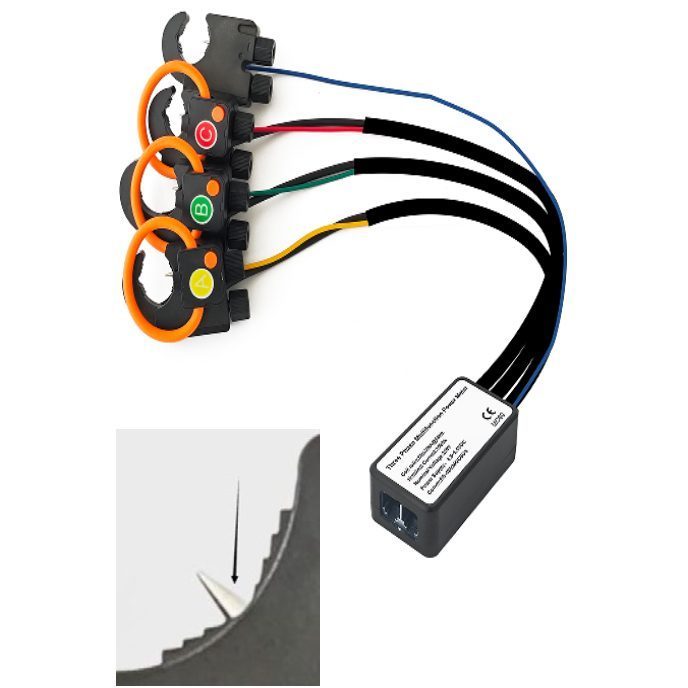

Included in the set: GW30 Rogowski coil, voltage piercing probe, and 0.5 m cables – no additional accessories required

Measured parameters:
Current; Voltage; Active, reactive and apparent power; Electrical energy; Power factor (cos φ); Demand; Maximum and minimum values; Phase angle; Phase imbalance; Harmonic analysis

Functions

Multi-channel measurement – monitoring of multiple circuits or branches with a single device
Three-phase system analysis with a complete set of power and power quality parameters
High-current measurement without disconnecting conductors
Harmonic analysis up to the 50th harmonic for power quality monitoring
MODBUS RS485 – integration into BMS, SCADA, EMS, PLC or other automation systems
Relay output – for signaling, alarms, or control functions

Applications

For residential / advanced users: Monitoring energy of solar power systems, EV charging stations, heat pumps; analysis and optimization of electricity consumption; control of high-power inputs without complex installation

For electricians: Fast DIN rail mounting, Rogowski coil allows work without power interruption, suitable for retrofitting existing installations, clear signals and reliable RS485 communication

For engineers / designers: Accurate Class 0.5S measurements, harmonic, imbalance and power quality analysis, integration into energy management and automation systems, wide current range – one solution for different projects

Advantages

All required accessories included (coil, probe, cables)
Measurement up to 6000 A
No need to disconnect electrical circuits
High accuracy and stability
Industrial MODBUS RS485 communication
Wide application range from residential to industrial

Disadvantages

No internal data logging memory
Requires an external 5 V DC power supply
Designed for technical users (not a “plug & play” residential meter)
