Panel | Digital Timer | Counter | Calibrator | Infrared (IR) | Conveyor System | 10A | 230V | 0-4m

Technical Specifications:

Display: Dual LED, 6 digits each

Top row (AL1): Counts up to a preset value (e.g., 100); upon reaching it — resets to 0 and activates the relay

Bottom row (St): Total cumulative cycle count; can be manually reset

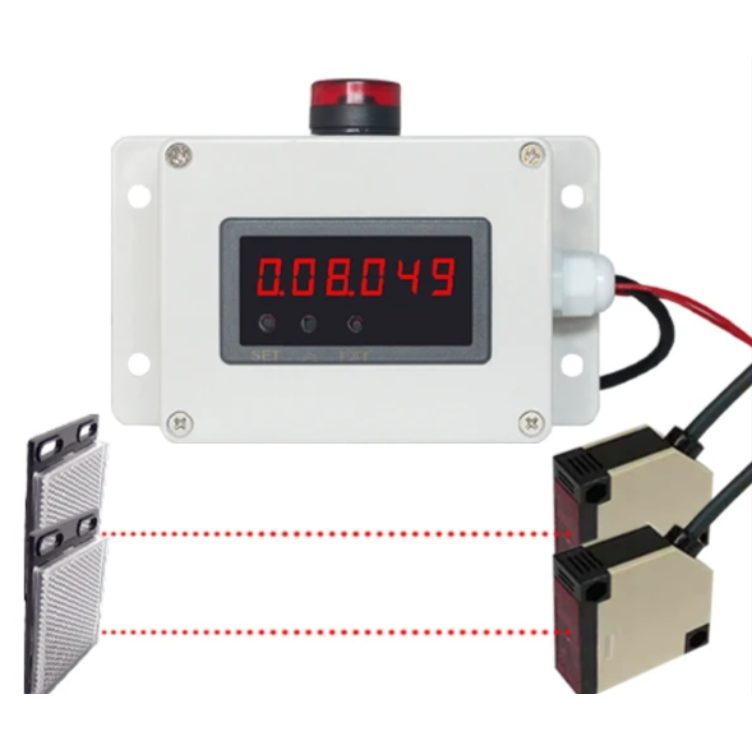

Infrared sensors: Dual, operating range 0–4 m, with reflector

Relay: 10 A output — suitable for control, signaling, or other automated actions

Alarm: Built-in 60 dB acoustic signal

Power Supply: 220 V AC or external mobile battery

Functions:

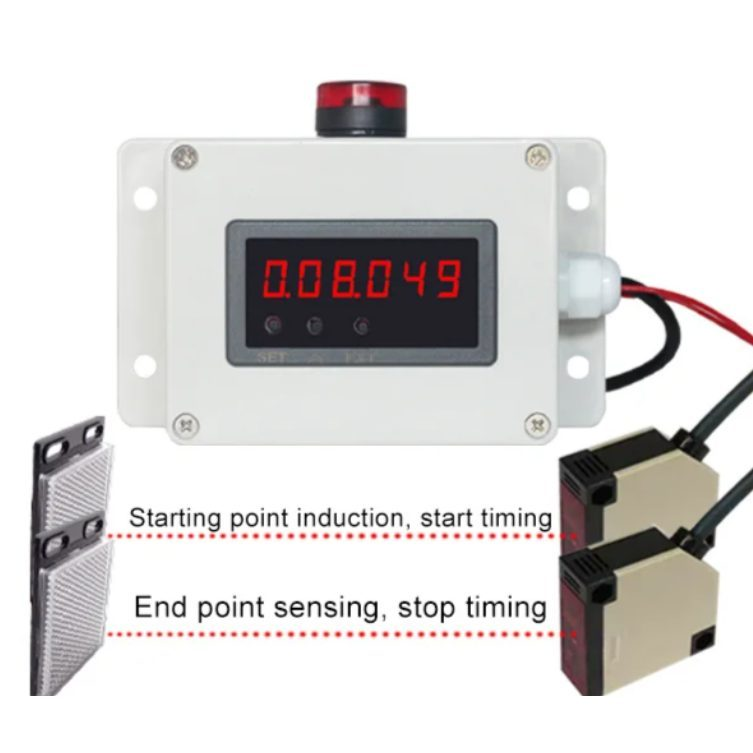

Automatic detection of cycle start/end using IR sensors

Cycle time measurement (top row) and total count tracking (bottom row)

Relay output allows integration with conveyor controls, signal lights, or sound devices

Acoustic alert when limits are reached or events occur

Applications:

Manufacturing conveyor lines

Packaging and sorting systems

Assembly workshops

Logistics and distribution centers

Testing lines and quality control

Object passage detection in production

Advantages:

Automatic object detection

Clear LED indication

Both cumulative and single-cycle counters — comprehensive process control

Integration capability with external automation (relay)

Portable operation — suitable for temporary or mobile lines

Acoustic signal — immediate notification upon limit reach

Challenges:

Fixed sensor range (requires careful positioning)

Mobile operation requires external battery (not included)

Only one relay output — additional automation may be needed for complex systems

A sophisticated and reliable time-and-cycle management solution for conveyor systems, enabling real-time monitoring of production flow, cycle time control, and alerts on target achievement. Thanks to its ease of use, high-quality components, and integration ability, it’s suitable for engineers, technicians, and production automation projects.
