    Smart three-phase bidirectional energy meter with voltage, current and phase-sequence protection | 1–80 A | 3×230/400 V | Wi-Fi Tuya | DIN | EL-TVPS3-80T

    Code: EL-TVPS3-80T
    Inquire about this item
    Price 193.35 € VAT incl.
    ( 159.80 € VAT excl. )
    Want another price? Suggest yours!

    TUYA WiFi Smart Circuit Breaker – is a smart 3-phase 4-wire energy meter, voltage and current protection relay and remotely controlled protection device. The unit is designed to monitor voltage, current, active power, reactive power, power factor, frequency, total kWh energy and provide protection against overvoltage, undervoltage, overcurrent, phase imbalance, phase loss and overtemperature.

  • Product description

    Smart three-phase bidirectional energy meter with voltage, current and phase-sequence protection | 1–80 A | 3×230/400 V | Wi-Fi Tuya | DIN | EL-TVPS3-80T

    EL-TVPS3-80T is a three-phase, four-wire modular smart meter with a built-in protection relay and Wi-Fi control via the "Smart Life" / "TUYA" app. It measures energy in both directions, monitors voltage, current and phase condition, and automatically disconnects the load when set limits are exceeded. DIN rail mounted, with an adjustable current limit of 1–80 A.

    Key point:
    one module does three jobs – it counts kilowatt-hours, protects equipment against voltage surges, phase loss and imbalance, and lets you switch the load on or off remotely from your phone. This is especially useful for country houses, workshops, farms and rental properties where the owner is not always on site.
    Supply
    3P+N, 3×230/400 V
    Current limit
    1–80 A, adjustable
    Measurement
    Bidirectional (import/export)
    Control
    Wi-Fi, Smart Life / TUYA

    Operating principle

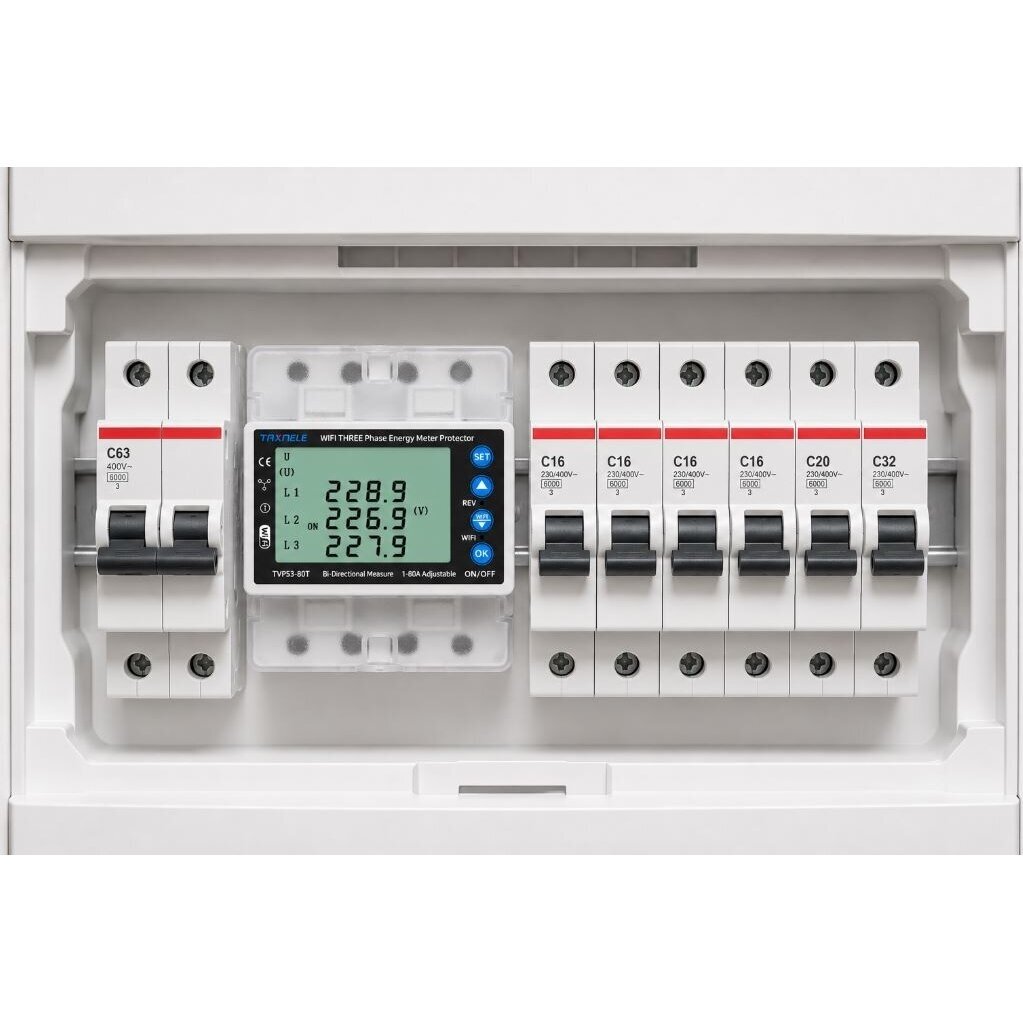

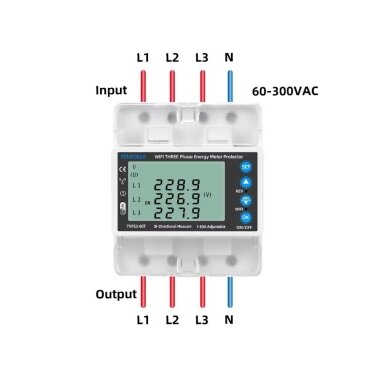

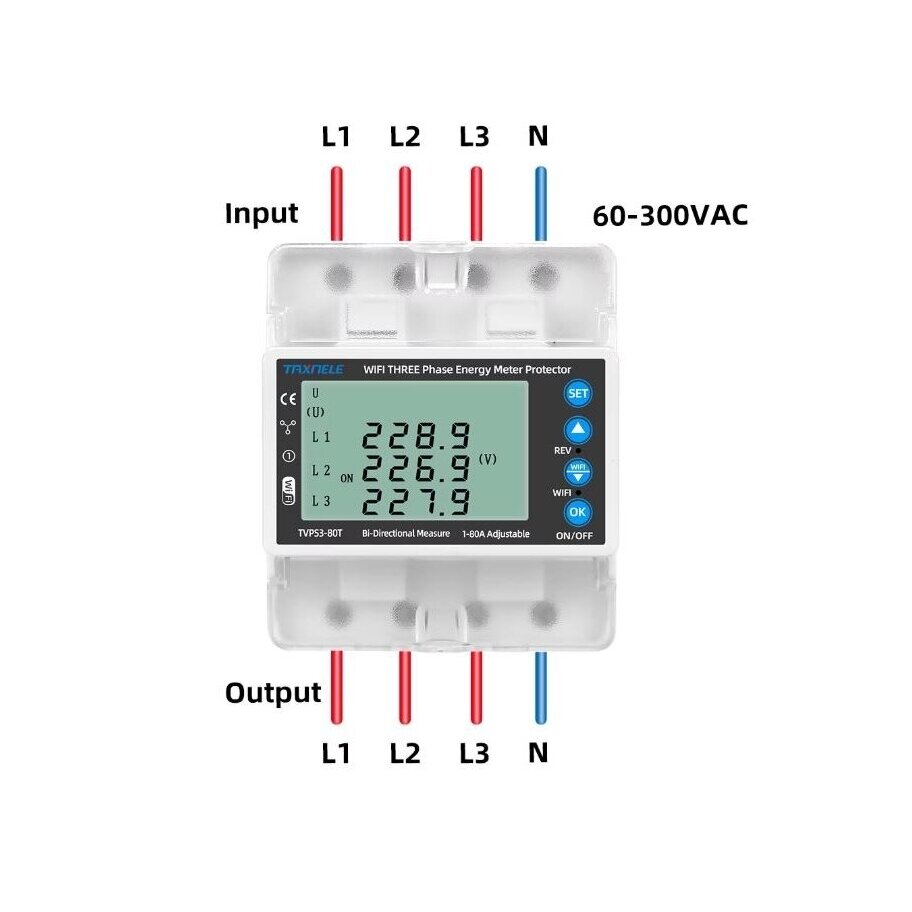

    The module is mounted in the distribution board on a DIN rail and connected in series with the three-phase circuit (L1, L2, L3, N). It contains a measuring circuit and a power relay capable of disconnecting all three phases.

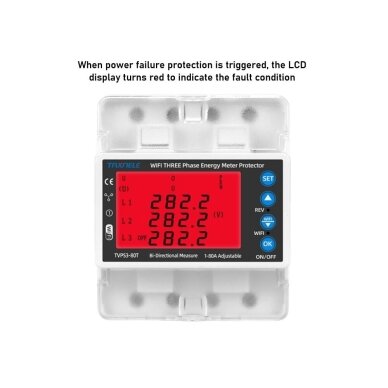

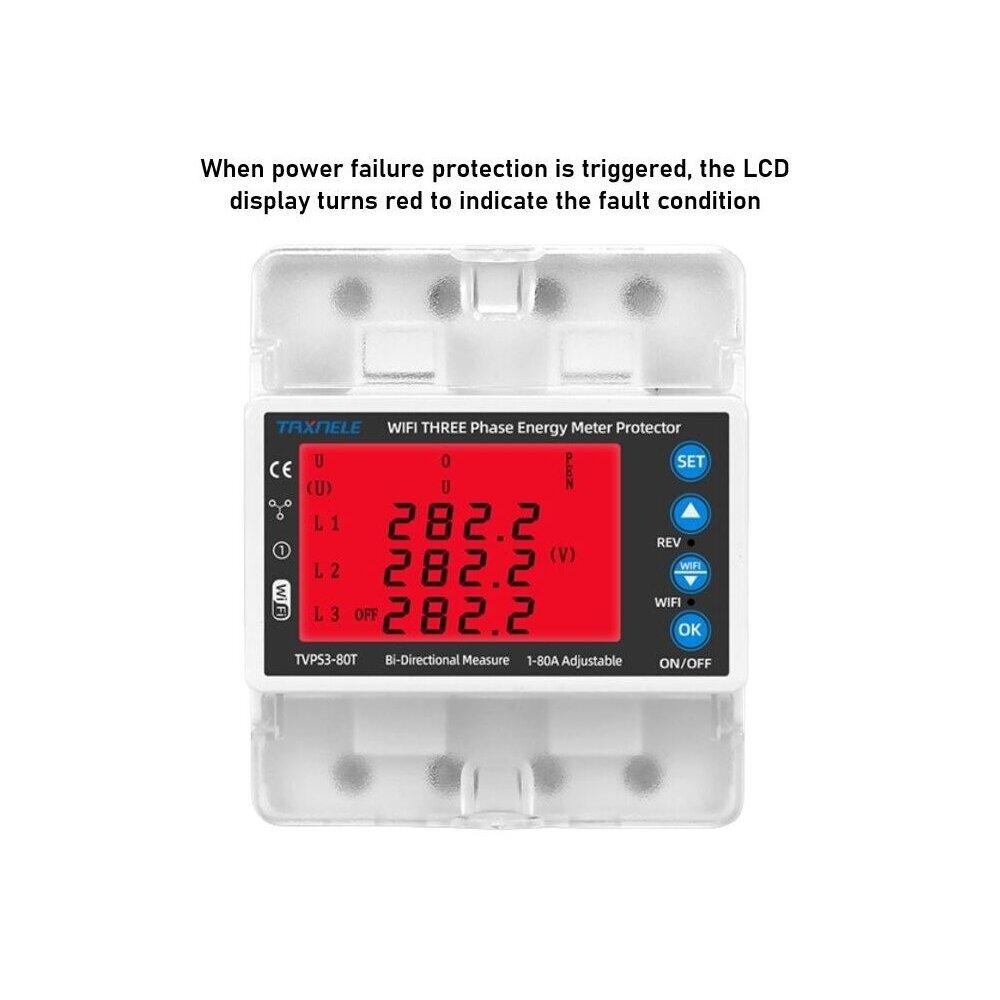

    The device continuously monitors voltage, current, power and frequency on each phase, as well as imported and exported energy. If the voltage rises above or falls below the set limit, a phase is lost, the phase sequence is wrong, voltage or current imbalance occurs, or the current limit or temperature is exceeded, the relay disconnects the load. Once the voltage returns to normal, the load can be reconnected automatically after a set delay.

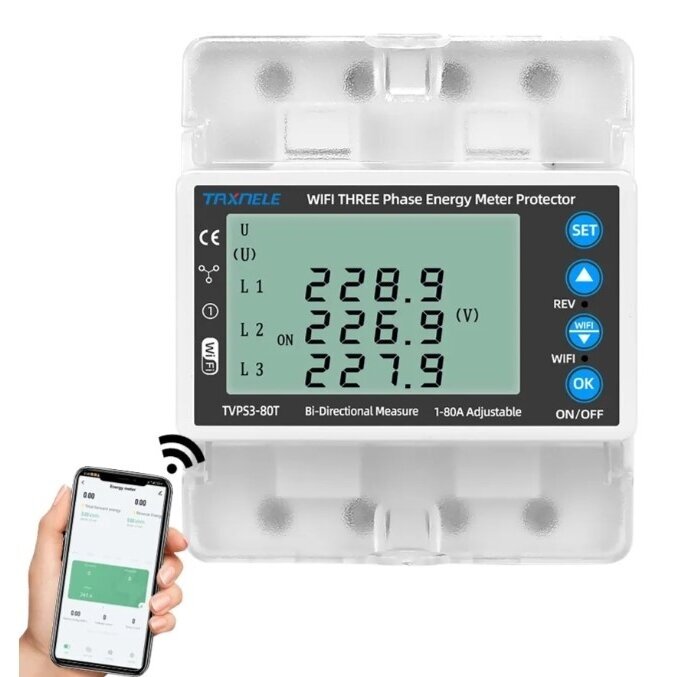

    All data and events are visible in the app over Wi-Fi. This is where you set protection limits, timers, countdown, cyclic modes and cost tracking; voice control via Amazon Alexa and Google Assistant is supported.

    Why choose EL-TVPS3-80T?
    It protects three-phase equipment – motors, pumps, heat pumps, compressors – against the grid disturbances that most often destroy expensive machinery, while giving you a full picture of energy consumption on your phone.

    Technical specifications

    Product type Smart meter with voltage, current and phase protection relay
    Code / model EL-TVPS3-80T (TVPS3-80T)
    Network type Three-phase four-wire (3P+N)
    Rated voltage 3×230/400 V AC, 50 Hz
    Rated (max. operating) current 80 A
    Current protection setting 1–80 A, set in the app (do not set above 80 A)
    Energy measurement Bidirectional – imported and exported energy (kWh)

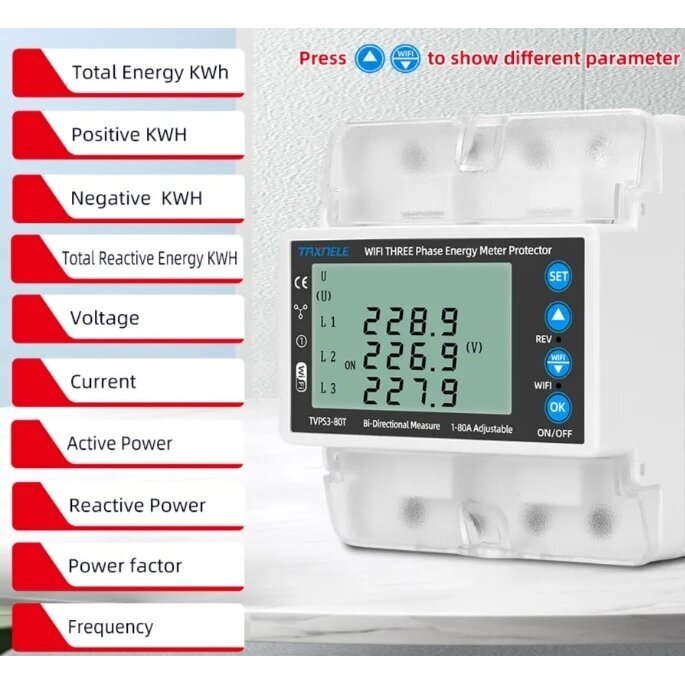

    Measured parameters Voltage, current, active and reactive power, cos φ, frequency, total / forward (import) / reverse (export) energy
    Protection functions Overvoltage, undervoltage, overload / current limit, undercurrent, overtemperature, voltage imbalance, current imbalance, phase sequence, phase loss

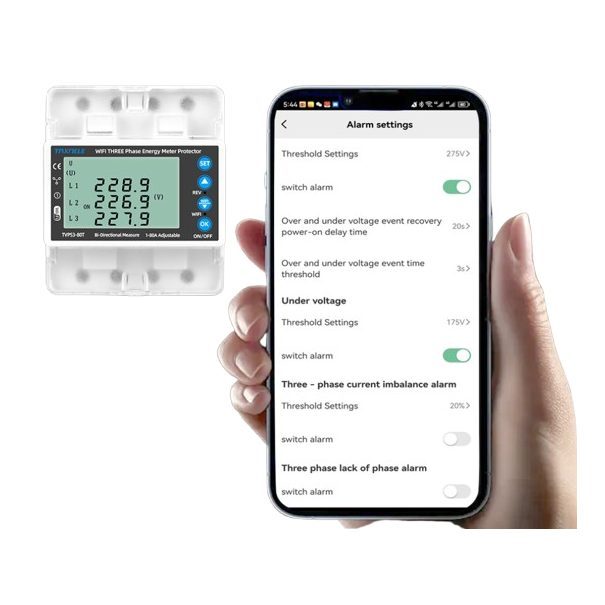

    Protection limits and delays Set in the app: voltage, current, imbalance and temperature limits and delays
    Automatic reconnection Yes, after a set delay once parameters return to normal
    Control Wi-Fi 2.4 GHz; Smart Life / TUYA app; Amazon Alexa, Google Assistant
    Timers Schedule, countdown, cyclic modes
    Other functions Cost tracking, consumption history in the app
    Display Digital, parameters toggled with a button
    Mounting 35 mm DIN rail

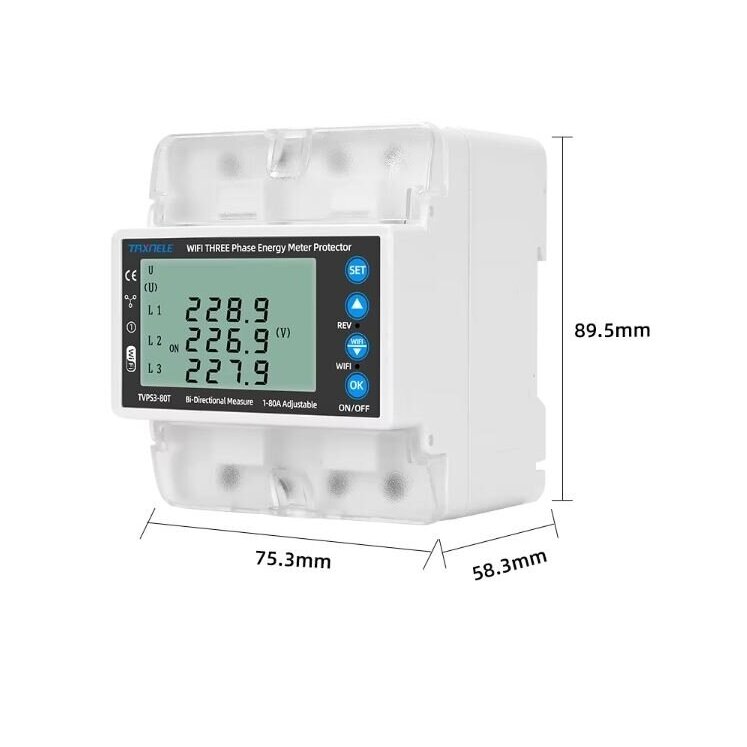

    Width ~4 modules; dimensions ~75.3 × 58.3 × 89.5 mm
    MID certificate No
    Overvoltage protection Adjustable 60–300 V, factory setting 275 V

    Key features

    • Phase loss and phase sequence protection – protects three-phase motors against single-phasing and wrong direction of rotation.
    • Overvoltage and undervoltage protection – disconnects the load when the supply voltage goes outside the permissible range.
    • Current limit 1–80 A – lets you cap the permissible load according to the capacity of the circuit or supply connection.
    • Bidirectional measurement – suitable for sites with a solar PV system.
    • Remote control – switch the load on or off and check its status from anywhere.
    • Timers and scenes – scheduled load operation without additional time switches.

    Where is it used?

    • Country houses, cottages and holiday homes
    • Workshops with three-phase machine tools and compressors
    • Farms – pumps, fans, grain dryers
    • Heat pumps and electric boilers
    • Rented garages, warehouses and premises
    • Sites with a solar PV system
    • EV charging circuits
    • Rural areas with an unstable grid

    Use by need

    For homestead or cottage owners.
    Protects the borehole pump, heat pump and other three-phase equipment against phase loss and voltage surges, while the phone app shows consumption and solar plant generation.
    For farmers / workshop owners.
    Grid faults are reported to your phone, and the load can be switched off or back on without travelling to the site.
    For electricians.
    A single ~4-module device replaces an energy meter, a phase monitoring relay and a voltage relay – less space in the switchboard and a simpler wiring diagram.

    Practical application

    If one phase drops out at a country house, the borehole pump starts running on two phases and overheats within a short time. EL-TVPS3-80T detects the phase loss, disconnects the load and sends a notification to your phone. Once the supply is restored, power is reconnected automatically or manually via the app.

    Advantages

    • Meter and protection in one – fewer modules in the panel.
    • Full phase monitoring – phase loss, sequence, imbalance.
    • Remote control via Smart Life / TUYA.
    • Bidirectional measurement – suitable with a solar PV system.
    • Adjustable current limit 1–80 A.
    • Integration with Alexa and Google Assistant.

    Disadvantages / limitations

    • Does not replace a circuit breaker – a separate device is required for short-circuit protection.
    • Requires stable 2.4 GHz Wi-Fi – the signal may be weakened inside a metal enclosure.
    • Not MID certified – not suitable for commercial billing.
    • Cloud dependency – remote functions run via TUYA servers.
    • Large inductive loads – should be switched via a contactor rather than directly.

    Safety and installation notes

    • Installation by a qualified electrician with the supply isolated.
    • An upstream MCB or fuses are mandatory, sized to the cable cross-section and not exceeding 80 A.
    • The neutral must be connected – without N the device will measure phase voltages incorrectly.
    • After installation, set the protection limits to suit the protected equipment rather than leaving the factory defaults.
    • Do not set the current protection above 80 A, even if the app allows a higher value – the device's rated current is 80 A.
    • Check the Wi-Fi signal at the panel location; if it is weak, use a repeater.
    • In motor circuits, additionally use a motor protection circuit breaker or thermal overload relay.

    Quick selection guide

    3P+N
    3×230/400 V
    1–80 A
    bidirectional
    phase and voltage protection
    Wi-Fi TUYA
    Suitable when you need:
    • to protect three-phase equipment against phase loss and voltage fluctuations;
    • to see energy consumption on your phone;
    • to switch a load on or off remotely;
    • to monitor both consumption and generation.
    Check before use:
    • that the supply is 3P+N 3×230/400 V;
    • that the load current does not exceed 80 A;
    • that 2.4 GHz Wi-Fi is available at the panel;
    • that separate short-circuit protection is in place.
    Important reminder: EL-TVPS3-80T protects against supply parameter deviations and overload according to the set limit, but it does not replace a circuit breaker, residual current device (RCD) or surge protective device.

    FAQ

    Does it work without internet?
    Protection and metering work locally; remote control requires Wi-Fi and an internet connection.
    Is it suitable for a single-phase supply?
    No, it is designed for a three-phase four-wire network.
    Does it protect against short circuits?
    No, a circuit breaker or fuses are required for that.
    Does it measure solar PV generation?
    Yes, energy is measured in both directions.
    Which app is used to control it?
    Smart Life or TUYA.
    Is it MID certified?
    No.

    Smart three-phase bidirectional energy meter with voltage, current and phase-sequence protection | 1–80 A | 3×230/400 V | Wi-Fi Tuya | DIN | EL-TVPS3-80T

    EL-TVPS3-80T smart three-phase energy meter with protection relay and Wi-Fi TUYA control – a practical solution when you need a single module to protect equipment, meter energy in both directions and control the load remotely.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
