  •   Smart LED mirror touch switch | DC 12V | 5A (60W) | Bluetooth | dual control | infrared sensor

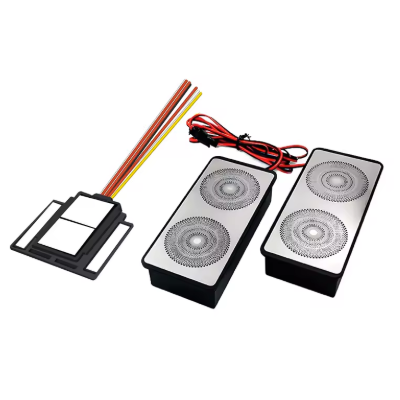

    Smart LED mirror touch switch | DC 12V | 5A (60W) | Bluetooth | dual control | infrared sensor

    Code: ES-XSL-YX1
    Inquire about this item
    Price 21.49 € VAT incl.
    ( 17.76 € VAT excl. )
    Want another price? Suggest yours!

    Smart touch switch for bathroom mirror lighting, designed for LED mirrors with 12V power supply. Integrated infrared (IR) sensor, double control button and Bluetooth functionality allow convenient control of lighting and additional functions without mechanical switches. This model is designed for modern mirrors with LED lighting – suitable for both home bathrooms and hotels, SPA centers, beauty salons or commercial premises.

  • Product description

    Technical Specifications

    Type: Smart touch (touch + IR) switch
    Supply voltage: DC 12V
    Rated power: 5A (up to 60W)
    Control: Dual button
    Sensor type: Infrared (inductive)
    Sensor operating distance: 1–6 mm
    Connection: Bluetooth
    Material: ABS plastic
    Protection class: IP21–IP22 (intended for installation inside the mirror, in a protected zone)
    Application: LED mirror lighting control

    Functions

    Touch / IR control – lighting is switched on with a light touch or proximity detection (without a mechanical switch)
    Dual control – allows separate control of two functions (e.g., main light and additional lighting or heating function)
    Bluetooth support – possibility to integrate additional functions or audio solutions (depending on mirror configuration)
    Suitable for LED mirrors – stable operation with 12V LED systems
    Compact design – easy installation behind the mirror housing
    Low energy consumption – optimized for LED systems

    Usage

    For home users: Modern bathroom solution without visible switches, convenient and hygienic control, aesthetic integration into LED mirrors
    For electricians: Simple connection to a 12V LED power circuit, compact construction – easy installation, reliable touch operation
    For furniture or mirror manufacturers: Excellent solution for premium class LED mirrors, possibility to offer customers modern “smart” functionality

    Advantages

    Dual control (two functions in one module)
    Infrared sensor
    Bluetooth support
    Compact and easy to integrate
    Suitable for LED mirror lighting up to 60W

    Disadvantages

    Not intended for direct 230V mains (DC power supply required)
    Limited IP protection (intended for installation in a protected location behind the mirror)
    Functionality depends on mirror configuration

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
