  •   Surge arrester 4P | 60 kA | 280 VAC | Class B+C | DIN rail mounted

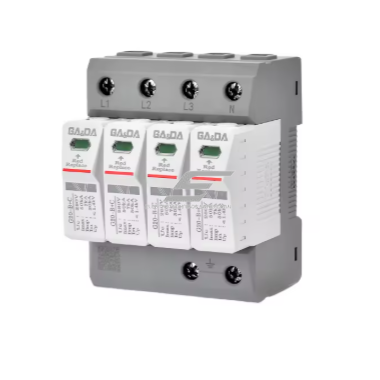

      Surge arrester 4P | 60 kA | 280 VAC | Class B+C | DIN rail mounted 1

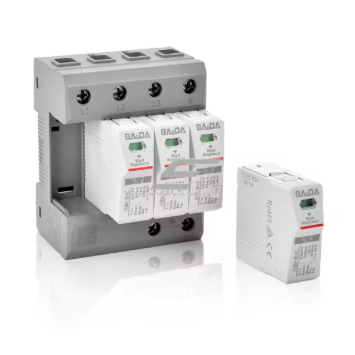

      Surge arrester 4P | 60 kA | 280 VAC | Class B+C | DIN rail mounted 2

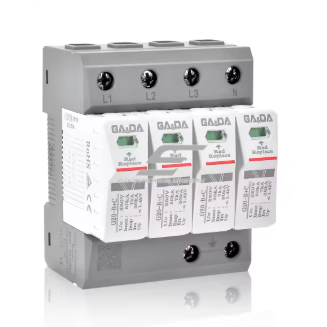

    Surge arrester 4P | 60 kA | 280 VAC | Class B+C | DIN rail mounted

    Code: G20-B+C-7-280-4P
    Inquire about this item
    Price 49.61 € VAT incl.
    ( 41.00 € VAT excl. )
    Want another price? Suggest yours!

    Surge protection device designed to protect low-voltage electrical systems, industrial control equipment and solar energy installations from lightning and switching overvoltages.

    This SPD is built according to B+C (Type 1+2) class, making it suitable both for primary lightning current discharge and for suppression of smaller transient overvoltages. The device features a modular design for quick cartridge replacement, a clear status indicator (green – operating, red – fault), the option to connect a remote signaling contact, as well as innovative thermal disconnection and arc-insulation technologies ensuring safe and reliable operation.

  • Product description

    Technical Specifications

    Manufacturer: GA&DA

    Model: G20-B+C-7-280-4P

    Origin: China

    Type: AC SPD Surge Arrester (Type 1+2 / B+C)

    Number of poles: 4P

    Rated voltage: 280V AC

    Maximum continuous operating voltage: 280V

    Lightning impulse current: 7 kA

    Nominal discharge current: 20–40 kA (depending on SPD class)

    Maximum discharge current: 60 kA

    Voltage protection level: ≤ 1.4 kV

    Operating temperature: -40 ℃ … +80 ℃

    Protection rating: IP20

    Standards / Certifications: EN 61643-11, CE, TUV, ROHS

    Installation: DIN rail (35 mm)

    Indication: Mechanical – green/red

    Remote monitoring: Optional (remote contact)

    Application

    For home users: Protects home electrical panels, inverters, automation devices, and household equipment from overvoltages. Recommended for residential houses with solar power systems.
    For engineers / designers: Suitable for industrial facilities, universal 4P solution for three-phase systems with neutral, easy integration into electrical cabinets, UPS, inverter systems, PLC/BMS control.
    For electricians: Quick module removal/replacement reduces maintenance time; clear indicator window simplifies diagnostics; easy DIN-rail installation.

    Pros

    B+C class – protection from lightning and switching surges

    High 60 kA discharge current – suitable for professional systems

    Mechanical indication + optional remote monitoring

    Modular, easy-to-replace design

    Certified (CE / TUV / ROHS / EN 61643-11)

    Resistant to extreme temperatures

    Cons

    IP20 – must be installed indoors (switchboards)

    No dust/moisture protection for outdoor environments

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
