  • IR proximity dimmer switch for mirrors | hand wave up to 12 cm | backlight | 12/24 V DC | 5 A | 60/120 W | ELSP-XM319-IR4

    Code: ELSP-XM319-IR4

    The IR proximity switch ELSP-XM319-IR4 is mounted behind the mirror: switches the light on and off and adjusts brightness. 12/24 V DC, 60 W (12 V) / 120 W (24 V), controlled by a hand wave up to 12 cm.

  • IR proximity dimmer switch for mirrors | hand wave up to 12 cm | backlight | 12/24 V DC | 5 A | 60/120 W | ELSP-XM319-IR4

    The IR proximity switch ELSP-XM319-IR4 is mounted behind a mirror or furniture surface and connected between the LED power supply and the LED strip. It switches the light on and off and adjusts brightness and is controlled by a hand wave up to 12 cm. Designed for 12 V and 24 V DC systems, load – 5 A · 60 W (12 V) / 120 W (24 V).

    Key point:
    The light is controlled without touching the glass – just wave your hand in front of the sensor. Convenient with wet or cosmetic-covered hands, and no fingerprints are left on the mirror.
    Voltage
    12/24 V DC
    Load
    60 W (12 V) / 120 W (24 V)
    Control
    hand wave
    Sensing
    by a hand wave up to 12 cm

    Operating principle

    An infrared sensor detects a hand in front of it. A wave switches the light on or off, holding the hand longer changes the brightness. The IR sensor needs a clear window in the mirror coating.

    The input (IN) is connected to the 12/24 V DC LED power supply, the output (OUT) to the LED strip. 230 V is never connected to the switch – it always works on the low-voltage side.

    If the switch output controls the anti-fog heater, the 230 V pad is connected only via a relay: 12 V relay or 24 V relay.

    Why choose the ELSP-XM319-IR4?
    Hygienic control without touching the glass.

    Technical specifications

    Product type IR proximity switch for LED lighting, mounted behind the mirror
    Product code ELSP-XM319-IR4
    Supply voltage 12/24 V DC
    Maximum current 5 A
    Maximum load 60 W (12 V) / 120 W (24 V)
    Control hand wave
    Gesture detection distance up to 12 cm
    Proximity activation up to 6 mm
    Dimming yes
    CCT (colour temperature) no
    Memory remembers the last state
    Backlight white when on, blue when off
    Standby current ≤ 50 mA
    Protection rating IP54
    Operating temperature / humidity -20 … +45 °C / 25–90 % RH

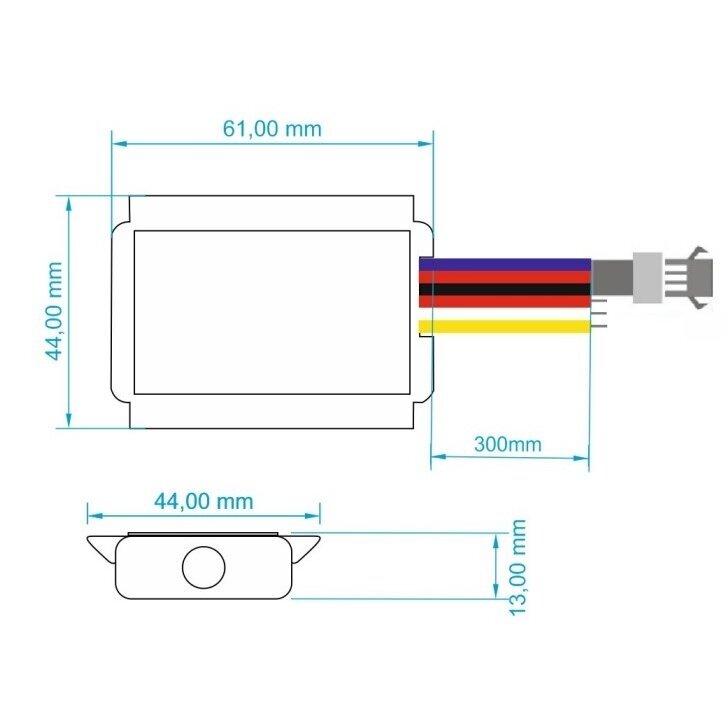

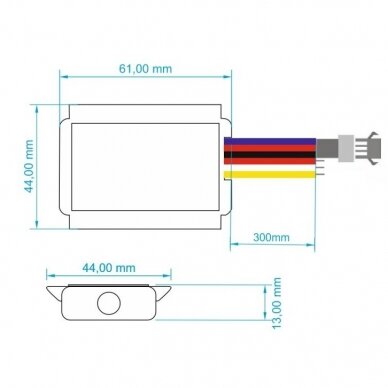

    Dimensions 61 × 44 × 13 mm

    Key functions

    • Hidden installation – the switch is invisible, no button needed in the mirror.
    • Contactless control – without touching the glass – hygienic and convenient.
    • Dimming – brightness is adjusted smoothly.
    • Memory – saves the last state.
    • Backlight – easy to find the control point in the dark.
    • Low voltage – 12/24 V DC – for 12 V and 24 V DC systems.

    Where is it used?

    • LED bathroom mirrors
    • Mirror bathroom cabinets
    • Hotel and apartment bathrooms
    • SPAs, beauty salons – hygienic control

    Use by need

    For mirror manufacturers.
    The same hidden control for the whole series, no holes in the glass.
    For installers.
    Simple wiring between the power supply and the strip, compact housing.
    For home renovation.
    An existing LED mirror can be upgraded with modern control.

    Practical example

    A mirror with 5 m of 12 V LED strip at 9.6 W/m (48 W, about 4 A). At 12 V the ELSP-XM319-IR4 works at about 80 % of its 60 W limit. The same power in a 24 V system is only 2 A. Power supply – at least 60 W (load + 20 %). The IR sensor is fixed at a clear window in the mirror coating, away from the LED strip.

    What else does the mirror kit need?

    Most often used together with:

    LED power supply
    12 V or 24 V – with ~20 % power reserve.
    LED strip
    LED strips – of the same voltage.
    Anti-fog heating
    230 V heating pads and a relay or a power supply with relay.
    Long strip
    10 A power amplifier – when the switch’s 5 A is not enough.
    Warm–cool light
    CCT controller or a CCT model, e.g. ELSP-XM319-IR1.

    Advantages

    • Hidden installation
    • No mechanical parts to wear out
    • Suitable for 12 V and 24 V systems
    • Dimming
    • Contactless, hygienic control
    • State memory
    • IP54 – for humid environments

    Disadvantages / limitations

    • Does not change colour temperature (CCT)
    • Needs a clear window in the mirror coating
    • DC only – never connect to 230 V

    Safety and installation notes

    • Connect only with the power off; the 230 V part is connected by a qualified electrician.
    • The voltage of the switch, LED strip and power supply must match.
    • Do not exceed the 60 W (12 V) / 120 W (24 V) load – leave ~20 % reserve.
    • Bathroom circuit – with a 30 mA RCD (HD 60364-7-701).
    • The 230 V heating pad is connected only via a relay or a dedicated output, never to the 12/24 V output.
    • Do not point the IR sensor at the LED strip or glossy surfaces – the light may flicker.

    Quick selection guide

    12/24 V DC
    60 W (12 V) / 120 W (24 V)
    hand wave
    Dimmer
    Suitable when you need to:
    • control LED mirror lighting by a hand wave up to 12 cm;
    • adjust light brightness;
    • switch on the anti-fog heater (via a relay or controller output);
    Check before use:
    • system voltage: the model is designed for 12 V and 24 V DC systems;
    • total LED strip power (limit 60 W (12 V) / 120 W (24 V));
    • that the mirror will have a clear window for the sensor;
    Important reminder: The switch is connected only on the low-voltage (DC) side, between the power supply and the LED strip.

    Frequently asked questions

    Why does the IR switch behind the mirror not respond?
    Usually the mirror coating has not been removed at the sensor – the IR beam does not pass through it. A clear window is needed, best ordered from the mirror manufacturer.
    How many metres of LED strip can be connected?
    At 12 V – about 5 m of 9.6 W/m strip with reserve (48 W). At 24 V – about twice as much. For a longer strip – a power amplifier.
    Can it control the anti-fog heater?

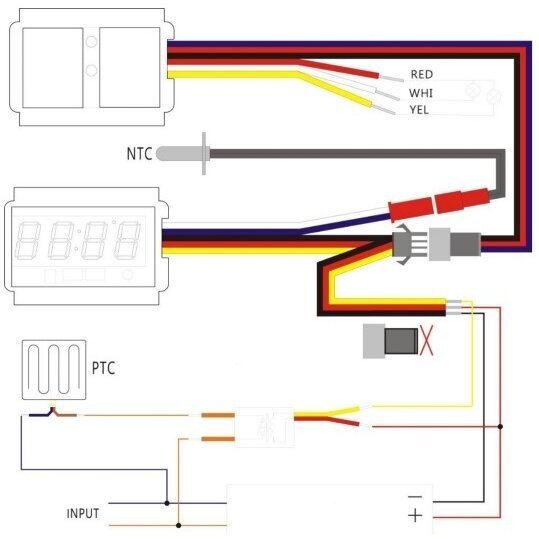

    Yes, but the 230 V pad is connected via a relay or the controller heating output according to the diagram. Heating pads are here.

    IR proximity dimmer switch for mirrors | hand wave up to 12 cm | backlight | 12/24 V DC | 5 A | 60/120 W | ELSP-XM319-IR4

    ELSP-XM319-IR4 – IR proximity switch for LED mirrors and furniture: switches the light on and off and adjusts brightness, 12/24 V DC, 60 W (12 V) / 120 W (24 V). Mounted behind the mirror, connected between the power supply and the LED strip.

    Published: 2026-11-12 · Data verified against the supplier specification: 2026-11-12

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
