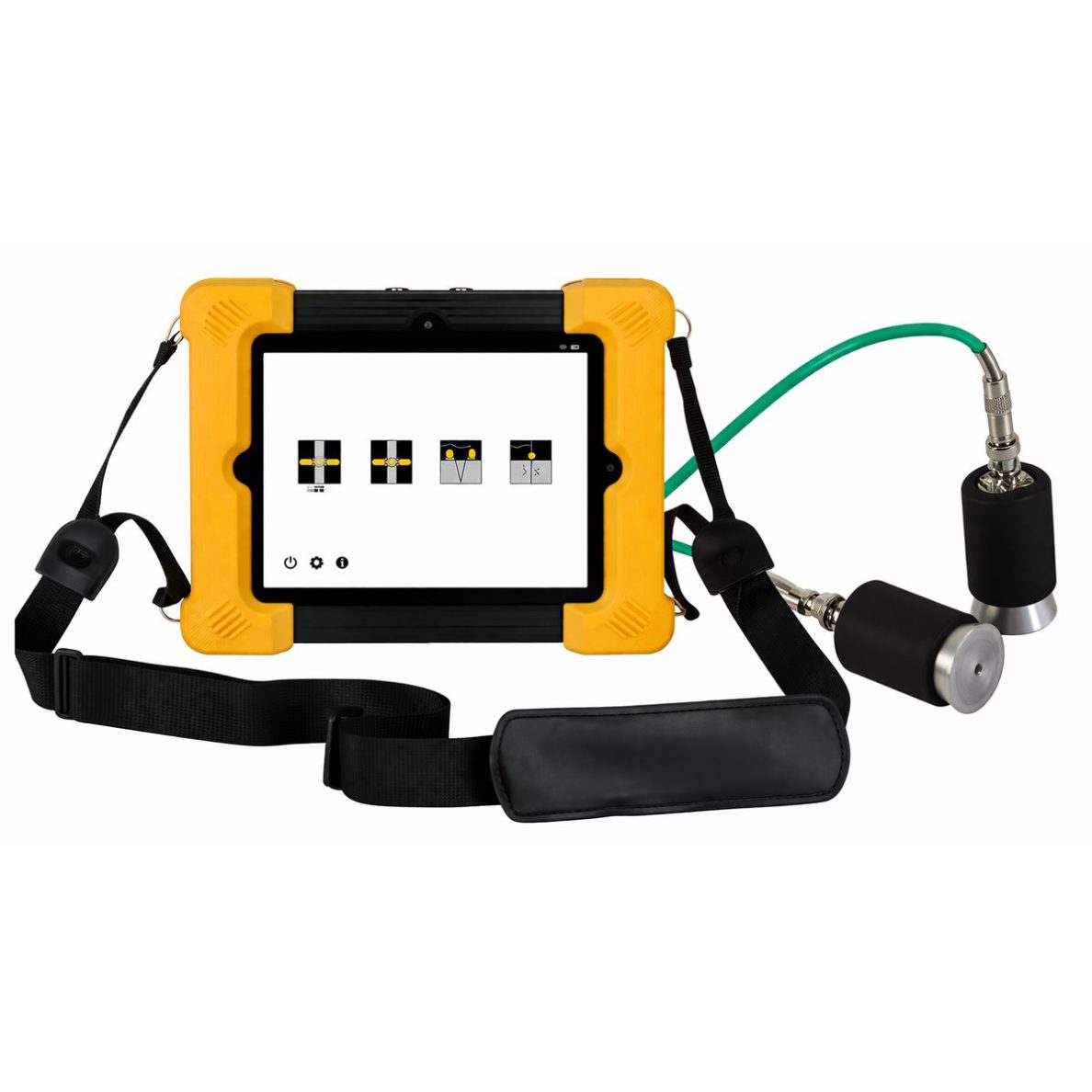

Ultrasonic concrete strength tester | for concrete quality evaluation | professional NDT analyzer | 8" LCD display | IP55 | 16GB

Technical Specifications

Product type: ultrasonic concrete tester (NDT)
Protection class: IP55
Display: 8" color LCD (1024×768)
Processor: A8 professional
Accuracy: up to 0.01 mm
Sound time measurement range: 0 – 4,096,000 μs
Sound time accuracy: 0.025 μs
Sampling period: 0.025 μs – 2000 μs
Sample length: 512 – 2048 points
Signal sensitivity: ≤10 μV
Amplitude measurement range: 0 – 170 dB
Emission voltage: 125V / 250V / 500V / 1000V
Pulse width: 0.1 – 100 μs
Data storage: 16 GB
Data transfer: USB storage
Power supply: AC 100–240V → 12.6V DC, 3.0A
Operating temperature: -20°C ~ +60°C

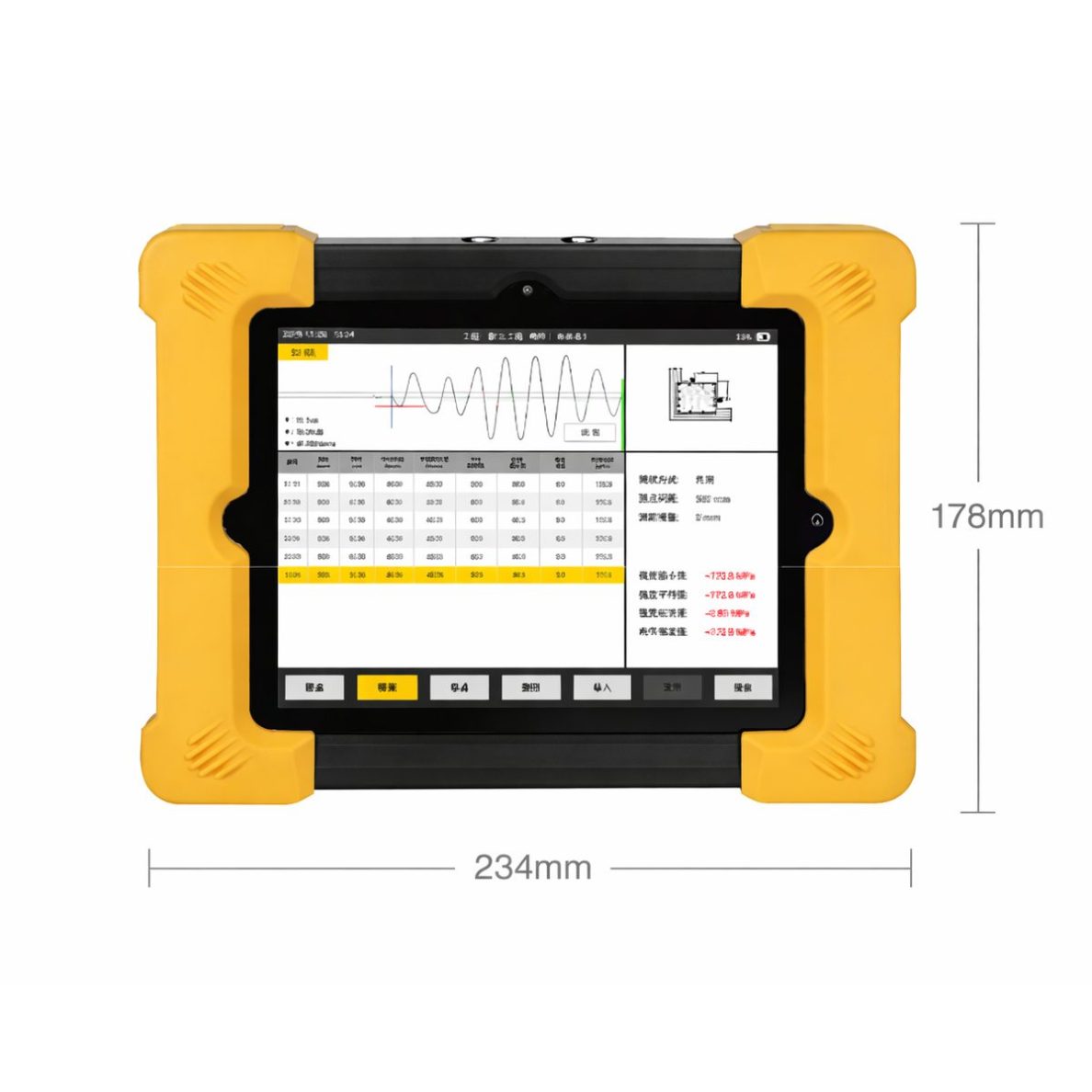

Dimensions: 257 x 185 x 56 mm
Weight: ~2.4 kg

Functions

Ultrasonic measurement (UPV method) – determines concrete quality and structure based on sound waves
Non-destructive testing (NDT) – allows inspection without damaging structures
Adjustable emission voltage (125–1000V) – suitable for different concrete thicknesses and densities
High accuracy (up to 0.025 μs) – precise and reliable measurement results
8" color LCD display – clear visualization of data and graphs
Automatic signal detection – automatically detects and records the signal
Wide measurement range – suitable for various objects and conditions
USB data transfer – easy transfer of results to a computer
Wide operating temperature range (-20°C to +60°C) – suitable for outdoor work
Flexible measurement settings – parameters can be adjusted as needed

Applications

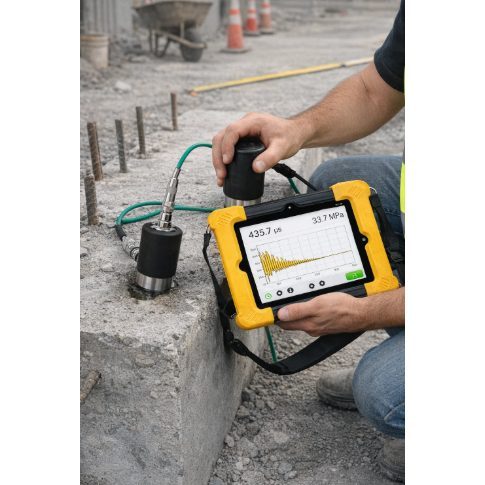

For advanced home users: inspection of concrete structures (e.g., foundations, floors), monitoring renovation or construction work, evaluation of cracks or defects
For engineers / construction specialists: analysis of concrete strength and homogeneity, structural diagnostics and expertise, condition assessment of bridges, buildings, columns, project quality control
For technical specialists / electricians: checking condition of cable routes or structures in concrete before drilling or installation – structural analysis, work with infrastructure objects
For laboratories / quality control departments: material testing, certification and quality inspection processes, scientific research

Advantages

Non-destructive testing (safe for structures)
Very high accuracy (up to 0.025 μs)
Large and clear 8" display
Wide measurement range
Large memory (16GB)
Suitable for outdoor and industrial environments (IP55)
Professional tool with wide application

Disadvantages

Requires specialized knowledge for accurate result interpretation
Not intended for beginners without experience
