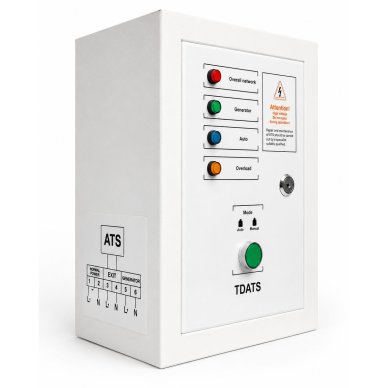

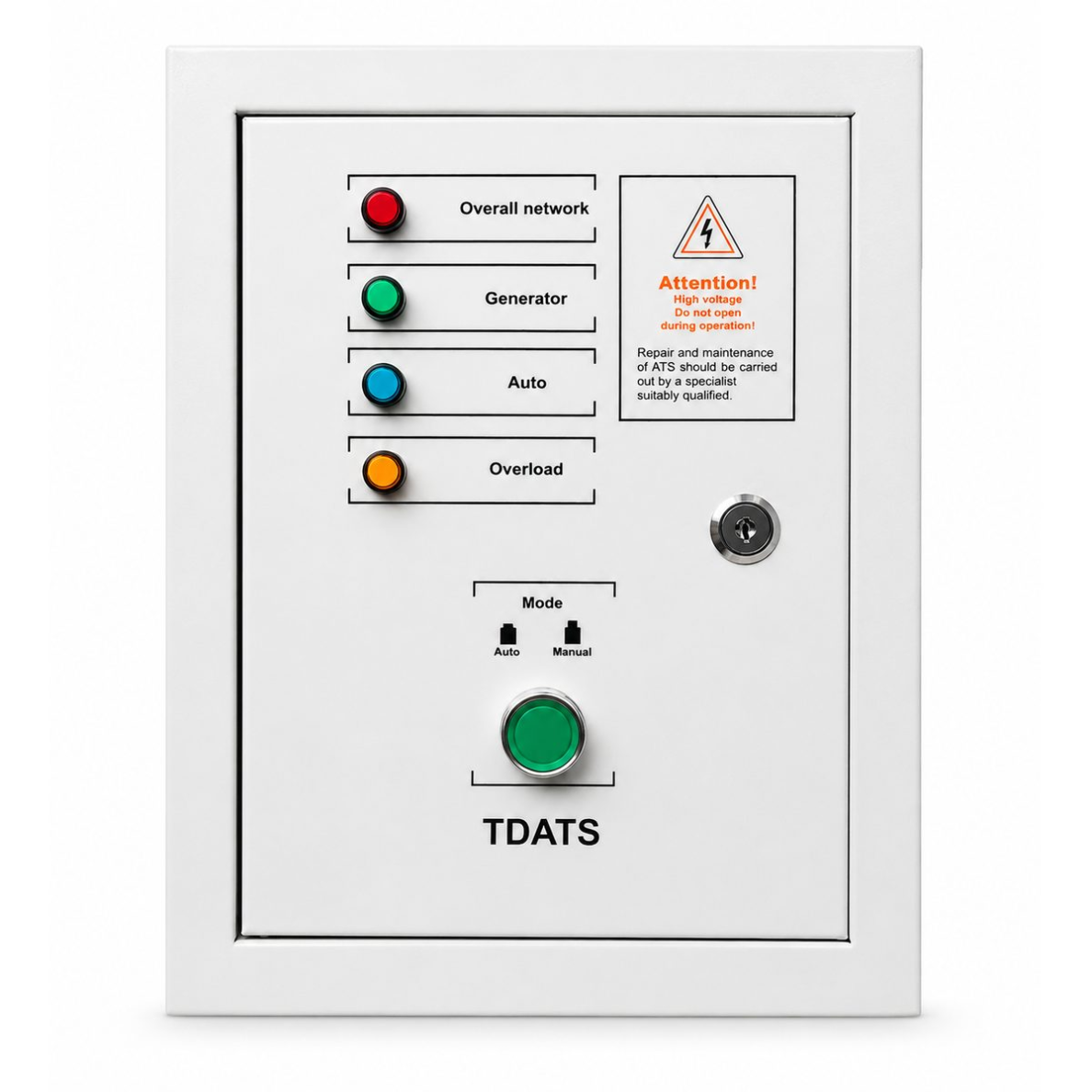

  • Automatic Transfer Switch (ATS) Controller for Generator | 5kW | 230V | Automatic Start and Backup Power Switching

    Code: ES-TD-ATS5
    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Buy more, pay less
    10+ pcs.  – 102.98 € for pcs. -53%

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

  • Technical Specifications

    Product type: ATS generator controller
    Purpose: automatic generator start and power transfer
    Suitable generator type: diesel generators
    Generator power: 5kW
    Operating voltage: 230V AC
    Control type: automatic
    Power source switching: utility grid – generator
    Housing material: steel, iron
    Color: white
    Dimensions: 304 x 206 x 350 mm
    Weight: approximately 5 kg
    Certificates: CE, ISO9001
    Warranty: 2 years

    Functions

    Automatic generator start-up – when the main utility voltage fails, the controller automatically sends a start signal to the generator.
    Automatic load transfer – once the generator reaches a stable operating mode, the load is automatically transferred to the backup power source.
    Automatic return to the grid – when the main utility voltage is restored, the load is transferred back to the utility grid.
    Generator shutdown – after successful transfer back to the grid, the generator is automatically stopped.
    Power supply protection – helps prevent prolonged power outages and reduces equipment downtime.
    Uninterrupted power supply – ensures automatic activation of the backup power source without operator intervention.

    Applications

    For homeowners: Suitable for private houses, cottages, and holiday homes where power outages occur frequently. The system automatically starts the generator even when the owner is not on site.
    For electricians: Enables installation of professional backup power systems for customers, reducing the need for manual operation and ensuring a higher level of safety.
    For engineers and designers: Suitable for electrical panels, ATS systems, and emergency power projects where automatic grid and generator control is required.
    For commercial and industrial companies: Helps prevent production stoppages, server shutdowns, security system failures, and other losses related to power outages.
    For farms and agriculture: Suitable for livestock farms, grain storage facilities, pumping stations, ventilation systems, and other equipment requiring uninterrupted power supply.

    Advantages

    Automatic generator start and stop
    Automatic load transfer between utility grid and generator
    Suitable for most 230V diesel generators
    Universal application for homes, cottages, farms, commercial and industrial facilities

    Disadvantages

    Not suitable for generators that do not support the Auto Start function
    Not intended for three-phase systems

    Does this ATS controller work with any generator?

    No. The generator must support the Auto Start function. It is recommended to verify the generator’s control capabilities before purchase.

    Does the device automatically start the generator during a power outage?

    Yes. When the main utility voltage fails, the ATS controller automatically starts the generator and transfers the load.

    Where is this ATS controller most commonly used?

    The ATS controller is commonly used in private homes, cottages, farms, and other locations where automatic backup power is required.

    Is manual power switching required?

    No. The system operates fully automatically and manages switching between the utility grid and the generator by itself.

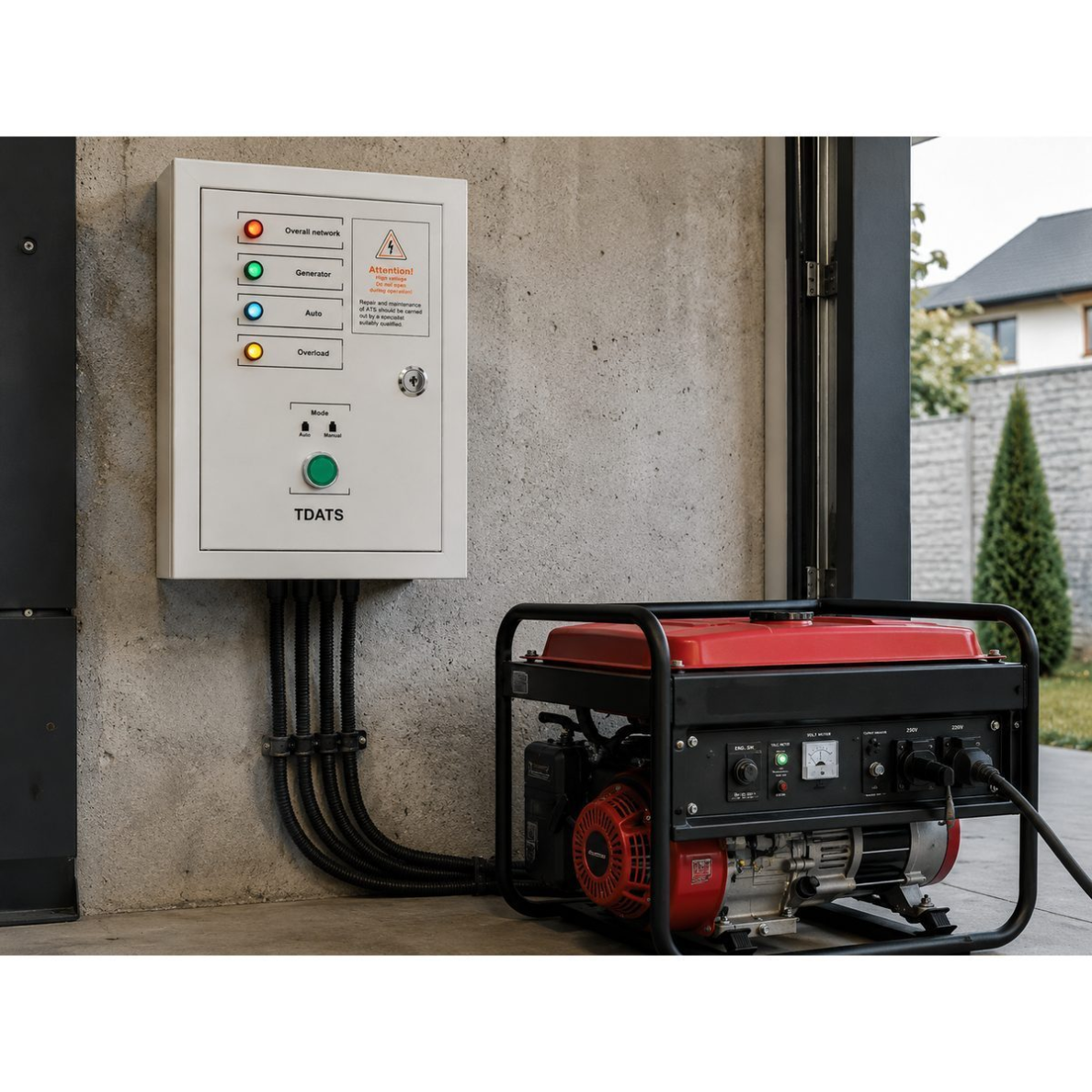

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
