  • New item   Cable gland with nut and seal | PG7 | for cable Ø3.5–6 mm | grey | IP67 | PG-07

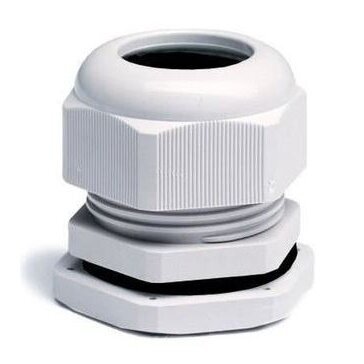

    Cable gland with nut and seal | PG7 | for cable Ø3.5–6 mm | grey | IP67 | PG-07

    Code: PG-07
    Inquire about this item
    Price 0.19 € VAT incl.
    ( 0.16 € VAT excl. )
    Want another price? Suggest yours!

    Grey polyamide cable gland with a PG7 thread and a compression nut. It seals one round cable with an outer diameter of 3.5–6 mm – thin control and signal cables (sensors, thermostats, push-buttons). Protection IP67 (EN 60529), operating temperature −40…+85 °C.

  • Product description

    Cable gland with nut and seal | PG7 | for cable Ø3.5–6 mm | grey | IP67 | PG-07

    PG-07 is a grey PG7 cable gland made of polyamide. It is screwed into a threaded PG7 opening or inserted into a plain Ø 12.5 mm hole and secured from inside with a lock nut. When the nut is tightened, the seal wraps around the cable sheath and closes the gap between cable and enclosure.

    Key point:
    PG7 is the smallest size in this series, intended for points where a thin control or signal cable enters a box or device. An oversized gland cannot grip such a cable, so the Ø3.5–6 mm range keeps IP67 even with a thin sheath. The grey colour matches grey plastic junction boxes and small panels, so the entry does not stand out.
    Thread
    PG7
    Cable Ø
    3.5–6 mm
    Protection
    IP67
    Temperature
    −40…+85 °C

    How it works

    Installation. With the power off, prepare a PG7 threaded or Ø 12.5 mm opening in the enclosure, screw in and tighten the gland, then pass the cable through the loosened nut.

    Operation. Turning the nut compresses the seal around the cable – it presses evenly onto the Ø3.5–6 mm sheath and also holds the cable against pull-out.

    Result. A tight IP67 entry: dust stays out, and temporary immersion (EN 60529 test – up to 1 m depth, 30 min) does not break the seal.

    What makes PG-07 useful?
    It lets you seal a thin cable into a small housing: the PG7 thread outer diameter is only 12.5 mm, so it fits on the narrow wall of a sensor box or a small control station.

    Technical specifications

    Product type Cable gland with nut and seal
    Code PG-07
    Thread PG7 (DIN 40430)
    Thread outer diameter 12.5 mm
    Cable outer diameter 3.5–6 mm
    Number of cables 1
    Design threaded body, compression nut, seal
    Degree of protection IP67 (EN 60529)
    Operating temperature −40…+85 °C
    Material polyamide
    Colour grey

    Main functions

    • IP67 sealing – protection against dust and temporary immersion.
    • Cable retention – the tightened nut reduces pull on the terminals.
    • PG7 thread – fits standard PG7 openings, thread outer diameter 12.5 mm.
    • Range Ø3.5–6 mm – thin control and signal cables (sensors, thermostats, push-buttons).
    • Polyamide body – does not corrode, non-conductive, works at −40…+85 °C.
    • Grey colour – does not stand out on grey boxes and small panels.

    Where is it used?

    • Temperature, pressure and level sensor housings
    • Small control stations with push-buttons and pilot lights
    • Connection boxes for thermostats and protective sensors
    • Outdoor and damp-room installations where IP67 is required
    • Equipment housings where the cable enters through the wall
    • Repairs where an old, cracked cable entry is replaced
    • Grey plastic junction boxes and small panels

    Use by need

    For the automation installer.
    Sensor and push-button cables are usually thin – PG7 with its Ø3.5–6 mm range grips them without extra sleeves.
    For the designer.
    In the specification it is enough to state PG7, cable Ø3.5–6 mm and IP67 – the parameters are clear, and the IP68 alternative 00810 (PG7, Ø3–6.5 mm) has the same thread.
    For the facility manager.
    A grey entry on a grey box looks tidy, and IP67 reduces the risk of moisture-related faults in basements and outdoors.

    Practical use

    If you are mounting a level-sensor box outdoors at a pumping station and a signal cable of about 5 mm diameter enters it, PG7 is the right size: screw the gland into the box opening, pass the cable through, tighten the nut until the cable no longer moves – and the box is protected against rain and splashes.

    Pros

    • Defined range Ø3.5–6 mm for one PG7 size
    • IP67 according to EN 60529
    • Operating temperature −40…+85 °C – suitable for unheated rooms and outdoor equipment
    • Polyamide – rust-free and non-conductive
    • The tightened nut both seals and holds the cable
    • Grey colour – the entry does not stand out on grey housings

    Cons / limitations

    • IP67, not IP68 – for permanent immersion choose IP68 00810 (PG7, Ø3–6.5 mm) or ES-PG7.
    • Limited range: for a cable thinner than 3.5 mm choose IP68 00810 (PG7, Ø3–6.5 mm); for one thicker than 6 mm – PG-09 / PG-09B (PG9, Ø4–8 mm).
    • One gland – one round cable; not for flat cables or several wires.
    • Not a fire barrier – it does not replace fire-rated cable penetrations.

    Safety and installation notes

    • Work in a panel or box only with the power disconnected and the absence of voltage verified.
    • After drilling, remove all swarf from the enclosure – it can cause a short circuit.
    • Drill the hole to the thread outer diameter of 12.5 mm – in an oversized hole the seal is not guaranteed.
    • Tighten the nut until the cable no longer moves in the seal; overtightening can damage the plastic thread.
    • Route the cable from below or with a drip loop so water does not run along it to the gland.

    Quick selection guide

    PG7 thread (Ø 12.5 mm)
    Cable Ø3.5–6 mm
    IP67, −40…+85 °C
    Grey, polyamide
    Suitable when you need:
    • to seal a thin signal or control cable (Ø3.5–6 mm)
    • for the entry to match a grey box or panel
    • to protect the entry against rain, dust and splashes
    Check before use:
    • The cable outer diameter with a caliper – it must be 3.5–6 mm.
    • The opening type: threaded PG7 or plain Ø 12.5 mm hole (then a lock nut is needed).
    • Whether the entry will be in direct sunlight – UV resistance is not stated in our data.
    Important reminder: The gland seals and holds one cable, but it is not a fire barrier and does not replace an IP68 gland where the entry is permanently under water.

    FAQ

    What cable size does PG-07 fit?
    A cable with an outer diameter of 3.5–6 mm – measure the sheath, not the conductor cross-section in mm².
    Is PG7 suitable for a 3×1.5 mm² power cable?
    Usually not – the outer diameter of such a cable is typically above 6 mm, so check the dimension and choose PG-09 / PG-09B if needed.
    Is PG-07 suitable for permanent operation under water?
    No – IP67 is for temporary immersion; for permanent immersion choose IP68 00810 (PG7, Ø3–6.5 mm).
    What hole size should I drill for PG7 without a thread?
    The hole should match the PG7 thread outer diameter – 12.5 mm; the gland is then secured from inside with a lock nut.
    How does PG-07 differ from PG-07B?
    Only in colour: PG-07 is grey, PG-07B is black; thread, range, IP67 and operating temperature are the same.
    Can two wires be passed through one gland?
    No – the seal only closes around one round cable; use a separate gland for each cable.

    PG-07 – PG7 cable gland Ø3.5–6 mm, grey, IP67

    Grey polyamide PG7 cable gland PG-07 for one cable Ø3.5–6 mm: thin control and signal cables (sensors, thermostats, push-buttons). IP67, −40…+85 °C, for boxes, small panels and equipment housings.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
