Humidity controller | 0–99 % RH | direct output 10 A / 1500 W | 220 V AC | Taxnele XH-W3005
Code: ES-W3005-220Price 25.41 € VAT incl.( 21.00 € VAT excl. )XH-W3005 digital humidity controller with LED display and probe on cable: 0–99 % RH, 0.1 % RH setting step. Powered by 220 V AC, direct output up to 10 A / 1500 W – for humidifying or dehumidifying.
-
Humidity controller | 0–99 % RH | direct output 10 A / 1500 W | 220 V AC | Taxnele XH-W3005

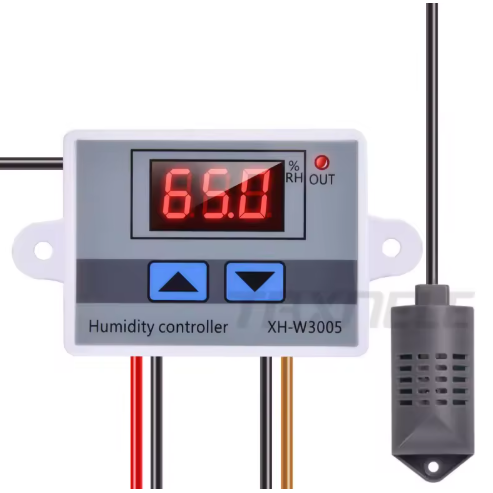

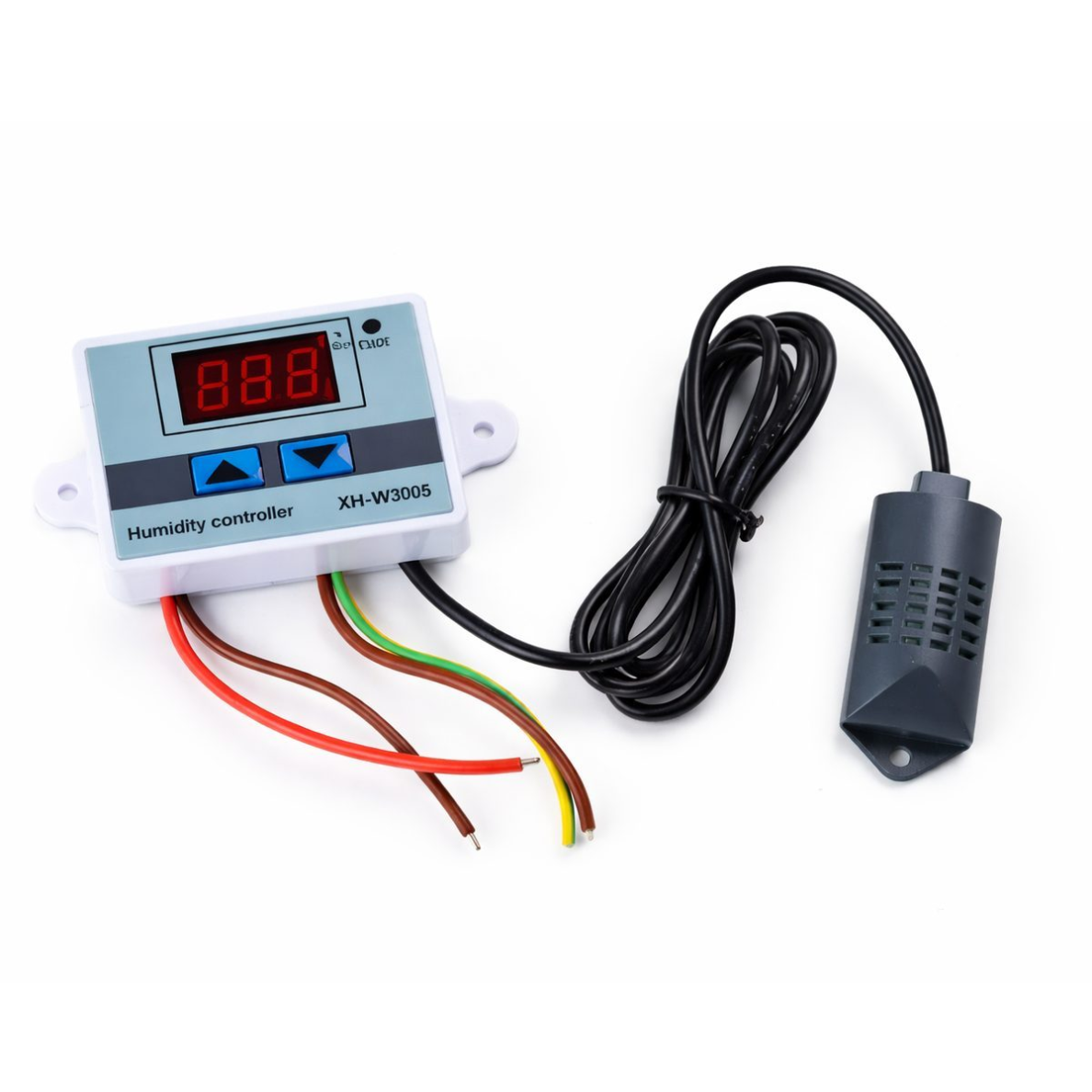

The Taxnele XH-W3005 is a digital humidity controller module with an LED display and an external humidity probe on a cable. It measures relative humidity at 0–99 % RH and switches a humidifier, dehumidifier or fan on and off between two set points. Supply 220 V AC, direct output up to 10 A / 1500 W.
Key point:
A simple way to automate a small humidifier or fan without a separate controller or programming. The output is not a dry contact: when the relay closes, the same mains voltage that powers the module is passed to the load. Supplier limit is 1500 W; inductive loads need a contactor.Measuring range
0–99 % RHSetting step
0.1 % RHSupply
220 V ACMax. load
10 A / 1500 WHow it works
The module is fixed in a closed enclosure or panel, and the probe cable is routed into the controlled space. Mains voltage goes to the 2 power terminals via a circuit breaker, the load to the 2 output terminals. Wiring by a qualified electrician.
UP sets the switch-on point, DOWN the switch-off point: hold for about 3 s until the value flashes, then adjust in 0.1 % RH steps. If the switch-on point is lower than the switch-off point, the controller humidifies; if higher, it dehumidifies.
The gap between the two points works as hysteresis, so small fluctuations do not cause rapid switching. Humidity stays within your set band without manual intervention.
Why choose the XH-W3005?
One small module replaces manual control of a mains humidifier or fan. Actual humidity is always on the display, set points change with two buttons, and larger loads are switched via a contactor.Technical specifications
Product type Digital humidity controller (hygrostat), open module Manufacturer / model Taxnele XH-W3005 (ES-W3005-220) Measured value Relative air humidity (no temperature measurement) Measuring range 0–99 % RH Measuring accuracy ±2 % RH (according to supplier data) Setting step 0.1 % RH Supply voltage 220 V AC (suppliers state 110–220 V AC) Output type Direct: the relay passes the supply voltage to the load (not a dry contact) Max. load 10 A relay, up to 1500 W (supplier limit) Modes Humidify / dehumidify – set by the relation of switch-on and switch-off points Display / control LED display, 2 buttons (UP / DOWN) Probe External humidity probe on cable, approx. 1 m (according to supplier data) Dimensions 60 × 45 × 31 mm Mounting hole spacing 73 mm Weight approx. 65–68 g Housing Open board type, no IP rating – install in an enclosure or panel Main functions
- Humidify and dehumidify modes – the mode follows from which set point is higher; no separate menu.
- Two separate set points – switch-on and switch-off values are set independently, so you choose the band (hysteresis).
- 0.1 % RH setting step – set points can be set precisely.
- LED display – shows actual relative humidity, and the set points while adjusting.

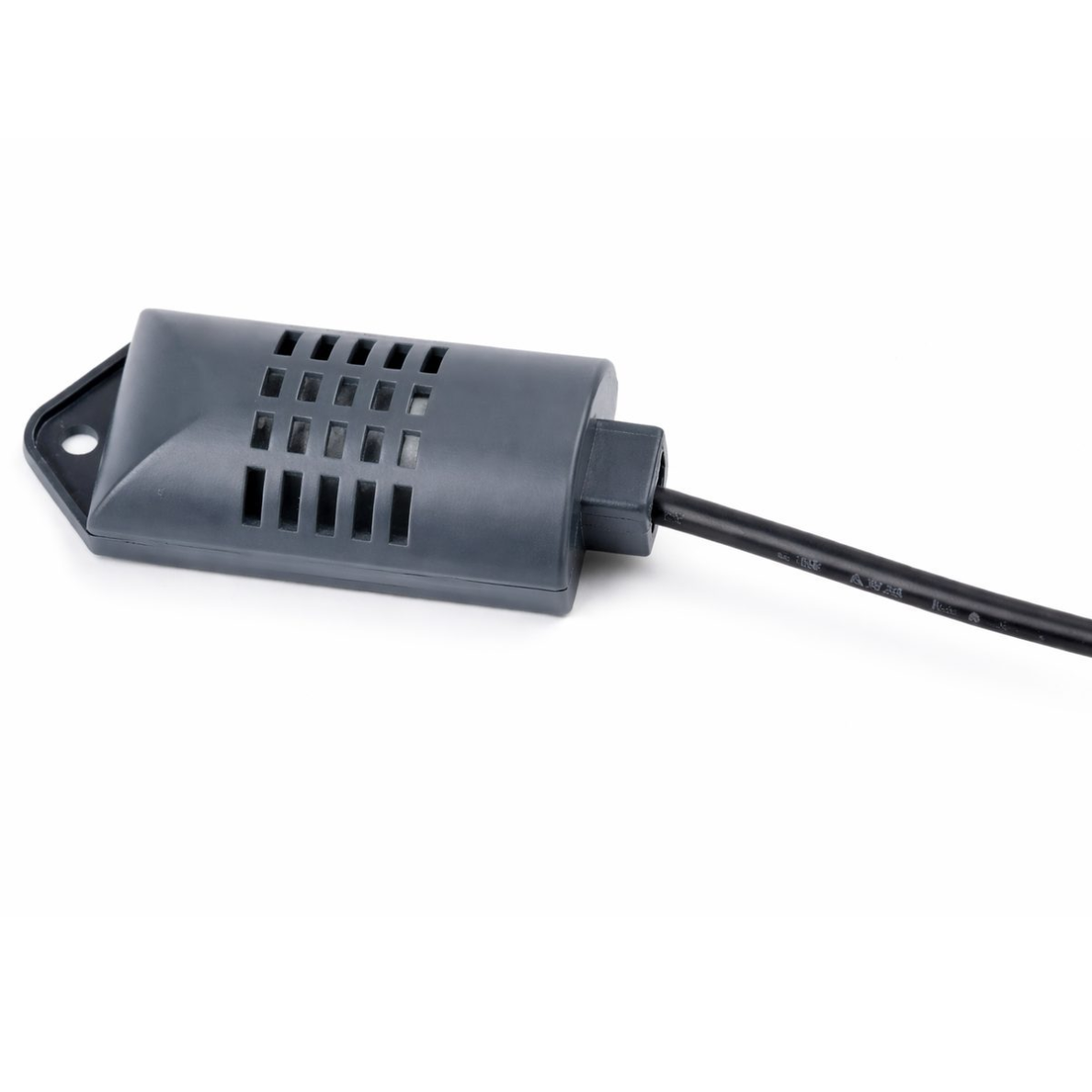

- External probe on cable – measures where needed while the module stays in a dry enclosure.
- 10 A direct output – supply voltage is passed to the load without an extra relay (up to 1500 W).
- Factory reset – UP and DOWN together, display shows “888”.
How does it differ from similar products?
STC-3028 (21501–21503) Measures and controls both temperature and humidity with two separate outputs. The XH-W3005 controls humidity only but is simpler and more compact. Plastim PHG02 (531) Mechanical DIN-rail hygrostat, 10–90 % RH, 10 (5) A contact, no display and no probe on cable. The XH-W3005 shows humidity digitally and measures via a probe. SONOFF SNZB-02DR2 (18621) Wireless Zigbee T/RH sensor with LCD, no relay output – control only via a Zigbee hub. The XH-W3005 works standalone and switches the load itself. Other XH-W3005 versions Same module, different supply and load limit: 12 V DC – up to 120 W (20484) and 24 V DC – up to 240 W (20485). Choose the version by load voltage. Where is it used?

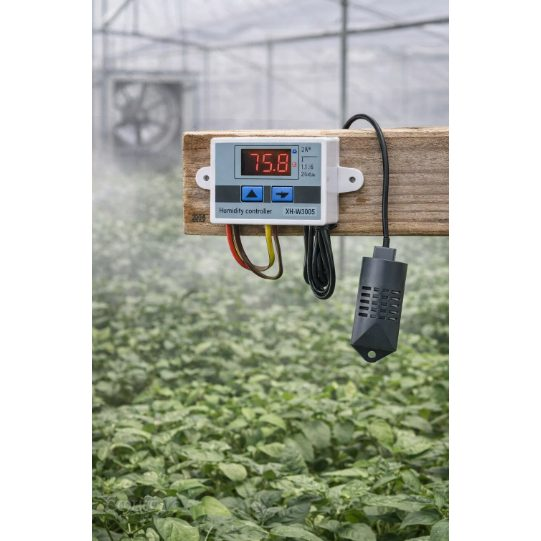

- Greenhouses and seedling rooms – ultrasonic humidifier
- Mushroom growing rooms and boxes
- Incubators and hatching boxes
- Cellars and storerooms – extract fan or dehumidifier (via contactor)
- Terrariums and paludariums
- Electrical panels – switching a heater or fan on at high humidity
- Small drying and storage rooms
Use by need
For beginners.
Just connect supply and load and set two points. For humidifying, the switch-on point is lower and the switch-off point higher, e.g. 55 and 65 % RH.For experienced installers.
The output carries mains voltage, not a dry contact. For motors, compressors and larger loads use a contactor – the module then drives only the coil.For engineers / designers.
Accuracy ±2 % RH, no calibration, delay or communication interface. Suited to local ON/OFF control; for BMS or Modbus integration choose Sentera sensors/transmitters from the same group.Practical application
Situation: in a greenhouse seedling room, humidity drops to 40 % RH during the day. Solution: XH-W3005 220 V AC version with an ultrasonic humidifier, switch-on at 55 % RH, switch-off at 65 % RH (humidify mode). Result: the humidifier starts automatically, and humidity stays within 55–65 % RH without manual intervention.Pros / advantages
- Only two set points – set up in a minute, no menu.
- Humidifying and dehumidifying with one module.
- Direct output – no extra relay needed for a small humidifier or fan.
- Probe on cable – the module stays in a protected enclosure.
- 0.1 % RH setting step and clear LED reading.
- Compact: 60 × 45 × 31 mm.
Cons / limitations
- Measures humidity only – no temperature control. For both values choose the STC-3028.
- The output is not a dry contact – it cannot directly control a circuit of a different voltage.
- No calibration, delay or minimum off-time – for compressor dehumidifiers set a wider band and use a contactor.
- Open board-type housing with no IP rating – only inside an enclosure or panel.
- Accuracy ±2 % RH, no communication interface. For integration choose Sentera Modbus sensors.
Safety and installation notes
- ⚡ Installation by a qualified electrician only. Disconnect the supply before work and verify it is dead.
- ⚡ The board is open – terminals and tracks are at mains voltage. Install the module only in a closed, non-conductive enclosure or panel so it cannot be touched.
- ⚡ Protect the circuit with a circuit breaker of up to 10 A and, where installation rules require it, a 30 mA residual current device.
- ⚡ The output carries mains voltage. Do not apply power while the output is unconnected or wired incorrectly (supplier warning).
- ⚡ Use a contactor for motors, compressors and larger loads. The supplier recommends not exceeding 50 % of the maximum values in continuous operation.
- ☝ Not in bathroom zones 0–2 (HD 60364-7-701). Do not immerse the probe in water and protect it from splashes.
Quick selection guide
Measures: humidity only, 0–99 % RHSupply: 220 V ACOutput: direct, 10 A / 1500 WMounting: in enclosure or panelSuitable when you need:- to keep humidity within a set band automatically
- to control a small humidifier or fan
- simple ON/OFF control without programming
- to measure humidity away from where the module is mounted
Check before choosing:- Does the load stay within 1500 W?
- Is a contactor planned for inductive loads?
- Will a qualified electrician install it?
- Do you have a closed enclosure or panel for the module?
Important reminder: ⚡ The output carries mains voltage, not a dry contact. The module does not control temperature and has no protective housing – closed enclosure only.☝ Elsprendimai.eu recommends:- Digital thermostat-hygrostat STC-3028 – STC-3028 – when you need to control both temperature and humidity with two outputs.
- Plastim PHG02 – Plastim PHG02 – mechanical DIN hygrostat for panels, no display.
- Temperature and humidity sensor selection guide – Group selection guide – sensors, transmitters and hygrostats in one place.
- Contactors and relays – Contactors and relays – for inductive and larger loads.
FAQ
Does the XH-W3005 measure temperature?
No. The module measures and controls relative humidity only. It is sometimes wrongly called a temperature and humidity controller.How do I set humidifying or dehumidifying?
There is no separate mode. If the switch-on point (UP) is lower than the switch-off point (DOWN), it humidifies; if higher, it dehumidifies.Is the output a dry contact?
No. It is a direct output: when the relay closes, the mains voltage that powers the module is passed to the load.Why 1500 W if the relay is 10 A?
1500 W is the supplier's maximum load for the 220 V AC version. For continuous operation the supplier recommends not exceeding 50 % of the maximum values.Can the reading be calibrated or a delay set?
Supplier data shows no calibration, delay or set-point limit functions. Only a factory reset is available (UP and DOWN together, “888”).How long is the probe cable?
According to supplier data, approx. 1 m. Plan the module position within this distance from the measuring point.Sources: XH-W3005 supplier product descriptions (Sigmanortec, bbiri-centre, ManoMano, Riverwood, Reptile Garden, AideePen). Checked 2026-10-19.
Humidity controller Taxnele XH-W3005 220 V AC
The Taxnele XH-W3005 220 V AC is a digital humidity controller with a probe on cable: 0–99 % RH, 0.1 % RH step and a 10 A / 1500 W direct output. It controls humidifiers, dehumidifiers and fans, with the module installed in an enclosure or panel.
