Digital thermostat-hygrostat | −20…+80 °C, 0–100 % RH | 2 relays 10 A | 12 V DC | STC-3028
Code: ES-STC-3028-12Price 22.11 € VAT incl.( 18.27 € VAT excl. )Dual digital controller: thermostat and hygrostat in one panel-mount housing, powered from 12 V DC. Two independent 10 A relays switch heating or cooling and humidifying or dehumidifying based on a T/RH probe on a 1 m cable.
-
Digital thermostat-hygrostat | −20…+80 °C, 0–100 % RH | 2 relays 10 A | 12 V DC | STC-3028

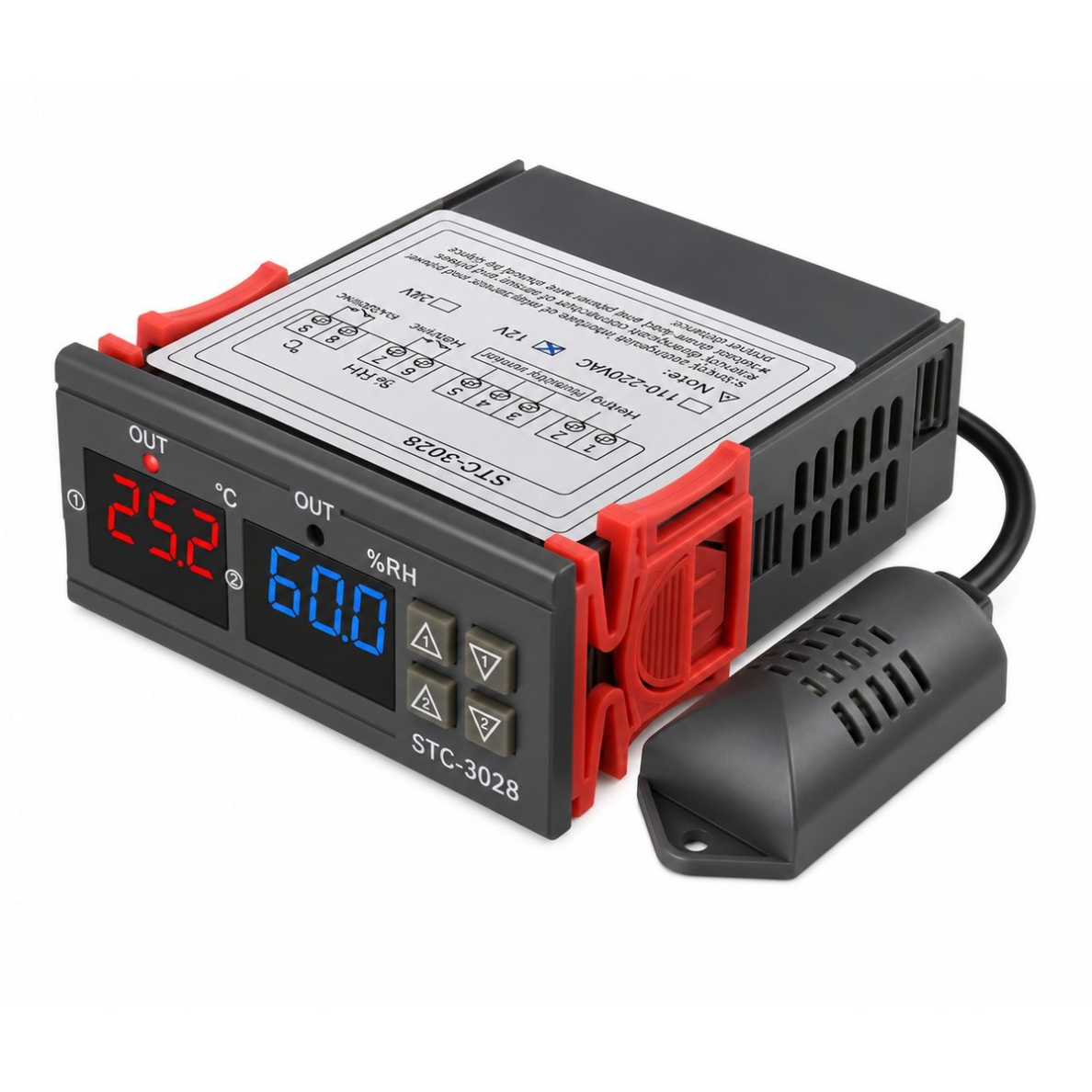

STC-3028 is a dual digital controller: thermostat and hygrostat in one housing. It measures temperature −20…+80 °C and relative humidity 0–100 % RH with an external probe on a 1 m cable. Two independent 10 A relays switch heating or cooling and humidifying or dehumidifying. Supply – 12 V DC, mounted in a 71×29 mm cut-out.
Key point:
One device with two displays replaces two controllers: temperature on top, humidity below. The mode is set with two values – switch-on and switch-off – with no complex menu. The 12 V DC version suits places that already have a SELV supply – control panels, battery or solar systems.Temperature
−20…+80 °CHumidity
0–100 % RHOutputs
2 relays × 10 ASupply
12 V DCHow it works

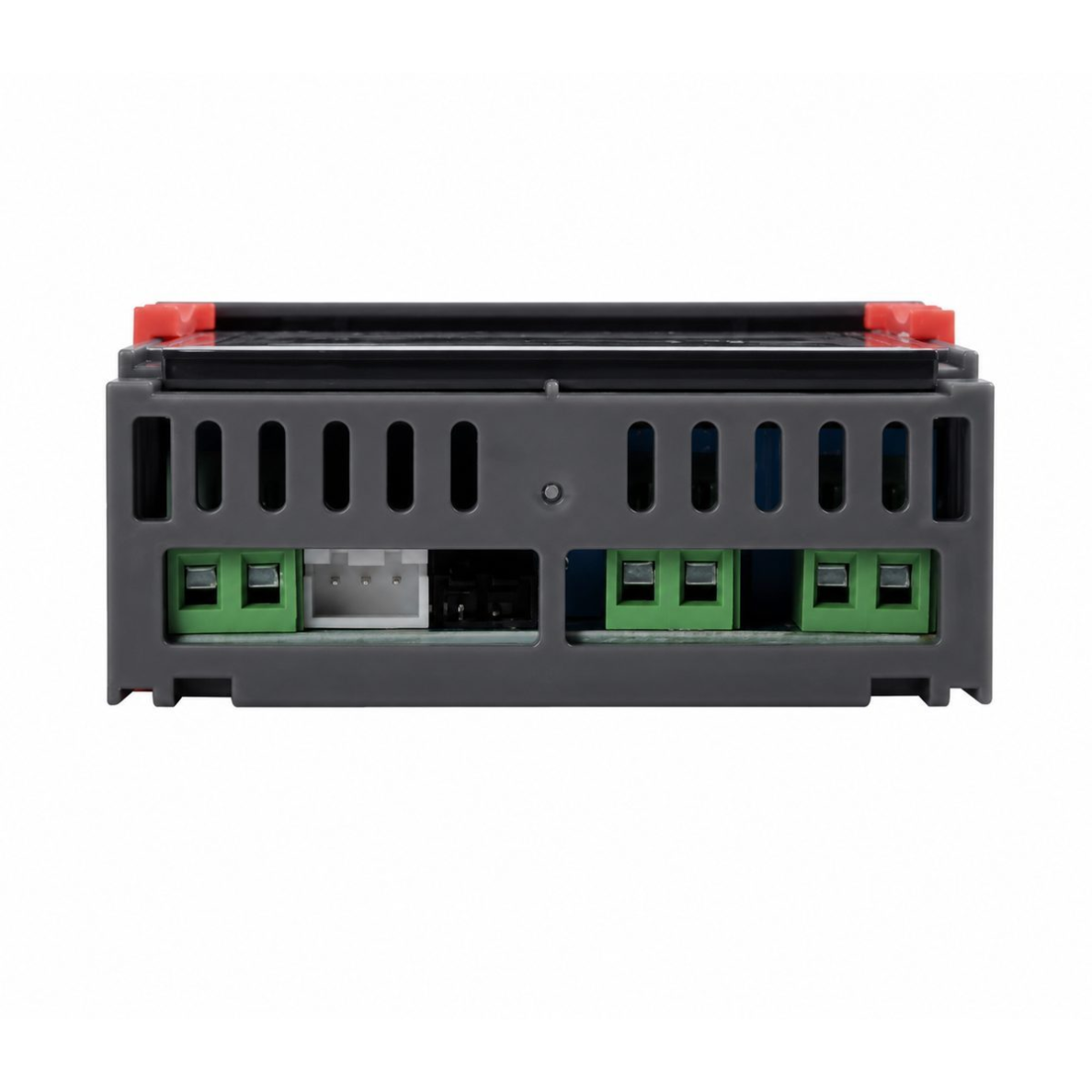

The controller fits a ≈71×29 mm cut-out in a panel door or control box and is connected to 12 V DC. The probe with a 1 m cable goes into the controlled space. The relay contacts are volt-free – you bring the load supply yourself.
Each channel has two values: switch-on and switch-off. If the switch-on temperature is lower than switch-off – heating; if higher – cooling. Humidity works the same way: humidifying or dehumidifying.
The relay closes at the switch-on point and opens at the switch-off point. The gap between them acts as hysteresis, so the load does not short-cycle.
Why choose STC-3028?

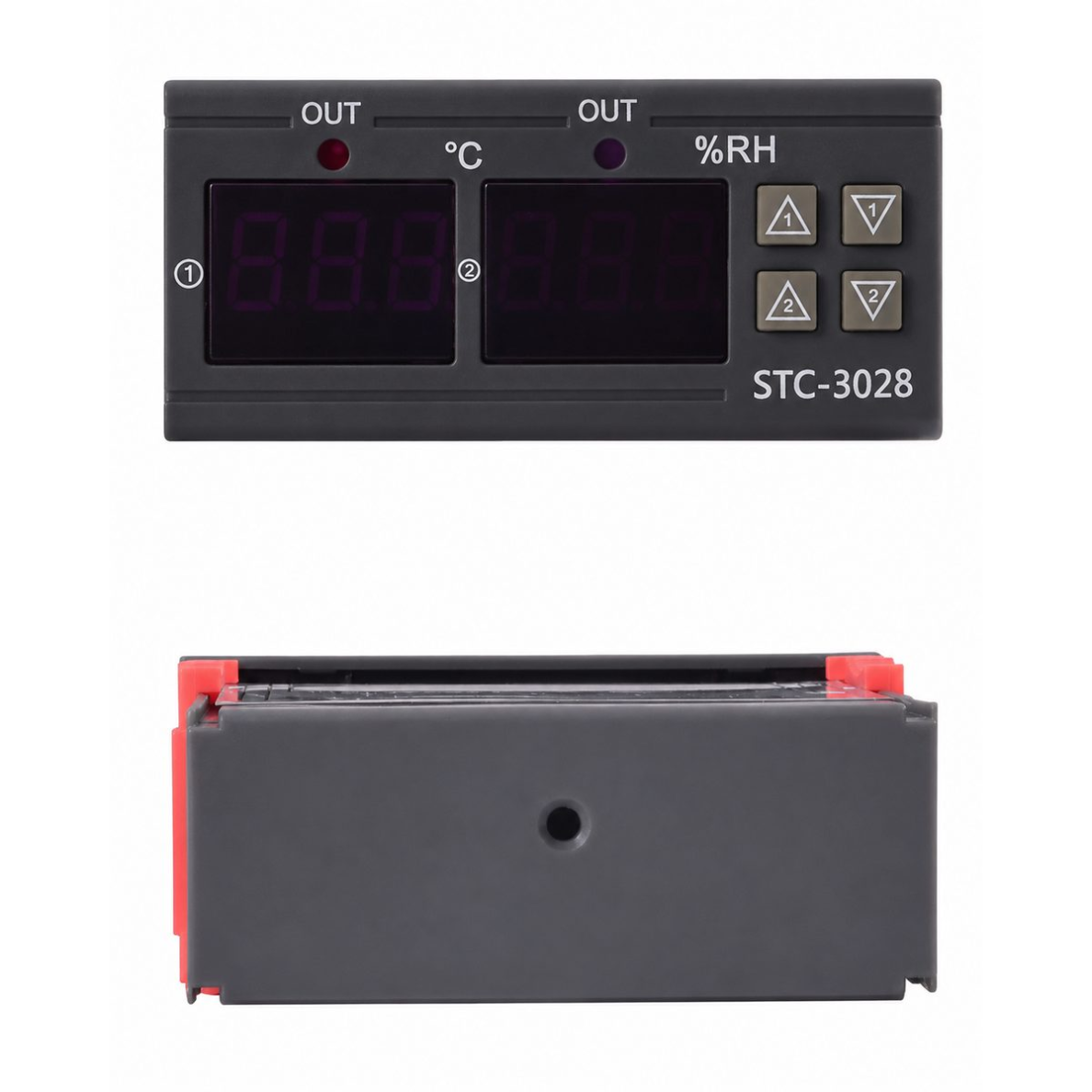

Two control channels in a ≈75×34.5×85 mm housing save space and wiring. Settings are kept after a power loss, and T and RH readings can be offset in 0.1 steps against a reference meter.Technical specifications
Product type Dual digital controller (thermostat + hygrostat), panel-mount Manufacturer / model Manufacturer not confirmed / STC-3028 Supply 12 V DC Own consumption < 3 W Temperature measuring range −20…+80 °C Humidity measuring range 0–100 % RH Temperature accuracy ±1 °C Humidity accuracy Not reliably declared – treat as indicative Outputs 2 independent relays (T and RH), volt-free contacts Relay contact rating 10 A / 220 V AC Control logic Switch-on and switch-off values: heating / cooling, humidifying / dehumidifying Calibration T and RH offset, 0.1 step Probe Combined T/RH, 1 m cable Display 2 LED displays (T and RH) Mounting Panel-mount, cut-out ≈71×29 mm Dimensions ≈75×34.5×85 mm Operating environment 0…+60 °C, non-condensing Weight ≈120 g Package contents Controller, T/RH probe with 1 m cable Main functions
- Dual control – temperature and humidity are regulated independently, each by its own relay.
- Heating or cooling – the mode follows the ratio of switch-on and switch-off values.
- Humidifying or dehumidifying – the same principle for the humidity channel.
- Freely set hysteresis – the gap between the limits protects the load from frequent switching.
- Reading calibration – T and RH offset in 0.1 steps.
- Settings memory – values are retained after a power loss.
How does it differ from similar products?
Plastim PHG02 (531) Mechanical DIN-rail hygrostat 10–90 % RH, 10 (5) A, no display and no temperature channel. STC-3028 is digital, controls T and RH and mounts in a cut-out. XH-W3005 (20484–20486) Humidity-only controller. STC-3028 adds a thermostat channel with its own relay. Sentera RCTH / RSTH (22724) Room T/RH transmitters and controllers with analogue outputs and Modbus RTU – for building automation. STC-3028 is stand-alone, with relays and no communication interface. Other STC-3028 variants Same functions, relays and probe – only the supply differs. This variant – 12 V DC; others: 110–220 V AC (21501), 24 V DC (21503). Where is it used?

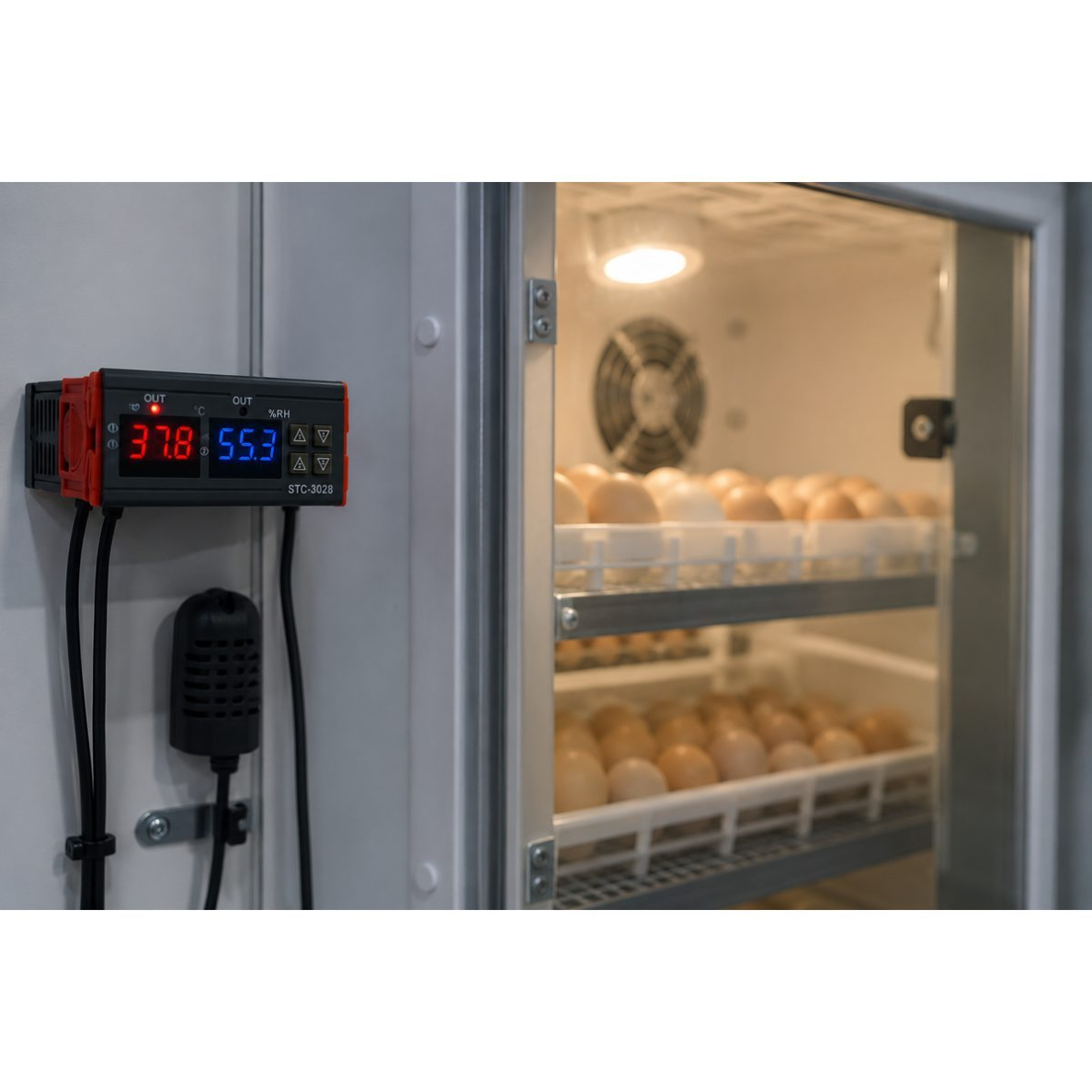

- Incubators and hatching cabinets
- Mushroom growing rooms and small greenhouses
- Cellars, storage rooms, archives – dehumidifier control
- Drying and ageing chambers
- Terrariums and animal housing
- Small cold rooms – via a contactor
- Stand-alone 12 V DC systems – battery or solar-powered cabinets, vehicles
Use by need
For beginners.
Set two values per channel – switch-on and switch-off. Switch-on below switch-off means heating or humidifying.For experienced installers.
Contacts are volt-free: feed the load through a circuit breaker and connect a compressor, dehumidifier or large fan via a contactor.For engineers / designers.
The device is stand-alone – no communication interface and no alarm output. For data to a BMS or PLC choose a T/RH transmitter with 0–10 V or Modbus RTU.Practical use
In a cellar humidity rises to 75 % RH and in winter the temperature drops to +3 °C. Settings: temperature on 5 °C, off 8 °C (heating); humidity on 60 %, off 50 % (dehumidifying). A heater up to 10 A is wired via the relay, the dehumidifier via a contactor. Result – both parameters kept within limits by one device, without a PLC.Pros / advantages
- Thermostat and hygrostat in one housing
- Two independent 10 A relays
- Simple setup – switch-on and switch-off values
- T and RH reading calibration
- Own consumption < 3 W
- Compact housing, cut-out ≈71×29 mm
Cons / limitations
- Temperature accuracy ±1 °C – too coarse for precise process control.
- No communication interface or alarm output – for BMS integration choose Sentera transmitters (22724) or LEFOO LFH10 (11907).
- Not a DIN-rail housing – for inside the panel choose PHG02 (531).
- Inductive loads (compressor, dehumidifier, motor) need a contactor.
- Humidity accuracy is not reliably declared – use a calibrated sensor for critical processes.
Safety and installation notes
- ⚠ Power the controller from a SELV supply of 12 V DC; observe polarity as marked on the terminals.
- ⚠ The relay contacts may also switch 230 V loads – then wiring must be done by a qualified electrician with the supply isolated and the circuit protected by a circuit breaker.
- ⚠ Route 230 V and SELV cables separately so the low-voltage circuit never touches mains conductors.
- ⚠ Connect a compressor, dehumidifier or motor via a contactor – the relay drives only its coil.
- ⚠ Mount the controller in a dry place, 0…+60 °C, non-condensing; only the probe goes into the humid space.
Quick selection guide
−20…+80 °C / 0–100 % RH2 relays × 10 A12 V DCCut-out ≈71×29 mmSuitable when you need:- temperature and humidity control in one device
- stand-alone control without a PLC or network
- mounting in a panel door or control box
- a 12 V DC supply
Check before choosing:- load current and type – inductive loads need a contactor
- whether the 1 m probe cable is long enough
- whether ±1 °C accuracy is enough for the process
- supply variant: 110–220 V AC, 12 V DC or 24 V DC
Important reminder: STC-3028 is not a protective device and has no alarm output. For critical processes provide separate over-temperature or emergency protection.☝ Elsprendimai.eu recommends:- Humidity controller Taxnele XH-W3005 – XH-W3005 12 V – if you need humidity control only, at the same supply voltage.
- Plastim PHG02 – Plastim PHG02 – mechanical DIN-rail hygrostat when the controller must sit inside the panel.
- Contactors and relays – Contactors and relays – for a compressor, dehumidifier or larger heater.
- Temperature and humidity sensor selection guide – Temperature and humidity sensor selection guide – when to use a controller and when a transmitter.
FAQ
Does STC-3028 mount on a DIN rail?
No. It is a panel-mount device for a ≈71×29 mm cut-out. For inside the panel choose PHG02 (531) or mount the controller in the panel door.How do I select heating or cooling?
Set the switch-on value below switch-off for heating, above it for cooling. Humidity works the same way: humidifying or dehumidifying.Does the relay supply voltage to the load?
No. The contacts are volt-free – the load supply must be brought separately through the relay contact.Can I connect a dehumidifier or compressor directly?
We recommend a contactor. 10 A is the contact rating, while the inrush current of an inductive load is much higher.Is there RS485 or another communication interface?
No. For data transfer to a BMS choose Sentera T/RH transmitters with Modbus RTU.Can the readings be corrected?
Yes. Temperature and humidity are calibrated in 0.1 steps against a reference meter.Sources: STC-3028 user manual and supplier technical data (Phipps Electronics, RCS Components, Riverwood, Shtrol). Checked 2026-10-19.
STC-3028 thermostat-hygrostat 12 V DC
STC-3028 is a panel-mount dual temperature and humidity controller with two 10 A relays and a T/RH probe, powered from 12 V DC. It measures −20…+80 °C and 0–100 % RH and controls heating, cooling, humidifying and dehumidifying.
Published: 2026-10-19 · Data verified against the supplier's data: 2026-10-19
