  • Digital thermostat-hygrostat | −20…+80 °C, 0–100 % RH | 2 relays 10 A | 24 V DC | STC-3028

    Code: ES-STC-3028-24

    Dual digital controller: thermostat and hygrostat in one panel-mount housing, powered from 24 V DC. Two independent 10 A relays switch heating or cooling and humidifying or dehumidifying based on a T/RH probe on a 1 m cable.

  • Digital thermostat-hygrostat | −20…+80 °C, 0–100 % RH | 2 relays 10 A | 24 V DC | STC-3028

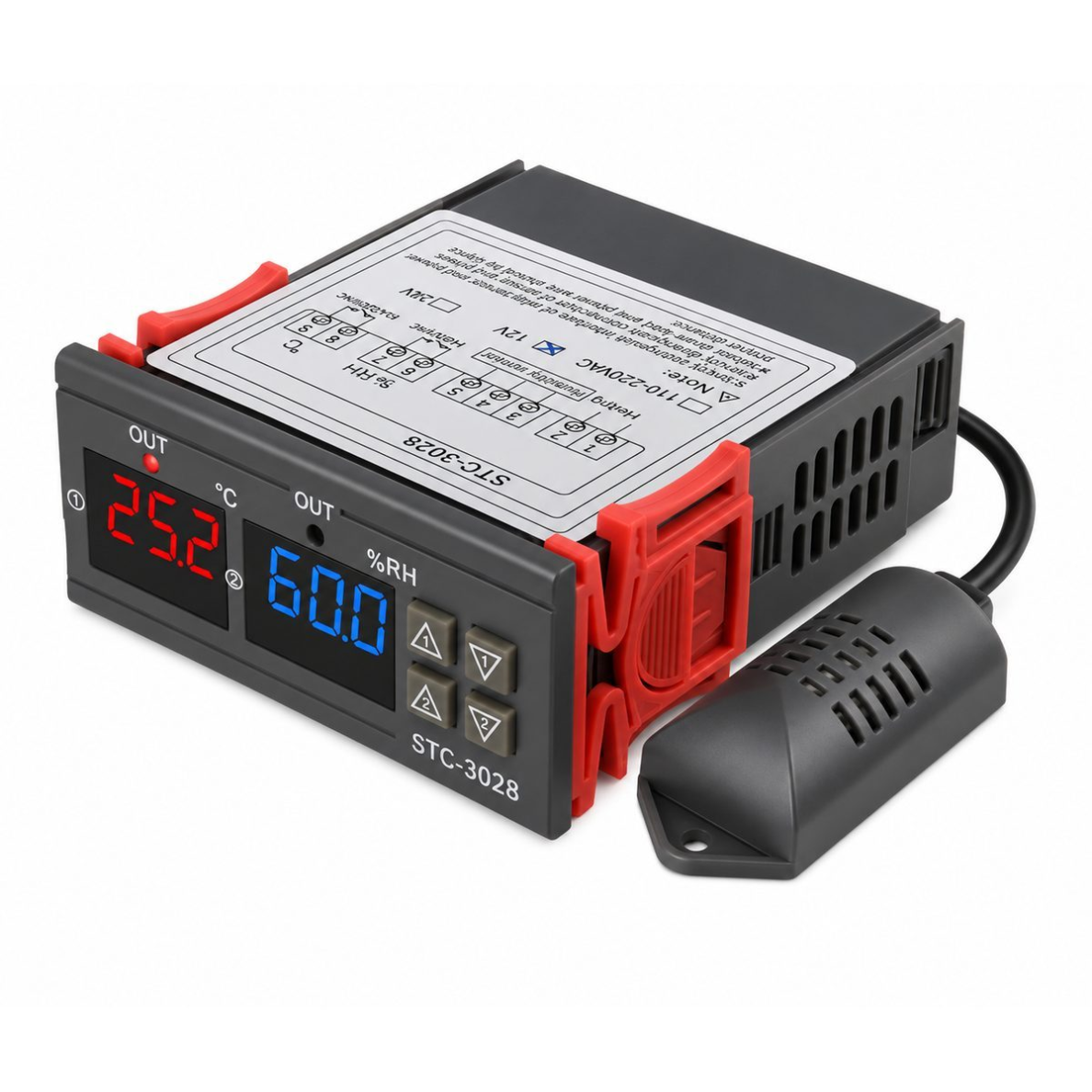

    STC-3028 is a dual digital controller: thermostat and hygrostat in one housing. It measures temperature −20…+80 °C and relative humidity 0–100 % RH with an external probe on a 1 m cable. Two independent 10 A relays switch heating or cooling and humidifying or dehumidifying. Supply – 24 V DC, mounted in a 71×29 mm cut-out.

    Key point:

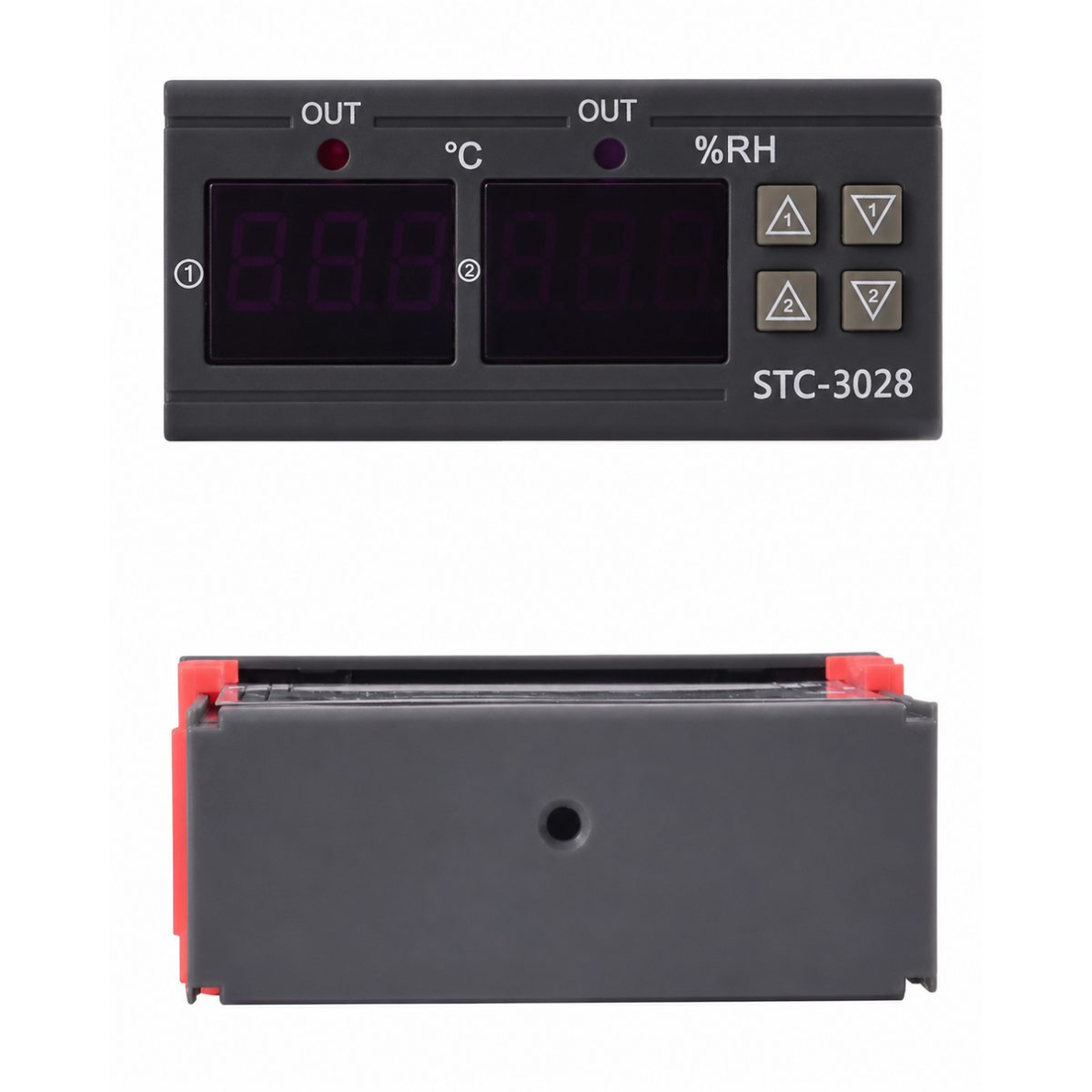

    One device with two displays replaces two controllers: temperature on top, humidity below. The mode is set with two values – switch-on and switch-off – with no complex menu. The 24 V DC version suits places that already have a SELV supply – control panels, battery or solar systems.
    Temperature
    −20…+80 °C
    Humidity
    0–100 % RH
    Outputs
    2 relays × 10 A
    Supply
    24 V DC

    How it works

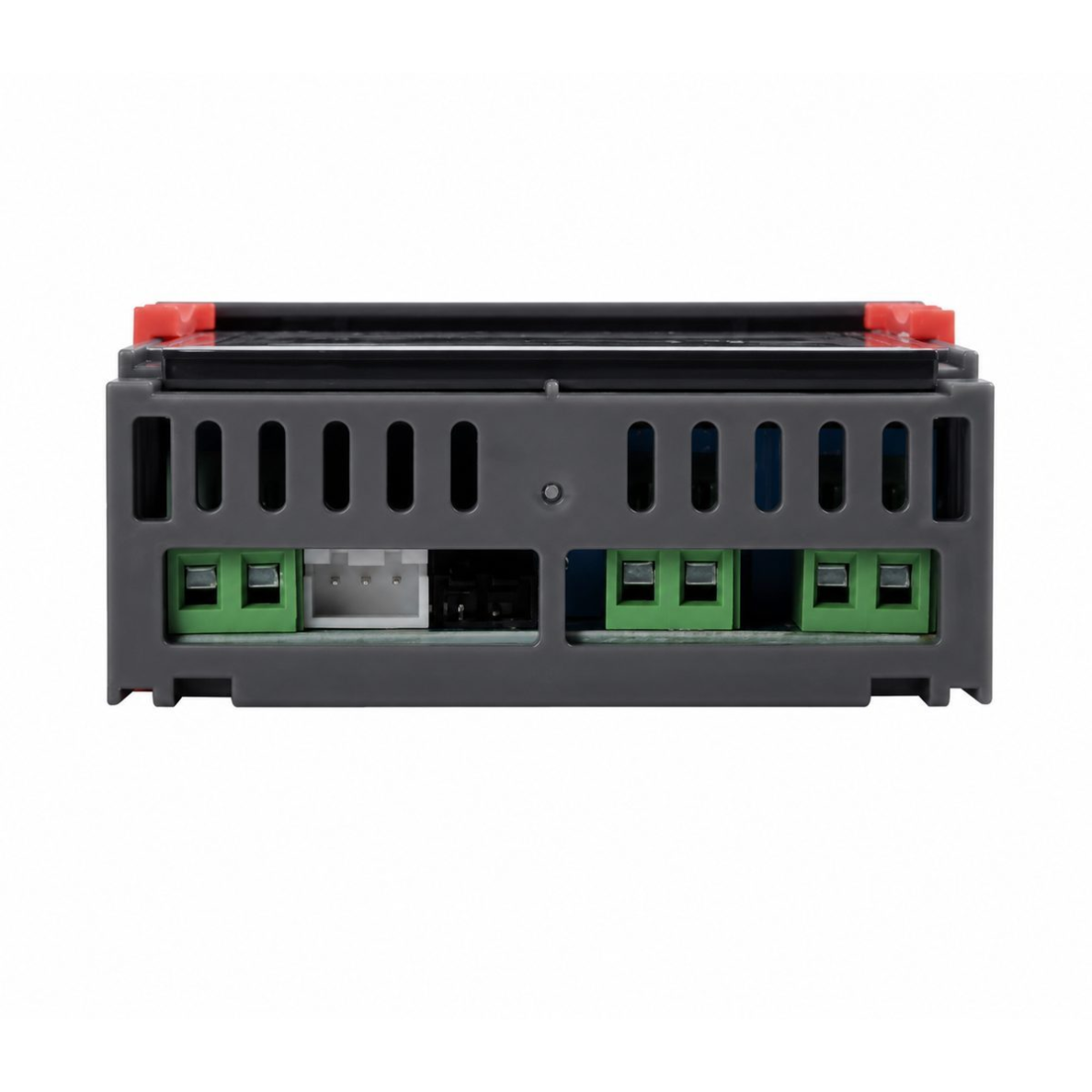

    The controller fits a ≈71×29 mm cut-out in a panel door or control box and is connected to 24 V DC. The probe with a 1 m cable goes into the controlled space. The relay contacts are volt-free – you bring the load supply yourself.

    Each channel has two values: switch-on and switch-off. If the switch-on temperature is lower than switch-off – heating; if higher – cooling. Humidity works the same way: humidifying or dehumidifying.

    The relay closes at the switch-on point and opens at the switch-off point. The gap between them acts as hysteresis, so the load does not short-cycle.

    Why choose STC-3028?
    Two control channels in a ≈75×34.5×85 mm housing save space and wiring. Settings are kept after a power loss, and T and RH readings can be offset in 0.1 steps against a reference meter.

    Technical specifications

    Product type Dual digital controller (thermostat + hygrostat), panel-mount
    Manufacturer / model Manufacturer not confirmed / STC-3028
    Supply 24 V DC
    Own consumption < 3 W
    Temperature measuring range −20…+80 °C
    Humidity measuring range 0–100 % RH
    Temperature accuracy ±1 °C
    Humidity accuracy Not reliably declared – treat as indicative
    Outputs 2 independent relays (T and RH), volt-free contacts
    Relay contact rating 10 A / 220 V AC
    Control logic Switch-on and switch-off values: heating / cooling, humidifying / dehumidifying
    Calibration T and RH offset, 0.1 step
    Probe Combined T/RH, 1 m cable
    Display 2 LED displays (T and RH)
    Mounting Panel-mount, cut-out ≈71×29 mm
    Dimensions ≈75×34.5×85 mm
    Operating environment 0…+60 °C, non-condensing
    Weight ≈120 g
    Package contents Controller, T/RH probe with 1 m cable

    Main functions

    • Dual control – temperature and humidity are regulated independently, each by its own relay.
    • Heating or cooling – the mode follows the ratio of switch-on and switch-off values.
    • Humidifying or dehumidifying – the same principle for the humidity channel.
    • Freely set hysteresis – the gap between the limits protects the load from frequent switching.
    • Reading calibration – T and RH offset in 0.1 steps.
    • Settings memory – values are retained after a power loss.

    How does it differ from similar products?

    Plastim PHG02 (531) Mechanical DIN-rail hygrostat 10–90 % RH, 10 (5) A, no display and no temperature channel. STC-3028 is digital, controls T and RH and mounts in a cut-out.
    XH-W3005 (20484–20486) Humidity-only controller. STC-3028 adds a thermostat channel with its own relay.
    Sentera RCTH / RSTH (22724) Room T/RH transmitters and controllers with analogue outputs and Modbus RTU – for building automation. STC-3028 is stand-alone, with relays and no communication interface.
    Other STC-3028 variants Same functions, relays and probe – only the supply differs. This variant – 24 V DC; others: 110–220 V AC (21501), 12 V DC (21502).

    Where is it used?

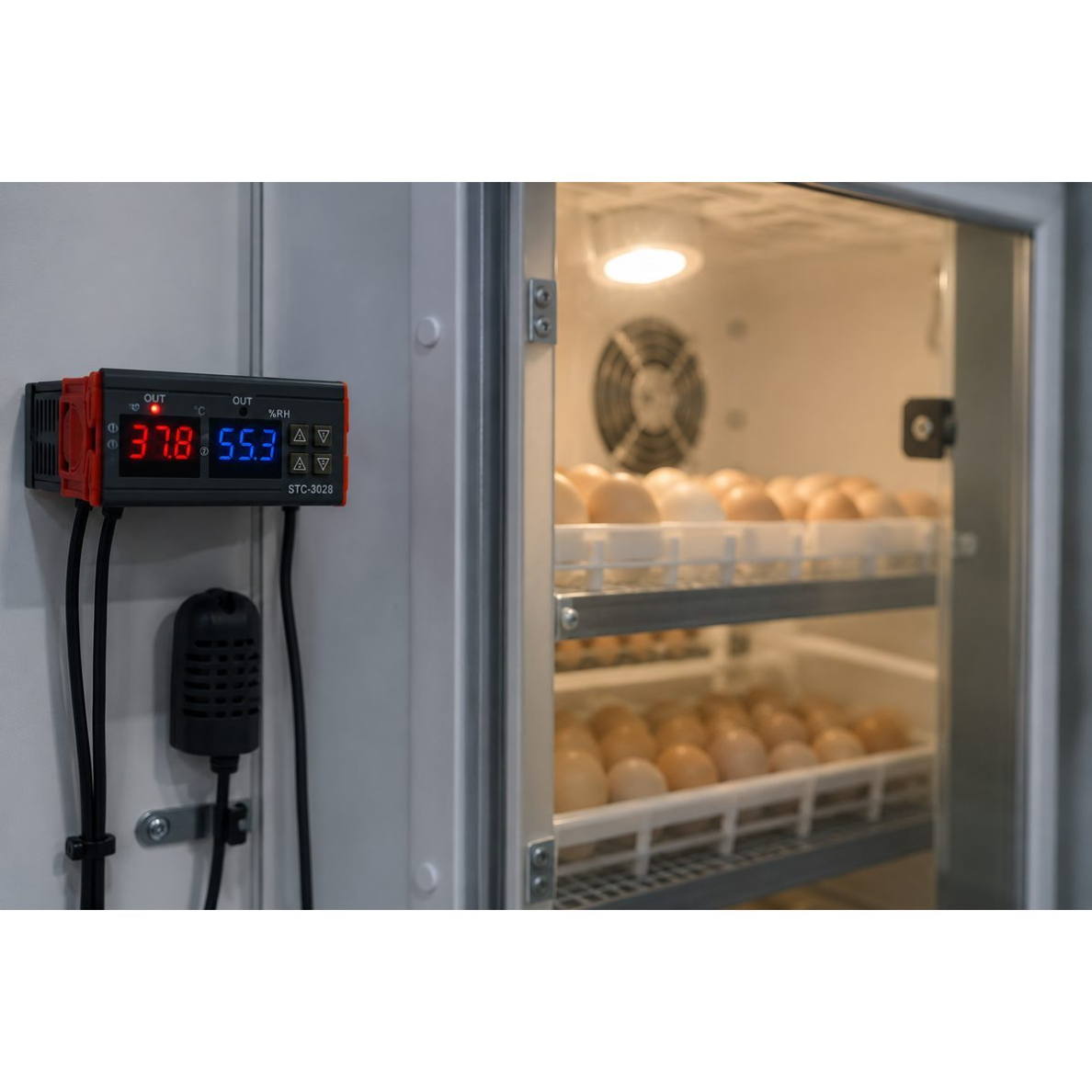

    • Incubators and hatching cabinets
    • Mushroom growing rooms and small greenhouses
    • Cellars, storage rooms, archives – dehumidifier control
    • Drying and ageing chambers
    • Terrariums and animal housing
    • Small cold rooms – via a contactor
    • Stand-alone 24 V DC systems – battery or solar-powered cabinets, vehicles

    Use by need

    For beginners.
    Set two values per channel – switch-on and switch-off. Switch-on below switch-off means heating or humidifying.
    For experienced installers.
    Contacts are volt-free: feed the load through a circuit breaker and connect a compressor, dehumidifier or large fan via a contactor.
    For engineers / designers.
    The device is stand-alone – no communication interface and no alarm output. For data to a BMS or PLC choose a T/RH transmitter with 0–10 V or Modbus RTU.

    Practical use

    In a cellar humidity rises to 75 % RH and in winter the temperature drops to +3 °C. Settings: temperature on 5 °C, off 8 °C (heating); humidity on 60 %, off 50 % (dehumidifying). A heater up to 10 A is wired via the relay, the dehumidifier via a contactor. Result – both parameters kept within limits by one device, without a PLC.

    Pros / advantages

    • Thermostat and hygrostat in one housing
    • Two independent 10 A relays
    • Simple setup – switch-on and switch-off values
    • T and RH reading calibration
    • Own consumption < 3 W
    • Compact housing, cut-out ≈71×29 mm

    Cons / limitations

    • Temperature accuracy ±1 °C – too coarse for precise process control.
    • No communication interface or alarm output – for BMS integration choose Sentera transmitters (22724) or LEFOO LFH10 (11907).
    • Not a DIN-rail housing – for inside the panel choose PHG02 (531).
    • Inductive loads (compressor, dehumidifier, motor) need a contactor.
    • Humidity accuracy is not reliably declared – use a calibrated sensor for critical processes.

    Safety and installation notes

    • ⚠ Power the controller from a SELV supply of 24 V DC; observe polarity as marked on the terminals.
    • ⚠ The relay contacts may also switch 230 V loads – then wiring must be done by a qualified electrician with the supply isolated and the circuit protected by a circuit breaker.
    • ⚠ Route 230 V and SELV cables separately so the low-voltage circuit never touches mains conductors.
    • ⚠ Connect a compressor, dehumidifier or motor via a contactor – the relay drives only its coil.
    • ⚠ Mount the controller in a dry place, 0…+60 °C, non-condensing; only the probe goes into the humid space.

    Quick selection guide

    −20…+80 °C / 0–100 % RH
    2 relays × 10 A
    24 V DC
    Cut-out ≈71×29 mm
    Suitable when you need:
    • temperature and humidity control in one device
    • stand-alone control without a PLC or network
    • mounting in a panel door or control box
    • a 24 V DC supply
    Check before choosing:
    • load current and type – inductive loads need a contactor
    • whether the 1 m probe cable is long enough
    • whether ±1 °C accuracy is enough for the process
    • supply variant: 110–220 V AC, 12 V DC or 24 V DC
    Important reminder: STC-3028 is not a protective device and has no alarm output. For critical processes provide separate over-temperature or emergency protection.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Does STC-3028 mount on a DIN rail?
    No. It is a panel-mount device for a ≈71×29 mm cut-out. For inside the panel choose PHG02 (531) or mount the controller in the panel door.
    How do I select heating or cooling?
    Set the switch-on value below switch-off for heating, above it for cooling. Humidity works the same way: humidifying or dehumidifying.
    Does the relay supply voltage to the load?
    No. The contacts are volt-free – the load supply must be brought separately through the relay contact.
    Can I connect a dehumidifier or compressor directly?
    We recommend a contactor. 10 A is the contact rating, while the inrush current of an inductive load is much higher.
    Is there RS485 or another communication interface?
    No. For data transfer to a BMS choose Sentera T/RH transmitters with Modbus RTU.
    Can the readings be corrected?
    Yes. Temperature and humidity are calibrated in 0.1 steps against a reference meter.

    Sources: STC-3028 user manual and supplier technical data (Phipps Electronics, RCS Components, Riverwood, Shtrol). Checked 2026-10-19.

    STC-3028 thermostat-hygrostat 24 V DC

    STC-3028 is a panel-mount dual temperature and humidity controller with two 10 A relays and a T/RH probe, powered from 24 V DC. It measures −20…+80 °C and 0–100 % RH and controls heating, cooling, humidifying and dehumidifying.

    Published: 2026-10-19 · Data verified against the supplier's data: 2026-10-19
