  • Electrical distribution cabinet | box | 370x332x110mm | surface-mounted | hermetic | aluminum | IP67

    Code: ESHW370-11

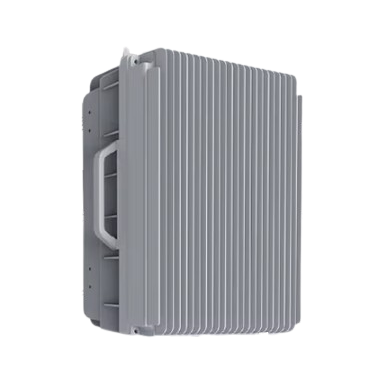

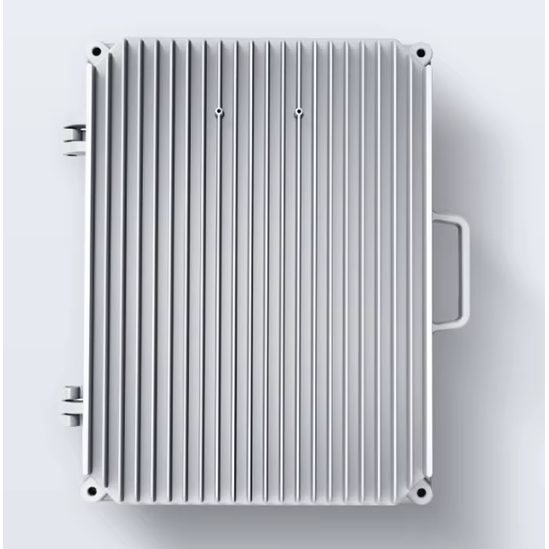

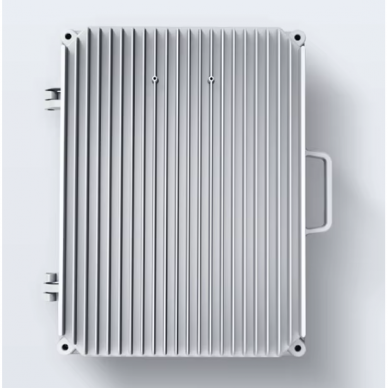

    Aluminium electrical distribution box – high-quality IP67 enclosure designed for both industrial and commercial applications. The box provides maximum protection against dust, moisture, rain, snow, and mechanical damage, making it suitable for both indoor and outdoor use.
    Made of a durable aluminium housing with anti-corrosion protection and efficient heat dissipation, the box meets the highest safety standards (IP67, IK10, NEMA6).

  • Technical specifications

    Material: Aluminum with stainless steel fittings
    External dimensions: 370x332x110 mm
    Internal dimensions: 351x261x70 mm
    Weight: 6,8 kg
    Protection class: IP67 (dustproof and waterproof)
    Impact resistance: IK10
    NEMA rating: NEMA 6
    Operating voltage: AC100 – AC250V
    Operating temperature: from -40°C ±3°C to +85°C ±2°C
    Operating humidity: ≤90 % RH

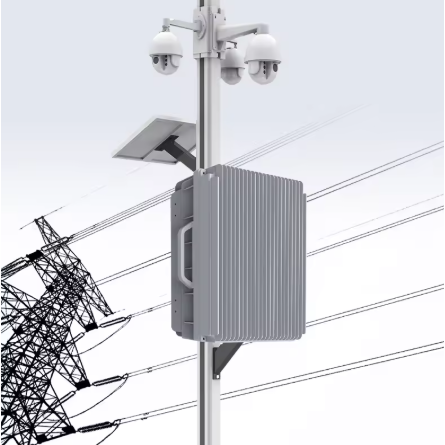

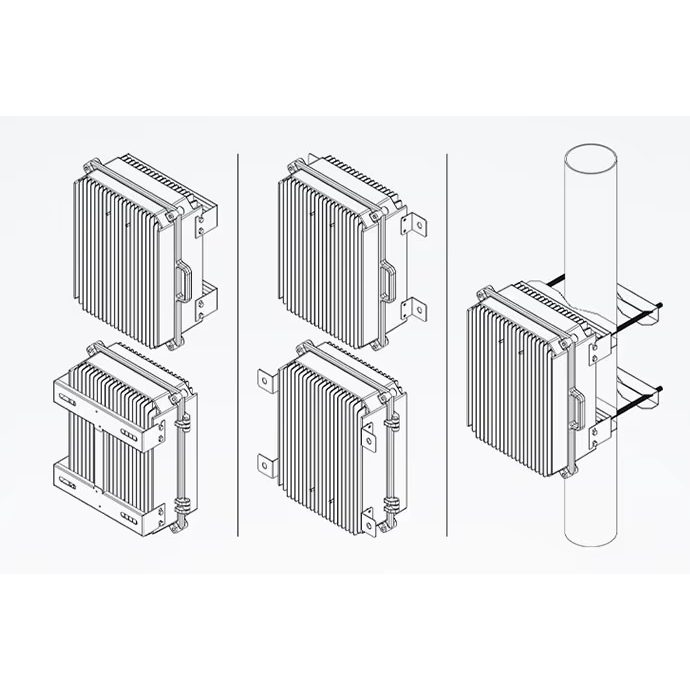

    Mounting method: wall-mounted or pole-mounted
    Enclosure features: rainproof, ventilated, with heat dissipation
    Environmental resistance: corrosion-, UV-, flame-, and impact-resistant
    External interface: customizable
    Power input: customizable as required

    Main features

    Waterproof and dustproof design – IP67 certified for use even in extreme weather conditions.

    Aluminum alloy housing – provides strength, durability, and excellent heat dissipation.

    Electromagnetic pulse (EMP) protection – special structure ensures shielding and interference resistance.

    Protection from rain, snow, dust, and corrosion – reliable for both indoor and outdoor use.

    Ventilated design – maintains optimal internal temperature balance.

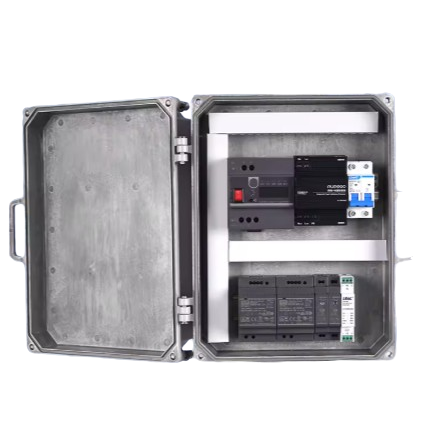

    Modular installation system – suitable for switches, meters, fuses, controllers, energy analyzers, and other equipment.

    Applications

    For engineers and electricians: suitable for installing control units and protection devices in industrial or commercial facilities.

    For home users: protects smart meters, circuit breakers, and outdoor lighting systems.

    For commercial and public spaces: ideal for shopping centers, parks, street lighting, alarm systems, and communication devices.

    For industry: used in production lines, substations, power plants, energy facilities, outdoor distribution, and control points.

    Advantages

    IP67 protection – water and dust resistant

    Durable aluminum structure – corrosion and UV resistant

    High mechanical strength – IK10

    Electromagnetic shielding – EMP protection

    Convenient wall or pole mounting

    Customizable external connections and power input

    Disadvantages

    Heavy weight – requires strong mounting

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
