  • New item   Industrial interlocked switched socket | 1×32 A 5P 400 V 6h | surface-mounted | IP66/IP67 | Scame 405.3287
    New item   Industrial interlocked switched socket | 1×32 A 5P 400 V 6h | surface-mounted | IP66/IP67 | Scame 405.3287 1

    Industrial interlocked switched socket | 1×32 A 5P 400 V 6h | surface-mounted | IP66/IP67 | Scame 405.3287

    Code: SCAME_405.3287
    Inquire about this item
    Price 40.49 € VAT incl.
    ( 33.46 € VAT excl. )
    Want another price? Suggest yours!

    Surface-mounted Scame OMNIA series CEE 32 A 5P (3P+N+E) 346–415 V socket with switch and mechanical interlock, supplied in its own enclosure. IP66/IP67, IK08. Fixed to a wall or structure – the enclosure is included, no separate box needed.

  • Product description

    Industrial interlocked switched socket | 1×32 A 5P 400 V 6h | surface-mounted | IP66/IP67 | Scame 405.3287

    Scame 405.3287 is an OMNIA series surface-mounted industrial CEE 32 A 5P 400 V socket with integrated switch and mechanical interlock, supplied in its own enclosure. It is fixed to a wall or structure. Interlock: the plug cannot be withdrawn or inserted while the switch is on; the socket is energised only after the plug is inserted and the switch is turned on.

    Key point:
    Pulling the plug of high-power equipment under load causes arcing and burns the contacts. In this socket the switch energises the contacts only once the plug is inserted, so connection becomes controlled. IP66/IP67 and IK08 allow use in wet and dusty locations.
    Socket
    1×CEE 32 A 5P 6h
    Protection
    IP66/IP67, IK08
    Interlock
    mechanical, with switch
    Mounting
    surface, enclosure included

    How it works

    The socket is supplied in its own enclosure and fixed to a wall or structure – no separate mounting box is needed. The cable is led into the enclosure and the conductors are connected to screw terminals.

    With the plug inserted, the switch energises the socket contacts. While the switch is on, the plug cannot be withdrawn; once switched off, the plug can be removed safely.

    The socket has no fuse holder, so circuit protection (MCB and 30 mA RCD) is installed in the board. The design includes a padlock hole of ø4.7 mm.

    Why choose Scame 405.3287?
    Instead of a separate socket and a separate switch you get one product that meets EN IEC 60309-4 for switched socket-outlets with interlock. This reduces contact burning and operator risk when working with 400 V equipment.

    Technical specifications

    Product type Surface-mounted industrial socket with switch and mechanical interlock in enclosure
    Manufacturer / model Scame, OMNIA series, 405.3287
    Socket CEE 32 A, 5P (3P+N+E), 6h
    Rated voltage 346–415 V, 50/60 Hz
    Interlock Mechanical, with integrated switch
    Fuses None (no fuse holder)
    Ingress protection IP66/IP67
    Impact resistance IK08
    Material / colour Thermoplastic, red
    Contacts / terminals Brass (CuZn), screw terminals
    Padlock hole ø4.7 mm
    Standards EN IEC 60309-1, -2, -4 (2022)
    Mounting Surface, on a wall or structure; enclosure included

    Key functions

    • Mechanical interlock – the plug cannot be inserted or withdrawn while the switch is on.
    • Integrated switch – switch the socket on and off locally, at the equipment.
    • IP66/IP67 and IK08 – protection against dust, powerful jets, temporary immersion and impacts.
    • CEE 32 A 5P 6h – standard 400 V connection to EN IEC 60309-2.
    • Padlock hole ø4.7 mm – helps prevent unauthorised use.
    • Surface-mounted enclosure – fixed to a wall or structure, no separate box needed.

    How does it differ from similar products?

    SEZ BZS3253 (2381) Also a 32 A socket with switch-disconnector and interlock, but IP44/IP54 – for drier locations.
    Famatel 26019 (8486) 32 A socket with switch-disconnector and mechanical interlock, an alternative from another manufacturer.
    SEZ BZS1653 (583) 16 A version – for lower-power equipment.

    Where is it used?

    • Production halls and workshops
    • Food industry and wash-down areas
    • Car washes and service shops
    • Ports, quays and outdoor storage
    • Agricultural buildings
    • Connection points for compressors, pumps and mobile equipment

    Use by need

    For beginners.
    This is a socket with a switch: insert the plug first, then turn the switch on. Remove the plug only after switching off.
    For experienced installers.
    The socket is surface-mounted with the enclosure included – fix it to a wall or structure. Screw terminals; check phase sequence for three-phase motors.
    For energy engineers / designers.
    The product complies with EN IEC 60309-4 (switched socket-outlets with interlock). There is no fuse holder – set protection and selectivity in the board.

    Practical use

    At a car wash, a surface-mounted 405.3287 socket is fixed to the wall as the connection point for a high-pressure pump. The operator inserts the plug, switches on and works; when finished, he switches off and only then withdraws the plug. The circuit is protected in the board by an MCB sized to the cable and a 30 mA RCD.

    Pros / advantages

    • Mechanical interlock to EN IEC 60309-4
    • IP66/IP67 and IK08
    • Integrated switch for socket control
    • Surface enclosure included – no separate box needed
    • Padlock hole ø4.7 mm

    Cons / limitations

    • The switch controls the socket only – it does not replace the circuit isolating device in the board
    • No fuses or MCB – protection must be in the board
    • Only one socket – for several loads choose a combined box, e.g. SEZ ROS4/V-10 (2228)
    • Switch utilisation category not stated on the manufacturer page – check with Scame for frequent motor starting

    Safety and installation notes

    • ⚡ Installation and connection by a qualified electrician only, with the supply isolated.
    • ⚡ Protect the circuit with an MCB rated to the cable cross-section (max. 32 A) and a 30 mA RCD.
    • The socket has no fuses – it does not replace circuit protection in the board.
    • On construction sites, feed the socket only from a site distribution board (HD 60364-7-704).
    • IP66/IP67 applies only with the lid closed (or a plug of the same IP inserted) and the cable entry sealed.
    • Do not bypass the interlock or pull the plug with the switch on – this damages the contacts and the protection.

    Quick selection guide

    CEE 32 A 5P 6h
    346–415 V
    IP66/IP67, IK08
    With switch and interlock
    Suitable when you need:
    • to connect 400 V equipment safely without arcing on plug removal
    • a socket in a wet or dusty environment
    • local on/off switching at the machine
    Check before choosing:
    • there is enough space at the mounting point for the surface enclosure and cable entry
    • the equipment plug is CEE 32 A 5P 6h
    • the board has an MCB sized to the cable and a 30 mA RCD
    Important reminder: The socket has no fuses and no RCD – circuit protection is installed in the board. The switch controls the socket only and does not replace the circuit isolating device.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Is an enclosure included?
    Yes. 405.3287 is a surface-mounted socket supplied in its own enclosure; it is fixed to a wall or structure, no separate box is needed.
    How does the interlock work?
    The plug cannot be withdrawn or inserted while the switch is on. The socket is energised only after the plug is inserted and the switch is turned on – this prevents arcing and contact burning.
    Are there fuses inside?
    No – the manufacturer states the socket has no fuse holder. Protection is the MCB and RCD in the board.
    Is it suitable outdoors?
    Yes, IP66/IP67 and IK08 suit outdoor conditions with the lid closed and the cable entry sealed.
    What voltage?
    Rated 346–415 V, 50/60 Hz – suitable for a standard 400 V network.
    Which standards does it meet?
    EN IEC 60309-1, -2 and -4 (2022).

    Sources: Scame manufacturer catalogue (scame.com, page 405.3287) – socket mechanism data; mounting type (surface, in enclosure) – per product photo. Checked 2026-10-20.

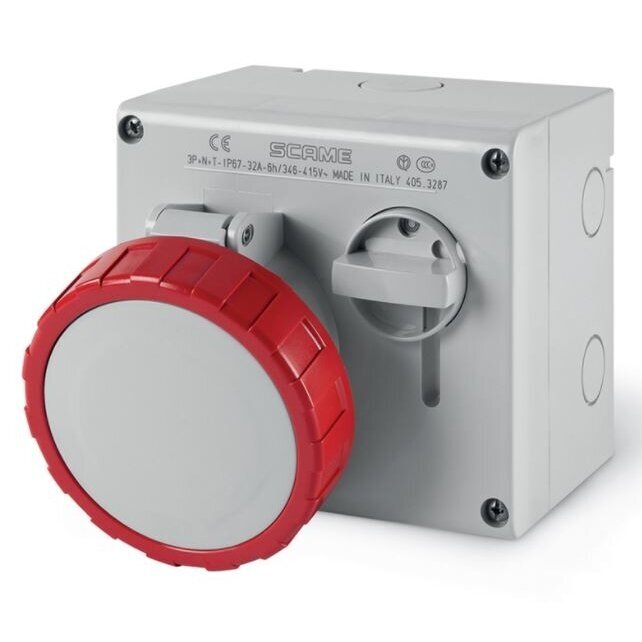

    Scame 405.3287 interlocked switched socket 32 A 5P, IP66/IP67

    Surface-mounted Scame OMNIA CEE 32 A 5P 400 V socket with switch and mechanical interlock in its own enclosure, IP66/IP67, IK08 – fixed to a wall or structure.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
