  • Automatic transfer switch ATS LVMA LMS1-100GA | 2P | 100 A | 220 V | PC class | Icm 10 kA

    Code: ES-LMS1-100GA
    Price 97.07 € VAT incl.
    ( 80.22 € VAT excl. )
    Buy more, pay less
    10+ pcs.  – 45.30 € for pcs. -53%

    LVMA LMS1-100GA/2P – PC class automatic transfer switch with integrated controller: 2P, 100 A, 220 V, AC-33B, Icm 10 kA.

  • Automatic transfer switch ATS LVMA LMS1-100GA | 2P | 100 A | 220 V | PC class | Icm 10 kA

    LVMA LMS1-100GA/2P is an automatic transfer switch (ATS) with integrated controller and motor drive for two sources: I and II. When the main supply fails, the load is transferred to the backup and returned when it is restored. 2P, 100 A, 220 V.

    Key point

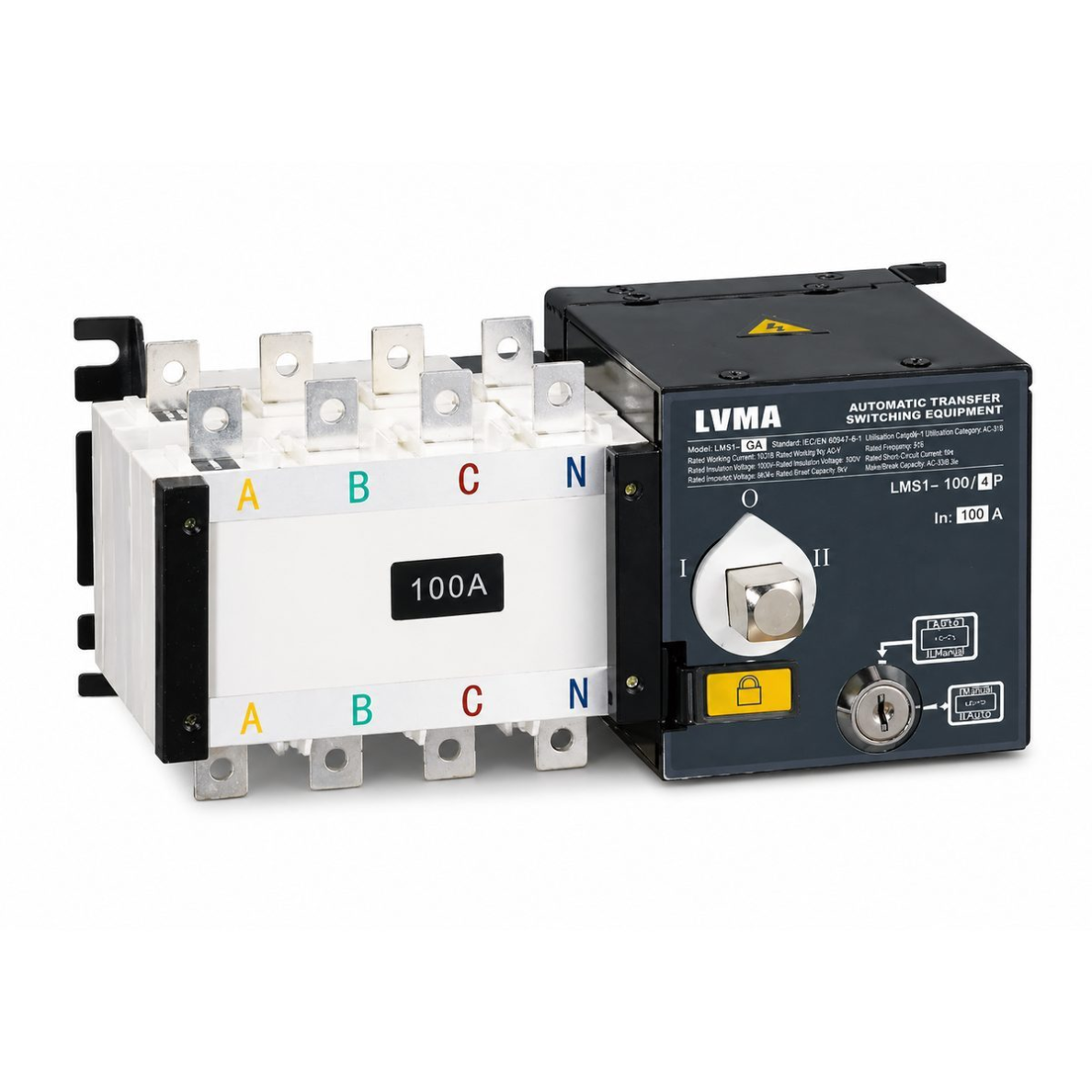

    PC class device with AC-33B category – also suitable for motor loads. Nameplate: Icm 10 kA, Icw 5 kA, Uimp 8 kV. The AUTO / MANU key selects the mode; the I-0-II handle is lockable.
    Poles / current
    2P / 100 A
    Class
    PC, AC-33B
    Transfer
    < 2.5 s
    Icm / Icw
    10 kA / 5 kA

    How it works

    The integrated controller monitors the source voltage and transfers the contacts between I and II via the motor drive (~220 V). According to the manufacturer the transfer takes up to 2.5 s.

    The key selects AUTO or MANU mode. In manual mode positions I, 0 or II are selected with the handle, which can be locked.

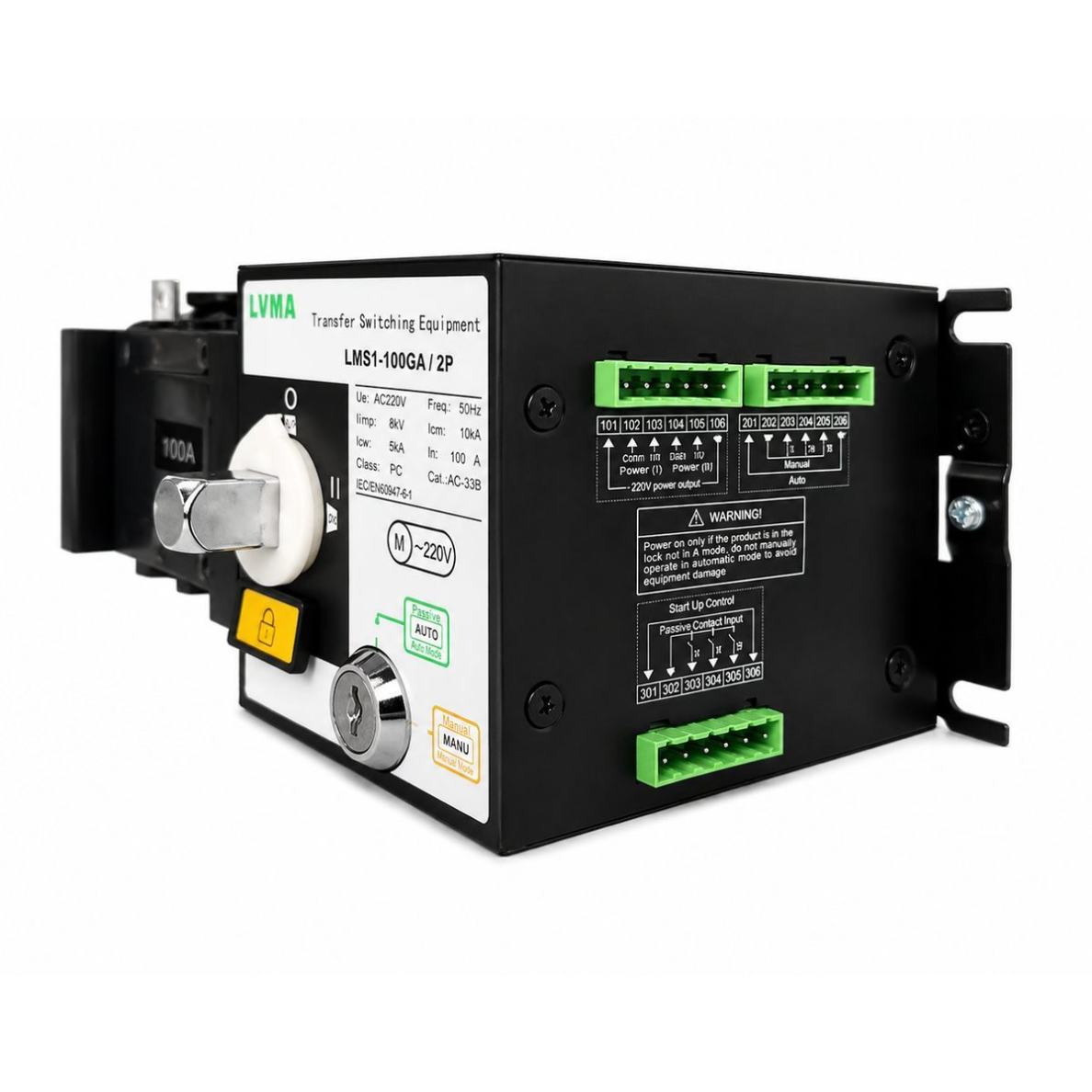

    Control terminals 101–106, 201–206 and 301–306 (including a start-up control passive contact input) are wired according to the product diagram. The device warns not to operate manually in automatic mode.

    Technical specifications

    Type Automatic transfer switch (ATS) with integrated controller
    Manufacturer, model LVMA – LMS1-100GA/2P
    Poles 2P
    Rated current In 100 A
    Operating voltage Ue AC 220 V
    Frequency 50 Hz
    Insulation voltage Ui 800 V (manufacturer series data)
    Impulse voltage Uimp 8 kV
    Making capacity Icm 10 kA
    Short-time withstand current Icw 5 kA
    Class / category PC / AC-33B
    Transfer time < 2.5 s
    Control voltage AC 230 V; motor ~220 V
    Mechanical durability ≥ 10 000 cycles (series)
    Control AUTO / MANU key, I-0-II handle, padlock
    Protection degree IP20 (front)
    Operating temperature −10…+60 °C
    Standard IEC/EN 60947-6-1
    Data source Manufacturer nameplate and LVMA technical information

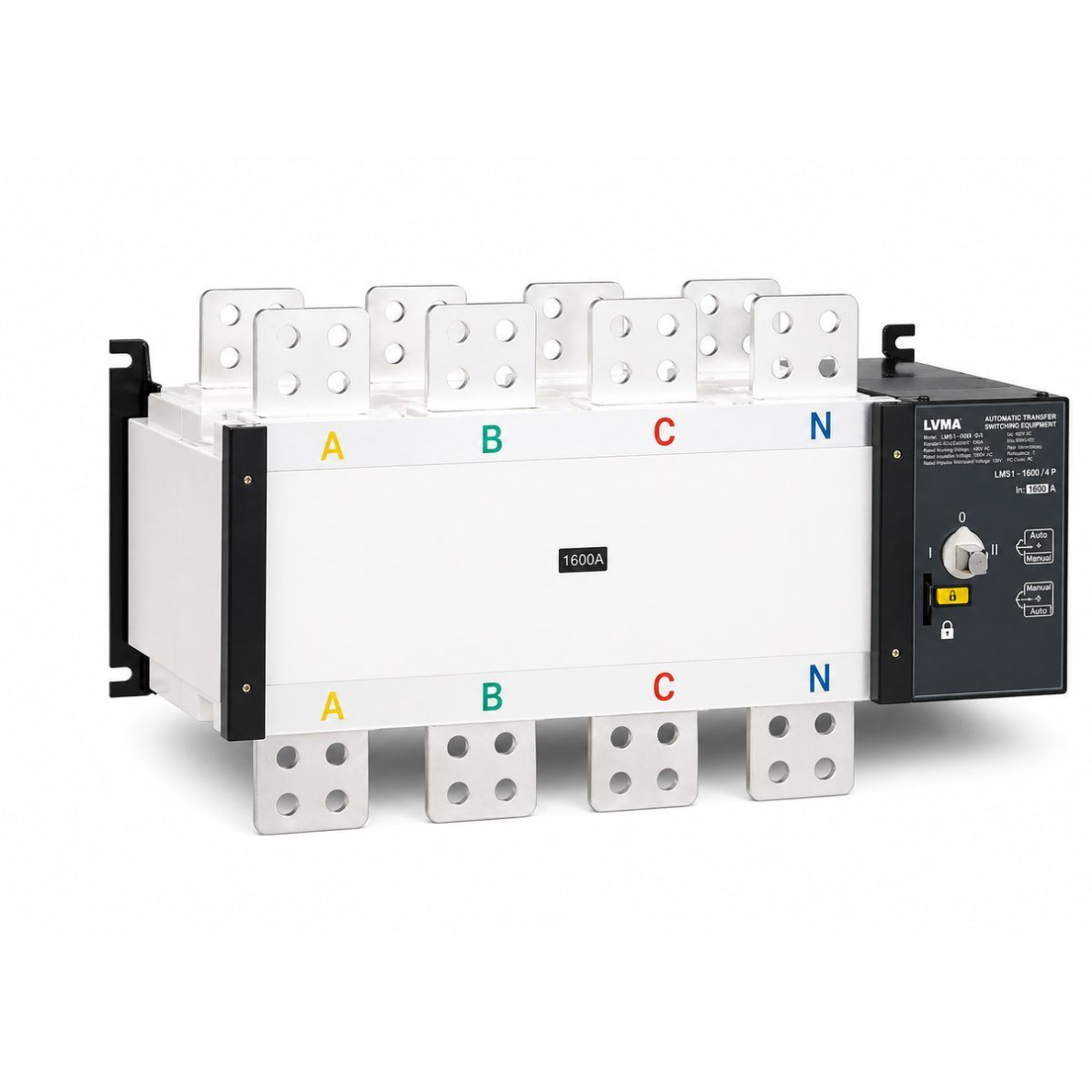

    ⚠ Brand – LVMA. The nameplate in the photo is LMS1-100GA/2P; some photos show a 4P device of the series. Check exact data on the device nameplate.

    Functions

    • Automatic transfer I → II and return
    • Integrated controller and motor drive
    • AUTO / MANU key
    • Lockable I-0-II handle
    • Start-up control passive contact input

    Applications

    • Single-phase sites with a generator up to 100 A
    • Commercial premises, farms
    • Loads with motors (AC-33B)

    Practical example

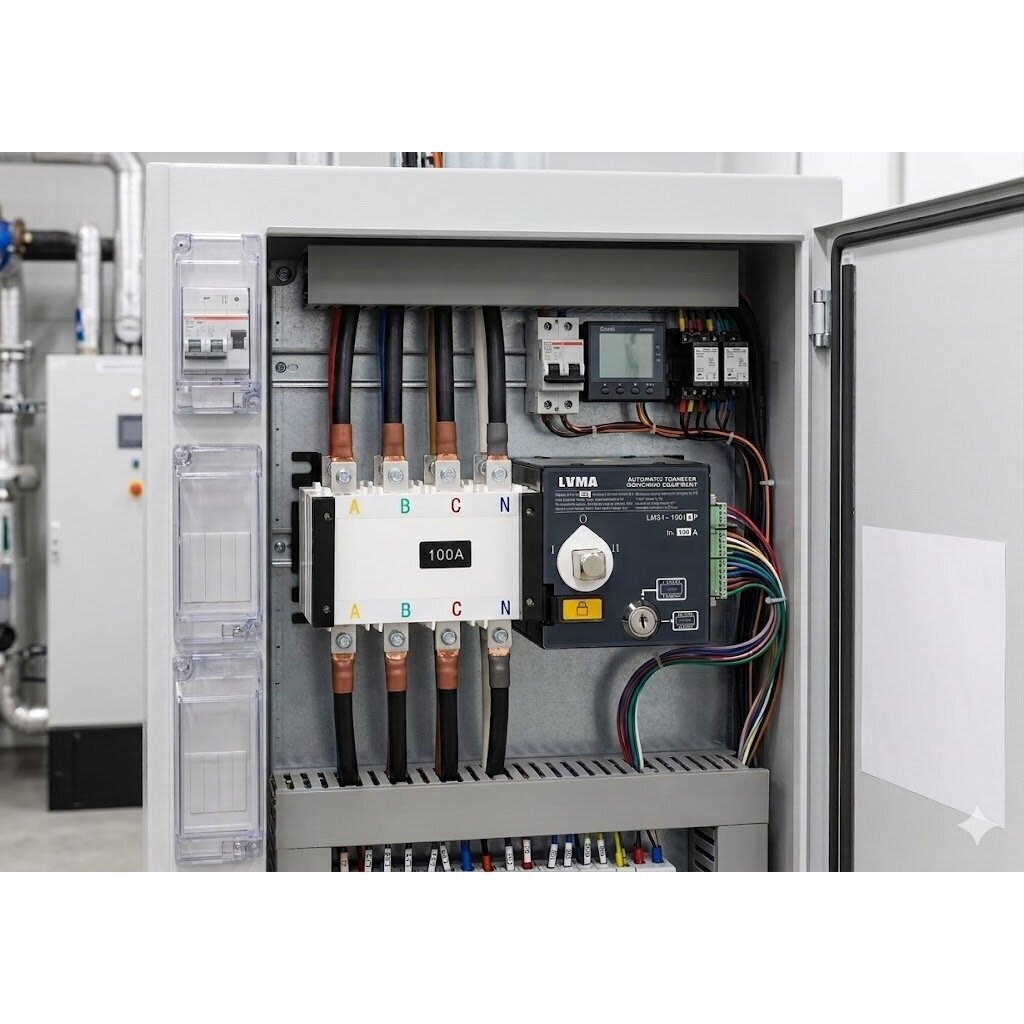

    Single-phase site with an 80 A supply and a generator: grid – I, generator – II, load at the output. Circuit breakers upstream of the ATS on both supplies.

    Advantages

    • PC class, AC-33B
    • Icm 10 kA, Icw 5 kA
    • Integrated controller
    • Lockable handle

    Points to note

    • 2P – single-phase circuit only
    • Transfer up to 2.5 s
    • Panel-mounted (not DIN)

    ⚡ Safe installation

    • Installation must be carried out by a qualified electrician with both sources disconnected.
    • Install short-circuit and overload protection upstream of the switch on both supplies.
    • Connect a generator to the house installation only through a transfer switch – never through a socket outlet.
    • Do not operate manually in automatic mode – as marked on the device.
    ☝ Elsprendimai.eu recommends: ATS selection guide · Diagrams: 3P or 4P · Consultation

    How to choose

    Suitable for a single-phase site up to 100 A where PC class and AC-33B category are required.

    Suitable if:
    • the site is single-phase
    • current up to 100 A
    • the load includes motors
    Check:
    • number of poles (2P)
    • panel space
    • control terminal wiring per diagram
    Important: Always check exact parameters on the device nameplate and in the manufacturer's instructions. If in doubt, consult a qualified electrician.

    Frequently asked questions

    What does 10 kA in the name mean?
    It is the making capacity Icm = 10 kA per the manufacturer's nameplate. The short-time withstand current Icw is 5 kA.
    What is the transfer time?
    According to the manufacturer – under 2.5 s.
    Can it be switched manually?
    Yes, with MANU mode selected by the key.
    Can you help with selection?
    Yes. Send us the network type, incoming protection and generator power – we will help you choose the right solution.

    Automatic transfer switch ATS LVMA LMS1-100GA | 2P | 100 A | 220 V | PC class | Icm 10 kA

    LVMA LMS1-100GA/2P – PC class ATS with integrated controller, AC-33B and Icm 10 kA for single-phase sites up to 100 A.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
