  • ATS guide: how to choose a backup power transfer switch

    A transfer switch is not chosen by generator power but by the building's supply: number of phases, rating of the main circuit breaker, earthing system and whether the generator has automatic start. Below – quick choice by situation, how it works, selecting poles and current, the most common mistakes with diagrams and answers to questions.

    Colour meaning: ■ information · ■ benefit, solution · ■ ⚠ check · ■ ⚡ safety, mistakes

    What do you need? Quick choice

    Situation Solution Where to look
    House or cottage, single-phase supply, generator up to ~8 kW 2P modular ATS 63–100 A on DIN rail – switches L and N TXATS 2P 63 A, TOATS 2P 63 A, LMS1 2P 100 A
    House, farm or workshop, three-phase supply, three-phase generator 4P modular ATS 63–125 A – switches L1, L2, L3 and N G2R 4P 63 A, TXATS 4P 100 A, TXATS 4P 125 A
    The generator has automatic start and must be started when the grid fails ATS controller with a generator start contact and time delays HAT310 controller, Y-702 panel controller
    A ready-made set is needed for a small generator ATS controller box 3–10 kW, 230 V or 380 V 5 kW 230 V, 10 kW 230 V, 10 kW 380 V
    The generator is used rarely and started by hand Manual 1-0-2 changeover switch (MTS) – position 0 disconnects both sources 1-0-2 2P 63 A, 1-0-2 changeover switches / modular 1-0-2 (DIN)
    Hybrid solar inverter with a backup (EPS) output and the grid PV ATS – transfers the load between the inverter output and the grid PV 2P 63 A, PV 4P 63 A, PV 4P 100 A
    Grid voltage fluctuates – switching is needed not only on power loss ATS with adjustable over- and undervoltage limits 3P 63 A with LCD, three-phase 100 A
    A single-phase load must automatically use a healthy phase out of 3 Phase selector with protections (not a three-phase load ATS) phase selector 150 A
    Single-phase load with 3–4 sources Multi-input ATS with source priority 3 inputs, 4 inputs
    Commercial or production site, supply 100–630 A Panel ATS for higher currents, cabinet-mounted NXZ 4P 250 A, NXZM 3P 400 A, SLQ1 4P 400 A
    Large site or substation, 1000–1600 A Power ATS 1000–1600 A BYQ1 4P 1600 A, SLQ1 4P 1600 A

    A correctly selected ATS works without a person

    • Automatic transfer – when the grid fails, the load moves to the backup source without manual work.
    • The generator is started and stopped automatically – when the ATS or controller has a start contact.
    • Grid and generator are never connected together – mechanical and electrical interlock.
    • Return to the grid only on stable voltage – a delay prevents reaction to short dips.

    How an ATS works with a generator

    1. Grid fails
    →
    2. Delay 3–10 s
    →
    3. Start signal to the generator
    →
    4. Voltage and frequency stable
    →
    5. Load – to the generator
    →
    6. Grid back, delay
    →
    7. Load – to the grid, generator cools down and stops

    Delays are set in the controller. A simple modular ATS without a controller only transfers the load between two voltages that are already present – it does not start the generator. For that you need an ATS with a start contact or a separate ATS controller, and the generator must have an electric starter and a remote start input.

    ATS, MTS or controller – what is the difference

    Type How it works Suitable for
    Manual changeover switch (MTS) 1-0-2 Operated by a handle; position 0 disconnects both sources Occasional generator use, simplest solution
    Modular ATS (DIN) Built-in controller and drive; 2P, 3P, 4P; up to 125 A Houses, farms, small sites
    Panel ATS Motor drive, controller with display; 100–1600 A Commercial and industrial sites
    ATS controller Monitors voltage, starts and stops the generator, controls the switch or contactors When the generator has automatic start
    PV ATS Transfers between the inverter backup output and the grid Solar plants with a hybrid inverter

    PC or CB class (IEC 60947-6-1)

    PC class – switching device

    Makes and withstands short-circuit current but does not break it. Circuit breakers or fuses specified by the manufacturer are required upstream – their type and rating are given in the switch instructions.

    CB class – with circuit breakers

    Built from motor-operated circuit breakers – overload and short-circuit protection is already inside, so separate upstream protection is usually not needed.

    Check the class and utilisation category (AC-31B, AC-33A, etc.) in the manufacturer's datasheet. If the class is not stated, plan the protection as for PC class.

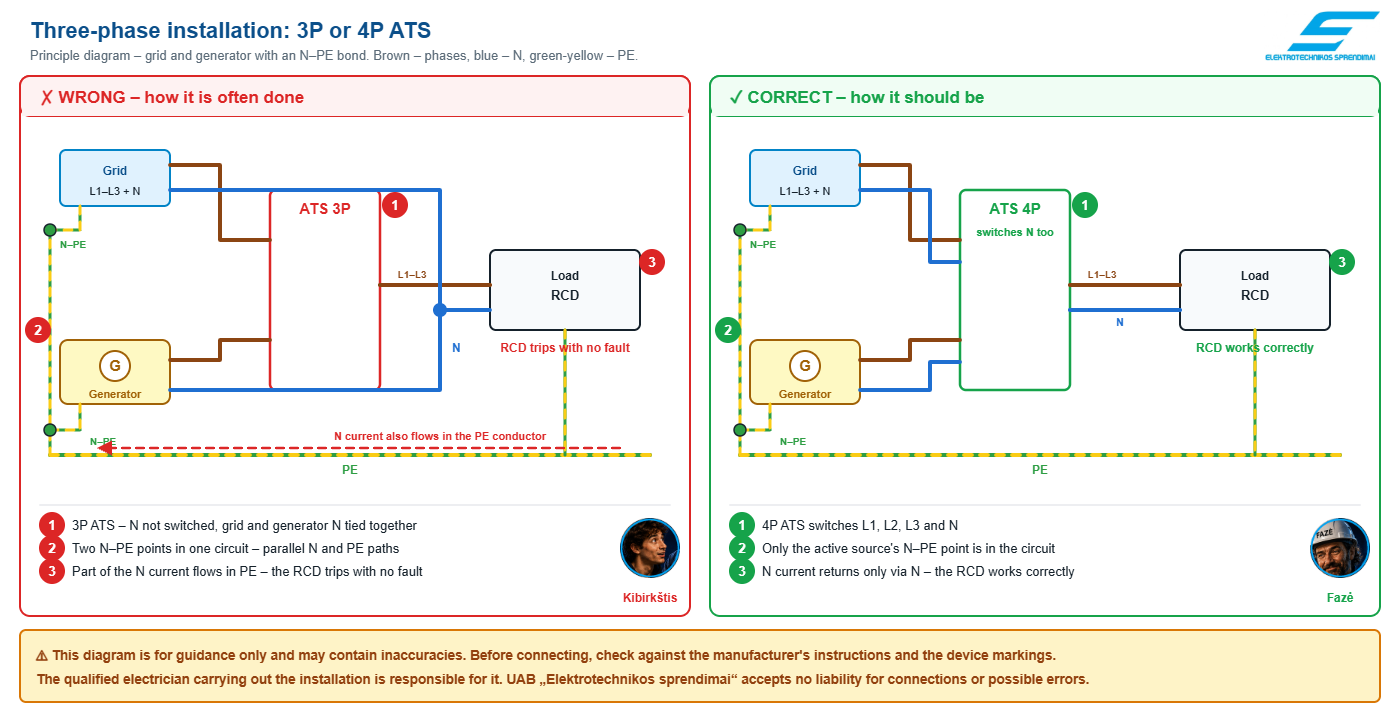

    2P, 3P or 4P?

    Installation Poles Why
    Single-phase supply 230 V 2P (L + N) Both L and N are switched – the grid and generator neutrals are not connected together
    Three-phase supply 400 V with N (TN-S, TN-C-S) 4P (L1, L2, L3, N) N is switched together with the phases – no parallel N and PE paths, RCDs work correctly
    Three-phase load without N (motors only) 3P N is not used – rare in homes
    Three-phase supply but a single-phase generator 2P for single-phase circuits A single-phase generator cannot supply three-phase loads – separate the essential single-phase circuits for backup
    ⚠ If the generator's neutral is bonded to PE (a common case), choose a 4P ATS for a three-phase installation. 3P is suitable only where the design specifies otherwise. → 2

    Choosing the current

    How to calculate: the ATS rated current must be not lower than the rating of the main circuit breaker – on grid supply the whole load of the building flows through it. The generator current is usually lower: single-phase I = P / 230 V, three-phase I = P / (√3 × 400 V × cos φ). E.g. three-phase supply 3×32 A → 4P ATS 63 A; 10 kW generator, cos φ 0.8 → I ≈ 18 A. If the generator is weaker than the supply, feed only essential circuits from it (a separate backup sub-board) or limit the load.

    For motors, compressors and heat pumps check the utilisation category: AC-33 – mixed load including motors, AC-31 – resistive or slightly inductive load only.

    What generator and ATS do you need: load calculation

    The ATS is selected according to the building's supply connection, and the generator according to what you want to power during an outage. The most common mistake is adding up the ratings of all appliances. What matters more is what will run at the same time and how much current motors will draw when starting.

    Load Typical power Starting current Note
    Gas or pellet boiler with circulation pump 100–300 W ~1× Gas boilers are sensitive to the N–PE connection (see FAQ)
    Fridge, freezer 100–200 W 3–5× Compressor switches on periodically
    Borehole or booster pump 0.75–1.5 kW 3–6× Usually determines the generator size
    LED lighting, internet, alarm 50–300 W ~1× Always worth including in the backup
    Air-to-water heat pump 2–8 kW inverter ~1×, conventional 3–6× Check the manufacturer's data
    Electric water heater 1.5–3 kW 1× Usually excluded from the backup
    Electric hob, oven 3–9 kW 1× Better to limit the backup load
    Garage door, air compressor 0.3–2 kW 3–6× Run only briefly

    Values are indicative; exact data is on the appliance rating plate. With direct-on-line starting, motor starting current often reaches about 6 times the rated current.

    How to calculate in 4 steps

    • 1. Add up the power of loads running at the same time (kW).
    • 2. Add the starting surcharge of the largest motor: its power × (starting multiple − 1).
    • 3. Convert to kVA: generator power is stated in kVA, and kW = kVA × 0.8.
    • 4. Leave a margin: the continuous load should not exceed 70–80 % of the generator's rated power.

    Example: country house with a borehole and a gas boiler

    Boiler 0.2 kW + fridge 0.15 kW + borehole pump 1.1 kW + lighting and internet 0.35 kW = 1.8 kW continuous load. When the pump starts (5×), an extra 1.1 × 4 = 4.4 kW is drawn momentarily, so the peak is about 6.2 kW.

    A generator with about 6.5–7 kW maximum power is suitable: it handles the peak, and the continuous load is only ~30 %. The supply is single-phase 32 A, so the ATS is TXATS 2P 63 A or TXATS1 2P 63 A (CB).

    ☝ Three-phase generator: usually only about one third of its power can be loaded on a single phase. A 9 kW three-phase generator is fine for a single-phase 3 kW heater, but not for a 6 kW single-phase load. Distribute loads evenly across the phases.

    Whole house or essential circuits only: backup sub-panel

    Solution How it is installed Advantages Disadvantages
    Whole-building backup ATS after the main switch, the entire panel is transferred Everything works, no circuits need to be moved Requires a larger generator and an ATS rated for the full supply current
    Priority backup sub-panel Essential circuits (boiler, pump, fridge, lighting) are moved to a separate sub-panel fed by the ATS Smaller generator and ATS, lower fuel consumption, no generator overload Circuits must be rewired in the panel; not everything works on backup

    For most houses and country homes, the most rational choice is a priority sub-panel with a 2P or 4P 63 A ATS and a 5–10 kW generator. Commercial sites with full backup need panel-mounted ATS rated 100–1600 A.

    Automatic start: controller, signals and delays

    For everything to happen without a person when the power fails, the generator must have an electric starter and a remote start input, and the system must have a controller that operates it.

    Start method How it works Suitable for
    2-wire start The controller's dry contact closes – the generator starts and runs by itself; the contact opens – it stops Most generators with an auto-start module
    3-wire start Separate signals: ignition, starter and stop. The controller manages the cranking attempts itself Generators without their own start module
    Start from a hybrid inverter The inverter closes the G-Start contact based on battery state of charge (SOC) Solar power plants with batteries
    Delay Typical value Purpose
    Mains failure confirmation 3–10 s So that short flickers do not start the generator unnecessarily
    Generator warm-up before loading 10–30 s Voltage and frequency stabilise, the engine does not stall
    Return to mains 30–300 s Confirms that the mains has returned stably
    Generator cool-down without load 60–180 s The engine cools down before stopping
    Periodic test run every 1–4 weeks, 10–15 min The generator and battery are checked before a real outage

    Solutions by application:

    Situation Solution Where to look
    Small generator, ready-made kit needed ATS controller box with start and transfer ES-TD-ATS5, ES-TD-ATS10, ES-TD-ATS51, ES-TD-ATS101
    Three-phase mains, single-phase generator Controller monitoring 3 mains phases and 1 generator phase, 16 A relays ES-HAT310
    On the panel door, with display and RS485 Panel-mounted digital controller ES-Y-702
    All in one DIN module Digital ATS with protections and metering ES-JMRD-DTX, ES-JMRD-PS5X/150A

    Generator, solar inverter and batteries

    A hybrid inverter with a battery is already a backup source in itself: when the mains fails, it transfers the load to the LOAD (EPS) output within a few milliseconds. A generator is needed here when the battery is not enough for a long outage.

    Connection method How it works What to check
    Generator to the inverter's GEN input The inverter starts the generator itself via the G-Start contact and uses it to charge the batteries. No separate ATS is needed Whether the inverter has a GEN input and what generator power it accepts
    Generator via ATS to the inverter's GRID input The ATS switches the inverter input between mains and generator Whether the manufacturer allows a generator on GRID. Export must be disabled in generator mode
    PV ATS at the inverter output When the inverter shuts down (empty battery or fault), the load is transferred directly to the mains ESTXATS-63PV-2P, ESTXATS-63PV-4P, ESTXATS-125PV/4P, ES-HGLD-100/4
    Fazė

    ⚡ Inverter and generator: advice from Fazė

    • Never connect the inverter's LOAD (EPS) output directly to the mains or a generator – only via a dedicated PV ATS.
    • A generator cannot accept energy back. When running on the generator, inverter export must be disabled, otherwise the generator may be damaged.
    • Set the generator power in the inverter according to the manufacturer's instructions and leave a 20–30 % margin.
    • Connecting a solar power plant in parallel with the grid makes you a prosumer and requires connection conditions from ESO (the Lithuanian distribution network operator).

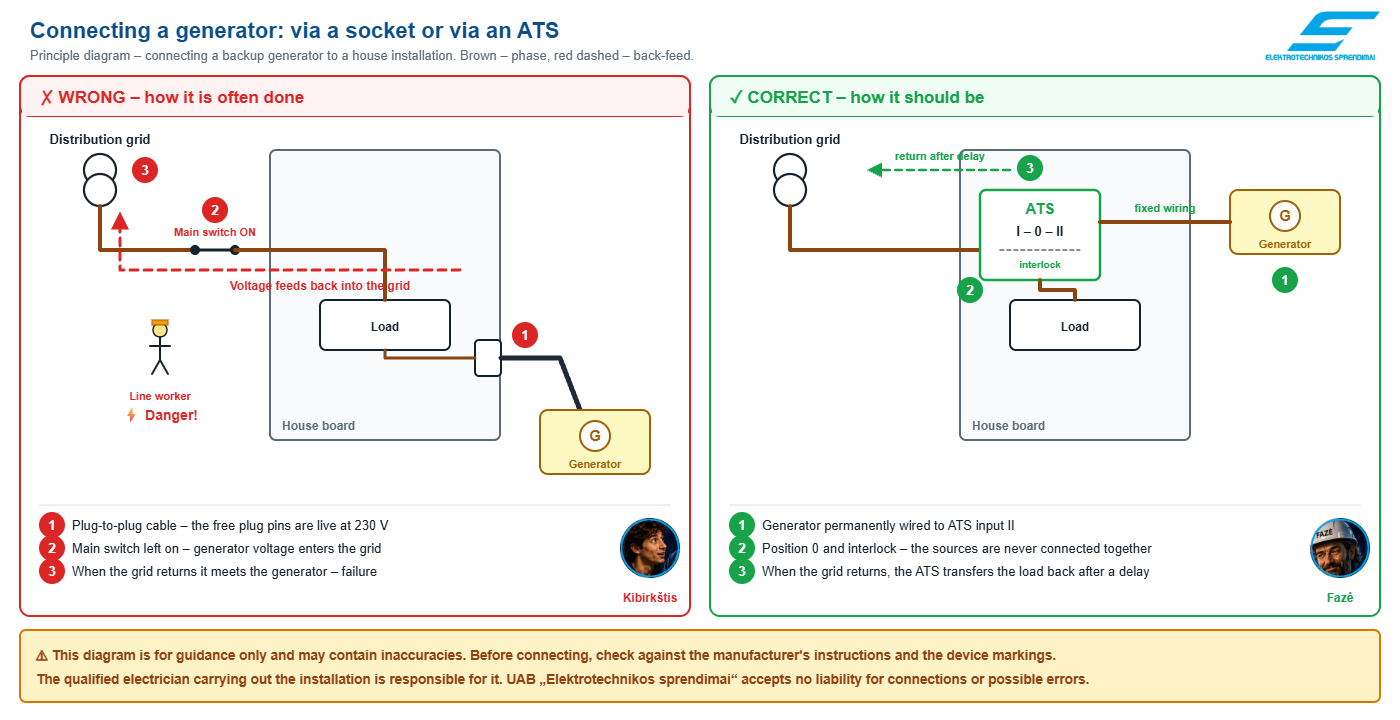

    ⚡ Safety and requirements: why the generator must never feed back into the grid

    Through a supply that has not been disconnected, generator voltage enters the distribution network. The transformer steps it up to high voltage, and line workers may be working on the line believing it is dead. When the mains returns, unsynchronised sources are connected together and can damage the generator and the installation.

    Requirement How it is implemented
    Sources are never connected to each other ATS or 1-0-2 changeover switch with mechanical interlock: only one source is on at any time
    The mains is disconnected on all poles 2P (L and N) for single-phase sites, 4P (L1, L2, L3 and N) for three-phase sites
    Overload and short-circuit protection PC-class ATS – circuit breakers upstream on both sides. CB class has built-in protection
    Earthing and N–PE A single N–PE bonding point according to the system design, otherwise RCDs malfunction
    Installation and documentation Connection is carried out by a certified electrician; changes are marked on the panel diagram

    ☝ For companies and institutions: the Lithuanian General Rules for Electrical Installations, clause 46.1, require that Category I consumers, for whom a power interruption endangers human life or the environment, be supplied from two independent sources with automatic transfer, and have an additional autonomous source for emergencies, e.g. a generator. Such sites need an ATS with a controller and a design project.

    Selection matrix: the entire ATS group

    All switches and controllers in the group by type. PC-class devices need separate upstream protection, while CB-class devices already have it (IEC 60947-6-1).

    Series Type Poles Current Features Products
    Manual changeover switches (MTS)
    TAXNELE TX219G Manual I-0-II, DIN 2P 63 A Position 0 disconnects both sources ES-TX219G-63
    Modular ATS for single-phase supply (DIN)
    TAXNELE TXATS Automatic, PC 2P 63 / 100 / 125 A Built-in controller ES-TXATS-63-2P, ESTXATS-100-2P, ES-TXATS-125/2P
    TAXNELE TXATS1 Automatic, CB 2P 63 / 125 A With overload and short-circuit protection ESTXATS1-63-2P, ESTXATS1-125-2P
    TAXNELE TXATS2 Automatic 2P 63 A With handle for manual operation ESTXATS2-63-2P
    TAXNELE TXATS3 Compact, PC 2P 63 A Narrow width in the panel ESTX-2P63
    TONGOU TOATS Compact, PC 2P 63 A Narrow width in the panel TOATS-2-63
    LVMA LMS1 Automatic, PC 2P 100 A 220 V ES-LMS1-100GA
    SaiLingsi SLQ6 Automatic, PC 2P 63 A 230 V ES-SLQ6-63A/2
    EL-GM Modular automatic 2P 63 A 230 V EL-GM63/100
    GRL DNH41 Automatic with display 1P+N 10–80 A Shows voltage and current ESDNH41
    JMRD-PN3 / PN4 Automatic with protections 2P 100 A 3 or 4 inputs (multiple sources) ES-JMRD-PN3, ES-JMRD-PN4
    Modular ATS for three-phase supply (DIN)
    TAXNELE TXATS Automatic, PC 3P / 4P 63 / 100 / 125 A Built-in controller ES-TXATS-63-3P, ES-TXATS-63-4P, ESTXATS-100-4P, ES-TXATS-100/4P, ES-TXATS-125/4P
    TAXNELE TXATS1 Automatic, CB 4P 63 / 125 A With protections ESTXATS1-63-4P, ESTXATS1-125-4P
    TAXNELE TXATS2 / TXATS3 / TXATS4 Automatic, PC 4P 63 A TXATS2 with handle, TXATS3 and TXATS4 compact ESTXATS2-63-4P, ES-TOATS-2, ES-TXATS4-63/4P
    GEYA G2R Automatic, PC 4P 63 A 230 V ES-G2R-4-63
    RP6-63L Automatic, CB 4P 63 A Display and buttons ES-RP6-63L/4P
    JOTTA JTQ3 / JTH2 Automatic, PC 4P 63 / 100 A JTH2 with O-I-II positions ESJTQ3-125, ESJTH2, ESJTH21
    BEYQH3 Automatic with voltage protection 3P 63 A Adjustable voltage limits, LCD ES-BEYQH3-63A
    EL-GM4P Modular automatic 4P 100 A 230 V EL-GM4P/100
    JMRD-DTX / PS5X Digital with protections 4P / – 100 / 150 A PS5X with energy metering ES-JMRD-DTX, ES-JMRD-PS5X/150A
    ABB OTM C21D With motor operator, 1-0-2 3P / 4P 63 / 125 A 380–415 V, IP20 3P 63 A, 4P 63 A, 4P 125 A
    ABB OXB Digital, 1-0-2 4P 200 A 200–415 V 4P 200 A
    Panel-mounted ATS 63–1600 A
    CHINT NXZ Automatic, PC 4P 125 / 250 / 630 A 400/415 V ES-NXZ-125/4P, ES-NXZ-250/4P, ES-NXZ-630/4P
    CHINT NXZM Automatic, CB 3P 125–800 A 400/415 V, with protections ES-NXZM-160S-125, ES-NXZM-160S-160, ES-NXZM-160S-250, ES-NXZM-160S-400, ES-NXZM-160S-630, ES-NXZM-160S-800
    SaiLingsi SLQ1 Automatic 3P 100–1600 A 3-phase monitoring ES-SLQ1-100A/3, ES-SLQ1-160A/3, ES-SLQ1-250A/3, ES-SLQ1-400A/3, ES-SLQ1-630A/3, ES-SLQ1-1000A/3, ES-SLQ1-1250A/3, ES-SLQ1-1600A/3
    SaiLingsi SLQ1 Automatic 4P 100–1600 A 3-phase monitoring ES-3SLQ1-100A/4, ES-3SLQ1-160A/4, ES-3SLQ1-250A/4, ES-3SLQ1-400A/4, ES-3SLQ1-630A/4, ES-3SLQ1-1000A/4, ES-3SLQ1-1250A/4, ES-3SLQ1-1600A/4
    SaiLingsi SLQ1 Automatic 4P 100–1600 A 1-phase monitoring, 2 inputs – 2 outputs ES-2SLQ1-100A/4, ES-2SLQ1-160A/4, ES-2SLQ1-250A/4, ES-2SLQ1-400A/4, ES-2SLQ1-630A/4, ES-2SLQ1-1000A/4, ES-2SLQ1-1250A/4, ES-2SLQ1-1600A/4
    SaiLingsi SLQ1 Automatic 4P 100–1600 A 1-phase monitoring ES-SLQ1-100A/4, ES-SLQ1-160A/4, ES-SLQ1-250A/4, ES-SLQ1-400A/4, ES-SLQ1-630A/4, ES-SLQ1-1000A/4, ES-SLQ1-1250A/4, ES-SLQ1-1600A/4
    BYQ1 Digital 4P 1600 A 400 V AC ES-BYQ1-1600/4
    EL-ATS Panel-mounted automatic 4P 63 A 230/380 V EL-ATS-63/4P
    For solar power plants (PV ATS)
    TAXNELE TXATS-PV Inverter – mains, DIN 2P / 3P / 4P 63 / 125 A Load transfer between inverter output and mains ESTXATS-63PV-2P, ESTXATS-63PV-3P, ESTXATS-63PV-4P, ESTXATS-125PV/4P
    HGLD-100 Panel-mounted PV 4P 100 A 400 V AC/DC ES-HGLD-100/4
    Controllers and ready-made kits
    SmartGen HAT310 ATS controller, DIN – 16 A relays Mains 3 phases, generator 1 phase, start ES-HAT310
    Y-702 Panel-mounted digital controller – – 230 V, RS485 ES-Y-702
    TD-ATS 230 V Controller box with start – 3–10 kW For single-phase generators ES-TD-ATS3, ES-TD-ATS5, ES-TD-ATS6, ES-TD-ATS7, ES-TD-ATS8, ES-TD-ATS10
    TD-ATS 380 V Controller box with start – 3–10 kW For three-phase generators ES-TD-ATS31, ES-TD-ATS51, ES-TD-ATS61, ES-TD-ATS71, ES-TD-ATS81, ES-TD-ATS101

    Exact parameters (Icw, Icm, transfer time, control voltage) can be found in each product description and in the manufacturer's datasheets.

    ⚠ What to check before buying

    Kibirkštis
    KibirkštisBefore choosing an ATS I always ask three things: how many phases, what main breaker and whether the generator starts by itself.
    What to check Why it matters
    Number of phases and earthing system This decides 2P or 4P and whether N has to be switched.
    Main circuit breaker rating The ATS rated current must be not lower.
    Generator start Automatic start needs a controller with a start contact and a generator with a remote start input.
    Type of load For motors and compressors – utilisation category AC-33.
    PC or CB class PC class needs separate short-circuit protection upstream of the ATS.
    Delay settings The generator must have time to warm up, and short grid dips must not start it.
    Mounting location IP20 – only inside a closed enclosure; panel ATS – in a cabinet with enough space for cables.

    ✗ Most common mistakes

    Mistake Consequence
    The generator is connected “backwards” through a socket (plug-to-plug cable) ⚡ The free plug pins are live; if the main switch is not opened, voltage feeds back into the grid – danger to people and line workers.
    A 3P ATS is used in a three-phase installation while the generator N is bonded to PE N and PE become parallel, part of the neutral current flows in the PE conductor, RCDs trip unexpectedly.
    The ATS is sized by generator power, not by the supply On grid supply the ATS is overloaded and overheats.
    A simple ATS without a controller is expected to start the generator Nothing happens on a power cut – the generator is not started.
    Zero delay is set The load is applied to a cold generator and it stalls; short dips start it for no reason.
    A PC class ATS without upstream protection The switch is destroyed during a short circuit.
    Three-phase loads are fed from a single-phase generator Motors do not start or overheat running on a missing phase.
    Fazė

    ⚡ Safe installation – advice from Fazė

    • Connect a generator to the installation only through a switch that prevents parallel operation with the grid: mechanical and electrical interlock, position 0.
    • Before work, disconnect both the grid and the generator. The ATS controller may start the generator unexpectedly – switch off automatic mode.
    • Make the generator N–PE bond and earthing according to the manufacturer's instructions and the earthing system of the site.
    • Coordinate the connection of a stationary generator with the design and, where the connection conditions require it, with the grid operator. Work is carried out by a qualified electrician.
    ☝ Elsprendimai.eu recommends: complete your backup power system with generators, surge protective devices, voltage relays, 1-0-2 changeover switches / modular 1-0-2 (DIN), hybrid inverters, power analysers.

    Diagrams: how it is often done and how it should be

    In each diagram the most common mistake is on the left and the correct solution on the right. The numbers in the diagram match the explanations below it.

    Diagram 1. Connecting a generator: via a socket or via an ATS. A generator must not be connected to a house installation in a way that lets its voltage reach the distribution grid or lets the grid and the generator meet.

    Kibirkštis
    KibirkštisDuring a power cut I plug the generator into a socket with a double-plug cable and everything works. What is wrong?
    Fazė
    FazėThe free plug is at 230 V, and if the main switch is on, the generator also feeds the street line. When the grid returns, they meet. Connect only through an ATS or a 1-0-2 switch.
    Connecting a generator via a socket and via an ATS – diagram: wrong and correct | elsprendimai.eu
    ☝ Click the diagram to open the enlarged version.
    ⚠ This diagram is for guidance only and may contain inaccuracies. Before connecting, check against the manufacturer's instructions and the device markings.
    The qualified electrician carrying out the installation is responsible for it. UAB „Elektrotechnikos sprendimai“ accepts no liability for connections or possible errors.

    Why – explanation by the numbers in the diagram

    1Connection through a socket

    ✗ plug-to-plug cable  →  ✓ the generator is connected only through an ATS or a 1-0-2 switch

    Why: A socket outlet is meant for a load, not a source. With one end of the cable in the generator, the pins of the other plug are at 230 V and can be touched. Such a connection also bypasses the installation protection – the cable and the socket are not rated for the whole house load.

    2Back-feed into the grid

    ✗ main switch not opened  →  ✓ position 0 and interlock separate the sources

    Why: If the main switch is left on, the generator voltage passes through the meter into the distribution grid and can be stepped up by the transformer. Line workers who believe the line is dead can be injured. The design of an ATS or MTS does not allow both sources to be connected at the same time.

    3Grid return

    ✗ grid and generator meet  →  ✓ the ATS transfers the load back to the grid itself

    Why: If grid voltage returns while the generator is still connected, two unsynchronised sources are joined. Large equalising currents flow: generator windings, cables and contacts burn. An ATS first disconnects the generator and only then, after a delay, connects the grid.

    Diagram 2. Three-phase installation: 3P or 4P ATS. In a three-phase installation it is important not only to switch the phases but also to decide what happens with the neutral. When the generator N is bonded to PE, N must be switched together with the phases.

    Kibirkštis
    KibirkštisWhy am I offered a 4P ATS when there are only three phases?
    Fazė
    FazėThe fourth pole switches the neutral. Otherwise the N–PE points of the grid and the generator are connected in parallel – RCDs start tripping for no reason.
    Three-phase installation: 3P or 4P ATS – diagram: wrong and correct | elsprendimai.eu
    ☝ Click the diagram to open the enlarged version.
    ⚠ This diagram is for guidance only and may contain inaccuracies. Before connecting, check against the manufacturer's instructions and the device markings.
    The qualified electrician carrying out the installation is responsible for it. UAB „Elektrotechnikos sprendimai“ accepts no liability for connections or possible errors.

    Why – explanation by the numbers in the diagram

    1Switching N

    ✗ 3P ATS, N permanently connected  →  ✓ 4P ATS switches L1, L2, L3 and N

    Why: With a 3P ATS the grid and generator neutrals stay permanently connected. Whichever source is supplying, both N–PE bonding points remain in one circuit. A 4P ATS disconnects the neutral together with the phases, so only one source with its own N–PE point is in operation.

    2Parallel N and PE paths

    ✗ neutral current splits between N and PE  →  ✓ each source has one N–PE point

    Why: When N and PE are bonded at two points, part of the operating neutral current flows through the protective conductor PE and the earth. The PE conductor is intended only for fault currents – continuous current in it causes interference, corrosion and dangerous potentials on metal structures.

    3RCD operation

    ✗ the RCD trips for no reason  →  ✓ the RCD works correctly

    Why: An RCD compares the current in the phase and N conductors. If part of the neutral current returns via PE, the RCD sees an imbalance and disconnects the circuit although there is no fault. With N switched, the neutral current returns only via N and the RCD reacts only to real leakage.

    Diagram 3. Generator and hybrid solar inverter. A hybrid inverter with a battery is itself a backup source. The generator is connected to the inverter GEN input, not in parallel with the grid on GRID.

    Kibirkštis
    KibirkštisI connected the generator to the same GRID input as the mains – the inverter will sort it out, right?
    Fazė
    FazėNo. The inverter can feed energy back into the generator and damage it, and when the grid returns the sources will be connected together. Connect the generator only to the GEN input or via an ATS.
    Generator and hybrid solar inverter – diagram: wrong and correct | elsprendimai.eu
    ☝ Click the diagram to open the enlarged version.
    ⚠ This diagram is for guidance only and may contain inaccuracies. Before connecting, check against the manufacturer's instructions and the device markings.
    The qualified electrician carrying out the installation is responsible for it. UAB „Elektrotechnikos sprendimai“ accepts no liability for connections or possible errors.

    Why – explanation by the numbers in the diagram

    1Separating the sources

    ✗ grid and generator on one GRID input  →  ✓ grid to GRID, generator to GEN

    Why: When both sources share one point, nothing separates the grid from the generator. The inverter GEN input has its own relay and control, so only one source works at a time.

    2Start-up and reverse power

    ✗ the inverter exports energy into the generator  →  ✓ the inverter starts the generator via the G-Start contact

    Why: A generator cannot accept energy back – its voltage regulator and windings get damaged. Connected to GEN, the inverter closes the G-Start dry contact by itself based on the battery state of charge and starts the generator only when needed.

    3Grid return and load

    ✗ sources are connected when the grid returns  →  ✓ the load is supplied only from LOAD (EPS)

    Why: An unsynchronised grid and generator connected together cause a short circuit. The load is connected only to the LOAD (EPS) output, and export in generator mode is disabled in the inverter settings.

    Diagram 4. Automatic generator start. A simple ATS only transfers the load between voltages that are already present. For the generator to start by itself when the grid fails, you need an ATS controller and a generator with a remote start input.

    Kibirkštis
    KibirkštisI installed an ATS, the power went out and the generator just stands there. Why didn’t it start?
    Fazė
    FazėA simple ATS has no start contact. You need a controller that monitors the grid, starts the generator via the START contact and transfers the load after the delays.
    Automatic generator start – diagram: wrong and correct | elsprendimai.eu
    ☝ Click the diagram to open the enlarged version.
    ⚠ This diagram is for guidance only and may contain inaccuracies. Before connecting, check against the manufacturer's instructions and the device markings.
    The qualified electrician carrying out the installation is responsible for it. UAB „Elektrotechnikos sprendimai“ accepts no liability for connections or possible errors.

    Why – explanation by the numbers in the diagram

    1What controls the system

    ✗ ATS without a controller – only transfers  →  ✓ the controller monitors grid and generator voltage and frequency

    Why: A modular ATS sees only the two voltages at its inputs. While the generator is not running, there is no voltage on the backup side, so there is nothing to transfer to. The controller monitors the grid and decides to start the generator.

    2Start signal

    ✗ the generator receives no start signal  →  ✓ a two-wire START contact starts the generator

    Why: The generator must have an electric starter and a remote start input. The controller dry contact closes – the generator starts and runs; it opens – the generator stops after cooling down.

    3Transfer and return

    ✗ after a grid failure the load stays without power  →  ✓ after the delays the load is transferred and returned automatically

    Why: The controller waits until generator voltage and frequency stabilise and only then transfers the load. When the grid returns, the load is transferred back after a delay, and the generator is cooled down and stopped.

    Frequently asked questions

    Questions from Kibirkštis – a young, curious electrician. Answers from Fazė – an experienced engineer.

    Kibirkštis
    KibirkštisDoes an ATS suit any generator?
    Fazė
    FazėFor switching – yes, if the voltage and number of phases match. Automatic start is possible only for a generator with an electric starter and a remote start input – it is controlled by the ATS controller via the start contact.
    Kibirkštis
    KibirkštisHow long does the transfer take?
    Fazė
    FazėBetween two sources that are already present – from tens of milliseconds to a few seconds, depending on the model. With a generator the total time depends on starting and delays, usually 10–60 s. If the load must not be interrupted even for a moment, a UPS is needed.
    Kibirkštis
    KibirkštisDoes an ATS protect against short circuits?
    Fazė
    FazėPC class – no, circuit breakers or fuses are needed upstream. A CB class ATS already has protection.
    Kibirkštis
    KibirkštisDoes a house need 2P or 4P?
    Fazė
    FazėSingle-phase supply – 2P, three-phase supply with neutral – 4P. 3P is used only for a three-phase load without N.
    Kibirkštis
    KibirkštisCan an ATS be used with a solar inverter?
    Fazė
    FazėWith the backup (EPS) output of a hybrid inverter – yes, PV ATS units are made for that. An on-grid inverter shuts down when the grid fails, so it will not provide backup power.
    Kibirkštis
    KibirkštisCan I install it myself?
    Fazė
    FazėAn ATS is connected in the main supply circuit, so it is installed by a qualified electrician. We will help you choose the switch, controller and protection.
    Kibirkštis
    KibirkštisDo you help select a complete set?
    Fazė
    FazėYes. Send the supply details (phases, main breaker), generator power and start method – we will select a compatible solution and send an offer.
    Kibirkštis
    KibirkštisWhat size generator do I need for a house?
    Fazė
    FazėIt depends on what you will power on backup. For a boiler, fridge, lighting and internet, 2–3 kW is enough, but adding a borehole pump already requires 6–7 kW due to its starting current. A calculation example is in the sectionon load calculation.
    Kibirkštis
    KibirkštisWhy won't a gas boiler work on a generator?
    Fazė
    FazėThe flame monitoring of many gas boilers relies on the potential difference between N and PE. If the generator neutral is “floating”, i.e. not bonded to PE, the boiler locks out with a flame fault. The solution is a correct N–PE bond on the generator side according to the earthing system. This must be done by an electrician.
    Kibirkštis
    KibirkštisCan a generator be connected to a hybrid inverter?
    Fazė
    FazėYes, if the inverter has a GEN input or the manufacturer allows a generator on the GRID input. The inverter then starts the generator itself based on battery state of charge. Most importantly, the generator must never receive energy back from the inverter.
    Kibirkštis
    KibirkštisDoes a generator need ESO permission?
    Fazė
    FazėIf the generator is connected only via an ATS or 1-0-2 changeover switch that fully disconnects the mains, it operates only autonomously and does not feed energy into the grid. Any operation in parallel with the grid, e.g. a solar power plant, requires connection conditions from ESO (the Lithuanian distribution network operator).

    Sources

    Prepared 2026-10-07 · Updated 2026-11-12.

    This guide is for information only. UAB „Elektrotechnikos sprendimai“ accepts no responsibility for product selection based on this guide – the final choice is made by the designer or a qualified electrician based on the site data.

    We will select an ATS for your supply and generator

    Modular and panel ATS, manual changeover switches, controllers, protection and generators – in one place. Send the supply and generator details: we will select a matching set and send an offer.

    Get an offer
    Read more
    Automatic transfer switch for solar PV ATS TAXNELE TXATS-PV | inverter–grid | 4P | 125 A | DIN
    Code: ESTXATS-125PV/4P

    TAXNELE TXATS-PV 4P 125 A – automatic transfer switch for solar PV: inverter on side A, grid on side B. PC class, DIN mounting.

    Price 102.85 € VAT incl.
    ( 85.00 € VAT excl. )
    Compact automatic transfer switch ATS TAXNELE TXATS3 | 4P | 63 A | PC class | DIN
    Code: ES-TOATS-2

    TAXNELE TXATS3 4P 63 A – compact PC class DIN rail ATS: transfer under 50 ms, automatic and manual mode.

    Price 94.38 € VAT incl.
    ( 78.00 € VAT excl. )
    Automatic power transfer switch for generators 4P | 230V | 100A
    Code: EL-GM4P/100

    Automatic power transfer switch for generators 4P, designed for use in residential power distribution systems, ensures continuous power supply when the main supply is interrupted. It automatically switches to the backup power source when a disruption in the main supply is detected. This switch is suitable for use with a 230V voltage and has a 100A rated current. Its design allows for mounting on a DIN rail, making it particularly convenient for residential applications.

    Price 156.09 € VAT incl.
    ( 129.00 € VAT excl. )
    Modular | digital automatic backup power transfer switch with protection functions | for generators | for uninterrupted power supply | 4P | 100A | 230/400 V | DIN
    Code: ES-JMRD-DTX

    Three-phase Automatic Transfer Switch (ATS) – a device designed to automatically switch a three-phase load between the main and backup power sources. It supports 120V / 230V phase voltage and features adjustable overcurrent protection up to 100A, overvoltage and undervoltage monitoring, phase sequence protection, voltage and current imbalance protection, and temperature protection. The device also includes programmable transfer delays, priority source selection, an ON/OFF timer, and fault diagnostics. Suitable for mains–mains and mains–generator backup power systems.

    Price 216.98 € VAT incl.
    ( 179.32 € VAT excl. )
    Modular automatic transfer switch with protection functions | energy metering | for generators | for uninterrupted power supply | 150A | 3x230V | from 380V to 230V
    Code: ES-JMRD-PS5X/150A

    Automatic phase switch ATS 5-in-1 150A – a multifunctional device designed for automatic switching of a single-phase load between L1, L2 and L3 phases. The device monitors the voltage of all three phases, allows selection of a priority phase, and features adjustable 1–150A overcurrent protection, overvoltage and undervoltage protection, temperature protection, energy metering and an ON/OFF timer. The colour display shows voltage, current, frequency, temperature and kWh data. Designed for mounting on a 35mm DIN rail. Important: this is not a 3P/4P ATS for three-phase loads – the output is single-phase L+N.

    Price 123.03 € VAT incl.
    ( 101.68 € VAT excl. )
    Automatic transfer switch ATS CHINT NXZ-630/4 | 4P | 630 A | 400/415 V | PC class
    Code: ES-NXZ-630/4P

    CHINT NXZ-630/4 – 4P automatic transfer switch 630 A for a three-phase 400/415 V system with two power sources. PC class: withstands short-circuit current (Iq 100 kA), protection is installed upstream.

    Price 1250.60 € VAT incl.
    ( 1033.55 € VAT excl. )
    Automatic transfer switch ATS CHINT NXZ-125/4 | 4P | 125 A | 400/415 V | PC class
    Code: ES-NXZ-125/4P

    CHINT NXZ-125/4 – 4P automatic transfer switch 125 A for a three-phase 400/415 V system with two power sources. PC class: withstands short-circuit current (Iq 100 kA), protection is installed upstream.

    Price 750.36 € VAT incl.
    ( 620.13 € VAT excl. )
    Modular automatic backup power transfer switch with protection functions | for generators | for uninterrupted power supply | 3 inputs | 2P | 100A | 230V
    Code: ES-JMRD-PN3

    3-source Automatic Transfer Switch (ATS) – a 2P, 100A device designed to automatically transfer the load between three independent 230V AC power sources, such as the mains supply, a generator and an inverter. During switching, both the L and N conductors are disconnected, ensuring electrical isolation between the power sources. The device features automatic and manual control, source priority setting, voltage, overcurrent and overtemperature protection, adjustable delay times, and COM / NO / NC dry contacts for integration with PLC, BMS or generator controllers.

    Price 107.29 € VAT incl.
    ( 88.67 € VAT excl. )
    Modular automatic backup power transfer switch with protection functions | for generators | for uninterrupted power supply | 4 inputs | 2P | 100A | 230V
    Code: ES-JMRD-PN4

    4-source Automatic Transfer Switch (ATS) – a smart 230V AC, 100A, 2P single-phase power source transfer switch capable of automatically selecting one of up to 4 independent power inputs. Suitable for systems using the mains supply, generator, inverter or energy storage system. The device features automatic and manual operating modes, adjustable source priority, overvoltage, undervoltage, overcurrent and overheating protection, adjustable delays, a display showing input voltages and load current, and COM/NO/NC dry contacts for integration with PLC, BMS or generator controllers.

    Price 119.21 € VAT incl.
    ( 98.52 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 10kW | 380V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS101

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 8kW | 380V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS81

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 7kW | 380V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS71

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 6kW | 380V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS61

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 5kW | 380V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS51

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 3kW | 380V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS31

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 10kW | 230V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS10

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 8kW | 230V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS8

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 7kW | 230V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS7

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 6kW | 230V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS6

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 5kW | 230V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS5

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic Transfer Switch (ATS) Controller for Generator | 3kW | 230V | Automatic Start and Backup Power Switching
    Code: ES-TD-ATS3

    Automatic transfer controller designed for automatic control of the electrical grid and diesel generator, as well as switching between power sources. The device continuously monitors the status of the main power grid and, in the event of a power failure, automatically starts the generator and transfers the load to the backup power source. When the main power grid is restored, the system automatically returns the load to the electrical grid and stops the generator.

    This ATS controller is an excellent solution for homes, cottages, commercial premises, server rooms, manufacturing companies, farms, and other locations where an uninterrupted power supply is essential.

    Price 220.67 € VAT incl.
    ( 182.37 € VAT excl. )
    Automatic transfer switch ATS LVMA LMS1-100GA | 2P | 100 A | 220 V | PC class | Icm 10 kA
    Code: ES-LMS1-100GA

    LVMA LMS1-100GA/2P – PC class automatic transfer switch with integrated controller: 2P, 100 A, 220 V, AC-33B, Icm 10 kA.

    Price 97.07 € VAT incl.
    ( 80.22 € VAT excl. )
    Modular automatic backup power transfer switch ATS | with adjustable voltage protection | 3P | 63A | three-phase | LCD display
    Code: ES-BEYQH3-63A

    Automatic резервe power transfer switch designed for reliable and fast load switching between two independent power sources: the main utility grid and a backup source (generator, inverter, UPS, or another supply line). The device not only performs automatic power transfer, but also features integrated adjustable overvoltage and undervoltage protection, ensuring that connected equipment is safeguarded against electrical network instability. This model is suitable for homes, workshops, server rooms, industrial machinery, refrigeration systems, pumps, security systems, and all locations where a power outage means inconvenience, financial loss, or equipment shutdown.

    Price 45.30 € VAT incl.
    ( 37.44 € VAT excl. )
    ATS controller SmartGen HAT310 | grid 3-phase – generator 1-phase | generator start | 16 A relays | DIN
    Code: ES-HAT310

    SmartGen HAT310 – automatic transfer controller: monitors grid and generator, outputs generator start and grid/generator close signals. Relays 16 A 250 V AC, DIN.

    Price 131.59 € VAT incl.
    ( 108.75 € VAT excl. )
  • Subscribtion to new arrivals

    privacy policy

    Information
