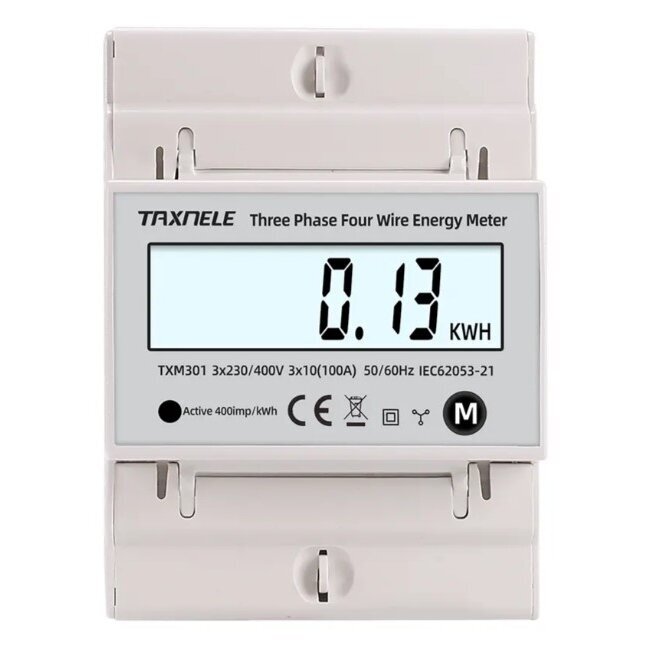

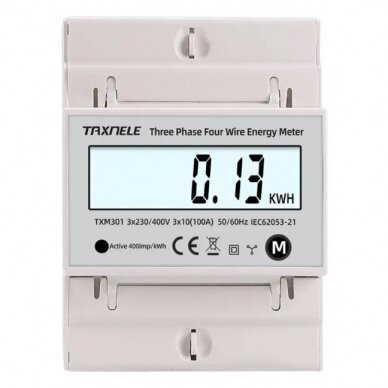

  • Multifunctional | digital AC power meter | 3-phase | 100A | 380VAC

    Code: ESTXM301

    This three-phase multifunction meter is designed to accurately measure energy consumption and monitor electrical network parameters, including voltage, current, and total energy consumed (kWh). It is suitable for various electrical systems, including solar energy (PV) systems, and allows for bidirectional energy measurement. The compact design and wide operating temperature range make this device applicable for both commercial and industrial purposes.

  • Specifications:

    Measurement range: 3 x 220/380V or 3 x 230/400V
    Accuracy class: 0.1 – high-precision readings suitable for accurate billing.
    Measured current: 3 x 10(100A)
    Frequency: 50-60Hz
    Operating temperature: -10°C to +65°C
    Display: digital

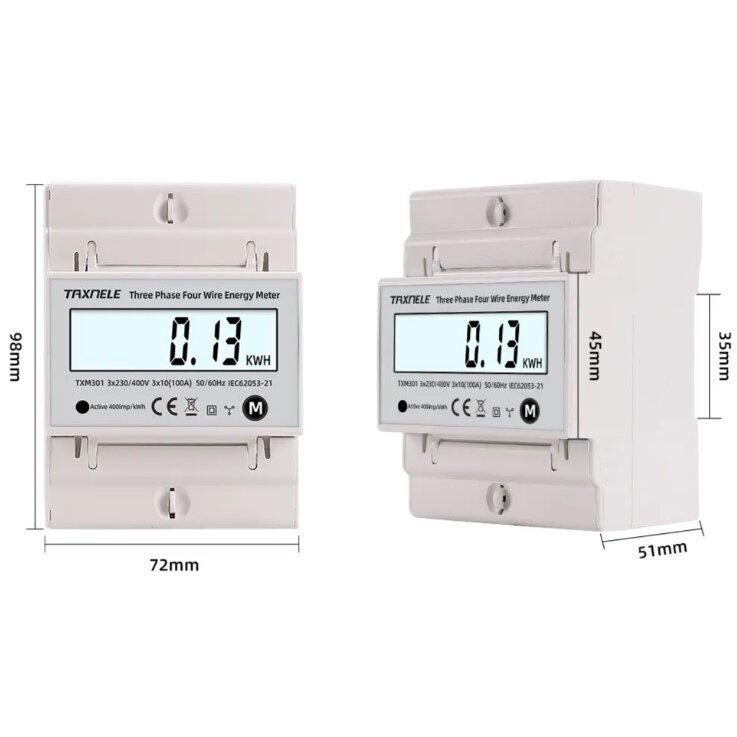

    Dimensions: 72 x 98 mm
    Functions:

    Accurate energy measurement: Ensures precise monitoring of energy consumption, allowing users to trust billing and energy analysis.
    Bidirectional measurement: Monitors both positive and negative energy flows, making it ideal for solar energy (PV) systems, where energy can be supplied and sent to the grid.
    Customizable measurement settings: The device can be set to measure 3 x 220/380V or 3 x 230/400V, adapting to various electrical network configurations.
    Wide temperature range: Operates from -10°C to +65°C, suitable for use in various environmental conditions.
    Compact design: The device measures only 72 x 98 mm, making it easy to install in confined spaces.
    Usage:

    Industrial and commercial premises: Used to monitor electricity consumption and ensure accurate energy cost management.
    Solar energy systems (PV): Suitable for monitoring both energy consumption and generated energy when the solar system is connected to the electrical grid.
    Electrical network monitoring: Provides the ability to monitor and analyze three-phase network parameters, preventing overloads or unexpected fluctuations.
    Pros:

    High accuracy: Accuracy class 0.1 ensures reliable readings suitable for detailed energy consumption monitoring.
    Bidirectional measurement: Ideal for renewable energy systems, as it can measure both consumed and supplied energy.
    Versatility: Adaptable to various voltage configurations, allowing use in different countries and with various electrical systems.
    Compact and easy installation: The small size allows for easy installation even in confined spaces.
    Suitable for industrial conditions: Wide temperature range and robust construction make it suitable for use in challenging environments.
    Cons:

    Only for AC networks: This meter is designed only for alternating current (AC) networks, making it unsuitable for DC networks.
    Limited additional features: This device lacks additional functions such as power factor measurement or detailed data storage.
    Requires professional installation: Installing a three-phase meter requires electrical specialists to ensure safety and proper operation.
    The three-phase multifunction 380V energy meter is a reliable and versatile device designed for precise energy measurement in various industrial and commercial environments. It is an ideal choice for solar energy systems, three-phase network monitoring, and accurate electricity cost analysis.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
