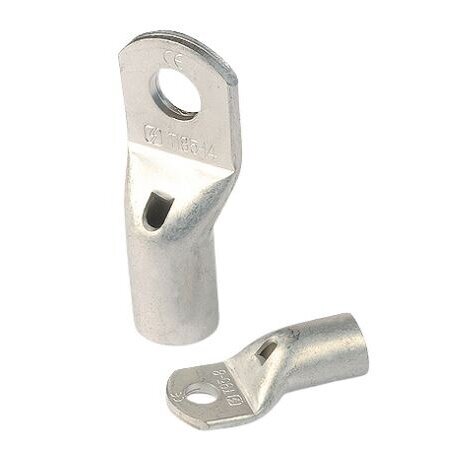

Ring cable lug | 6mm² | M6 | crimp type | T-6/6 | 010230

Ring cable lug | 6 mm² | M6 | copper, tin-plated | crimp type | T-6/6 | 010230

Crimp-type ring cable lug T-6/6 designed for connecting a 6 mm² copper conductor to an M6 bolted contact point. The lug is made of high-conductivity electrolytic copper with a tin-plated surface. An inspection hole allows the installer to verify that the conductor has been correctly inserted into the barrel before crimping.

T-6/6 is designed to form a reliable termination on a 6 mm² copper conductor and connect it to an M6 bolted terminal. The conductor is secured inside the lug by crimping, while the ring is attached to the equipment through the M6 fastening point.

M6 indicates the ring fastening size for an M6 bolt or threaded contact point. It does not indicate the conductor cross-section, crimping die size or a thread inside the lug.

6 mm² indicates the nominal conductor cross-section, while M6 indicates the ring fastening size for the bolted contact point. Both parameters must match the intended connection.

• Designed for a 6 mm² copper conductor.
• Ring suitable for an M6 fastening point.
• Installed by crimping.
• Made of high-conductivity electrolytic copper.
• Tin-plated surface.
• Inspection hole for checking conductor insertion.
• Designed for terminating a cable or wire at a bolted contact point.
• Manufacturer-stated compliance with IEC 61238-1-1.

• Electrical distribution boards and distribution equipment.
• Connecting cables and wires to bolted contact points.
• Control and automation cabinets.
• Power connections in electrical equipment.
• Earthing or equipotential bonding connections where the specific installation and project permit it.
• Repair and refurbishment work.

1. Check that the nominal conductor cross-section is 6 mm².
2. Check that the connection point requires an M6 ring fastening.
3. Strip enough insulation for the conductor to enter the lug barrel fully.
4. Do not damage or cut conductor strands while removing insulation.
5. Insert the conductor fully into the lug barrel.
6. Use the inspection hole to verify that the conductor has been inserted deeply enough.
7. Crimp using a suitable crimping tool with a die intended for this type of 6 mm² cable lug.
8. After crimping, check conductor retention and the quality of the crimped area.
9. Install the ring over the M6 fastening point.
10. Tighten the bolted connection to the torque specified by the connected equipment manufacturer.

The crimping tool and die must be suitable for the specific 6 mm² ring lug. An incorrect die or insufficient crimp can degrade both the mechanical and electrical quality of the connection.

• De-energise the circuit before work and verify absence of voltage.
• Use only a copper conductor with the correct 6 mm² cross-section.
• Do not damage conductor strands while stripping insulation.
• Insert the conductor fully into the barrel before crimping.
• Use the inspection hole to check conductor insertion.
• Crimp using a suitable tool and die.
• After crimping, check the mechanical stability of the connection.
• Tighten the M6 bolted connection according to the connected equipment manufacturer’s requirements.
• Electrical installation work should be carried out by qualified personnel.

T-6/6 | 6 mm² | M6 | crimp type

Crimp-type ring lug for a 6 mm² copper conductor, designed for connection to an M6 bolted contact point. Made of high-conductivity electrolytic copper with a tin-plated surface and an inspection hole for checking conductor insertion. A practical solution where a professionally crimped cable termination is required.
