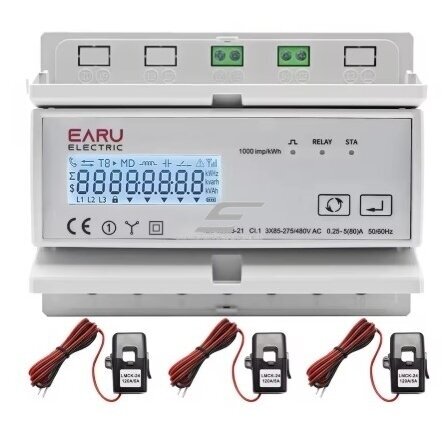

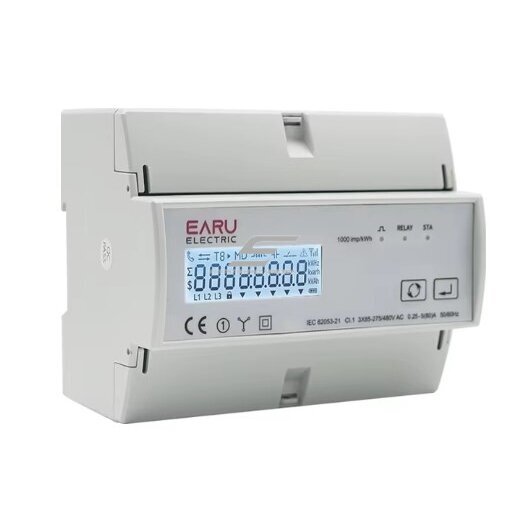

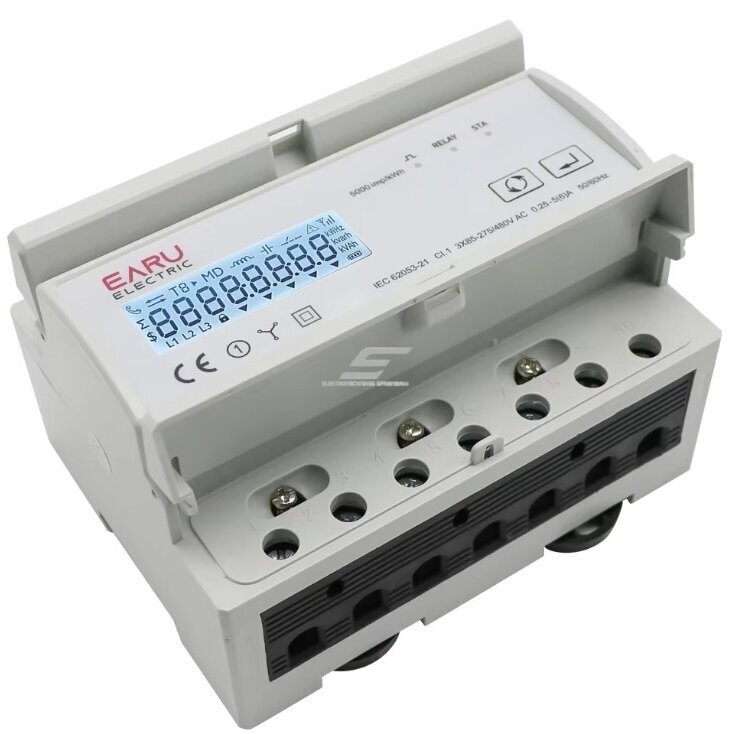

  • Smart | digital | electricity meter with 3 current transformers CT 300A | 3F | 230/380V | Tuya Wi-Fi

    Code: ES-CTW300

    Modern, high-precision energy meter designed for three-phase energy measurement and real-time monitoring. This device supports bidirectional measurement, allowing both consumption and generation of energy to be recorded. Equipped with WiFi functionality, it enables convenient energy monitoring through mobile apps and remote access.

  • Technical Specifications
    Power Range: 0 ~ 999999.999 kWh
    Complex Tariff System: T1, T2, T3, T4
    Nominal Voltage: 230VAC/380VAC
    Transformer Diameter: 300A - 24mm
    Measurement Range: 85 ~ 275 VAC / 85 ~ 480 VAC
    Frequency: 45-65 Hz
    Accuracy Class: 1%
    Protection Class: IP51 / IP30
    Enclosure Fire Resistance: UL 94 V-0
    Operating Temperature: -25 ~ +55 ℃
    Storage Temperature: -40 ~ +80 ℃
    Humidity: <90% (non-condensing)

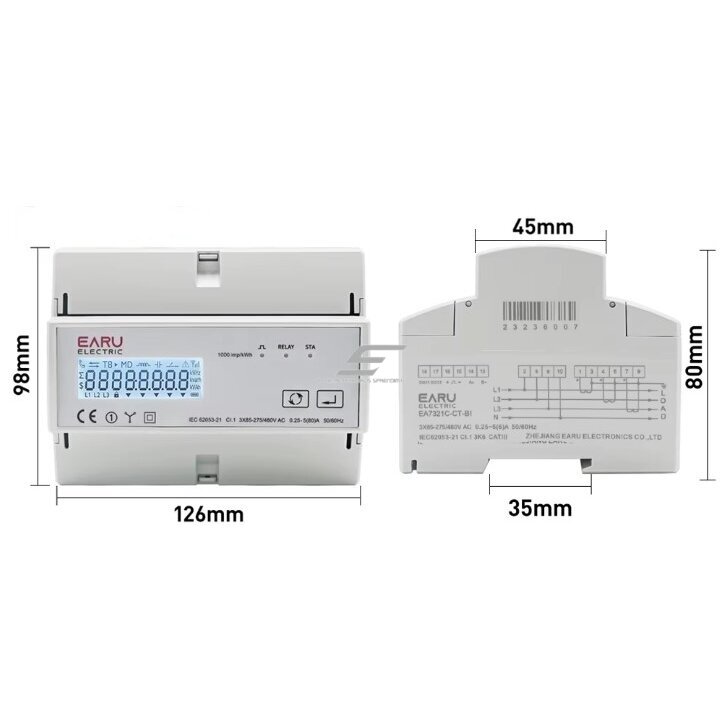

    Dimensions: 126 x 98 x 80 mm
    Communication Interface: RS485, Modbus RTU
    Response Time: <100 ms

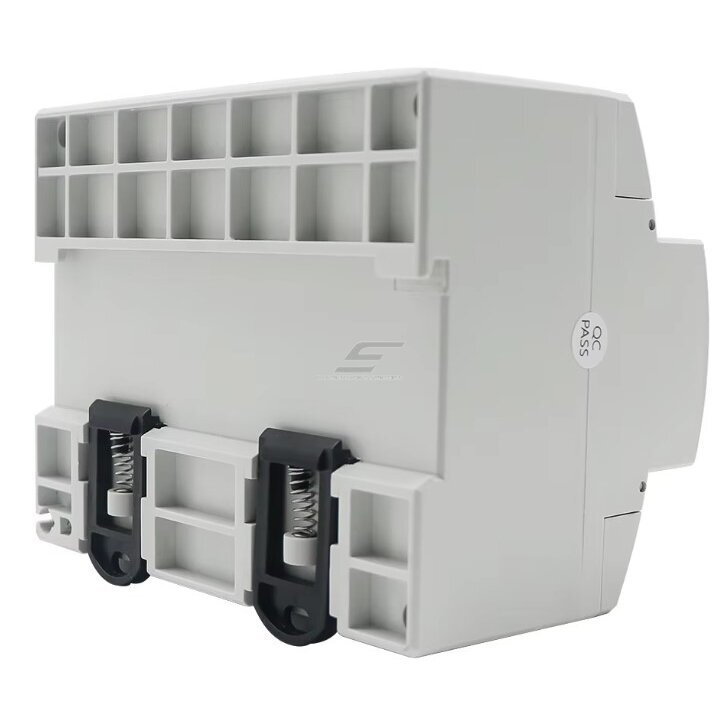

    Mounting: TH35-7.5 DIN Rail
    Vibration Resistance: 10 Hz – 150 Hz (IEC 60068-2-6)

    Functions
    Voltage Meter: Accurate three-phase voltage monitoring.
    Current Meter: Allows monitoring of electrical current consumption.
    Energy Meter: Calculates consumed and returned energy.
    On/Off Function: Integrated device control capability.

    Usage
    Designed for residential, commercial, or industrial facilities.
    Ideal for monitoring and analyzing energy consumption and generation (e.g., using solar or wind power).
    Perfect for devices where accurate remote energy consumption monitoring is required.

    Usage Examples

    In Residential Settings:
    Energy consumption monitoring when connected to a smart home system.
    Used with solar panels to register generated energy.

    In Industrial Zones:
    Precise energy consumption monitoring in manufacturing processes.
    Integration into control systems to optimize energy consumption.

    Advantages

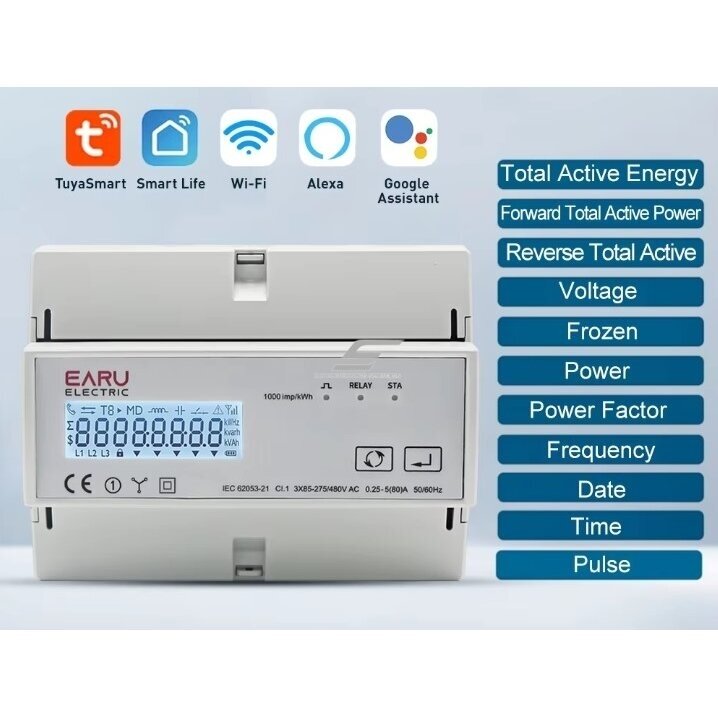

    WiFi Support: Easy and convenient monitoring via mobile app.
    RS485 and Modbus RTU: Compatibility with industrial control systems.
    LED Display: Clearly displays energy data in real-time.
    Energy Saving: Precise measurements can help optimize energy costs.

    Disadvantages
    High Price: Modern features and WiFi integration increase the device's price.
    Complicated Installation: May require expert assistance for installation and integration with the RS485 system.

    A modern and practical solution for those seeking to efficiently monitor and manage electricity consumption.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
