  • New item   Socket box | 1×CEE 32 A 400 V + 2×230 V 16 A | IP44 | Famatel 3070 0056E

    Socket box | 1×CEE 32 A 400 V + 2×230 V 16 A | IP44 | Famatel 3070 0056E

    Code: 3070 0056E
    Inquire about this item
    Price 21.65 € VAT incl.
    ( 17.89 € VAT excl. )
    Want another price? Suggest yours!

    Famatel 3070 0056E – socket box: 1×CEE 32 A 400 V and 2×230 V 16 A, IP44 according to supplier data. We could not find a manufacturer data sheet for this code, so confirm the CEE pin count, 230 V socket type and protective devices before ordering.

  • Product description

    Socket box | 1×CEE 32 A 400 V + 2×230 V 16 A | IP44 | Famatel 3070 0056E

    Famatel 3070 0056E – socket box with one three-phase CEE 32 A 400 V socket and 2×230 V 16 A. For garages, workshops, farm buildings and commercial premises that need three-phase and single-phase sockets at one point.

    Key point:
    One box lets you connect a three-phase machine and hand tools in the same place. We could not find a manufacturer data sheet for code 3070 0056E, so only the composition is given; confirm the CEE pin count (4 or 5), the 230 V socket type and whether protective devices are fitted before ordering.
    Sockets
    1×CEE 32 A + 2×230 V
    Protection
    IP44
    CEE socket
    32 A, 400 V
    Supply
    three-phase line from the board

    How it works

    The box is supplied by a three-phase line with N and PE from the board; cable entry and connection are done by an electrician.

    The CEE 32 A 400 V socket is for three-phase equipment, the 230 V 16 A sockets for single-phase appliances and tools.

    Splash protection (IP44 according to supplier data) applies only with the lids closed. Line protection and a 30 mA RCD are installed in the board.

    Why choose Famatel 3070 0056E?
    When a garage or workshop needs both a three-phase 32 A socket and 2×230 V sockets, one box replaces several separate sockets and shortens installation.

    Technical specifications

    Product type Socket box
    Manufacturer / code Famatel / 3070 0056E
    Sockets 1×CEE 32 A 400 V + 2×230 V 16 A
    CEE socket pins to be confirmed (3P+PE or 3P+N+PE)
    230 V socket type to be confirmed (Schuko or earth pin)
    Protective devices no manufacturer data found – to be confirmed
    Degree of protection IP44 (supplier data)

    Main functions

    • Three-phase CEE 32 A 400 V socket – for three-phase equipment.
    • 2×230 V 16 A sockets – for single-phase appliances and tools.
    • One connection point – three-phase and single-phase sockets in one box.
    • Splash protection – IP44 according to supplier data, with lids closed.
    • Supply from the board – breaker and RCD selected by the electrician for the line.

    How does it differ from similar products?

    Famatel 3068 0055E (8570) Only one 230 V socket.
    Famatel 3073.0032E / 3069 (8498) CEE 16 A – for lower-power three-phase equipment.
    SEZ ROS4/V-10 (2228) With 3-pole switch-disconnector – sockets can be isolated on site.
    Scame 686D.322 (13940) IP54.

    Where is it used?

    • Garages and car service shops
    • Workshops and production areas
    • Farm and agricultural buildings
    • Warehouses and commercial premises
    • Plant rooms
    • Construction sites (only from a site distribution board)

    Use by need

    For beginners.
    A box with one three-phase socket and 2×230 V. Before buying, check how many pins your equipment's CEE plug has (4 or 5) and confirm with us.
    For experienced installers.
    Select the supply cable and breaker for the CEE 32 A socket and the line length; the 230 V sockets need an N conductor. Check whether the box contains protection for the 230 V sockets.
    For power engineers / designers.
    Design the line with a 30 mA RCD for the socket circuit; the total of all sockets must not exceed the line breaker. On construction sites – supply only from a site distribution board (HD 60364-7-704).

    Practical use

    In a workshop the Famatel 3070 0056E is supplied by a three-phase line with a 32 A breaker and a 30 mA RCD. The CEE 32 A socket serves a larger machine, and the electrician provides 16 A protection for the 230 V sockets – if the box has none, a separate 16 A breaker is installed.

    Pros / advantages

    • Three-phase CEE 32 A and 2×230 V sockets in one box
    • One connection point – quicker installation
    • Splash protection (IP44 according to supplier data)
    • Suits garages, workshops and farm buildings
    • Several loads can run at the same time

    Cons / limitations

    • No manufacturer data sheet found for this code – confirm the CEE pin count, 230 V socket type, dimensions and protective devices.
    • If the 230 V sockets have no separate 16 A protection, it must be added when supplied from a 32 A line.
    • IP44 – splashing water only; outdoors choose a sheltered location or Scame 686D.322 (13940, IP54).
    • A switch-disconnector is not confirmed – to isolate sockets locally choose SEZ ROS4/V-10 (2228) with a 0–1 switch.

    Safety and installation notes

    • ⚡ Connection must be made by a qualified electrician, with the supply switched off.
    • ⚡ Protect the supply line with a breaker matched to the cable (max. 32 A) and a 30 mA RCD for the socket circuit.
    • ⚡ The 230 V 16 A sockets require 16 A protection: if the box has none, they must not be left behind a 32 A breaker. The total of all sockets must not exceed the line breaker.
    • The CEE 400 V socket cannot be used from a single-phase line – three phases are required; the 230 V sockets need an N conductor.
    • Connecting the PE conductor of the 230 V sockets is mandatory; check the phase sequence at the CEE socket.
    • On construction sites supply the box only from a construction site distribution board (HD 60364-7-704).
    • IP44 applies only with the socket lids closed and the cable entry properly sealed.

    Quick selection guide

    1×CEE 32 A + 2×230 V
    IP44 (supplier data)
    Line up to 32 A + 30 mA RCD
    Confirm CEE 4P / 5P
    Suitable when you need:
    • Three-phase and 230 V sockets at one point
    • A socket point in a garage, workshop or farm building
    • A solution where protection and RCD are in the board
    Check before choosing:
    • Whether your equipment's CEE plug is 4-pin (3P+PE) or 5-pin (3P+N+PE)
    • Which 230 V socket type is fitted (Schuko or earth pin)
    • Whether the box has 16 A protection for the 230 V sockets
    • Whether the line is three-phase with N and PE, protected by a breaker and a 30 mA RCD
    Important reminder: This box does not replace board protection: the line breaker and 30 mA RCD are installed in the board, and the 230 V sockets must have 16 A protection.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Is the CEE socket 4-pin or 5-pin?
    We could not confirm this from a manufacturer data sheet for this code. Please check before ordering – a 5-pin plug will not fit a 4-pin socket.
    Does the box contain a breaker or RCD?
    There is no confirmed data. In any case, install line protection and a 30 mA RCD in the board.
    Can it be connected to a single-phase line?
    No. The CEE 400 V socket needs three phases; supply the box with a three-phase line with N and PE.
    How much load can be connected?
    The total of all sockets must not exceed the rated current of the line breaker; the CEE socket up to 32 A, the 230 V sockets up to 16 A.
    Can it be installed outdoors?
    According to supplier data it is IP44 – splash protection, so outdoors choose a sheltered location.
    What type are the 230 V sockets?
    Supplier data states 230 V 16 A; confirm the socket type (Schuko or earth pin) before ordering.

    Sources: Famatel official catalogue famatel.com and AcquaBOX series data sheets – no product with code 3070 0056E found; composition according to supplier data. Checked 2026-10-20.

    Famatel 3070 0056E – CEE 32 A + 2×230 V

    Famatel 3070 0056E socket box with 1×CEE 32 A 400 V and 2×230 V 16 A sockets, IP44 – for garages, workshops and farm buildings.

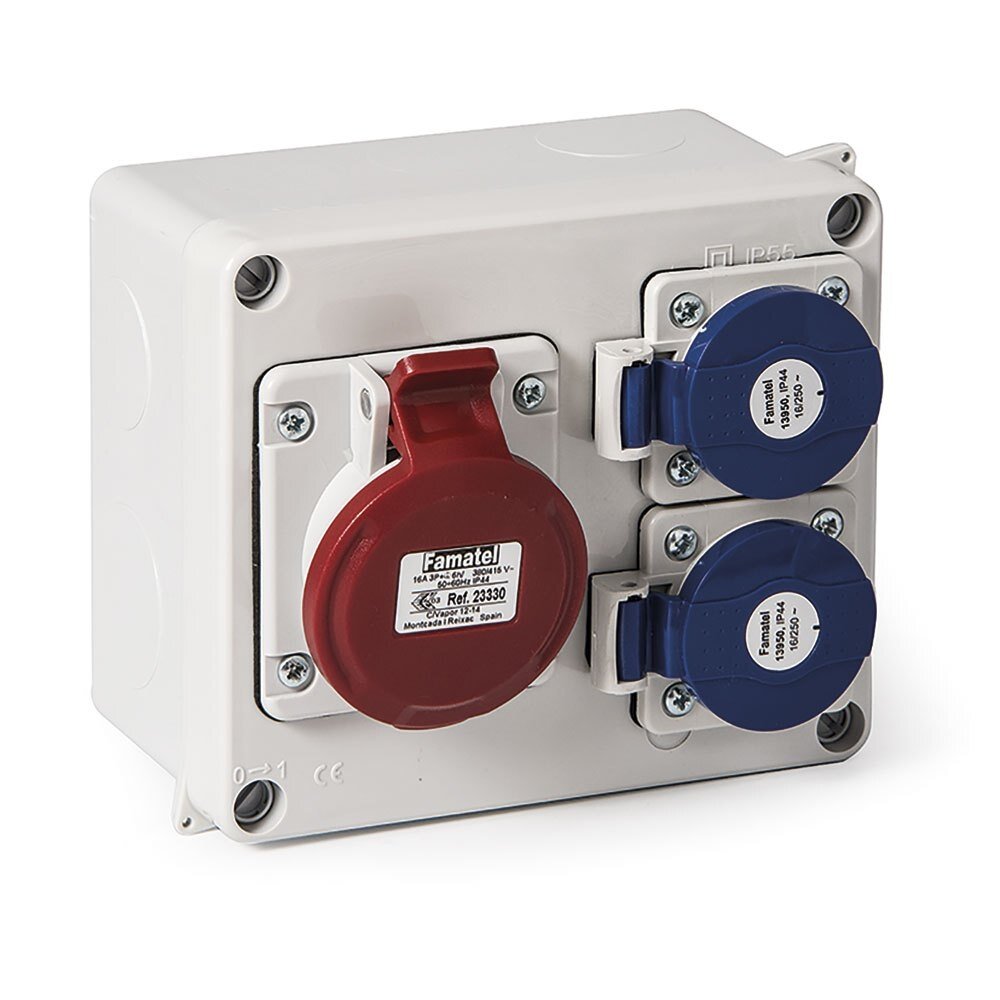

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
