  • New item   Weatherproof socket box | 1×CEE 16 A 3P+PE 400 V + 2×Schuko 16 A 230 V | AcquaBOX | IP44 | IK08 | Famatel 3069

    Weatherproof socket box | 1×CEE 16 A 3P+PE 400 V + 2×Schuko 16 A 230 V | AcquaBOX | IP44 | IK08 | Famatel 3069

    Code: 3073.0032E
    Barcode: 8429760240846
    Inquire about this item
    Price 22.99 € VAT incl.
    ( 19.00 € VAT excl. )
    Want another price? Suggest yours!

    Weatherproof Famatel 3069 AcquaBOX with factory-wired sockets: 1×CEE 16 A 3P+PE 400 V (4-pin, no N) and 2×Schuko 16 A 230 V. IP44, IK08, Class II insulation, 135×160×83 mm. No protective devices – breaker and 30 mA RCD in the board.

  • Product description

    Weatherproof socket box | 1×CEE 16 A 3P+PE 400 V + 2×Schuko 16 A 230 V | AcquaBOX | IP44 | IK08 | Famatel 3069

    Famatel 3069 AcquaBOX – weatherproof surface-mounted box with factory-wired sockets: 1×CEE 16 A 3P+PE 400 V + 2×Schuko 16 A 230 V. Designed for garages, workshops, farm buildings and commercial premises. IP44, IK08, Class II enclosure made of halogen-free ABS.

    Key point:
    Three-phase and single-phase sockets are combined in one box, giving a complete wall connection point for a three-phase machine and hand tools. Important: according to the manufacturer the CEE socket is 4-pin (3P+PE, no neutral) – it accepts 4-pin plugs only. There are no protective devices inside.
    Sockets
    1×CEE 16 A 4P + 2×Schuko
    Protection
    IP44, IK08
    Dimensions
    135×160×83 mm
    Mounting
    surface, Class II

    How it works

    The box is fixed to a wall or other flat surface. The supply cable enters through one of the entries (5 at the top, 4 at the bottom) and is connected to the factory-wired sockets.

    The CEE 3P+PE 16 A 400 V socket is for three-phase equipment with a 4-pin plug. The Schuko 2P+PE 16 A 250 V~ sockets serve standard 230 V appliances; they need a neutral, so the supply line must include an N conductor.

    IP44 protects against splashing water from all directions with the lids closed, IK08 against moderate impacts. There are no breakers or RCD inside: line protection and a 30 mA RCD are installed in the board.

    Why choose Famatel 3069?
    A garage or workshop usually needs one three-phase socket for a machine and 2×Schuko for tools. Famatel 3069 combines this in one factory-wired enclosure – no need to build a box from separate sockets.

    Technical specifications

    Product type Weatherproof socket box (no protective devices)
    Manufacturer / model Famatel / 3069 AcquaBOX (supplier code 3073.0032E)
    Three-phase socket 1×CEE 16 A 3P+PE (4-pin, no N), 400 V
    Single-phase sockets 2×Schuko 2P+PE 16 A 250 V~
    Socket wiring factory pre-wired
    Protective devices none
    Degree of protection IP44
    Impact resistance IK08
    Dimensions (H×W×D) 135×160×83 mm
    Enclosure ABS, grey RAL 7035, halogen-free
    Insulation class II
    Insulation resistance / dielectric strength >5 MΩ (500 V DC) / 2.5 kV
    Glow-wire test 750 °C (live-part supports), 650 °C (other parts)
    Cable entries 5 at the top, 4 at the bottom
    Mounting surface, indoor and outdoor
    Operating temperature −25…+40 °C
    Weight 0.612 kg
    Standards EN 60670-22, EN 60309-1, EN 60309-2, UNE 20315-1-1 / UNE 20315-1-2 (IEC 60884), UNE 211002

    Main functions

    • Three-phase CEE 16 A 3P+PE socket – for 4-pin plugs (motors, compressors, machines without N).
    • 2×Schuko 16 A 230 V – for standard single-phase appliances and tools.
    • Factory-wired sockets – the installer only connects the supply cable.
    • IP44 and IK08 – enclosure resists splashing water and moderate impacts.
    • Class II insulation – no exposed metal parts.
    • Halogen-free ABS – glow-wire test 750/650 °C.
    • Several cable entries – cable can enter from the top or the bottom.

    How does it differ from similar products?

    Famatel 3067 (8567) Only one 230 V socket.
    Famatel 3074 0033E (8581) More 230 V sockets.

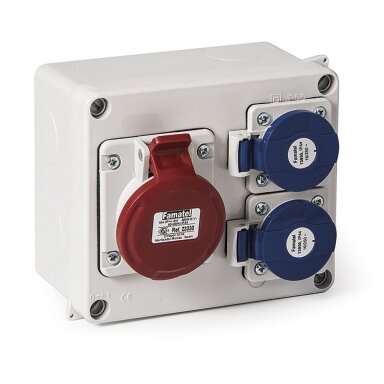

    Famatel 3070 0056E (8573) CEE 32 A – for more powerful three-phase equipment.
    SEZ ROS PG 1631D (2236) CEE 16 A 5P (3P+N+PE) – also suits equipment that needs a neutral, IP67, with handle – for portable use.

    Where is it used?

    • Garages and car boxes
    • Workshops and small production areas
    • Farm and agricultural buildings
    • Warehouses and commercial premises
    • Boiler rooms and plant rooms
    • Terraces and yards (under a canopy)
    • Connection points for woodworking and metalworking machines

    Use by need

    For beginners.
    A box with one three-phase socket and 2×Schuko. The three-phase socket accepts 4-pin plugs only; if your equipment has a 5-pin plug, choose a 5P model. Connection must be done by an electrician.
    For experienced installers.
    The supply needs a 5-core cable (L1, L2, L3, N, PE): N is required for the Schuko sockets. Check which phase the Schuko sockets are wired to and seal the entry with a gland or membrane matching the cable diameter.
    For power engineers / designers.
    The product complies with EN 60670-22 (boxes), EN 60309-1/-2 (CEE sockets) and IEC 60884 (Schuko) – it is a socket box, not an assembly to EN 61439-3. Design it as a 16 A circuit with a 30 mA RCD; the total load of all sockets must not exceed the line breaker.

    Practical use

    A Famatel 3069 installed in a garage is supplied by a 5×2.5 mm² cable from a board with a 16 A three-pole breaker and a 30 mA RCD. A compressor with a 4-pin plug uses the CEE socket, an angle grinder or work light uses Schuko; the IP44 enclosure withstands splashes when the floor is washed.

    Pros / advantages

    • Three-phase and 2×Schuko sockets in one box
    • IP44 and IK08
    • Class II insulation
    • Factory-wired sockets
    • Halogen-free ABS, glow-wire test 750/650 °C
    • Compact dimensions 135×160×83 mm

    Cons / limitations

    • CEE socket is 4-pin (3P+PE, no N) – 5-pin plugs do not fit; for such equipment choose SEZ ROSP 1631 D/S (577) with a 5P socket.
    • No breakers or RCD – protection must be in the board.
    • IP44 – splashing water only; outdoors choose a sheltered location or SEZ ROS PG 1631D (2236, IP67).
    • No switch-disconnector – sockets cannot be isolated locally; for that see SEZ ROS4/V-12 (573) with a 0–1 switch.

    Safety and installation notes

    • ⚡ Connection must be made by a qualified electrician, with the supply switched off.
    • ⚡ Protect the supply line with a breaker matched to the cable (max. 16 A) and a 30 mA RCD – the box contains no protective devices.
    • The total load of all sockets must not exceed the rated current of the line breaker.
    • The CEE 400 V socket cannot be used from a single-phase line – three phases are required; the Schuko sockets need an N conductor.
    • Connecting the PE conductor of the Schuko sockets is mandatory; check the phase sequence at the CEE socket (motor rotation direction).
    • On construction sites supply the box only from a construction site distribution board (HD 60364-7-704).
    • IP44 applies only with the socket lids closed and the cable entry properly sealed.

    Quick selection guide

    1×CEE 16 A 3P+PE + 2×Schuko
    IP44, IK08
    135×160×83 mm
    No protection, Class II
    Suitable when you need:
    • Three-phase 4-pin and 230 V sockets at one point
    • A fixed wall-mounted socket point in a garage or workshop
    • A simple solution when protection is in the board
    Check before choosing:
    • Whether your equipment's CEE plug is 4-pin (3P+PE), not 5-pin
    • Whether the line is three-phase with N and PE, protected by a breaker and a 30 mA RCD
    • Whether the location is directly exposed to water jets
    • How many 230 V sockets you need
    Important reminder: Famatel 3069 does not replace protection: the box has no breakers and no RCD. The CEE socket is 4-pin (3P+PE), so it does not accept 5-pin plugs.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Is the CEE socket 4-pin or 5-pin?
    According to the manufacturer it is 4-pin, 3P+PE 16 A (no neutral). A 5-pin plug will not fit.
    Does the box contain a breaker or RCD?
    No. Inside there are only factory-wired sockets. Protection – a breaker and a 30 mA RCD in the board.
    Can it be connected to a single-phase line?
    The Schuko sockets would work, but the CEE 400 V socket needs three phases, so the box must be supplied by a three-phase line with N and PE.
    Can it be installed outdoors?
    The manufacturer specifies indoor and outdoor use; IP44 protects against splashing, so a sheltered location is recommended outdoors.
    Is a cable with a plug included?
    No, this is a fixed surface-mounted box; the supply cable is brought in and connected by an electrician.
    What are the dimensions?
    135×160×83 mm, weight 0.612 kg.

    Sources: Famatel product page famatel.com (3069), technical data sheet DT_3069. Checked 2026-10-20.

    Famatel 3069 – CEE 16 A 4P + 2×Schuko, IP44

    Weatherproof Famatel 3069 AcquaBOX with CEE 16 A 3P+PE 400 V and 2×Schuko 16 A 230 V sockets, IP44, IK08, Class II ABS enclosure – for garages, workshops and farm buildings.
