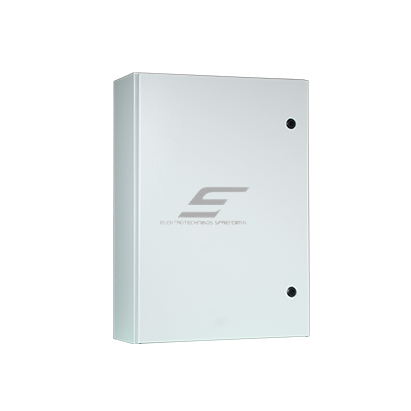

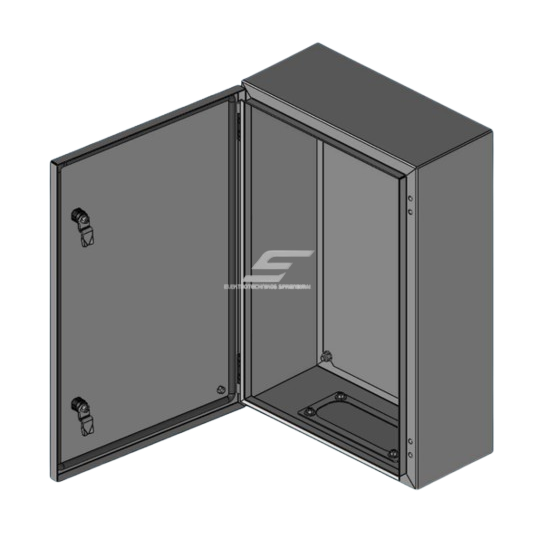

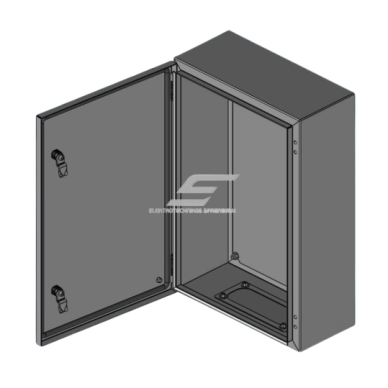

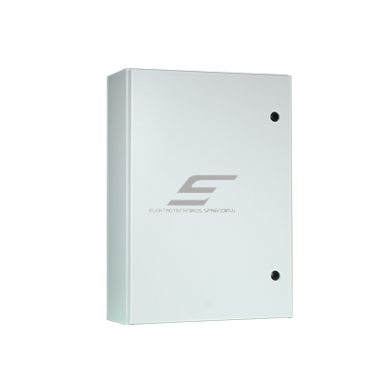

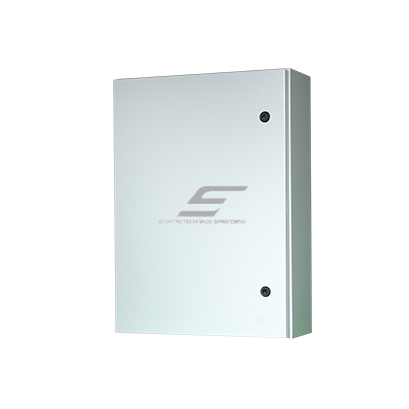

Electrical distribution enclosure | box | cabinet | with mounting plate | 600x400x300mm | hermetic | surface mounted | steel | IP65

Technical Specifications

Product type: hermetic metal electrical enclosure / surface-mounted distribution box
Mounting type: wall-mounted / surface-mounted
Dimensions (W x H x D): 600 x 400 x 300 mm
Housing material: electro-galvanized steel (EG)
Housing metal thickness: 1.5 mm
Door material: electro-galvanized steel
Mounting plate: Alu Zinc steel 2.0 mm
Weight: 19,38 kg
Surface color: RAL7035 light grey
Painting: epoxy polyester powder coating
Paint thickness: 60-80 μm
Surface finish: fine texture / semi-gloss
Protection class: IP65 according to IEC 60529
Impact resistance: IK08 according to IEC 62262
Corrosion resistance: 200 h salt spray test according to ASTM B117-16
Rated operational voltage Ue: 690V AC
Insulation voltage Ui: 1000V
Frequency: 50-60 Hz
Door opening angle: 120°
Door hinges: concealed die-cast aluminum
Door lock: integrated
Door gasket: continuous PU injected sealing gasket
Grounding: door and enclosure grounding studs
Cable entry: separate sealed cable gland mounting plate
Compliance standards: IEC 61439-1&2, IEC 60529, BS EN 62262, ASTM B117-16, IEC 62208

Functions

IP65 protection against dust and water: the continuous PU injected sealing gasket ensures a high enclosure sealing level, protecting the electrical equipment inside from environmental influence.
Resistance to impacts and mechanical load: IK08 class and reinforced rear housing with stiffness ribs allow installation even in demanding industrial environments.
Long-lasting anti-corrosion protection: electro-galvanized steel together with phosphating and IR oven hardened powder coating ensures high corrosion resistance.

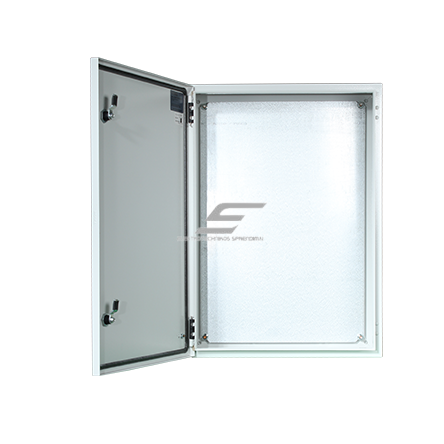

Convenient professional component mounting: the internal 2 mm Alu Zinc mounting plate allows firm installation of automation and electrical equipment.
Operational safety: integrated grounding points for door and enclosure, concealed hinges, secure lock, and the possibility to use barrier plates.

Application

For household users: suitable when a reliable outdoor or garage electrical distribution enclosure is required – for yard lighting automation, gate control, pump control, solar power protections, workshop electrical distribution. The hermetic housing protects sensitive equipment from rain, dust, and temperature changes.

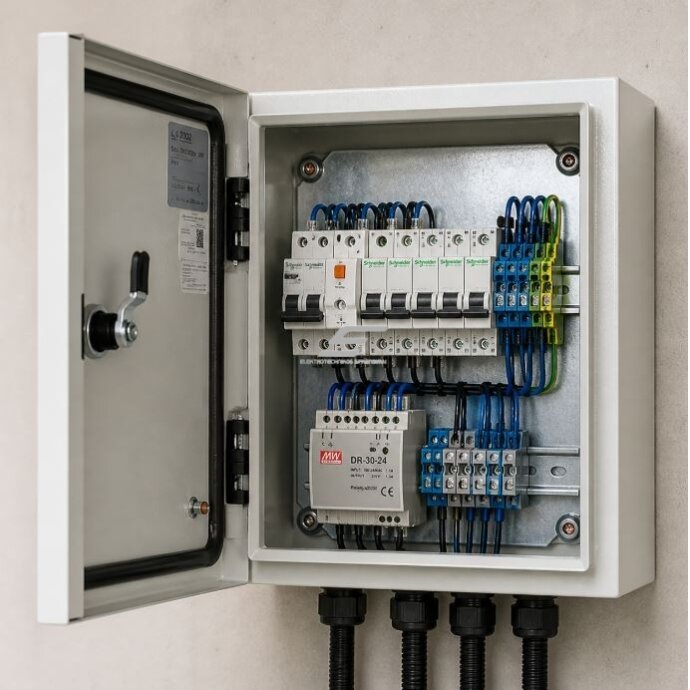

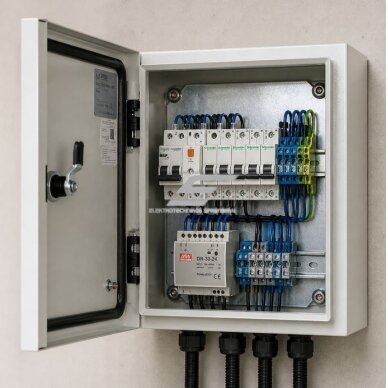

For electricians: convenient enclosure for professional electrical panel assembly. Strong metal, full mounting plate, practical cable entry section, and sealed door allow building a technically neat and long-lasting panel.
For engineers / automation specialists: suitable for integration of automation, PLCs, contactors, relays, controllers, power supplies, signaling, and process control systems. Meets professional industrial project safety requirements.
For industrial facilities: used in production lines, boiler rooms, pumping stations, outdoor control stations, energy, and infrastructure systems.

Advantages

High IP65 hermetic protection
IK08 impact resistance
Anti-corrosion 200 h salt spray test
Strong 2 mm mounting plate
Concealed aluminum hinges
Integrated door and enclosure grounding
Professional RAL7035 powder coating
Suitable for outdoor and industrial conditions
Complies with IEC standards

Disadvantages

Supplied without DIN rails and modular equipment – assembly is carried out individually

Frequently Asked Questions (FAQ)

Is this electrical enclosure suitable for outdoor installation?

Yes, the IP65 protection class and anti-corrosion coating allow it to be used outdoors if installed correctly.

Is there a mounting plate inside?

Yes, the enclosure includes a 2.0 mm Alu Zinc steel mounting plate for equipment fixing.

Can the door open to the other side?

Yes, the design allows the door hinges to be used on the right or left side.

What equipment can be installed inside this enclosure?

Terminal blocks, relays, contactors, PLCs, power supplies, automation modules, protections, and other electrical equipment can be installed.
