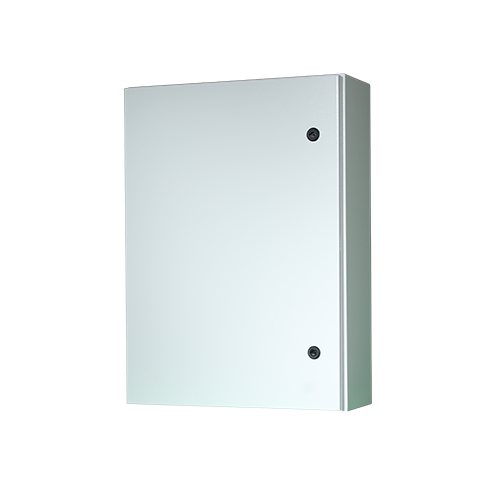

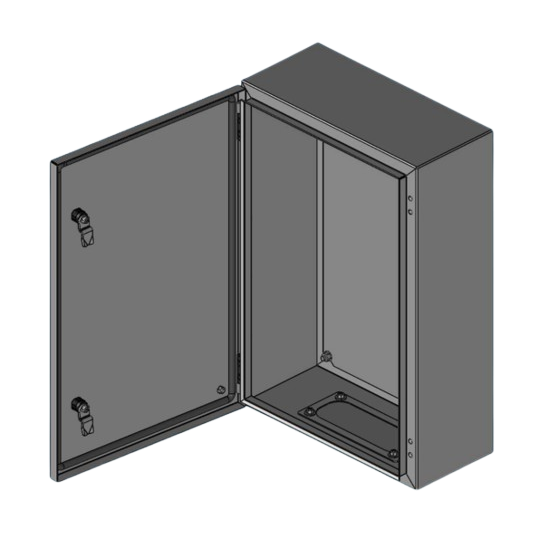

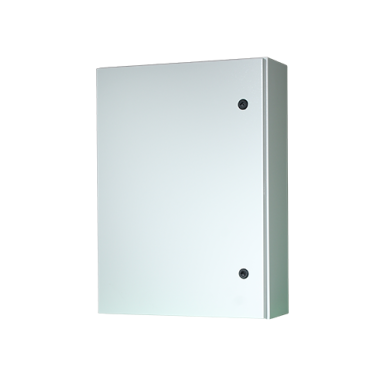

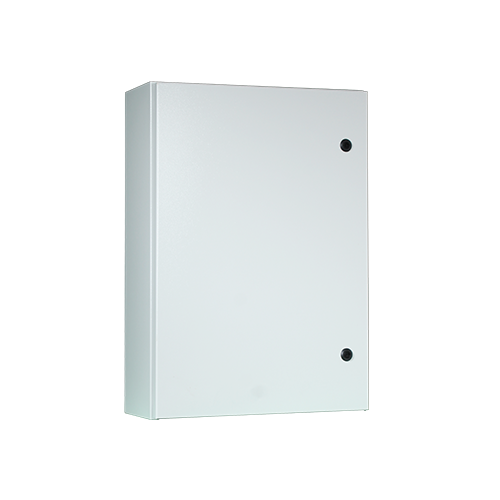

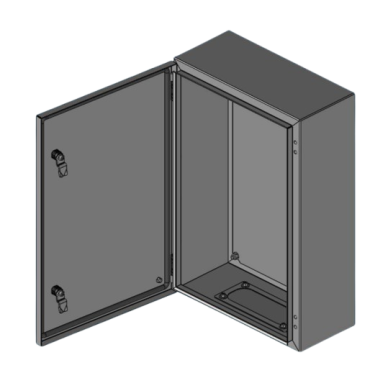

  • Electrical distribution enclosure | box | cabinet | with mounting plate | 600x500x250mm | hermetic | surface mounted | steel | IP65

    Code: ES-720640

    Surface-mounted hermetic metal electrical enclosure / distribution box is designed for safe installation of electrical, automation, control, signaling, and industrial components in both indoor and outdoor conditions. This is a high-quality surface-mounted enclosure manufactured according to strict international IEC standards, ensuring not only reliable protection against dust and water, but also resistance to mechanical impacts, corrosion, and long-term operation in demanding environments.

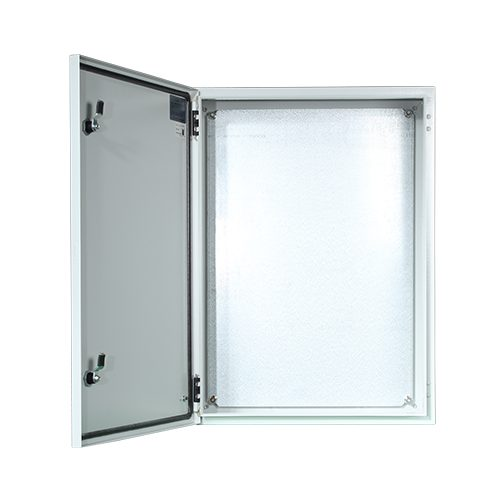

    Inside, there is an integrated durable 2.0 mm Alu Zinc mounting plate, sealed PU injected door gaskets, concealed aluminum hinges, lock, grounding points, and a reinforced rear body panel with stiffness ribs.

    Due to IP65 sealing protection, IK08 impact resistance, 200-hour salt spray corrosion test, and professional epoxy powder coating, this electrical enclosure is suitable both for industrial facilities and outdoor installations.

  • Technical Specifications

    Product type: hermetic metal electrical enclosure / surface-mounted distribution box
    Mounting type: wall-mounted / surface-mounted
    Dimensions (W x H x D): 600 x 500 x 250 mm
    Housing material: electro-galvanized steel (EG)
    Housing metal thickness: 1.5 mm
    Door material: electro-galvanized steel
    Mounting plate: Alu Zinc steel 2.0 mm
    Weight: 21,42 kg
    Surface color: RAL7035 light grey
    Painting: epoxy polyester powder coating
    Paint thickness: 60-80 μm
    Surface finish: fine texture / semi-gloss
    Protection class: IP65 according to IEC 60529
    Impact resistance: IK08 according to IEC 62262
    Corrosion resistance: 200 h salt spray test according to ASTM B117-16
    Rated operational voltage Ue: 690V AC
    Insulation voltage Ui: 1000V
    Frequency: 50-60 Hz
    Door opening angle: 120°
    Door hinges: concealed die-cast aluminum
    Door lock: integrated
    Door gasket: continuous PU injected sealing gasket
    Grounding: door and enclosure grounding studs
    Cable entry: separate sealed cable gland mounting plate
    Compliance standards: IEC 61439-1&2, IEC 60529, BS EN 62262, ASTM B117-16, IEC 62208

    Functions

    IP65 protection against dust and water: the continuous PU injected sealing gasket ensures a high enclosure sealing level, protecting the electrical equipment inside from environmental influence.
    Resistance to impacts and mechanical load: IK08 class and reinforced rear housing with stiffness ribs allow installation even in demanding industrial environments.
    Long-lasting anti-corrosion protection: electro-galvanized steel together with phosphating and IR oven hardened powder coating ensures high corrosion resistance.
    Convenient professional component mounting: the internal 2 mm Alu Zinc mounting plate allows firm installation of automation and electrical equipment.
    Operational safety: integrated grounding points for door and enclosure, concealed hinges, secure lock, and the possibility to use barrier plates.

    Application

    For household users: suitable when a reliable outdoor or garage electrical distribution enclosure is required – for yard lighting automation, gate control, pump control, solar power protections, workshop electrical distribution. The hermetic housing protects sensitive equipment from rain, dust, and temperature changes.
    For electricians: convenient enclosure for professional electrical panel assembly. Strong metal, full mounting plate, practical cable entry section, and sealed door allow building a technically neat and long-lasting panel.
    For engineers / automation specialists: suitable for integration of automation, PLCs, contactors, relays, controllers, power supplies, signaling, and process control systems. Meets professional industrial project safety requirements.
    For industrial facilities: used in production lines, boiler rooms, pumping stations, outdoor control stations, energy, and infrastructure systems.

    Advantages

    High IP65 hermetic protection
    IK08 impact resistance
    Anti-corrosion 200 h salt spray test
    Strong 2 mm mounting plate
    Concealed aluminum hinges
    Integrated door and enclosure grounding
    Professional RAL7035 powder coating
    Suitable for outdoor and industrial conditions
    Complies with IEC standards

    Disadvantages

    Supplied without DIN rails and modular equipment – assembly is carried out individually

    Frequently Asked Questions (FAQ)

    Is this electrical enclosure suitable for outdoor installation?

    Yes, the IP65 protection class and anti-corrosion coating allow it to be used outdoors if installed correctly.

    Is there a mounting plate inside?

    Yes, the enclosure includes a 2.0 mm Alu Zinc steel mounting plate for equipment fixing.

    Can the door open to the other side?

    Yes, the design allows the door hinges to be used on the right or left side.

    What equipment can be installed inside this enclosure?

    Terminal blocks, relays, contactors, PLCs, power supplies, automation modules, protections, and other electrical equipment can be installed.

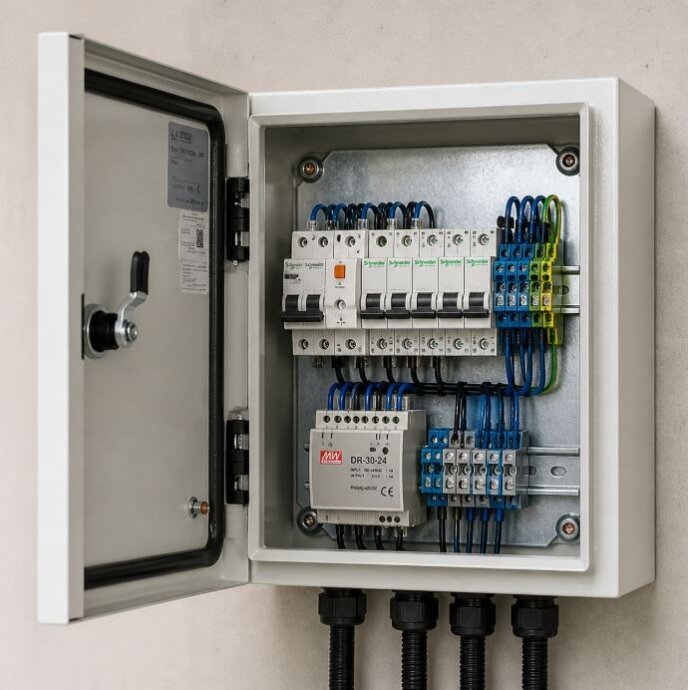

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
