  • New item   Industrial wall socket with 230 V outlet | 1×16 A 5P 400 V 6h + 1×230 V 16 A | 90° angled | IP44 | Bemis BC1-1505-2537
    New item   Industrial wall socket with 230 V outlet | 1×16 A 5P 400 V 6h + 1×230 V 16 A | 90° angled | IP44 | Bemis BC1-1505-2537 1

    Industrial wall socket with 230 V outlet | 1×16 A 5P 400 V 6h + 1×230 V 16 A | 90° angled | IP44 | Bemis BC1-1505-2537

    Code: Bemis#BC1-1505-2537
    Barcode: 8698523909126
    Inquire about this item
    Price 10.22 € VAT incl.
    ( 8.45 € VAT excl. )
    Want another price? Suggest yours!

    Wall-mounted Bemis CEE 16 A 5P 400 V 6h socket in a 90° angled housing with an additional 230 V 16 A outlet. IP44, polyamide 6 housing, brass contacts. No switch or protective devices – protection is installed in the panel.

  • Product description

    Industrial wall socket with 230 V outlet | 1×16 A 5P 400 V 6h + 1×230 V 16 A | 90° angled | IP44 | Bemis BC1-1505-2537

    Bemis BC1-1505-2537 – a wall-mounted CEE 16 A 5P 400 V 6h socket in a 90° angled housing with an additional 230 V 16 A outlet. One compact product for connecting three-phase equipment and a household appliance in a garage, workshop or commercial premises.

    Key point:
    Instead of two separate sockets, one housing is mounted on the wall: a three-phase CEE socket with a household outlet next to it. IP44 protects against splashes, and the 6h keying prevents insertion of a CEE plug of a different voltage or frequency.
    Sockets
    1×CEE 16 A 5P + 1×230 V 16 A
    Protection
    IP44
    Housing
    90° angled, PA6
    Mounting
    wall-mounted

    How it works

    The socket is fixed to a wall or other surface and permanently wired. Terminals accept 1.5–4 mm² conductors.

    The CEE socket is 5-pin (3P+N+E), 6h: the position of the earth contact relative to the key prevents mating plugs and sockets of different voltage or frequency. The additional 230 V 16 A outlet is for a household appliance or tool.

    There is no switch, MCB or RCD in the socket – protect the line in the panel with an MCB up to 16 A and a 30 mA RCD. Both outlets are 16 A, so a 16 A line MCB protects both.

    Why choose Bemis BC1-1505-2537?
    The simplest solution when one point needs both a three-phase and a household socket: one housing and one wall fixing. Housing in polyamide 6, contacts in MS 58 brass.

    Technical specifications

    Product type Wall-mounted industrial CEE socket with additional 230 V outlet, 90° angled
    Manufacturer / model Bemis, CEE Norm series, BC1-1505-2537
    CEE socket 1× 16 A, 5P (3P+N+E), 6h
    Rated voltage (CEE) 400 V (manufacturer range 380–450 V), 50/60 Hz
    Household outlet 1× 230 V 16 A
    Switch / protective devices None
    Degree of protection IP44 (with covers closed)
    Housing material Polyamide 6 (PA6)
    Contact material Brass MS 58
    Terminals For 1.5–4 mm² conductors
    Weight approx. 0.32 kg (distributor data)
    Mounting On a wall or surface, fixed
    Standards IEC 60309 (manufacturer reference)

    Key functions

    • CEE 16 A 5P 400 V 6h socket – for three-phase equipment with a 5-pin plug.
    • 230 V 16 A outlet – for a household appliance or hand tool.
    • 6h keying – prevents insertion of a CEE plug of another voltage or frequency.
    • IP44 – protection against solid objects over 1 mm and splashing water from all directions.
    • 90° angled housing – compact wall-mounted design.
    • 1.5–4 mm² terminals – for conductors sized to a 16 A line.

    How does it differ from similar products?

    Famatel 3067 (8567) 1×CEE 16 A + 1×230 V box, IP44, no switch – an alternative from another manufacturer; check the CEE contact count (4P or 5P) on its product page.
    Pawbol R-BOX KOMPAKT 16 A (2220) Same socket layout, but with a rotary switch and a lockable 0 position.
    SEZ ROSP 1631 D/S (577) 1×16 A 5P + 2×Schuko 230 V, IP54 – when two household sockets and a higher IP are needed.

    Where is it used?

    • Garages and car service workshops
    • Workshops and small production halls
    • Commercial and storage premises
    • Connection points for compressors, machine tools and welders
    • Agricultural buildings (dry or covered areas)
    • Technical rooms and boiler rooms

    Use by need

    For beginners.
    The socket is connected by an electrician. Only a 16 A 5P 6h plug fits the CEE socket – another one will not go in.
    For experienced installers.
    Terminals accept 1.5–4 mm² conductors. Before installation check which phase the 230 V outlet is connected to, so the load is spread more evenly.
    For energy engineers / designers.
    There are no protective devices in the socket: protect the line with an MCB up to 16 A sized to the cable and a 30 mA RCD – this protects both outlets.

    Practical use

    In a garage, a Bemis BC1-1505-2537 is mounted next to the door: a three-phase compressor plugs into the CEE socket and a work lamp into the 230 V outlet. The line is protected in the panel by a 16 A MCB and a 30 mA RCD, so both outlets are protected by the same device.

    Pros / advantages

    • CEE 16 A 5P and 230 V outlets in one housing
    • Compact angled wall-mounted housing
    • IP44
    • MS 58 brass contacts, polyamide 6 housing
    • Both outlets 16 A – one 16 A line MCB is enough

    Cons / limitations

    • No switch – for local isolation choose Pawbol R-BOX KOMPAKT 16 A (2220)
    • No MCBs or RCDs – protection must be in the panel
    • Only one 230 V outlet – for two household sockets choose SEZ ROSP 1631 D/S (577)
    • IP44 – not for water jets or wash-down; for wet areas choose an IP67 model, e.g. SEZ ROSPG 1631 D (2236)

    Safety and installation notes

    • ⚡ Installation and connection by a qualified electrician only, with the supply disconnected.
    • ⚡ Protect the line with an MCB sized to the cable cross-section (max. 16 A) and a 30 mA RCD.
    • The total load of both outlets must not exceed the rated current of the supply line MCB.
    • The CEE 400 V socket needs a three-phase line – it cannot be used from a single-phase line.
    • On construction sites, supply the socket only from a construction site distribution board (HD 60364-7-704).
    • The protective earth (PE) contact of the 230 V outlet must be connected.
    • IP44 applies only with the socket covers closed and the cable entry properly sealed.

    Quick selection guide

    CEE 16 A 5P 6h + 230 V
    90° angled
    IP44
    No switch or protection
    Suitable when you need:
    • A compact three-phase and household socket at one point
    • Connecting 16 A three-phase equipment in a garage or workshop
    • A simple solution without a local switch
    Check before choosing:
    • Confirm the household socket type (Schuko or French with earth pin) when ordering
    • Whether the equipment plug is CEE 16 A 5P 6h
    • Whether the panel has an MCB up to 16 A and a 30 mA RCD
    Important reminder: The socket has no switch, MCBs, RCDs or fuses – line protection is installed in the panel.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Does the socket have a switch or MCB?
    No. BC1-1505-2537 is a socket without a switch or protective devices; protection is installed in the panel.
    What does “90° angled” mean?
    The manufacturer designates this model as a 90° angled wall socket – a housing design intended for wall mounting.
    Which conductors fit?
    Terminals accept 1.5–4 mm² conductors; the electrician selects the cross-section for the 16 A line and its length.
    Can it be used outdoors?
    IP44 protects against splashes with the covers closed – suitable under a canopy. For direct rain and water jets choose an IP67 product.
    Can it be connected to a single-phase line?
    The CEE 400 V socket needs a three-phase line, so it cannot be used from a single-phase supply. If you only need 230 V, choose a box with household sockets, e.g. Famatel 3064 (8578).
    What is the CEE socket voltage?
    The manufacturer specifies 380–450 V, 50/60 Hz – suitable for a standard 400 V three-phase network.

    Sources: Bemis product page and datasheet (bemis.com.tr, BC1-1505-2537); weight and 230 V outlet current – distributor TMT Elkom data. Checked 2026-10-20.

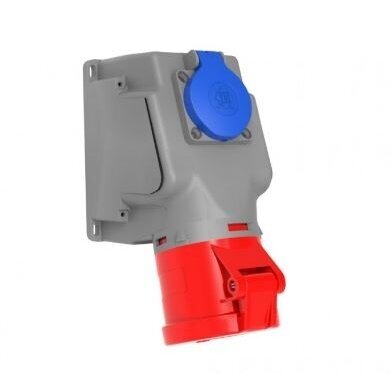

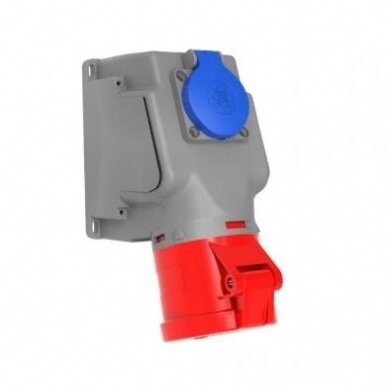

    Bemis BC1-1505-2537 CEE 16 A 5P + 230 V angled socket, IP44

    Wall-mounted angled Bemis CEE 16 A 5P 400 V 6h socket with an additional 230 V 16 A outlet, IP44, polyamide 6, no switch or protective devices.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
