Automatic transfer switch ATS TAXNELE TXATS-100 | 2P | 100 A | PC class | DIN
Code: ESTXATS-100-2PPrice 43.56 € VAT incl.( 36.00 € VAT excl. )Buy more, pay less10+ pcs. – 20.33 € for pcs. -53%TAXNELE TXATS-100 2P 100 A – automatic transfer switch with A/B indication and auto/manual mode switch. PC class, DIN.
-
Automatic transfer switch ATS TAXNELE TXATS-100 | 2P | 100 A | PC class | DIN
TAXNELE TXATS-100 is an automatic transfer switch (ATS) for two sources: main (A) and backup (B). When A fails, the load is transferred to B and returned when A is restored. 2P, 100 A, DIN rail.
Key point
PC class switch: it makes and transfers the load current but does not break short-circuit current, so upstream protection is required – a circuit breaker or fuses.Poles / current
2P / 100 AClass
PCTransfer
not specified by manufacturerControl
Auto / manualHow it works
A – main source, B – backup. When A fails, the switch transfers to B and returns to A when it is restored.

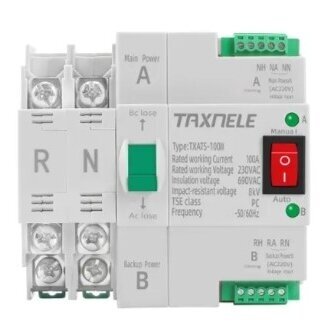

The red switch selects the mode: Auto – transfers by itself, Manual – you change the direction with the green handle. Indicators A and B show the active source.
Both sides have control terminals (NH, NA, NN / RH, RA, RN) through which the switch monitors source voltage.
Technical specifications
Type Automatic transfer switch (ATS), PC class Manufacturer TAXNELE (Taixin Electric), series TXATS-100 Poles 2P Rated current 100 A Operating voltage 230 V AC Frequency 50/60 Hz Insulation voltage Ui AC 690 V Impulse voltage Uimp 8 kV ATSE class PC (IEC 60947-6-1) Transfer time not specified by manufacturer Control Auto / Manual switch, A/B indication Mounting 35 mm DIN rail Standard not specified by manufacturer Data source Manufacturer nameplate and manufacturer technical information ⚠ The brand on the device is TAXNELE. The table lists only parameters stated by the manufacturer; parameters not provided by the manufacturer are not listed. Photos may show another current or pole version of the same series – check exact data on the device nameplate. Transfer time is not specified by the manufacturer.Functions
- Automatic transfer A → B and back
- Auto / Manual mode switch
- Manual transfer with handle
- A and B indicators
- Monitoring terminals on both sources
Other versions of the same series
- TAXNELE TXATS-100 4P 100 A
- 2P – single-phase circuit, 4P – three-phase with N.
- If a stated transfer time is required, choose TXATS or the compact TXATS3 / TXATS4.
Applications
- Houses and homesteads with a generator
- Small commercial sites
- Transfer between two supplies
Practical example
Homestead with a generator: grid – side A, generator – B, load panel – output. Circuit breakers upstream of both supplies.
Advantages
- PC class
- Ui 690 V, Uimp 8 kV
- Clear A/B indication
- DIN mounting
Points to note
- Transfer time not specified by manufacturer
- No generator start control
- Short-circuit protection required upstream
⚡ Safe installation
- Installation must be carried out by a qualified electrician with both sources disconnected.
- Install short-circuit and overload protection upstream of the ATS on both supplies.
- Select cable cross-section for 100 A and the installation conditions.
- Connect a generator to the house installation only through a transfer switch – never through a socket outlet.
How to choose
Poles – by the network, current – not lower than the incoming protection current.
2P · 100 A230 V ACPC · IEC 60947-6-1not specified by manufacturerSuitable if:- you have a grid and a generator
- incoming protection is not higher than 100 A
Check:- number of poles (2P)
- protection upstream of the ATS
Important: A transfer switch is not a protective device (except CB class) – install short-circuit and overload protection separately. If in doubt, consult a qualified electrician.Frequently asked questions
Does it start the generator?
No, the manufacturer does not specify a generator start function.Can it be switched manually?
Yes – select Manual with the red switch and move the green handle.What is the transfer time?
The manufacturer does not specify the transfer time for this model.Is protection needed upstream?
Yes, a PC class ATS does not break short circuits.Can you help with selection?
Yes. Send us the network type, incoming protection and generator power – we will help you choose the right switch.Automatic transfer switch ATS TAXNELE TXATS-100 | 2P | 100 A | PC class | DIN
PC class ATS with clear A/B indication and a simple mode switch – a reliable solution for a generator.
