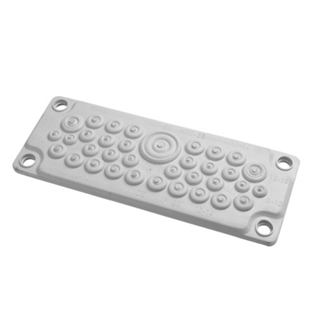

  • New item   Membrane cable entry plate | for 216×84 mm cut-out | 35 entries Ø6–32 mm | grey | IP65 | HT Hi Tech Polymers | HTC-35
    New item   Membrane cable entry plate | for 216×84 mm cut-out | 35 entries Ø6–32 mm | grey | IP65 | HT Hi Tech Polymers | HTC-35 1

    Membrane cable entry plate | for 216×84 mm cut-out | 35 entries Ø6–32 mm | grey | IP65 | HT Hi Tech Polymers | HTC-35

    Code: HTC-35
    Inquire about this item
    Price 5.69 € VAT incl.
    ( 4.70 € VAT excl. )
    Want another price? Suggest yours!

    HTC-35 is a membrane cable entry plate for a 216 × 84 mm cut-out with a mixed layout: one entry for a Ø17–32 mm feeder cable and 34 entries for cables from Ø6 to Ø18 mm. It suits panels with one incoming supply and many outgoing circuits. IP65, −40…+130 °C.

  • Product description

    Membrane cable entry plate | for 216×84 mm cut-out | 35 entries Ø6–32 mm | grey | IP65 | HT Hi Tech Polymers | HTC-35

    HTC-35 is a membrane cable entry plate for the standard 216 × 84 mm (C-hole) cut-out, with entries grouped to match a typical distribution board cable set. The largest entry, Ø17–32 mm, is for the feeder cable, two Ø12–18 mm entries for sub-feeds, and 32 smaller entries (Ø6–14 mm) for outgoing circuits and control lines.

    Key point:
    Cables in a distribution board are rarely all the same: one thick feeder, a few medium ones and many thinner circuits. HTC-35 is designed for exactly that – one plate has entries for all these sizes, so there is no need to combine several different glands or plates. Unopened entries stay closed and wait for new circuits.
    Entries
    35
    Largest
    Ø17–32 mm
    Protection
    IP65
    Cut-out
    216 × 84 mm

    How it works

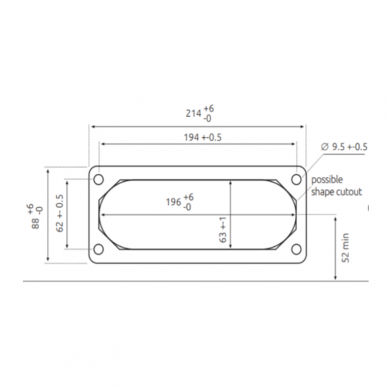

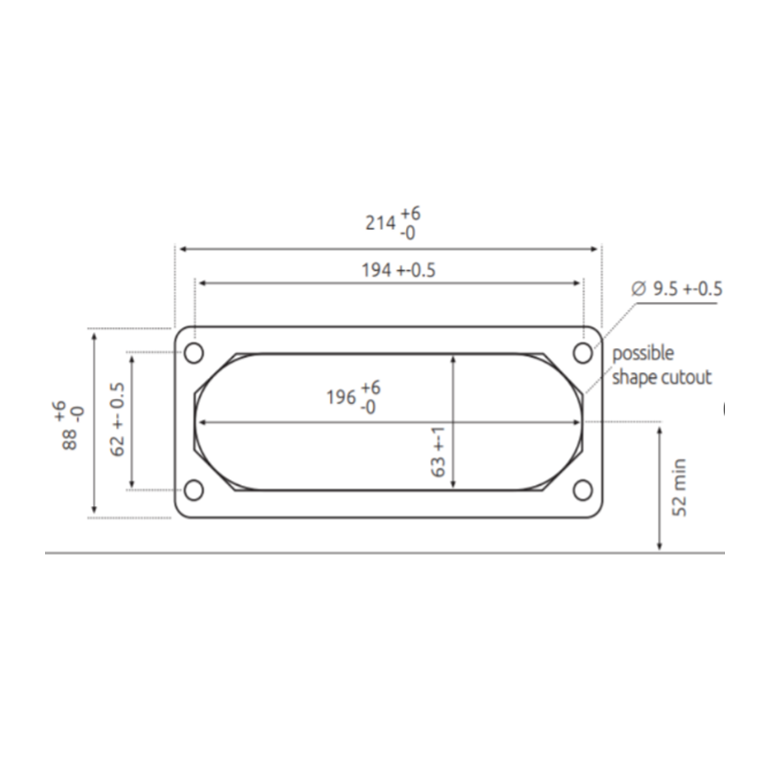

    Installation: the plate is placed in a 216 × 84 mm cut-out and screwed through Ø10 mm holes (spacing 193 / 62 mm).

    Operation: each cable gets the entry that matches its outer Ø; the membrane is cut slightly smaller than the cable and the TPE seals tightly around the sheath.

    Result: feeder, sub-feeds and outgoing circuits through one cut-out with IP65 sealing.

    Why choose HTC-35?
    HTC-35 solves a common distribution board situation where a thick feeder and many thinner circuits must pass through one place. Five different entry sizes let you give each cable its own entry without searching for separate glands.

    Technical specifications

    Product type Membrane cable entry plate (mixed entry layout)
    Code HTC-35
    Manufacturer HT Hi Tech Polymers Oy (Finland)
    Openings and cable Ø 1 × Ø17–32 mm; 2 × Ø12–18 mm; 16 × Ø10–14 mm; 12 × Ø7–12 mm; 4 × Ø6–10 mm
    Max. number of cables 35
    Enclosure cut-out 216 × 84 mm (C-hole, FL21)
    Fixing holes Ø10 mm, spacing 193 / 62 mm
    Degree of protection IP65 (EN 60529)
    Operating temperature −40…+130 °C
    Material TPE-SEBS, 50 ShA, halogen-free
    Properties resistant to oil splashes; for indoor and outdoor use
    Colour grey (RAL7035)

    Main functions

    • 1 entry Ø17–32 mm – for the feeder cable
    • 2 entries Ø12–18 mm – for sub-feeds or larger circuits
    • 16 entries Ø10–14 mm – for power circuits
    • 12 entries Ø7–12 mm and 4 entries Ø6–10 mm – for control, lighting and signal lines
    • IP65 – dust-tight and protected against water jets
    • Closed membranes – unused entries stay sealed

    Where is it used?

    • Building and floor distribution boards
    • Sub-distribution boards in commercial premises
    • Motor control (MCC) and pump panels
    • Heat pump, boiler room and ventilation unit panels
    • Distribution cabinets in production halls
    • Construction site and temporary distribution boards
    • Panels in agricultural buildings and warehouses

    Use by need

    For distribution board assemblers.
    One plate covers the feeder, sub-feeds and circuits – no need to kit out several different glands.
    For installation electricians.
    Every cable has an entry of the right size – less improvisation on site.
    For designers.
    You can plan one 216 × 84 mm cut-out and a clear number of entries based on the layout.

    Practical use

    If a floor distribution board receives a Ø25 mm feeder and sends out 14 circuit cables of Ø10–12 mm plus a few control cables, HTC-35 has a matching entry for each of them, and the remaining closed entries are kept for future circuits.

    Pros

    • Five entry sizes in one plate – from Ø6 to Ø32 mm
    • The largest entry takes a thicker feeder cable
    • Up to 35 cables through one cut-out
    • IP65 according to the manufacturer
    • −40…+130 °C, halogen-free, indoor and outdoor
    • Spare entries stay closed

    Cons / limitations

    • Only one entry above Ø18 mm – for several large cables choose HTC-17 (9 × Ø18–30 mm) or HTC-3 (up to Ø59 mm)
    • No entries for cables thinner than Ø6 mm – for those choose the HTKC series (e.g. HTKC-36)
    • The membrane does not provide strain relief – secure cables inside the panel
    • Not a fire barrier

    Safety and installation notes

    • Work in the panel only after isolating it and verifying that it is dead.
    • After making the cut-out, remove burrs and metal swarf, especially from busbars and devices.
    • Measure the cable outer Ø before cutting the membrane and choose the matching entry size.
    • Cut the opening slightly smaller than the cable – an oversized opening will not seal.
    • Secure the feeder cable firmly inside the panel – its weight must not pull on the membrane.

    Quick selection guide

    1 × Ø17–32 mm
    2 × Ø12–18 mm
    16 × Ø10–14 mm
    12 × Ø7–12 + 4 × Ø6–10 mm
    Suitable when you need:
    • a panel with one feeder and many outgoing circuits
    • cables of different diameters through one cut-out
    • IP65 sealing and spare entries for new circuits
    Check before use:
    • the feeder outer Ø – does it fall within 17–32 mm
    • whether the number and Ø of circuit cables match the entry layout
    • whether the enclosure has a 216 × 84 mm cut-out
    Important reminder: HTC-35 seals the cable entry, but it does not carry cable weight or tension and is not a fire barrier – secure cables inside and use separate fire-stopping systems for fire-rated walls.

    FAQ

    What feeder cable size fits HTC-35?
    The largest entry is for a cable with an outer Ø of 17–32 mm.
    How many cables can be installed in total?
    Up to 35 cables – one per entry.
    Is it suitable for cables thinner than 6 mm?
    No, the smallest entries are Ø6–10 mm; for thinner cables choose the HTKC series.
    Can I use only some of the entries?
    Yes, only the entries in use are cut, the rest stay closed and sealed.
    What cut-out is required?
    A 216 × 84 mm C-hole and Ø10 mm fixing holes, spacing 193 / 62 mm.
    How does HTC-35 differ from HTC-25?
    HTC-35 has more entries (35) and a larger feeder entry up to Ø32 mm, while HTC-25 has 25 entries with a Ø20–26 mm feeder entry.

    Manufacturer documents

    Links open on external websites. Checked 2026-10-04. If data differ, the latest manufacturer edition applies – or contact us.

    HTC-35 plate for distribution boards

    HTC-35 is an IP65 membrane cable entry plate for a 216 × 84 mm cut-out with 35 entries: Ø17–32 mm for the feeder, Ø12–18 mm for sub-feeds and Ø6–14 mm for circuits.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
