  • New item   Modular three-phase electricity meter | 80(100) A | 3×230/400 V | Wi-Fi | IP20 | DIN | THORGEON 01011

    Modular three-phase electricity meter | 80(100) A | 3×230/400 V | Wi-Fi | IP20 | DIN | THORGEON 01011

    Code: 01011
    Inquire about this item
    Price 93.59 € VAT incl.
    ( 77.35 € VAT excl. )
    Want another price? Suggest yours!

    Three-phase electronic meter with Wi-Fi: 80 A rated, 100 A maximum, direct connection. Voltage, current, power and consumed energy are shown in a mobile app. Intended for non-billing (internal) metering and consumption monitoring.

  • Product description

    Modular three-phase electricity meter | 80(100) A | 3×230/400 V | Wi-Fi | IP20 | DIN | THORGEON 01011

    THORGEON 01011 is a modular three-phase electronic meter with a built-in Wi-Fi module, connected directly up to 100 A. Voltage, current, power and energy data are shown in a mobile app.

    Key point:
    No more walking to the board to see what the house, workshop or heat pump has used – the data is on your phone. The meter stores a load profile, so you can see when peak loads occur and plan when equipment runs. It is not for billing – no MID is stated.
    Current
    80(100) A
    Connectivity
    Wi-Fi
    Accuracy class
    B
    Width
    5 modules
    ℹ
    Bidirectional metering
    The manufacturer does not state whether the meter records imported and exported energy separately. If you need to see energy exported to the grid, choose the clearly bidirectional Wi-Fi model EL-TVPS3-80T.

    Communication interfaces and integration

    Wi-Fi
    Remote monitoring of V, A, kW, kWh in a mobile app plus a load profile – no extra gateways or buses.
    Electrical pulse output (1600 imp/kWh)
    High-resolution pulse signal for additional metering in a PLC or data logger.

    How it works

    The meter mounts on a DIN rail (5 modules); phases and neutral are connected directly – no current transformers are needed up to 100 A.

    The electronic circuit measures voltage, current and power and accumulates active energy, while the Wi-Fi module sends the data to the mobile app.

    In the mobile app you see real-time values, accumulated kWh and load history; the display shows readings on site.

    Why choose the THORGEON 01011?
    It is a simple way to turn three-phase metering into smart monitoring without gateways, buses or programming: connect it to Wi-Fi and see consumption on your phone. It suits homes, workshops and rented premises where trends matter more than MID billing.

    Technical specifications

    Product type Modular three-phase electronic electricity meter with Wi-Fi
    Manufacturer / model THORGEON 01011
    Connection Direct (no current transformers)
    Rated / maximum current 80 A / 100 A
    Voltage 3×230/400 V (manufacturer states 380 V), 3- or 4-wire network
    Frequency 50–60 Hz
    Accuracy class B
    MID No – for non-billing (internal) metering
    Measured quantities Voltage (V), current (A), power (kW), active energy (kWh)
    Load profile Yes
    Communication interface Wi-Fi (mobile app)
    Pulse output Electrical, 1600 imp/kWh
    Display Digital LCD
    Mounting DIN rail, 5 modules
    Dimensions (W×H×D) 90 × 102 × 68 mm
    Degree of protection IP20
    Conformity CE
    EAN / MPN 4751029898999 / 01011
    Warranty 24 months

    Main functions

    • Wi-Fi connectivity – consumption on your phone without extra gateways
    • Mobile app – V, A, kW and kWh in one place
    • Load profile – see when peak loads occur
    • Direct connection 80(100) A – no current transformers
    • 1600 imp/kWh pulse output – high resolution for additional metering
    • LCD display – readings also visible at the board

    How does it differ from similar models?

    EL-TVPS3-80T Wi-Fi Tuya, 1–80 A, clearly bidirectional with U/I/phase-sequence protection; the 01011 goes up to 100 A with no stated protections or bidirectional metering.
    ES-EAEMP3-100-TY-W Wi-Fi Tuya 100 A with protection functions (4P); the 01011 is a simpler measuring meter without protections.
    THORGEON 01007 80 A, 2 tariffs, RS485 Modbus and MID – for professional integration; the 01011 is for app monitoring without MID.
    THORGEON 01003 100 A with no remote link (pulses only); the 01011 adds Wi-Fi plus power and voltage readings.

    Where is it used?

    • Three-phase incomer of a detached house
    • Heat pump or electric boiler consumption monitoring
    • EV charging circuit control
    • Workshops and garages
    • Remote monitoring of rented flats or holiday homes
    • Farm buildings and warehouses

    Use by need

    Homeowners.
    Consumption and power on the phone – easier saving and load planning.
    Electricians.
    Direct 100 A installation and quick Wi-Fi commissioning for the client.
    Landlords.
    Remote consumption monitoring without site visits (not for MID billing).

    Practical use

    If a house has a heat pump and an EV charger and you want to see when they load the incomer most, install the THORGEON 01011 after the main breaker – the mobile app shows real-time power and load history.

    Pros

    • Wi-Fi connectivity and monitoring in a mobile app
    • Direct connection up to 100 A
    • Measures V, A, kW and kWh
    • Load profile
    • 24-month manufacturer warranty

    Cons / limitations

    • No MID – not for billing (choose THORGEON 01006 or 01007)
    • Bidirectional metering not stated – for separate import/export metering choose EL-TVPS3-80T
    • No RS485 Modbus for industrial integration (choose THORGEON 01007)
    • App data depends on Wi-Fi coverage at the board
    • 5 modules – more space than 4-module models

    Safety and installation notes

    • Installation by a qualified electrician only, with the supply disconnected
    • Upstream circuit breaker sized to the cable and not exceeding 100 A
    • Wi-Fi signal is weaker in a metal enclosure – test the link before closing the board
    • IP20 – install only in a closed enclosure in a dry room
    • Protect the Wi-Fi network with a password and use the app with your own account

    Quick selection guide

    Direct 80(100) A
    Wi-Fi
    V, A, kW, kWh
    No MID
    A good fit when you need:
    • Monitoring three-phase consumption on your phone
    • Seeing power and the load profile
    • A simple smart solution without a gateway
    Check before use:
    • That Wi-Fi coverage at the board is sufficient
    • That neither MID nor separate import/export metering is required
    • Which app the meter pairs with – confirm with us before purchase
    Important reminder: The meter is for monitoring and internal metering – it does not replace the operator's billing meter and has no stated protection functions (voltage or current relays).

    FAQ

    Which app is used?
    The manufacturer does not specify the app; please confirm with us before purchase which app the meter pairs with.
    What will I see in the app?
    Voltage, current, power and accumulated energy (kWh).
    Is the meter MID approved?
    No, it is for internal metering and monitoring.
    Does it measure energy exported to the grid?
    The manufacturer does not state bidirectional metering, so choose EL-TVPS3-80T for export.
    What is the maximum current?
    80 A rated, 100 A maximum, direct connection.
    What is the warranty?
    The manufacturer specifies a 24-month warranty.

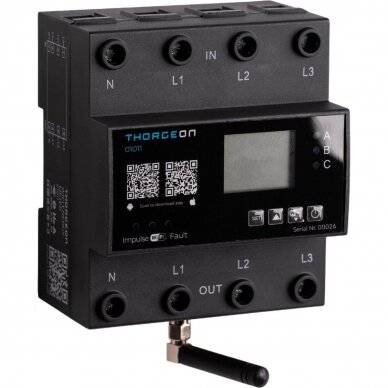

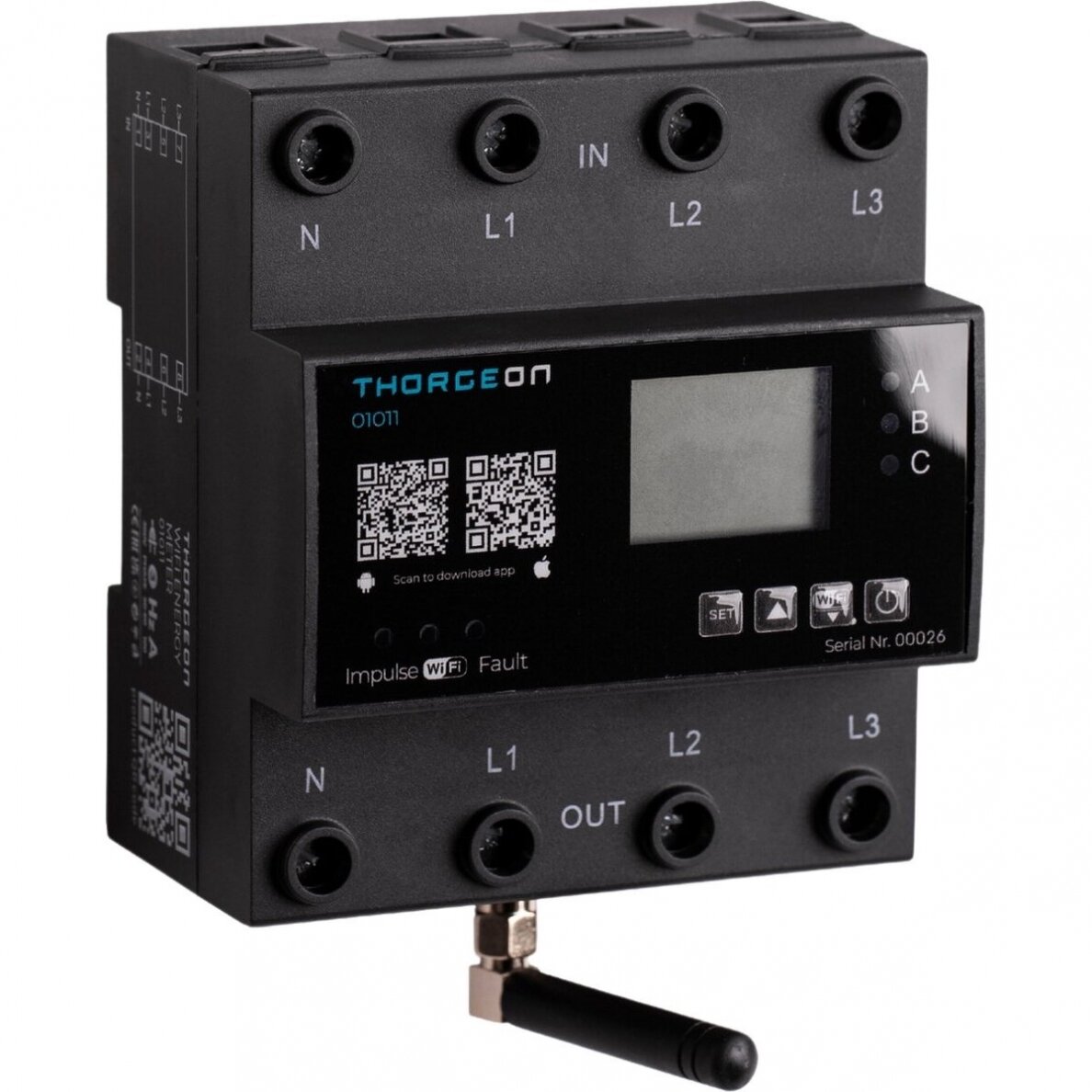

    THORGEON 01011 three-phase Wi-Fi meter

    Direct-connected three-phase Wi-Fi electricity meter 80(100) A, class B, 1600 imp/kWh, 5 DIN modules, IP20 – for consumption monitoring in a mobile app.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
