  • New item   Weatherproof socket box | 1×Schuko 16 A 230 V | AcquaBOX | IP54 | IK08 | Famatel 3061

    Weatherproof socket box | 1×Schuko 16 A 230 V | AcquaBOX | IP54 | IK08 | Famatel 3061

    Code: 3061
    Inquire about this item
    Price 9.67 € VAT incl.
    ( 7.99 € VAT excl. )
    Want another price? Suggest yours!

    Weatherproof Famatel 3061 AcquaBOX with one pre-wired Schuko 16 A 230 V socket. IP54, IK08, Class II insulation, halogen-free ABS, 103×103×55 mm. No protective devices – a 16 A breaker and 30 mA RCD in the board.

  • Product description

    Weatherproof socket box | 1×Schuko 16 A 230 V | AcquaBOX | IP54 | IK08 | Famatel 3061

    Famatel 3061 AcquaBOX is a weatherproof surface-mounted box with one pre-wired Schuko 16 A 230 V socket. It is intended for fixed supply of a single-phase appliance in a garage, workshop, storeroom or outdoors. The enclosure is IP54, IK08, Class II insulated, made of halogen-free ABS.

    Key point:
    A compact way to install one moisture- and dust-resistant domestic socket where a standard indoor socket does not fit. The socket is factory-wired, so the electrician only has to bring in the cable and connect it. There are no protective devices in the box – a 16 A breaker and a 30 mA RCD are selected in the board.
    Socket
    1×Schuko 16 A 230 V
    Protection
    IP54, IK08
    Dimensions
    103×103×55 mm
    Mounting
    surface, Class II

    How it works

    The box is fixed to a wall or other flat surface. The supply cable enters through one of the entries (5 on top, 4 at the bottom) and is connected to the pre-wired socket.

    The Schuko (CEE 7/3, type F) 2P+PE 16 A 250 V socket with side earthing contacts accepts standard 230 V appliance plugs.

    With the lid closed, the IP54 enclosure protects against dust and splashing water from all directions, and IK08 against moderate impacts. There are no protective devices inside: the breaker and RCD are in the board.

    Why choose Famatel 3061?
    Garages, gates or terraces often need a single socket in a place exposed to moisture or dust. The 3061 solves this with a small product: a weatherproof box, a pre-wired socket and a Class II enclosure with no exposed metal parts.

    Technical specifications

    Product type Weatherproof socket box with 1 Schuko socket (no protective devices)
    Manufacturer / model Famatel / 3061 AcquaBOX
    Sockets 1×Schuko 2P+PE (CEE 7/3, type F) 16 A, pre-wired
    Rated voltage 230 V (socket rating 250 V~)
    Protective devices none
    Degree of protection IP54
    Impact resistance IK08
    Dimensions (H×W×D) 103×103×55 mm
    Enclosure ABS, grey RAL 7035, halogen-free
    Insulation class II
    Insulation resistance / dielectric strength > 5 MΩ (500 V DC) / 2.5 kV
    Glow-wire test 750 °C (live-part supports), 650 °C (other parts)
    Cable entries 5 on top, 4 at the bottom
    Mounting surface, indoor and outdoor
    Operating temperature −25…+40 °C
    Weight 0.224 kg
    Standards EN 60670-22, UNE 20315-1-1 / UNE 20315-1-2 (IEC 60884), UNE 211002

    Main functions

    • Schuko 16 A socket – standard 230 V appliance plug without adapters.
    • Pre-wired socket – faster installation on site.
    • IP54 enclosure – for dusty and damp locations, outdoors under a shelter.
    • IK08 – withstands moderate mechanical impacts.
    • Class II insulation – no accessible metal parts on the enclosure.
    • Halogen-free ABS – no halogen fumes in case of fire.
    • Compact 103×103×55 mm enclosure – fits on a column, frame or narrow wall section.

    How does it differ from similar products?

    Famatel 3064 (8578) 2×Schuko – when two sockets are needed in one place.
    Famatel 3065 (8580) 4×Schuko – more single-phase loads at one point.
    Famatel 3067 (8567) 1×CEE 16 A 3P+PE (4P) + 1×Schuko – when a three-phase socket is also needed.
    SEZ ROSP 1631 D/S (577) 1×CEE 16 A 5P + 2×Schuko with bracket – with a three-phase socket and for portable use.

    Where is it used?

    • Garages and parking boxes
    • Workshops and storerooms
    • Terraces, yards, garden equipment (under a shelter)
    • Utility buildings and sheds
    • Boiler rooms and plant rooms
    • Connection points for gate automation, pumps or heating cables

    Use by need

    For beginners.
    A box with one domestic socket that tolerates dust and splashes. It must be connected by an electrician, supplied from a board with a 16 A breaker and 30 mA RCD.
    For experienced installers.
    The manufacturer specifies 5 entries on top and 4 at the bottom; seal with a gland or membrane matching the cable diameter and mount so that water does not run into the entry.
    For power engineers / designers.
    The product complies with EN 60670-22 (boxes) and IEC 60884 (sockets) – it is a socket box, not a distribution board to EN 61439-3. Design the circuit as a standard 16 A socket circuit with a 30 mA RCD.

    Practical use

    A Famatel 3061 is mounted by the garage door, supplied with 3×2.5 mm² cable from a board with a 16 A breaker and 30 mA RCD. A vacuum cleaner or portable lamp is plugged in; the IP54 enclosure protects against dust and splashes when the floor is washed.

    Pros / advantages

    • Schuko 16 A socket in a weatherproof box
    • IP54 and IK08
    • Class II insulation
    • Halogen-free ABS, glow-wire test 750/650 °C
    • Pre-wired socket
    • Compact 103×103×55 mm, 0.224 kg

    Cons / limitations

    • No breaker or RCD – protection must be in the board.
    • Single socket only – for more loads use Famatel 3064 (8578) or 3065 (8580).
    • No CEE socket for three-phase equipment – see Famatel 3067 (8567).
    • IP54 – not for water jets or permanent immersion; a shelter is recommended outdoors.

    Safety and installation notes

    • ⚡ Must be connected by a qualified electrician; work only with the supply disconnected.
    • ⚡ Protect the socket circuit with a 16 A breaker (or lower, to suit the cable) and a 30 mA RCD – the box has no separate 16 A protection.
    • Connecting the protective conductor (PE) to the socket earthing contact is mandatory.
    • Select the cable cross-section according to the breaker and line length.
    • On construction sites supply the box only from a site distribution board (HD 60364-7-704).
    • IP54 applies only with the lid closed and the cable entry properly sealed.
    • Mount so that cable entries are at the bottom or protected from running water.

    Quick selection guide

    1×Schuko 16 A 230 V
    IP54, IK08
    103×103×55 mm
    No protection, Class II
    Suitable when you need:
    • One 230 V socket in a damp or dusty location
    • A fixed wall-mounted socket point
    • A simple solution where protection is in the board
    Check before choosing:
    • Whether the line has a 16 A breaker and 30 mA RCD
    • Whether a three-phase CEE socket is needed
    • Whether the location is hit directly by water jets
    • How many sockets you need (1, 2 or 4)
    Important reminder: Famatel 3061 does not replace protection: there is no breaker or RCD in the box. The socket circuit must be protected in the board by a 16 A breaker and a 30 mA RCD.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Is there a breaker or RCD in the box?
    No. Inside there is only a pre-wired Schuko socket. Protection – a 16 A breaker and 30 mA RCD in the board.
    Can it be installed outdoors?
    The manufacturer specifies indoor and outdoor use; IP54 protects against splashes, but a shelter is better against direct rain and jets.
    Is a cable with plug included?
    No, it is a fixed surface-mounted box; the supply cable is brought in and connected by an electrician.
    What type of socket is it?
    Schuko (CEE 7/3, type F) 2P+PE 16 A 250 V with side earthing contacts – the common domestic socket in the Baltics.
    What are the dimensions?
    103×103×55 mm, weight 0.224 kg.
    Can a powerful appliance be connected?
    Yes, up to 16 A (about 3.6 kW at 230 V) if the line and breaker are sized for that load; for long-term heavy loads use a dedicated circuit.

    Sources: Famatel product page famatel.com (3061), technical data sheet DT_3061, declaration of conformity CE_3061. Checked 2026-10-20.

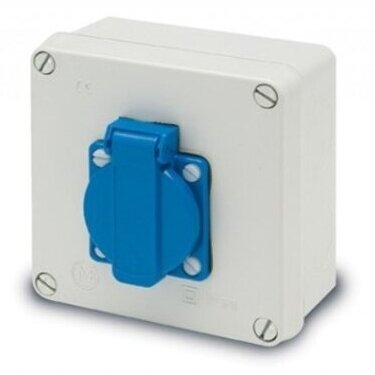

    Famatel 3061 – box with 1×Schuko, IP54

    Weatherproof Famatel 3061 AcquaBOX with one Schuko 16 A 230 V socket, IP54, IK08, Class II halogen-free ABS enclosure – for garages, workshops and sheltered outdoor locations.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
