  • New item   Weatherproof socket box | 4×Schuko 16 A 230 V | AcquaBOX | IP54 | IK08 | Famatel 3065

    Weatherproof socket box | 4×Schuko 16 A 230 V | AcquaBOX | IP54 | IK08 | Famatel 3065

    Code: 3065
    Inquire about this item
    Price 27.98 € VAT incl.
    ( 23.12 € VAT excl. )
    Want another price? Suggest yours!

    Weatherproof Famatel 3065 AcquaBOX with four factory-wired Schuko 16 A 230 V sockets. IP54, IK08, Class II insulation, halogen-free ABS, 135×160×83 mm. No protective devices – a 16 A breaker and 30 mA RCD in the board.

  • Product description

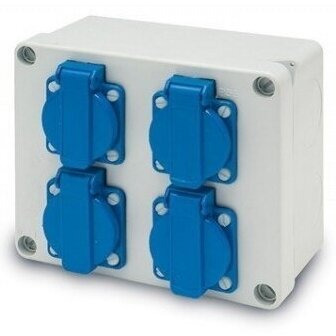

    Weatherproof socket box | 4×Schuko 16 A 230 V | AcquaBOX | IP54 | IK08 | Famatel 3065

    Famatel 3065 AcquaBOX – weatherproof surface-mounted box with four factory-wired Schuko 16 A 230 V sockets. For fixed supply of single-phase appliances in garages, workshops, warehouses and outdoors. IP54, IK08, Class II enclosure made of halogen-free ABS.

    Key point:
    Four sockets in one sealed box give a connection point for several tools or appliances without extension leads on the floor. The sockets are factory-wired, so the electrician only brings in and connects the cable. There are no protective devices inside – a 16 A breaker and 30 mA RCD are selected in the board.
    Sockets
    4×Schuko 16 A 230 V
    Protection
    IP54, IK08
    Dimensions
    135×160×83 mm
    Mounting
    surface, Class II

    How it works

    The box is fixed to a wall or other flat surface. The supply cable enters through one of the entries (5 at the top, 4 at the bottom) and is connected to the factory-wired sockets.

    Four Schuko 2P+PE 16 A 250 V~ sockets with side earth contacts accept standard 230 V appliance plugs.

    IP54 protects against dust and splashing water from all directions with the lid closed, IK08 against moderate impacts. All four sockets are fed from the same 16 A line, so their total load is limited by the line breaker.

    Why choose Famatel 3065?
    Workshops and garages often lack sockets, and extension leads on wet floors are a risk. The 3065 provides four sockets in one sealed Class II enclosure fixed to the wall.

    Technical specifications

    Product type Weatherproof socket box with 4 Schuko sockets (no protective devices)
    Manufacturer / model Famatel / 3065 AcquaBOX
    Sockets 4×Schuko 2P+PE 16 A, factory-wired
    Rated voltage 230 V (sockets rated 250 V~)
    Protective devices none
    Degree of protection IP54
    Impact resistance IK08
    Dimensions (H×W×D) 135×160×83 mm
    Enclosure ABS, grey RAL 7035, halogen-free
    Insulation class II
    Glow-wire test 750 °C (live-part supports), 650 °C (other parts)
    Cable entries 5 at the top, 4 at the bottom
    Mounting surface, indoor and outdoor
    Operating temperature −25…+40 °C
    Weight 0.568 kg
    Standards EN 60670-22, UNE 20315-1-1 / UNE 20315-1-2 (IEC 60884), UNE 211002

    Main functions

    • Four Schuko 16 A sockets – several appliances at one point.
    • Factory-wired sockets – the electrician only connects the supply cable.
    • IP54 – protection against dust and splashing water with the lid closed.
    • IK08 – resistance to moderate impacts.
    • Class II insulation – no exposed metal parts.
    • Halogen-free ABS – glow-wire test 750/650 °C.
    • Several cable entries – cable can enter from the top or the bottom.

    How does it differ from similar products?

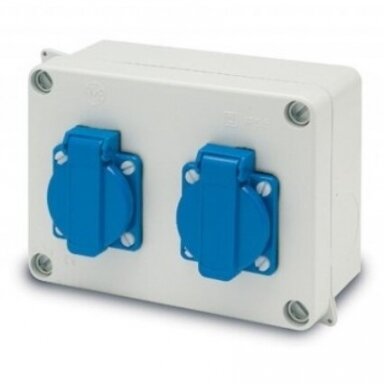

    Famatel 3064 (8578) Fewer 230 V sockets.
    Famatel 3061 (8575) Only one 230 V socket.
    Famatel 3074 0033E (8581) 1×CEE 16 A 400 V + 3×230 V – when a three-phase socket is also needed.
    SEZ ROS1605S (575) 2×CEE 16 A – two three-phase loads.

    Where is it used?

    • Garages and car boxes
    • Workshops and repair areas
    • Warehouses and loading ramps
    • Farm buildings and sheds
    • Boiler rooms and plant rooms
    • Terraces and yards (under a canopy)
    • Connection points for cleaning and maintenance equipment

    Use by need

    For beginners.
    A box with four household sockets that tolerates dust and splashes. It must be connected by an electrician, supplied from a board with a 16 A breaker and a 30 mA RCD.
    For experienced installers.
    The manufacturer specifies 5 entries at the top and 4 at the bottom; seal the entry with a gland or membrane matching the cable diameter. Remember that the four sockets share one 16 A line.
    For power engineers / designers.
    The product complies with EN 60670-22 (boxes) and IEC 60884 (sockets) – it is a socket box, not an assembly to EN 61439-3. Provide separate lines for high-power loads (heaters, pressure washers).

    Practical use

    A Famatel 3065 next to a workbench is supplied by a 3×2.5 mm² cable from a board with a 16 A breaker and a 30 mA RCD. A charger, work light, drill and vacuum cleaner are plugged in at the same time; the IP54 enclosure protects against dust and splashes.

    Pros / advantages

    • Four Schuko 16 A sockets in one sealed box
    • IP54 and IK08
    • Class II insulation
    • Factory-wired sockets
    • Halogen-free ABS, glow-wire test 750/650 °C
    • Dimensions 135×160×83 mm

    Cons / limitations

    • No breaker or RCD – protection must be in the board.
    • All sockets share one 16 A line – several powerful appliances at once may trip the breaker.
    • No CEE socket for three-phase equipment – see Famatel 3067 (8567) or SEZ ROSP 1631 D/S (577).
    • IP54 – not for water jets or permanent immersion; a canopy is recommended outdoors.

    Safety and installation notes

    • ⚡ Connection must be made by a qualified electrician, with the supply switched off.
    • ⚡ Protect the socket circuit with a 16 A breaker (or lower, matched to the cable) and a 30 mA RCD – the box has no separate 16 A protection.
    • The total load of all four sockets must not exceed the rated current of the line breaker.
    • Connecting the PE conductor of the Schuko sockets is mandatory.
    • On construction sites supply the box only from a construction site distribution board (HD 60364-7-704).
    • IP54 applies only with the lid closed and the cable entry properly sealed.
    • Install so that the cable entries face down or are protected from running water.

    Quick selection guide

    4×Schuko 16 A 230 V
    IP54, IK08
    135×160×83 mm
    No protection, Class II
    Suitable when you need:
    • Four 230 V sockets in a damp or dusty location
    • A fixed wall-mounted socket point
    • A simple solution when protection is in the board
    Check before choosing:
    • Whether the line has a 16 A breaker and a 30 mA RCD
    • Whether the total of all connected appliances stays within 16 A
    • Whether a three-phase CEE socket is needed
    • Whether the location is directly exposed to water jets
    Important reminder: Famatel 3065 does not replace protection: the box has no breaker and no RCD. The four sockets share one 16 A line with a 30 mA RCD in the board.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Does the box contain a breaker or RCD?
    No. Inside there are only four factory-wired Schuko sockets. Protection – a 16 A breaker and a 30 mA RCD in the board.
    What is the degree of protection – IP44 or IP54?
    According to the manufacturer it is IP54 (dust and splash protection), with the lid closed.
    Can four powerful appliances be used at once?
    The total of all sockets must not exceed the line breaker (usually 16 A). Heaters or pressure washers are better on separate lines.
    Can it be installed outdoors?
    The manufacturer specifies indoor and outdoor use; protect it from direct rain and water jets with a canopy.
    What type of sockets?
    Schuko 2P+PE 16 A 250 V~ with side earth contacts – the standard household sockets in the Baltics.
    What are the dimensions?
    135×160×83 mm, weight 0.568 kg.

    Sources: Famatel product page famatel.com (3065), technical data sheet DT_3065. Checked 2026-10-20.

    Famatel 3065 – box with 4×Schuko, IP54

    Weatherproof Famatel 3065 AcquaBOX with four Schuko 16 A 230 V sockets, IP54, IK08, Class II halogen-free ABS enclosure – for garages, workshops and warehouses.
