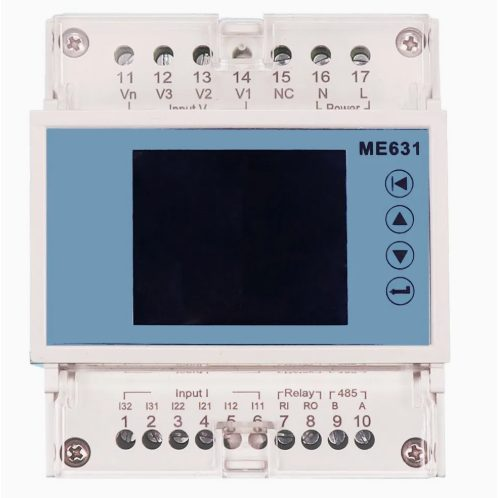

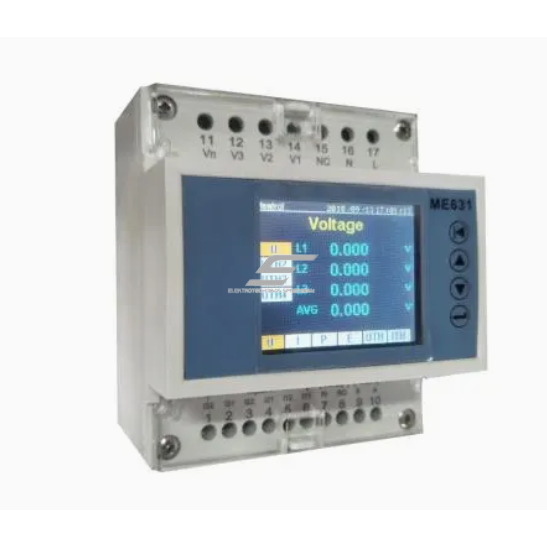

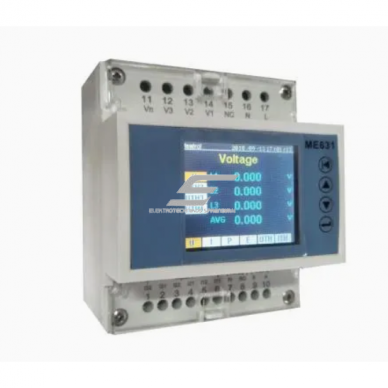

  • Multi-channel three-phase energy analyzer | with data logging | LCD display | accuracy class 0.5S | MODBUS RS485 | ME631-SD

    Code: ESME631-SD

    Multi-channel three-phase smart energy analyzer with an integrated data logger, designed for accurate real-time monitoring and long-term analysis of electrical energy, power, and power quality. The device is specifically adapted for operation with Rogowski coils and 333 mV CT sensors, allowing safe measurement of very high currents up to 5000 A without interrupting electrical circuits. The integrated SD card data logger (up to 32 GB), harmonic analysis up to the 51st harmonic (THD), and MODBUS RS485 communication make the device a fully featured energy analyzer suitable for industrial, commercial, infrastructure, and renewable energy projects.

  • Technical Specifications

    Type: Multi-channel three-phase energy analyzer with data logger
    Model: ME631-SD
    Mounting: DIN rail
    Power supply: 85–240 V AC
    Communication: MODBUS RS485
    Accuracy class: 0.5S
    Harmonic analysis: up to the 51st harmonic (THD)
    Data storage: SD card up to 32 GB
    Internal memory: via SD card
    Display: Color LCD with real-time measurements
    Supported current sensors: Rogowski coils; 333 mV CT
    Rated current (selectable): 500 A / 1000 A / 3000 A / 5000 A
    Current coefficients: 50 mV/kA; 85 mV/kA; 333 mV/kA (configurable)
    Voltage measurement: Direct or via VT – up to 500 kV
    Recorded parameters: Current; Voltage; Active, reactive and apparent power; Electrical energy; Power factor (cos φ); Demand; Harmonic spectrum and THD; Maximum / minimum values

    Functions

    Multi-channel three-phase measurement
    Integrated data logger
    Long-term energy and power data storage
    Harmonic analysis up to the 51st harmonic
    MODBUS RS485 – integration with BMS, SCADA, EMS, PLC systems
    Operation with Rogowski coils – safe installation without power interruption

    Applications

    For engineers / energy specialists: Power network and power quality analysis, harmonic distortion (THD) assessment, load analysis, and energy audits
    Industrial and commercial facilities: Monitoring of production lines, building energy management systems (BMS), data collection for optimization and reporting
    Renewable energy projects: Monitoring and analysis of solar power plants and inverters, transformers and main feeders, long-term energy data logging

    Advantages

    Integrated SD card data logger (32 GB)
    High measurement accuracy 0.5S
    Harmonic analysis up to the 51st harmonic (THD)
    Current measurement up to 5000 A using Rogowski coils
    MODBUS RS485 – industrial standard
    Professional DIN rail mounting

    Disadvantages

    Rogowski coil not included
    Correct current coefficient must be selected in advance
    Designed for technical users (not consumer “plug & play”)

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
