Panel-mounted | Digital 380V power network analyzer three-phase | 10mA-5.500A

Technical Specifications:
Power Supply: 85V - 240V AC
Frequency: 50/60 Hz
Power Consumption: <10VA
Operating Temperature: -20°C.....+55°C
Voltage Input: 5V ~ 330V AC
Voltage Measurement Range: 5V ~ 330kV
Current Input: 10mA ~ 5.5A
Current Measurement Range: 10mA ~ 5.500A
Voltage and Current Accuracy: ±0.5%
Active Power Accuracy: ±1%
Reactive Power Accuracy: ±2%

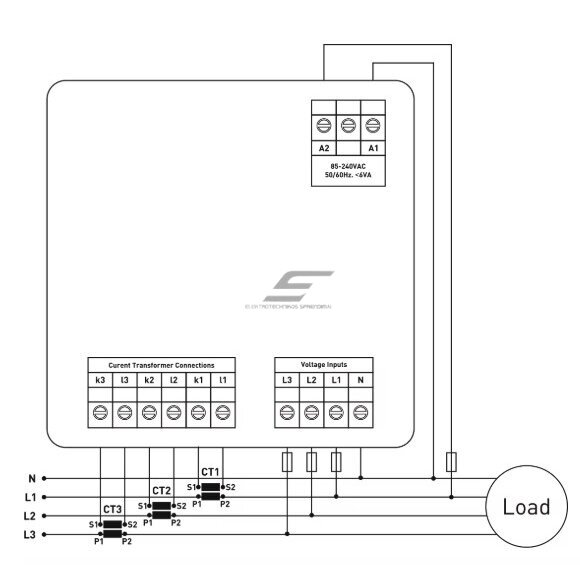

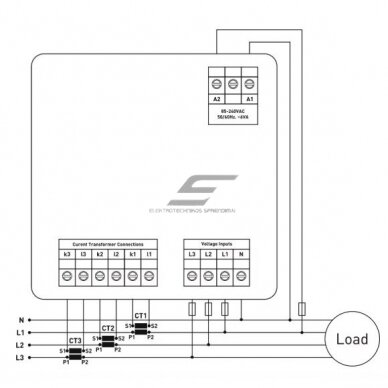

Supported Connection: 3P4W (three-phase, four-wire)
Current Transformer Ratio: 1....1000
Voltage Transformer Ratio: 1.0....999.9

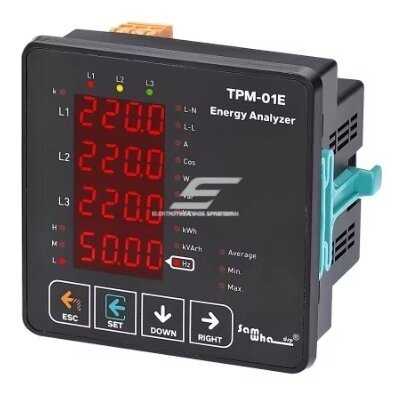

Display: 4x4-digit LED display (14mm), 20 LED indicators
Weight: <300g
Protection Class: IP41 (front panel), IP20 (housing)

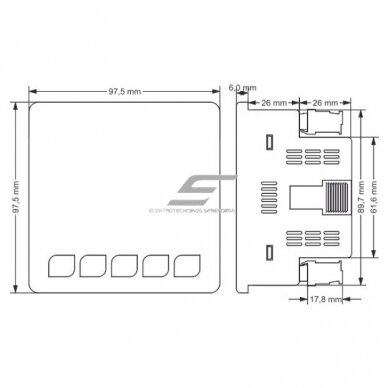

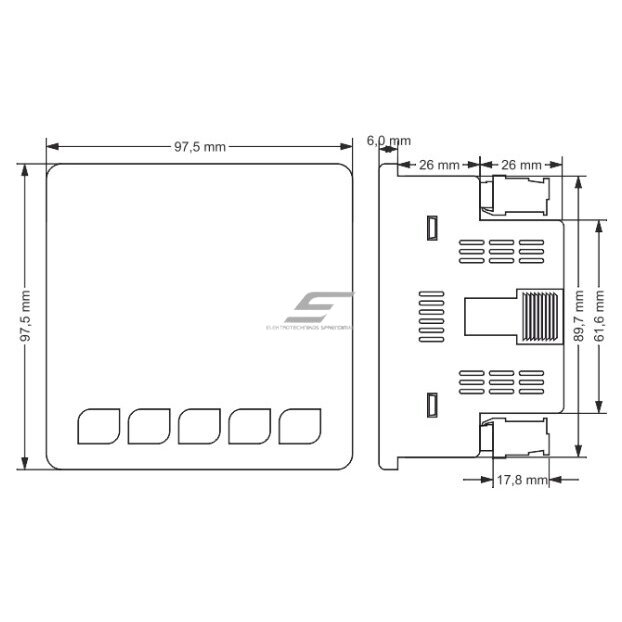

Mounting Hole Size: 91mm x 91mm
Connection Type: Plug-in terminal connector
Wire Diameter: 1.5mm²
Mounting: Panel-mounted
Operating Altitude: <2000m
Features:
Easy installation and operation: 4×4-digit LED display and user-friendly menu
Accurate power analysis: Measures voltage, current, active (P) and reactive (Q) power, and power factor (cosφ)
Per-phase monitoring: Displays individual phase voltage, current, power, and energy consumption
Total energy consumption: Shows imported and exported active energy (ΣkWh) and reactive energy (ΣkVArh)
Max/min value tracking: Captures highest and lowest voltage and current values
Protection functions: Password-protected settings, energy data reset option
Additional functions: Built-in timer, thermostat, voltmeter, and ammeter
Applications:
Industrial power networks – Load monitoring, efficiency analysis
Building electrical systems – Energy consumption tracking and optimization
Manufacturing facilities – Power balancing, load analysis
Solar and wind power plants – Electricity generation and consumption monitoring
Energy sector – Power grid monitoring and analysis
Pros:
Wide measurement range – Supports up to 330kV voltage and 5.5A current
High measurement accuracy – ±0.5% for voltage and current, ±1% for active power
Modular design – Easily panel-mounted
Security functions – Password-protected interface
Additional features – Built-in timer, voltmeter, ammeter, and thermostat
Cons:
Not suitable for humid environments – Must be installed in a dry location (IP41 front panel, IP20 housing)
Requires an additional current transformer for high loads (>5.5A)
Installation depth may be limiting – Ensure enough space in the panel
A three-phase energy analyzer is an advanced electrical measurement device offering high accuracy, easy installation, and extensive functionality. With additional features such as a timer, thermostat, voltmeter, and ammeter, this device is an excellent choice for industrial applications, energy monitoring, and building electrical systems.
