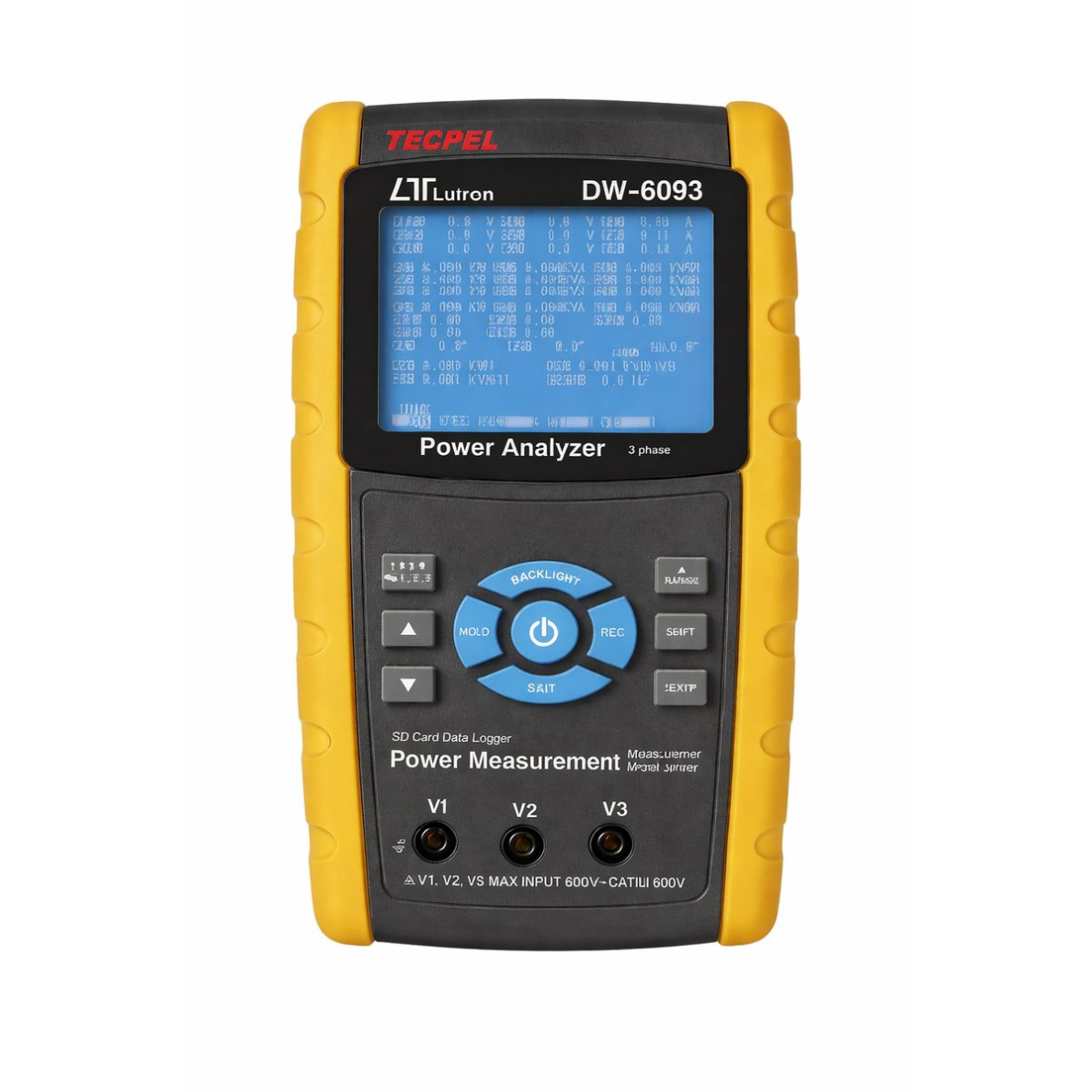

  • Portable three-phase electrical network analyzer | 3000A | 0–600V | digital display | non-invasive measurement with clamp | data logging

    Code: ES-DW-6093

    Three-phase electrical network analyzer designed for real-time monitoring, analysis, and recording of electrical parameters. This device allows precise evaluation of network condition, detection of disturbances, and optimization of energy usage in industrial, commercial, and technical facilities. Thanks to its wide measurement range (up to 3000A and 600V) and integrated data logging function, it is an indispensable tool for every specialist working with electrical systems.

  • Technical Specifications

    Type: three-phase electrical network analyzer / tester
    Measurement type: digital
    Measurement functions: real-time electrical parameter analysis
    Current measurement range: 20 – 3000 A (AC)
    Max. AC current: 3000 A
    Max. DC current: 300 A
    Voltage measurement range: 0 – 600 V

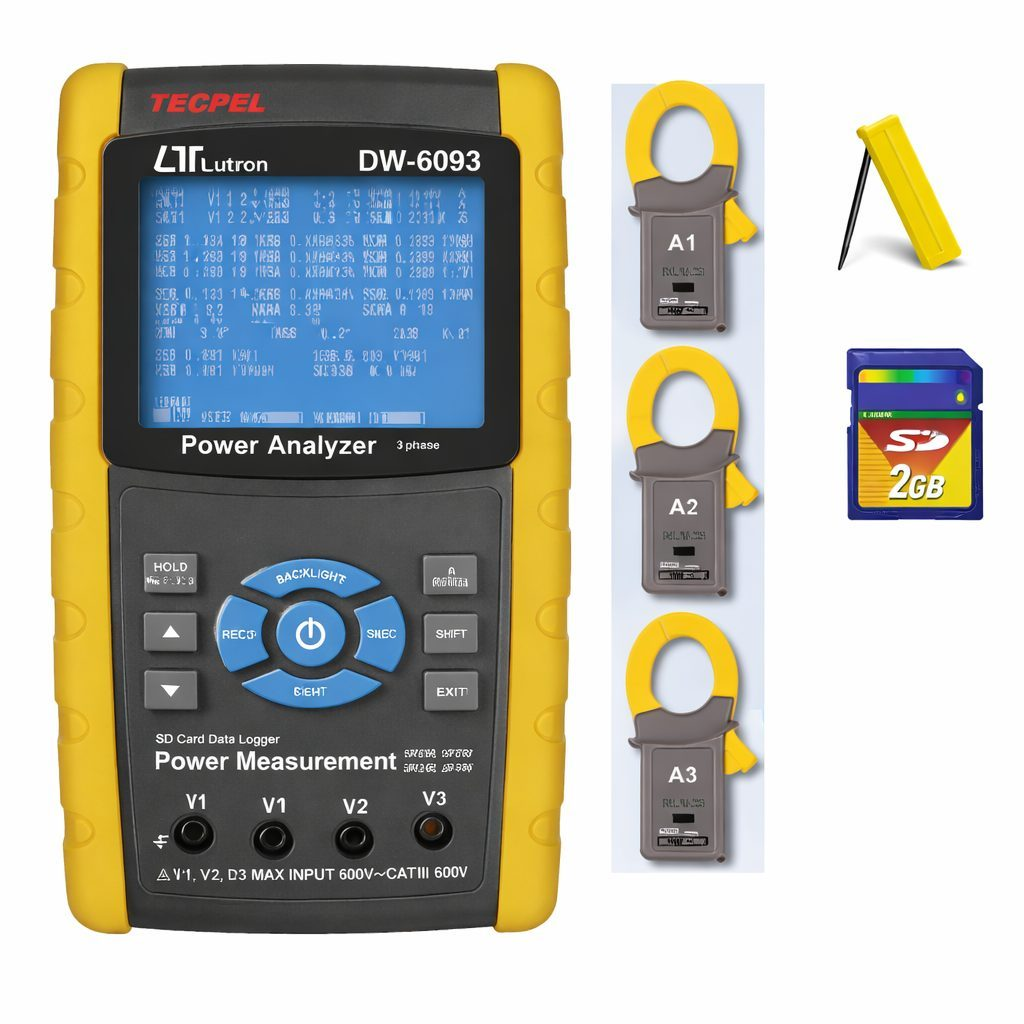

    Current measurement: via clamp meter
    Clamp opening: Ø33 mm
    Data logging: yes
    Display: digital
    Operating temperature: +4°C ... +45°C
    Dimensions: 22.5 x 12.5 x 6.4 cm
    Device: ~948 g
    Clamps: ~467 g
    Certification: CE
    Application: multi-phase systems

    Functions

    Real-time three-phase network analysis – allows monitoring of electrical parameters (current, voltage) during operation
    Data logging (Data Logger) – records measurements for later analysis
    High current measurement up to 3000A – suitable for industrial loads and powerful equipment
    Voltage measurement up to 600V – allows testing both single-phase and three-phase systems
    Non-invasive measurement with clamps – no need to disconnect or interrupt the circuit
    Network condition diagnostics – helps detect imbalance, overloads, or voltage drops
    High measurement accuracy (±1%) – ensures reliable and precise results
    Digital display – clearly shows measurement data in real time

    Usage

    For home users: Analysis of solar power systems or generators, monitoring electricity consumption in larger households, checking power network stability
    For engineers / energy specialists: Power quality analysis in industry, load balancing between phases, electrical network optimization, fault diagnostics (voltage drops, imbalance)
    For electricians / service specialists: Quick on-site measurement without disassembling circuits, testing electrical panels, checking loads of motors and transformers, maintenance and service work

    Practical application

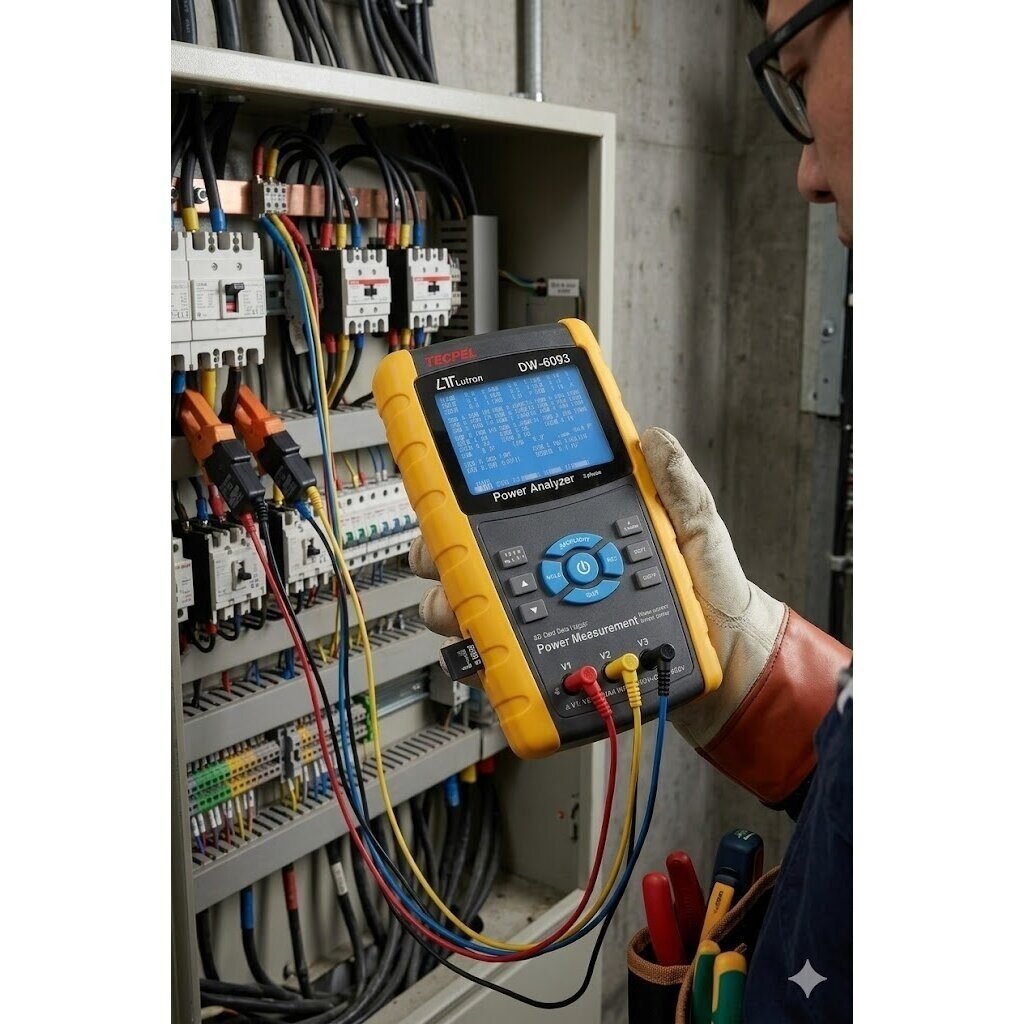

    In electrical panels – quickly check current, voltage and phase balance
    Equipment diagnostics – monitor loads of motors or devices during operation
    Service work – detect faults without dismantling installation (using clamps)
    Solar systems – check inverter operation and load distribution
    Commercial facilities – analyze energy consumption and peaks
    At home – monitor network load or generator operation

    Advantages

    Wide measurement range (up to 3000A / 600V)
    Data logging
    Non-invasive measurement with clamps
    Compact and portable
    Suitable for professional use
    High accuracy and reliability

    Disadvantages

    No additional functions (e.g., capacitance or resistance measurement)
    Requires experience with three-phase systems
    Limited operating temperature range (not for extreme conditions)

    Can current be measured without disconnecting the circuit?
    Yes, clamp meters allow measurement without direct contact.

    Is this device suitable for three-phase systems?
    Yes, it is specifically designed for three-phase analysis.

    Can measurement data be stored?
    Yes, the device has a Data Logger function.

    Can it be used with solar power systems?
    Yes, it is ideal for inverter and load analysis.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
