Portable three-phase power network analyzer | power quality meter | harmonic analysis | high accuracy

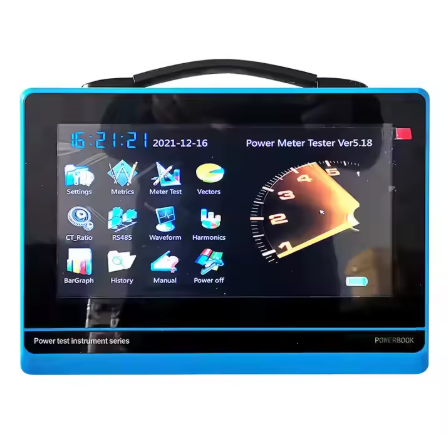

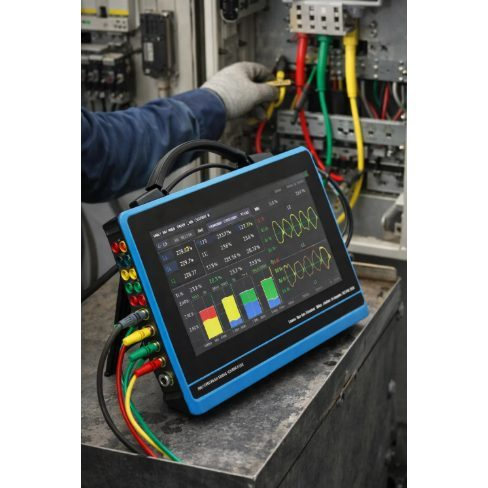

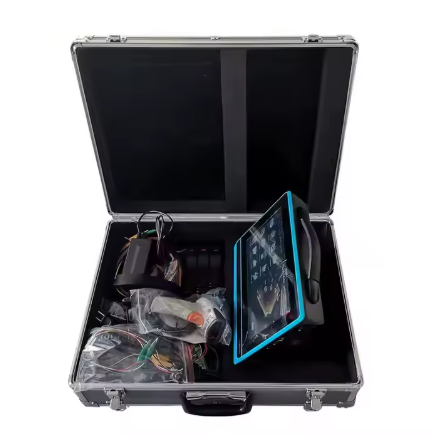

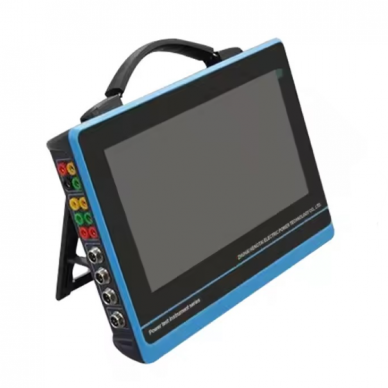

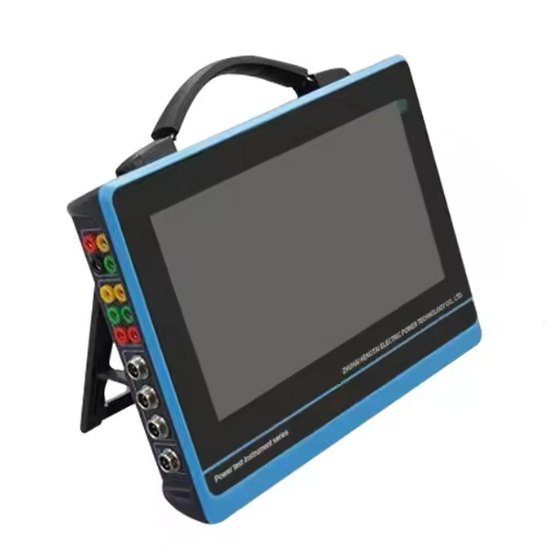

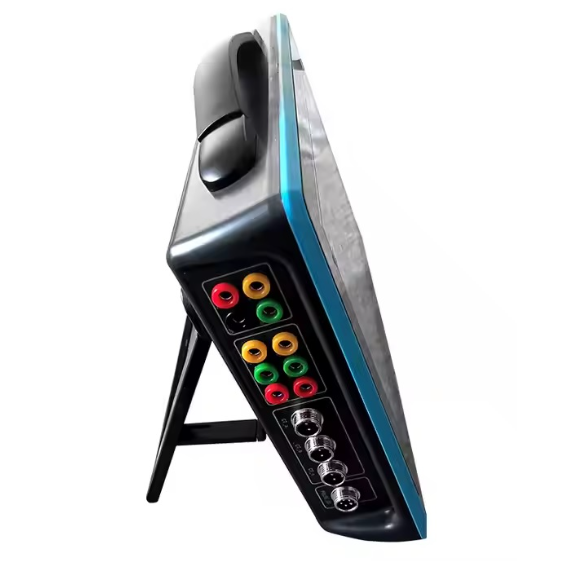

Code: ES-JS9600Price 6274.49 € VAT incl.( 5185.53 € VAT excl. )Portable three-phase power quality analyzer designed for comprehensive electrical network analysis and diagnostics. This multifunctional meter allows precise evaluation of voltage, current, frequency, phases, and other electrical parameters, identification of disturbances, and optimization of energy usage. Due to its compact design and high accuracy, the analyzer is an indispensable tool for engineers, energy specialists, electricians, and maintenance personnel, as well as useful for advanced users seeking full control of their electrical system.
-
Technical Specifications
Type: three-phase power quality analyzer
Voltage range: 0 – 400 V
Current input: 0A / 5A (double overload tolerance)
Frequency: 45 – 55 Hz
Phase measurement range: 0 – 359.999°
Transformer ratio accuracy: ±0.5%
Measurement accuracy: high (industrial level)
Warm-up time: < 3 min
Dimensions: 280 × 210 × 60 mm
Weight: ~2 kg
Functions: power quality analysis, spectrum analysisFunctions
Three-phase electrical analysis – allows simultaneous monitoring of voltage, current, and other parameters of all three phases
Power quality analysis – detects voltage fluctuations, disturbances, and grid instability
Spectrum (harmonic) analysis – analyzes harmonics and noise that may interfere with equipment operation
Phase sequence detection – shows correct phase order, important for motor and equipment startup
Phase angle measurement (0–360°) – allows precise evaluation of phase relationships
Voltage measurement (0–400V) – accurately measures network voltage in real time
Current measurement (via CT 0/5A) – allows current measurement using current transformers
Transformer ratio testing – checks accuracy and operation of CT/PT transformers
Fast startup (<3 min) – device is ready for operation in a very short time
Portable design – convenient for on-site use without complex installationUsage
For advanced home users: Analysis of solar power systems (PV), checking grid stability, monitoring generator systems
For engineers / energy specialists: Power quality analysis in industry, identification of energy losses, harmonic and disturbance analysis, transformer and system testing
For electricians: Testing electrical installations before startup, checking phase sequence, on-site diagnostics, panel and equipment commissioning
Industry / commercial: Production line diagnostics, energy efficiency audits, power quality monitoringPractical application
Fault diagnostics – quickly identify voltage fluctuations, phase errors, or grid instability on site.
Equipment startup – phase sequence and parameters are checked before connecting motors or systems.
Electrical panel testing – real network data is verified during installation.
Power quality evaluation – harmonics and losses are identified.
Solar system analysis – inverter and grid operation are monitored.Advantages
High measurement accuracy
Wide range of functions (all-in-one)
Portable and easy to use
Fast startup
Suitable for both diagnostics and analysisDisadvantages
Requires specific knowledge to fully utilize functions
Not a simple plug & play device for beginners
May require additional current transformers (CT)Is this device suitable for three-phase networks?
Yes, it is specifically designed for three-phase system analysis.Can it be used for solar systems?
Yes, it is perfectly suitable for PV system analysis and monitoring.Does the device measure harmonics?
Yes, it has a spectrum analysis function.Are additional accessories required?
Current transformers (CT) are often used, depending on the system.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
