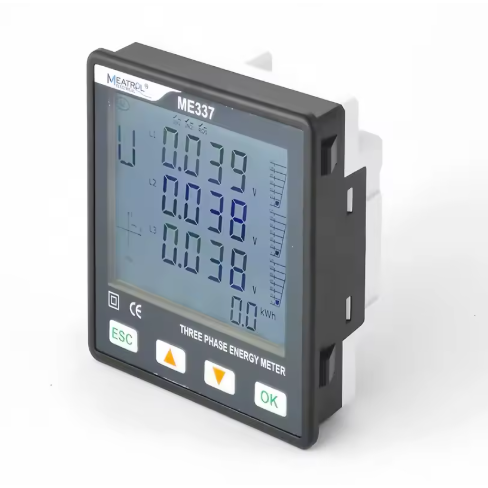

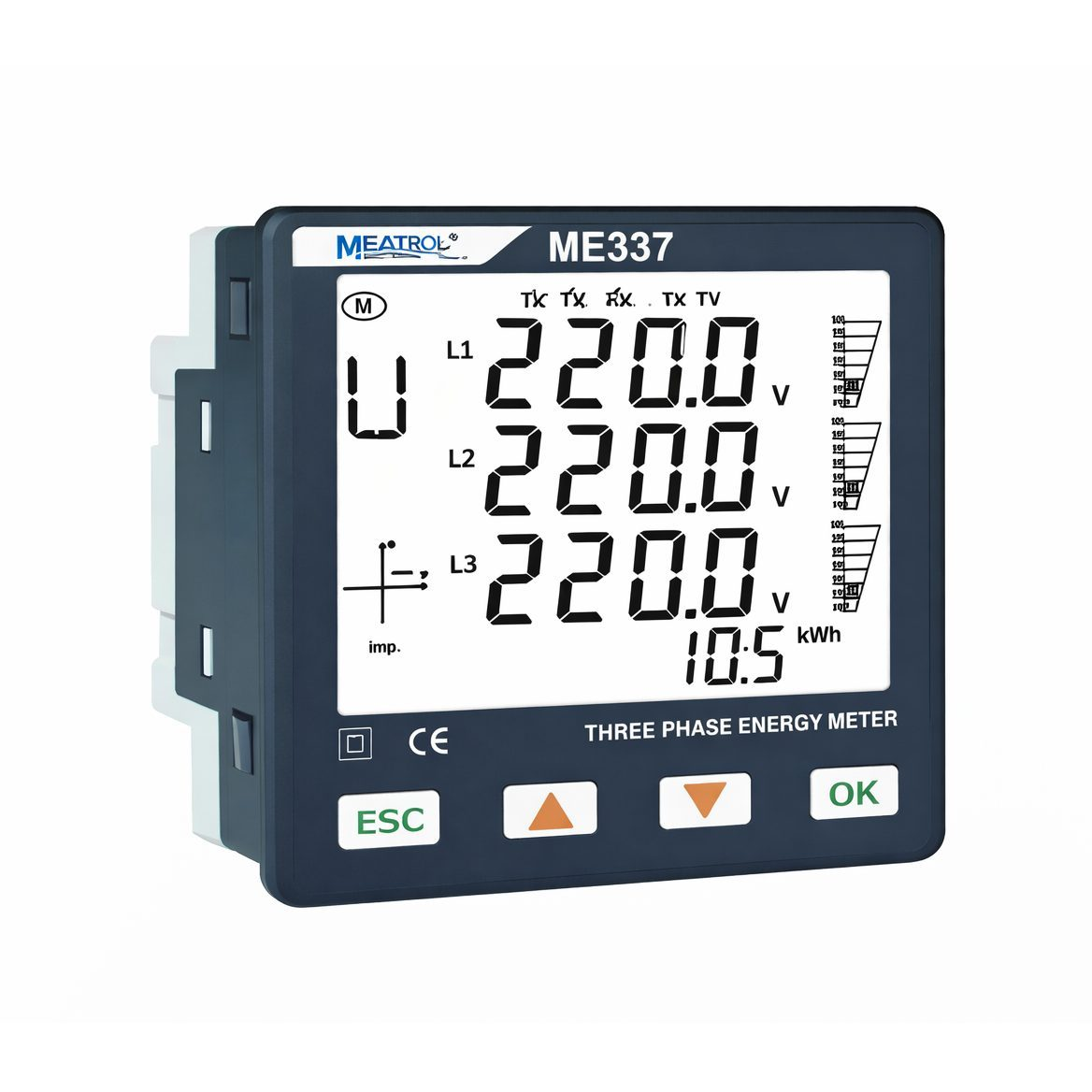

  • Rogowski panel power analyzer | voltage and current measurement | 12–24 V DC | 3-in-1 current input | RJ45 | LCD display | 6 tariffs | MODBUS RS485 | ME337NR3

    Code: ESME337NR3

    A panel-mounted smart power analyzer designed for real-time monitoring of single-phase and three-phase electrical networks, energy control, and power quality assessment. This model is developed for operation in low-voltage (12 V / 24 V DC) systems, making it suitable for automation cabinets, industrial controllers, solar power plants, telecommunications, and transport infrastructure. A key advantage of the device is the 3-in-1 current input via an RJ45 connector, enabling fast and tidy connection of all three-phase Rogowski coils or 333 mV current transformers (CTs), reducing wiring complexity and the risk of installation errors.

  • Technical Specifications

    Type: Panel-mounted power analyzer
    Model: ME337ND2
    Installation: Fixed (panel-mounted)
    Communication: MODBUS RS485
    Power supply: 12 V or 24 V DC; auxiliary range: 5–30 V DC
    Harmonic analysis: up to the 50th (real-time display)
    Tariffs: 6
    Alarms: yes
    Data logging: no

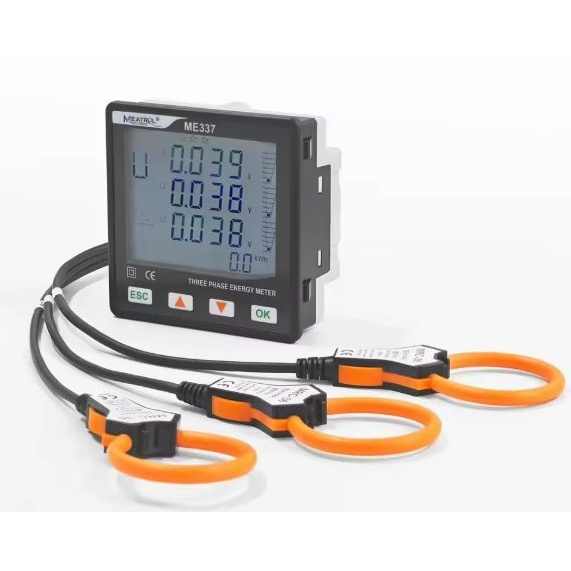

    Current measurement – 3-in-1 solution:
    Three-phase current input via a single RJ45 connector

    Supported current sensors:
    Rogowski coils; 333 mV current transformers (CT)
    Connections: STP + RJ45

    Configurable current ranges:
    10 A / 100 A / 500 A / 1000 A / 3000 A / 6000 A (software configurable)

    Current signal coefficients:
    50 mV/kA @50 Hz; 85 mV/kA @50 Hz; 333 mV/kA (0–634 mV AC RMS)

    Current measurement accuracy: ±0.1 % (depending on sensor)

    Measured parameters:
    Current; Voltage; Active, reactive and apparent power; Power factor; Electrical energy; Phase angle and imbalance; Load; Harmonic values; Phasor diagram

    Inputs / outputs:
    1 relay output; 1 digital input; alarm function (based on set limits)

    Functions

    Voltage and current measurement – real-time monitoring of network parameters
    Power and energy analysis – evaluation of active and reactive power and consumption
    Harmonic analysis (up to the 50th) – detection of power quality distortions
    Phasor and imbalance analysis – assessment of phase loading and balance
    Alarms and relay output – alerts when preset thresholds are exceeded
    MODBUS RS485 communication – integration with BMS / SCADA systems

    Applications

    For engineers / energy specialists: Power and harmonic analysis, phase imbalance and load evaluation, integration with BMS / SCADA via MODBUS RS485, suitable for solar, battery-based and DC-powered systems
    For industrial and commercial facilities: Continuous power network monitoring, energy consumption control, alarm signaling in case of deviations
    For electricians: Quick voltage, current and load checks in panels, easy integration into existing switchboards, operation with Rogowski coils without disconnecting the line, convenient use in 12 V / 24 V DC systems

    Advantages

    3-in-1 current input via RJ45
    12–24 V DC power supply
    Harmonic analysis up to the 50th
    Wide current range up to 6000 A
    MODBUS RS485 integration
    High measurement accuracy

    Limitations

    No internal data logging
    Rogowski coils / CTs not included
    Designed for fixed (panel-mounted) installation

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
